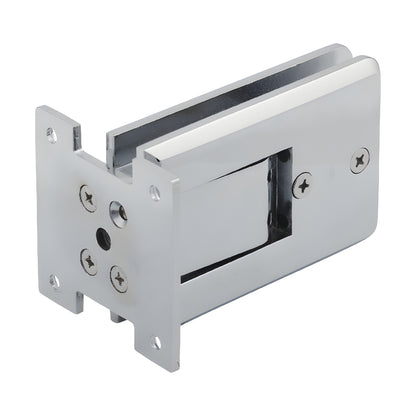

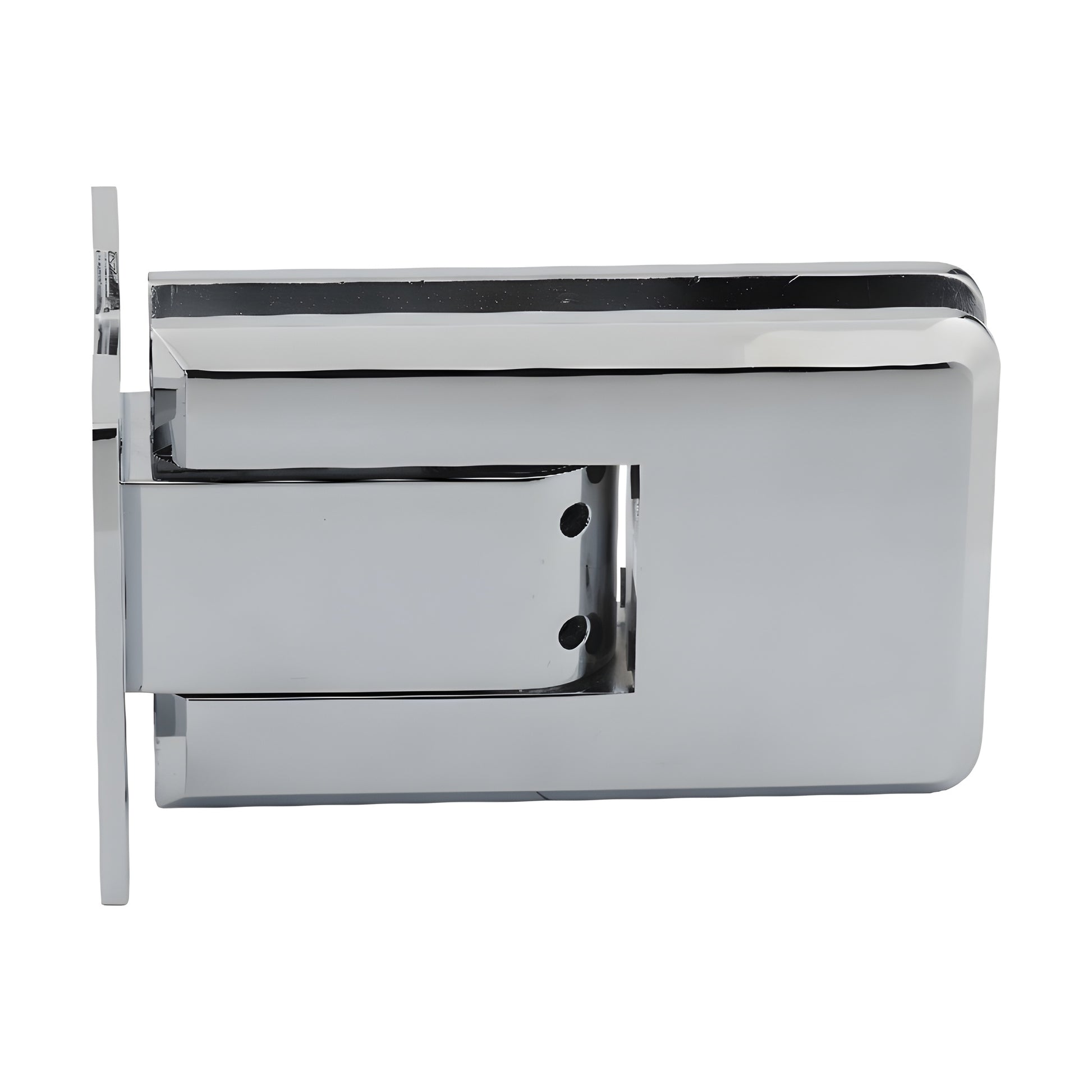

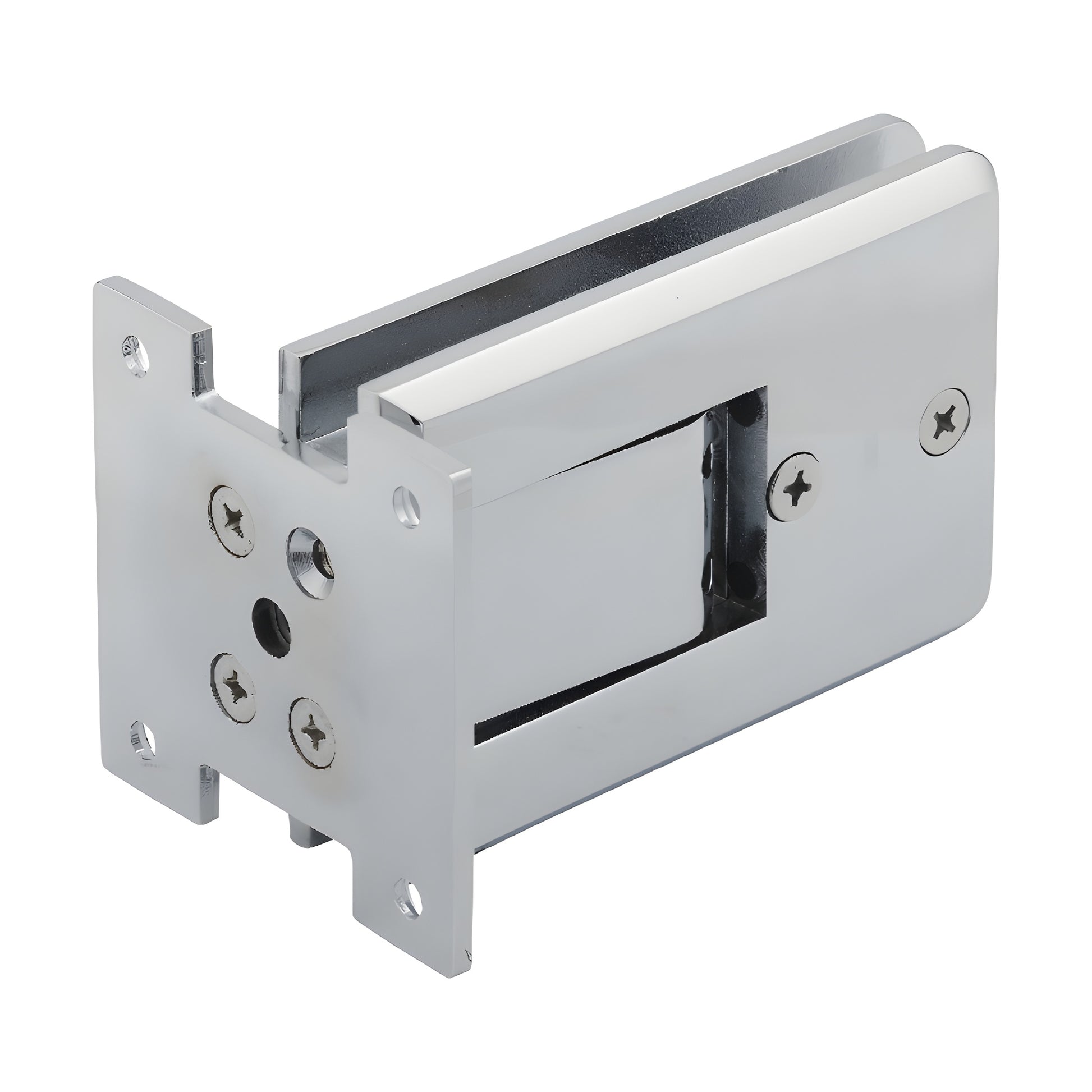

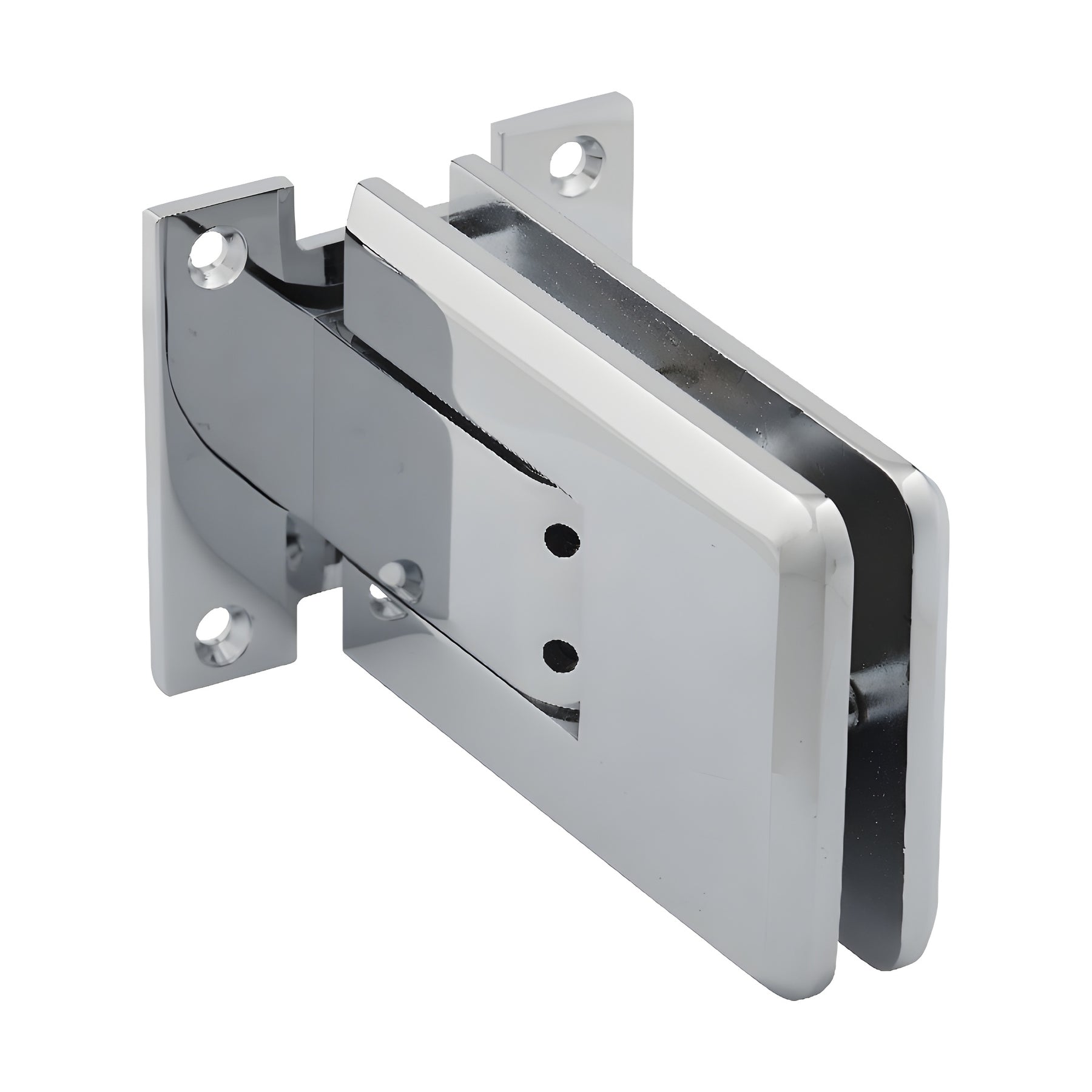

CRL Atlas Polished Chrome Frameless Glass Shower Door Hinge

• Self-centering function with adjustable spring strength
• Holds open at 90 degrees
• Designed for monolithic tempered glass
• Easy to set closed position for precise alignment
• For large interior tempered glass doors: 5/16", 3/8" or 1/2" (8, 10 or 12 mm)
• Easy closed-position adjustment for double door or inline panel applications
• Available in four architectural finishes

The CRL Atlas Series "All-Glass" Door Hinge (SKU: ATL01CH) combines minimal visible hardware with heavy-duty, double-acting performance. Two hinges create an all-glass door or gate for interior applications up to 140 lbs (63.5 kg) and 39" (1 m) wide — an ideal solution for tempered glass shower doors, interior glass gates, and frameless glass installations.

Automatic self-centering from any position removes the need for a separate closer; the hinge holds open at 90° and offers easy-to-set custom closed positioning. Solid brass construction with stainless steel internal components resists corrosion in moist environments, making it suitable for residential and hotel shower use.

• Glass thickness: 5/16" to 1/2" (8 to 12 mm)
• Construction: Solid brass with stainless steel components
• Hinge swings: 90° inward and outward (double-acting)
• Closing type: Self-centering from 0°–50° with precise closing to 0°
• Includes gaskets, Phillips screws, and glass fabrication dimensions (notch and hole required)

Note: Do not exceed two hinges per door. Use only the template included with this hinge; cut-out dimensions for CRL hinges may not match other brands.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. If you plan to use hinges for other purposes, obtain approval from CRL Shower Door Technical Sales.

Order the Atlas Series all-glass door hinge (SKU: ATL01CH) for reliable, corrosion-resistant performance in frameless tempered glass door applications — add to cart now.
