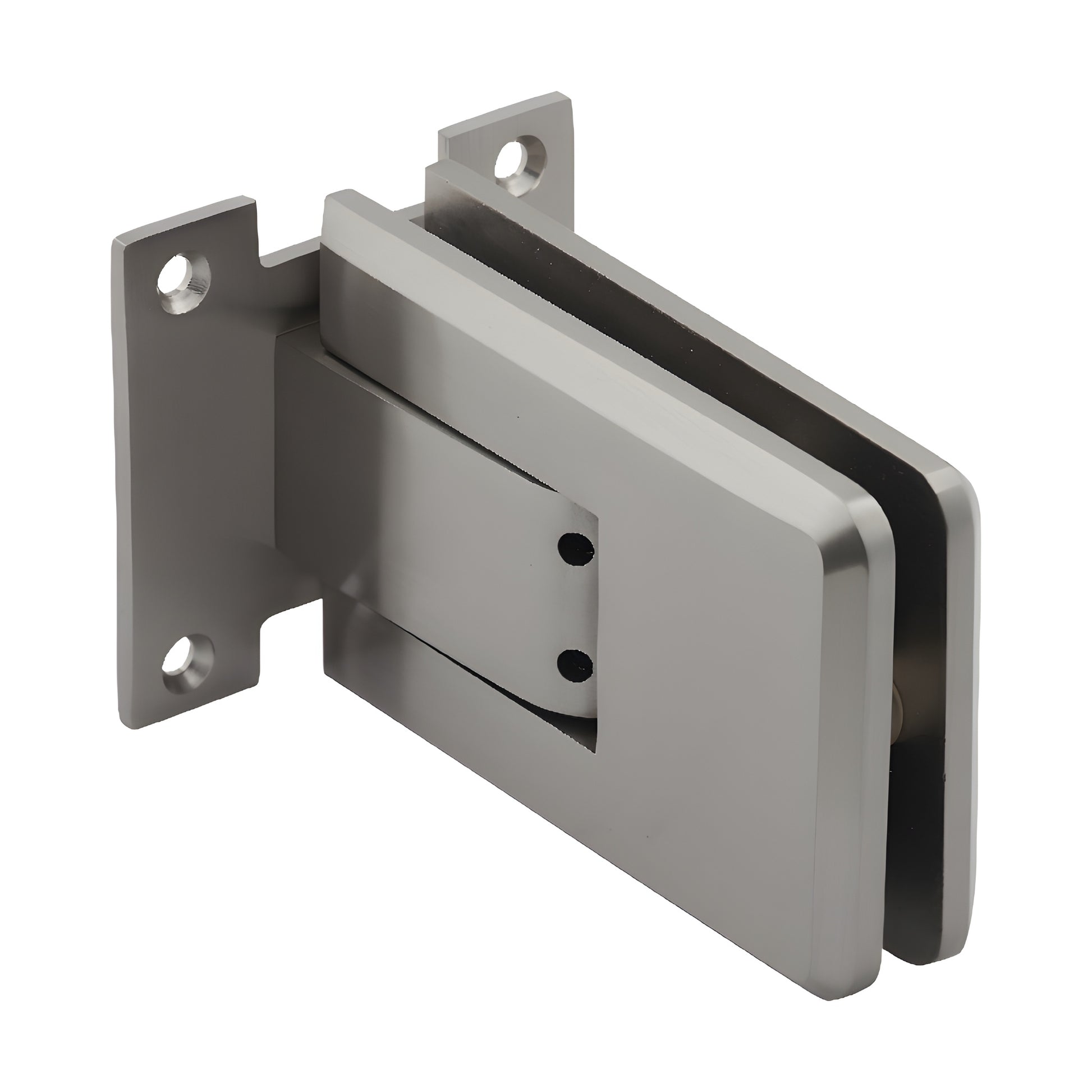

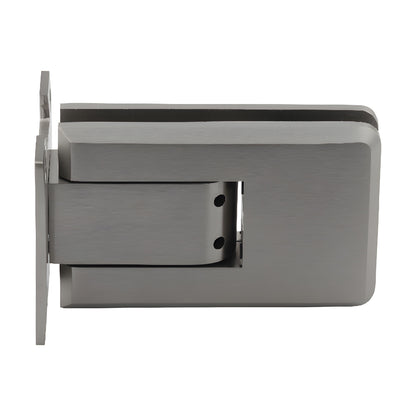

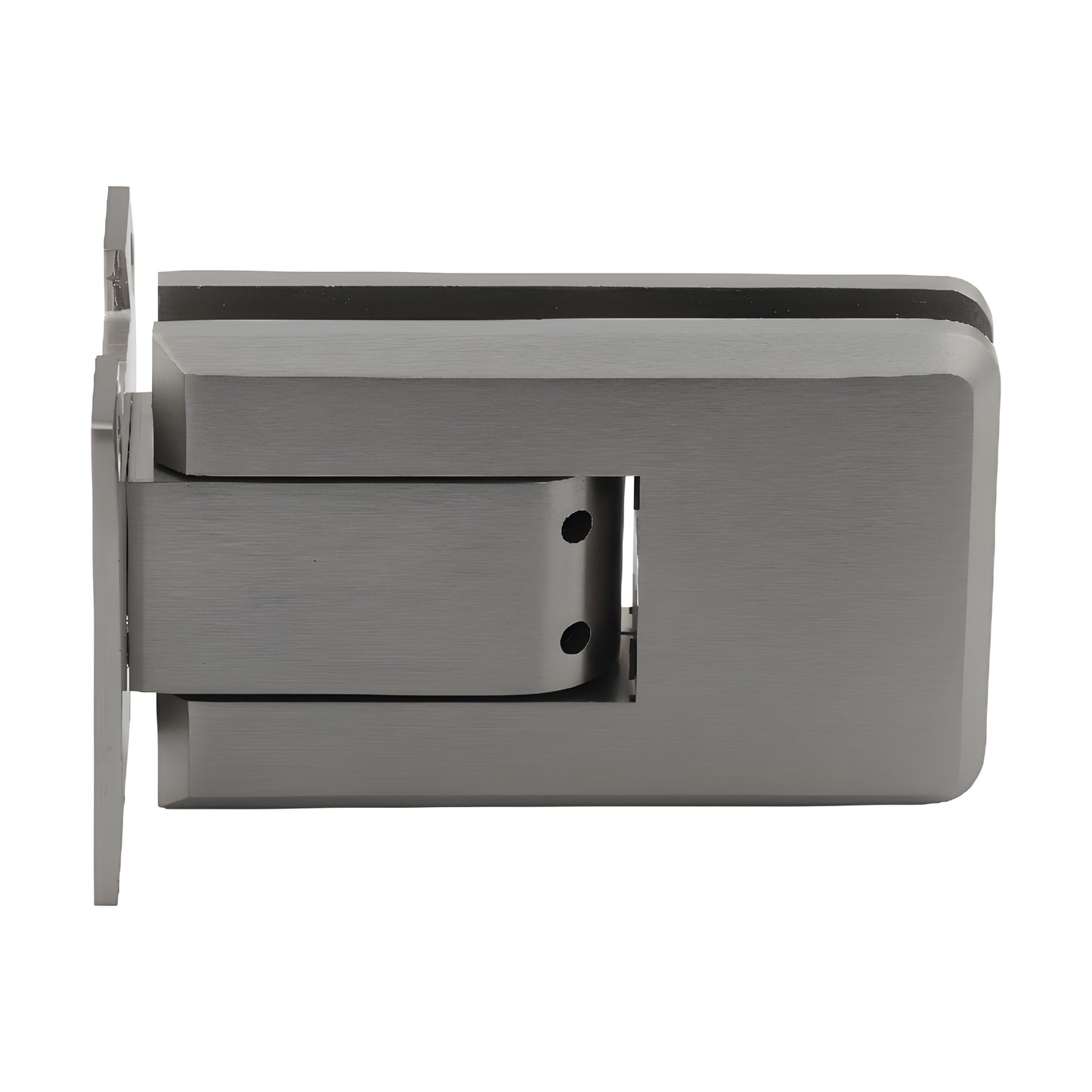

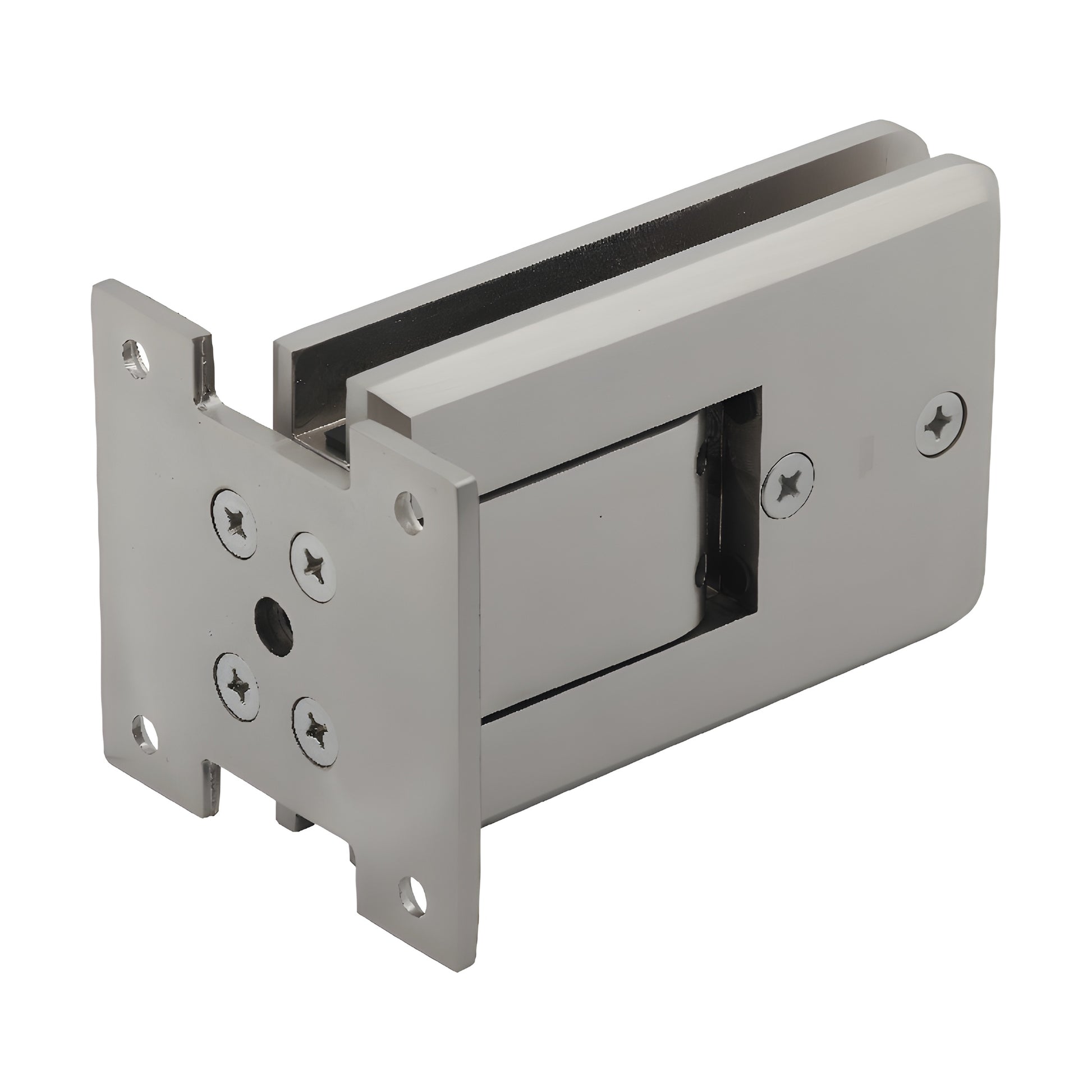

CRL Atlas Brushed Nickel Frameless Shower Door Hinge

• Self-centering function
• Holds open at 90 degrees
• For monolithic tempered glass
• Easy to set closed position
• Ideal for large interior 5/16", 3/8" or 1/2" (8, 10 or 12 mm) tempered glass doors and gates
• Easy closed-position adjustment for double-door or inline-panel applications
• Available in four architectural finishes

The CRL Atlas Series all-glass door hinge (SKU: ATL01BN) combines minimalist hardware with heavy-duty performance and automatic self-centering action. Two double-acting Atlas hinges will support all-glass doors or gates up to 140 lbs (63.5 kg) and up to 39" (1 m) wide.

The adjustable spring strength provides true self-centering from any position and eliminates the need for a separate door closer. The hinge holds open at 90° and offers easy, precise closed-position setting for single, double-door, or inline applications.

Solid brass construction with stainless steel internal components resists moisture and corrosion—making these hinges suitable for shower and high-humidity environments. NOTE: Do not exceed two hinges per door.

• Glass thickness: 5/16" to 1/2" (8 to 12 mm)
• Construction: Solid brass
• Hinge swings: 90° inward and outward (double-acting)
• Closing type: Self-centering from 0°–50° with precise closing to 0°
• Special features: Holds open at 90°; easy-to-set closed position
• Installation: Notch and hole required; includes gaskets, Phillips screws, and glass fabrication dimensions

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. If you intend to use these hinges for any other purpose, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match other brands.
