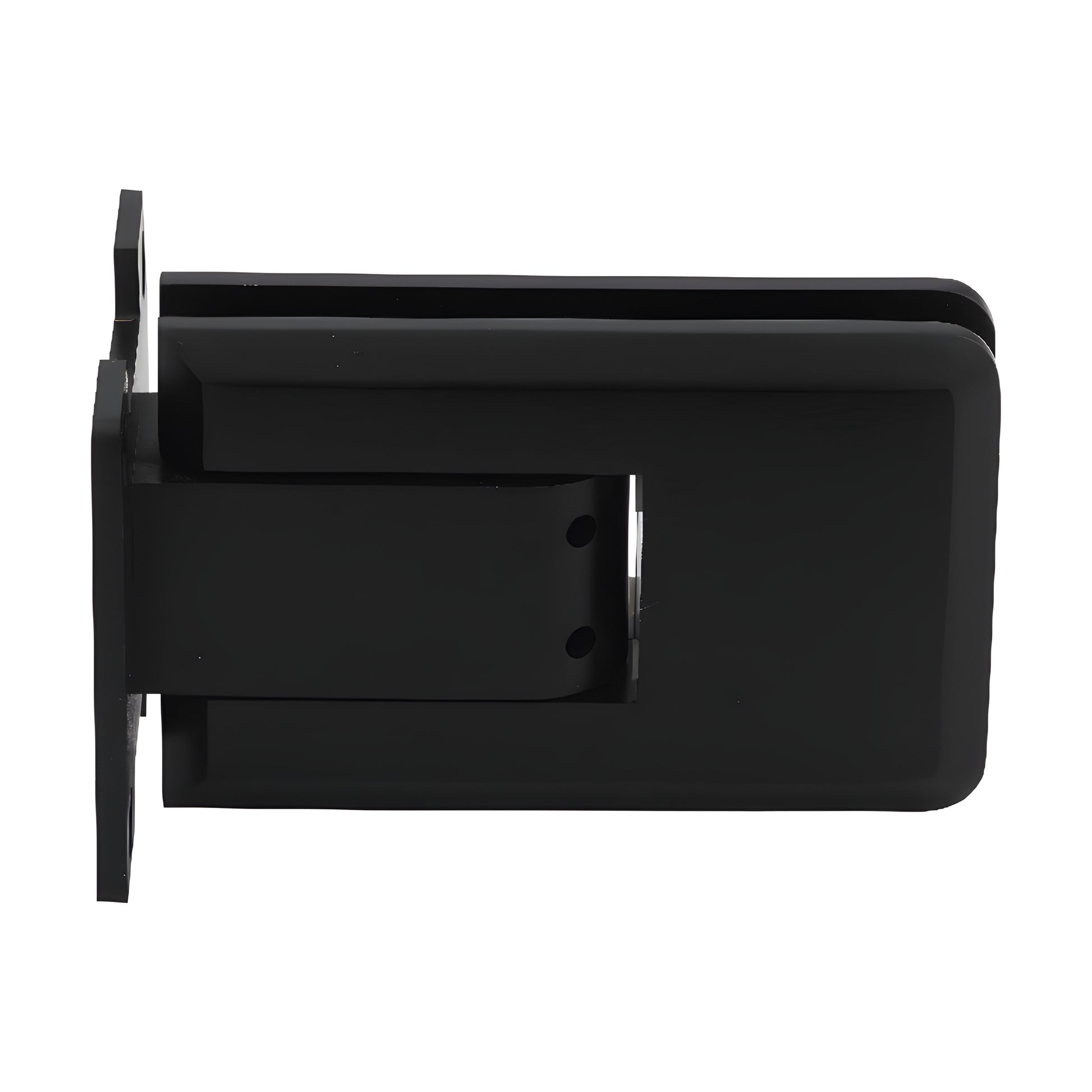

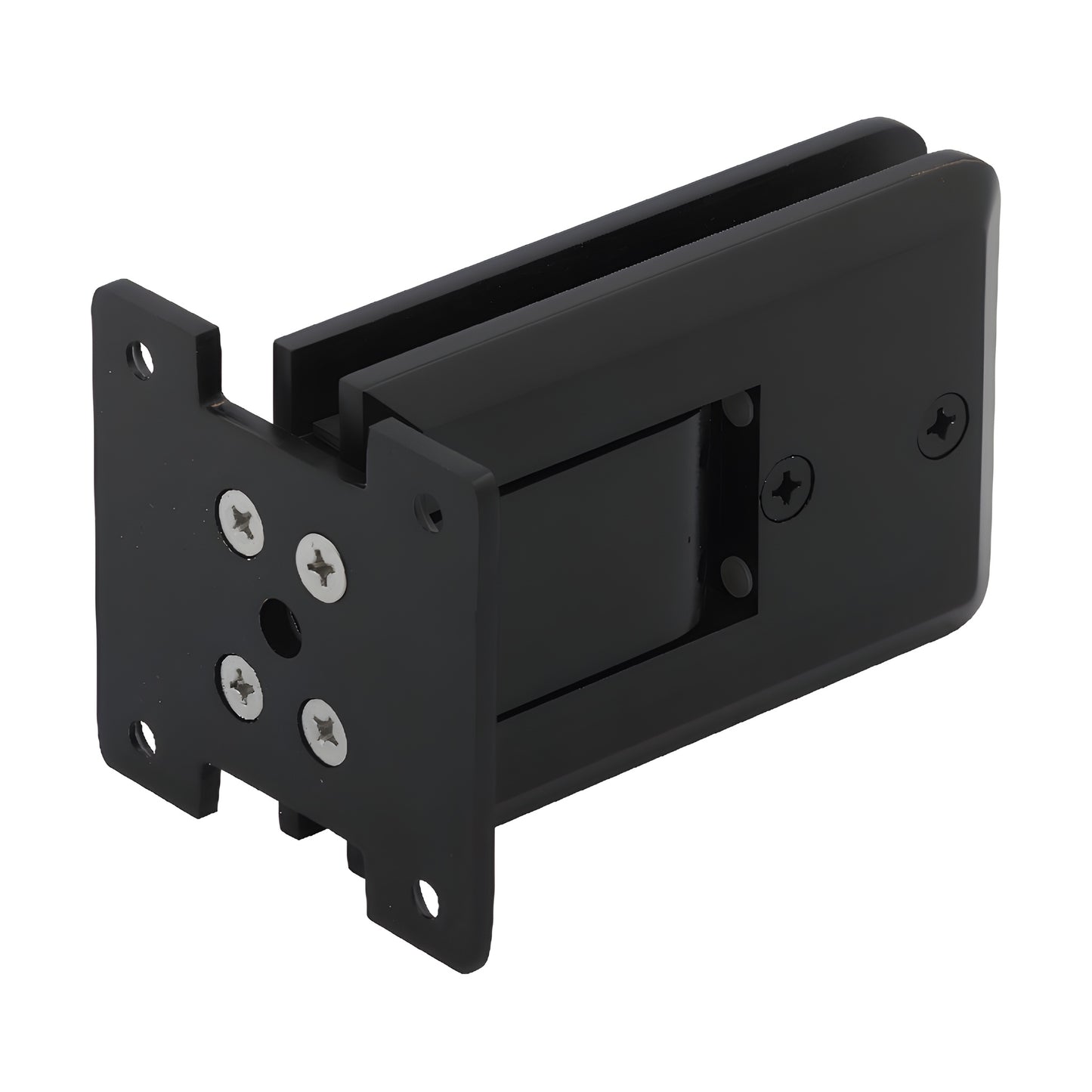

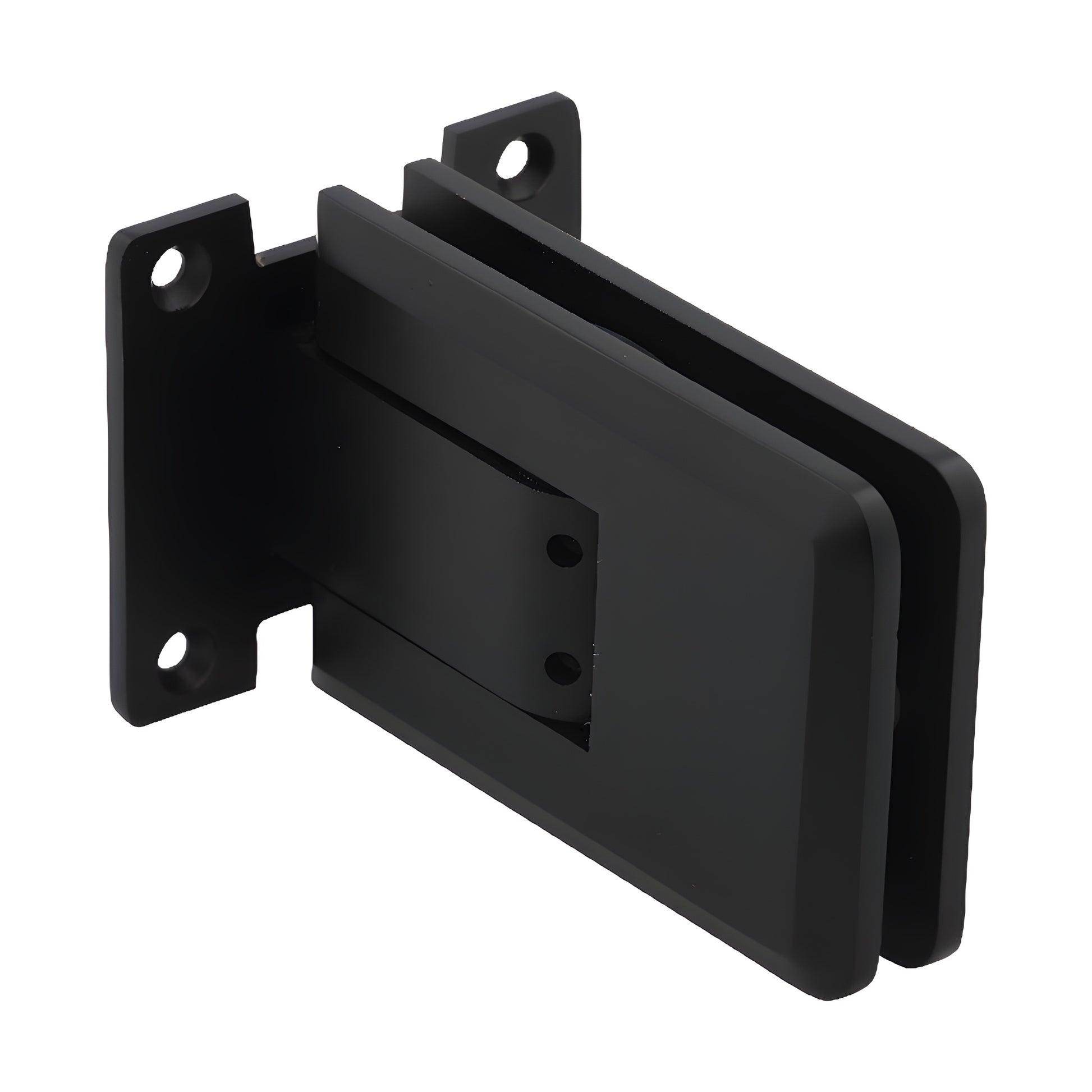

CRL Atlas Oil-Rubbed Bronze Frameless Glass Shower Door Hinge

• Self-centering function with adjustable spring strength
• Holds open at 90°
• For monolithic tempered glass
• Easy to set precise closed position
• Ideal for large interior tempered glass doors and gates: 5/16", 3/8" or 1/2" (8, 10 or 12 mm)
• Easy closed-position adjustment for double-door or inline panel applications
• Available in four architectural finishes

The CRL Atlas Series All‑Glass Door Hinge (SKU: ATL010RB) combines minimal visible hardware with heavy‑duty, self‑centering performance. Two double‑acting hinges create frameless glass doors or gates up to 140 lb (63.5 kg) with a maximum leaf width of 39" (1 m).

Key features: automatic self‑centering from any angle with adjustable spring strength (eliminates separate closer), positive 90° hold‑open, and easy-to-set custom closed positioning. Solid brass construction with stainless steel components resists moisture—perfect for interior tempered glass shower doors and other wet environments.

• Glass thickness: 5/16" to 1/2" (8 to 12 mm)
• Construction: Solid brass with stainless steel components
• Hinge swing: 90° inward and outward (double‑acting)
• Closing type: Self‑centering from 0°–50° with precise closing to 0°
• Includes: gaskets, Phillips screws, and glass fabrication dimensions
• Fabrication: notch and hole required
• Installation note: Do not exceed two hinges per door

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut‑out dimensions may not match other brands.

Order the Atlas All‑Glass Hinge (ATL010RB) for a durable, low‑profile tempered glass door hinge with self‑centering action—add to cart or contact us for technical assistance.
