- Color-coded plastic horseshoe shims for quick identification
- Simplifies leveling for windows, doors, curtainwalls, storefronts, and IG units
- Packed in convenient 100-count sleeves and 1,000-count tubs for jobsite dispensing
- Economical, labor- and material-saving leveling solution
- Available in three standard lengths and three thicknesses

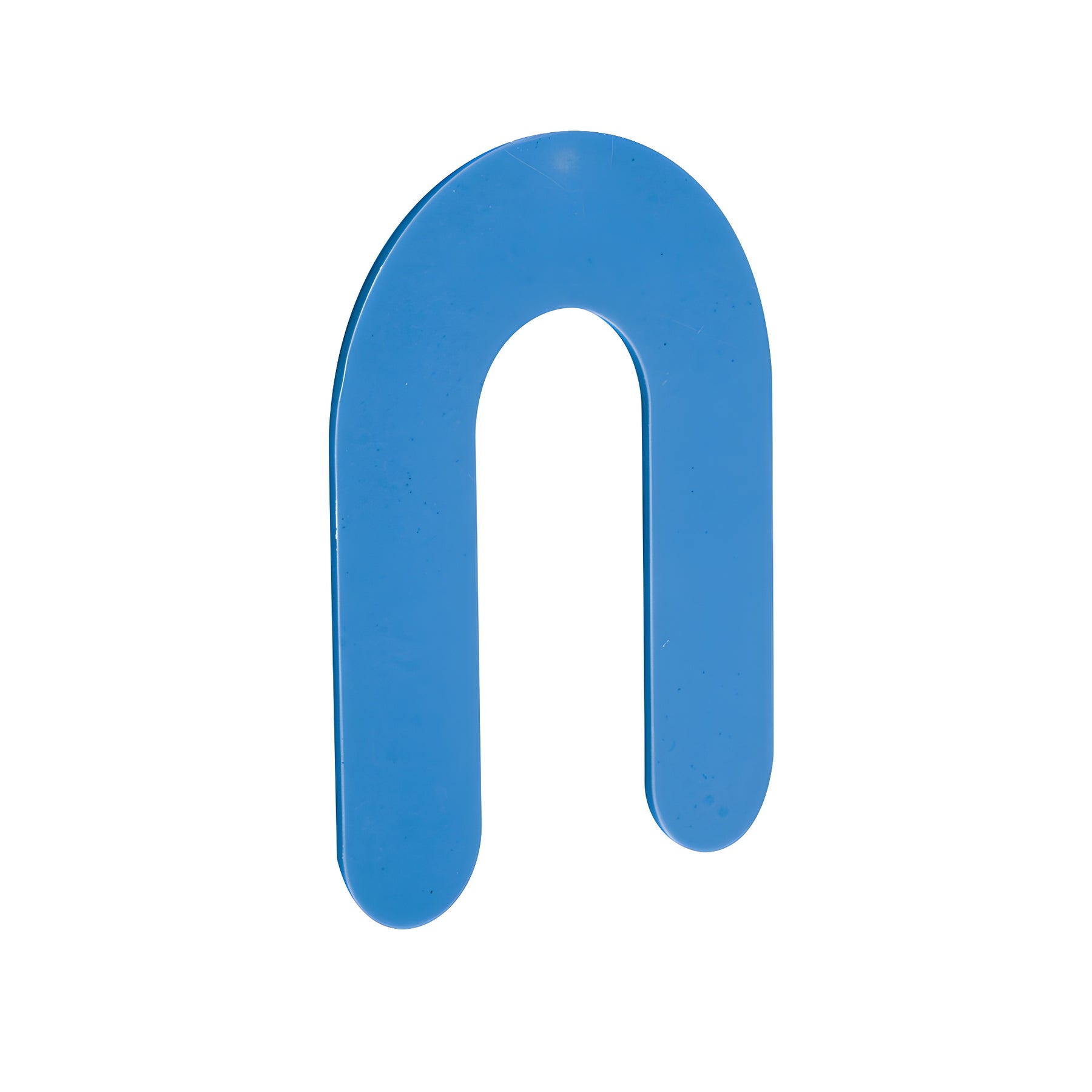

CRL Plastic Horseshoe Shims (SKU: PHS26) are high-impact styrene shims engineered for precise leveling in glazing and storefront installation and approved by architects for use with windows, doors, curtainwalls, storefronts, and insulating glass units. These color-coded leveling shims also adapt to appliance, automotive, aviation, and mobile home applications, helping reduce labor and material costs on-site.
CRL horseshoe shims are balanced for vertical or horizontal use and come in three thicknesses: 1/16" (1.5 mm), 1/8" (3.2 mm), and 1/4" (6 mm), and three lengths: 2" (50.8 mm), 3" (76.2 mm), and 3-1/2" (89 mm). The 3-1/2" length is commonly used for storefront aluminum installations where 4" tubing is standard.
New jobsite-friendly packaging: boxes of 1,000 include ten 100-count sleeves for easy dispensing and crew accountability; 100-count sleeves are also packed in CRL tubs when ordered by the hundred for secure shop storage.
Product Warning:
Click here to view product lab testing results, and
here to view shim properties.
