- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock
can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206
Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207
and
AMR208
are available to accommodate most types of installations.
Optional Cylinders include either

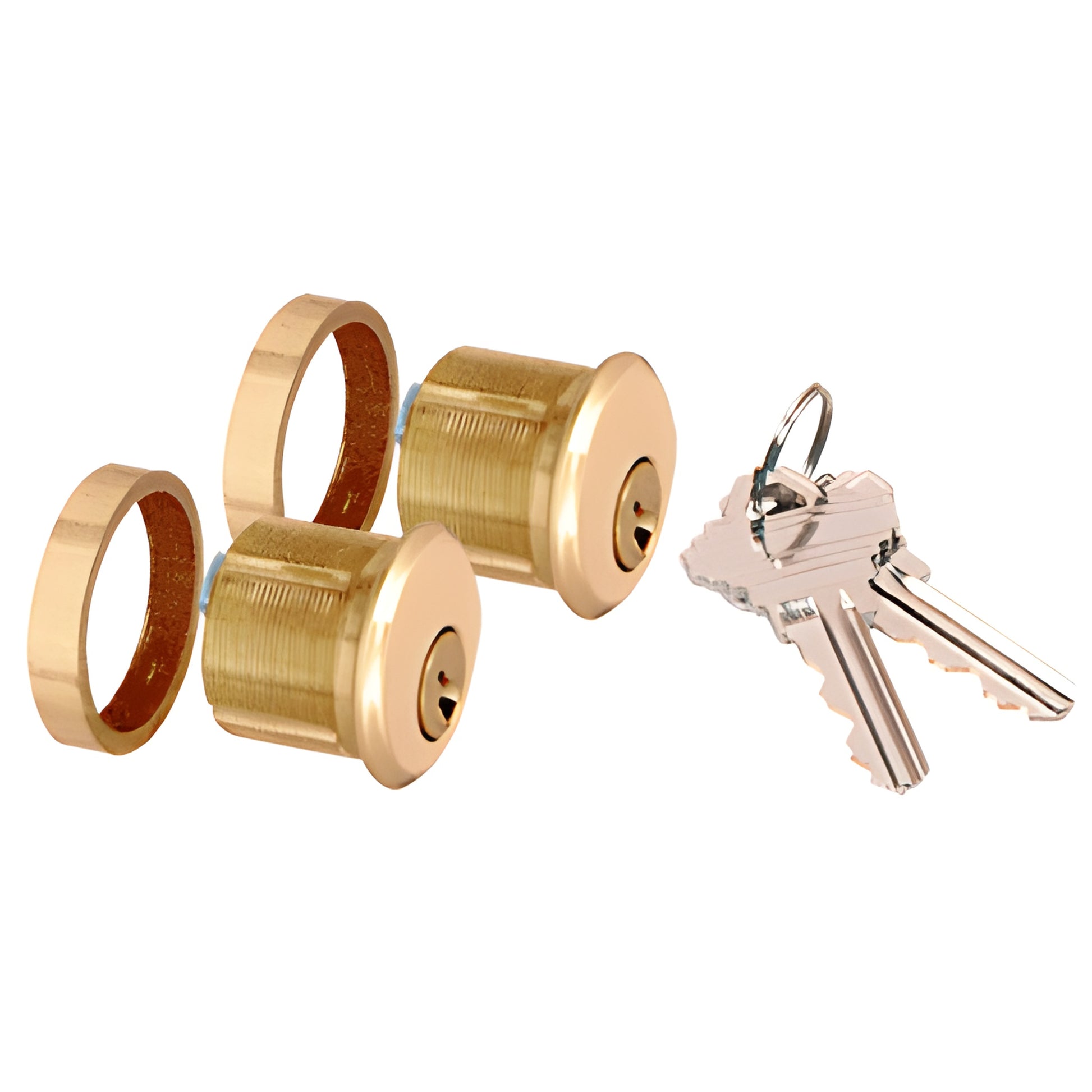

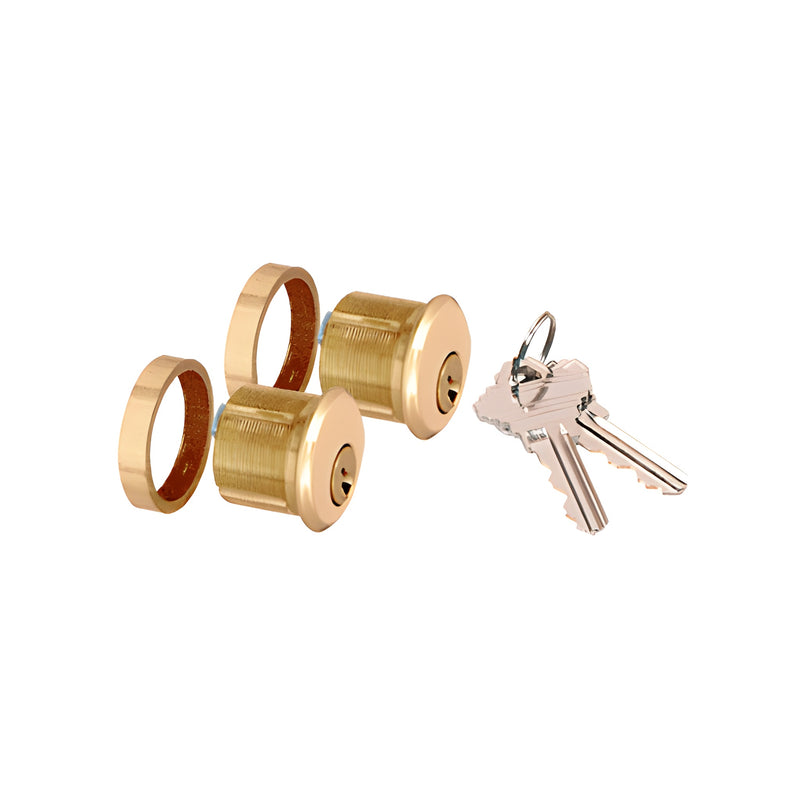

AMR205CC
Double Keyed Cylinders or
AMR205CT
Single Keyed Cylinder/Thumbturn.
GLASS FABRICATION REQUIRED
Top or Bottom Mount
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH
Template and Instructions
DOES NOT INCLUDE
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
