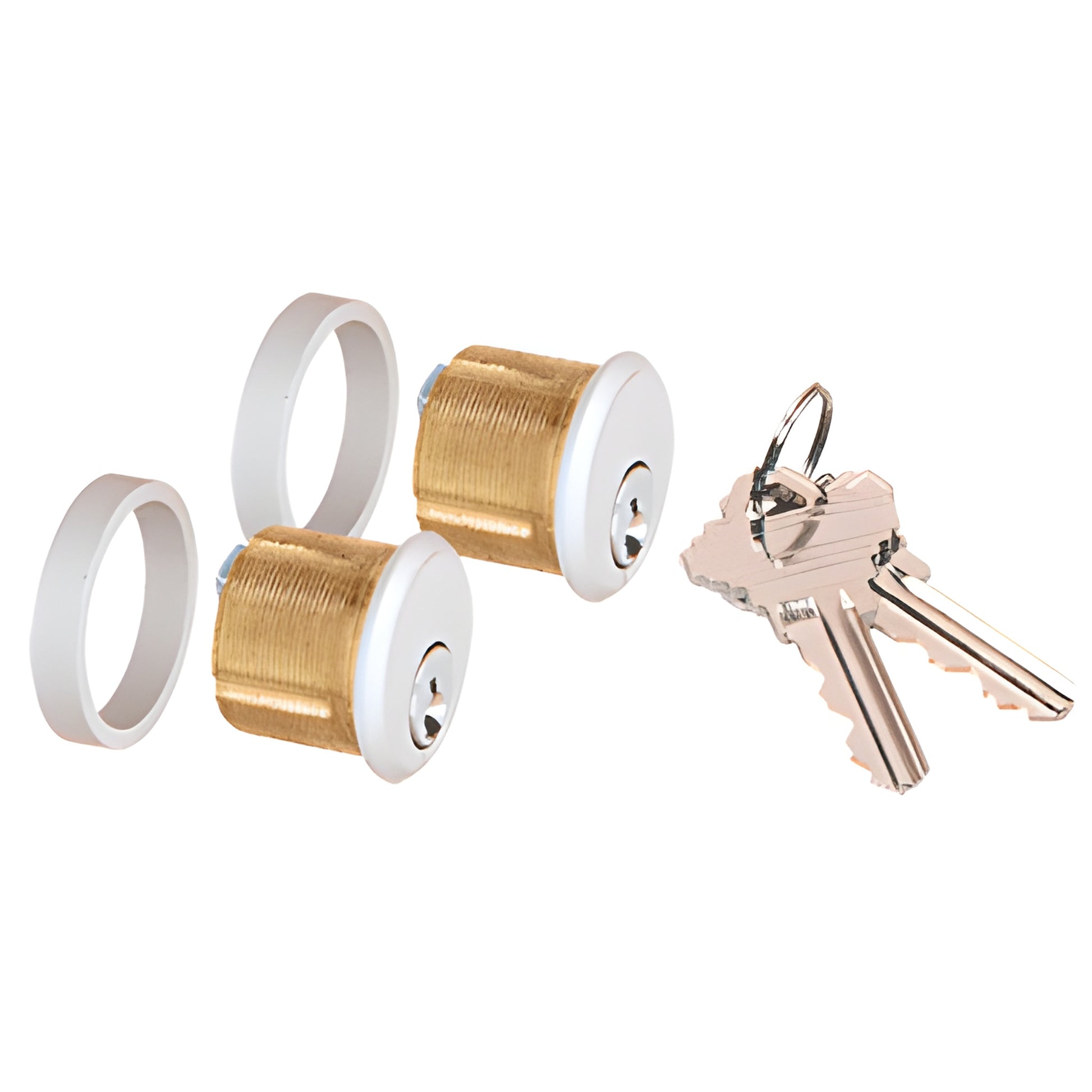

CRL AMR Series Satin Anodized Double-Keyed Door Cylinders

• High-density cast body with durable lock mechanism — secure architectural patch lock for glass doors
• Compressible gaskets for use with 3/8" or 1/2" (10 or 12 mm) glass
• Available in five architectural finishes to match commercial storefront hardware

The CRL American Style Patch Lock (SKU: AMR205CCA) mounts top or bottom of a glass door, or on the door’s vertical edge and secures to a jamb using the supplied Keeper. It also fastens to a glass sidelite with the AMR206 Sidelite Mount Keeper. Optional keepers such as AMR207 and AMR208 accommodate most installation types for storefronts, office partitions, and commercial glass doors.

Optional cylinders: AMR205CC double-keyed cylinders or AMR205CT single-keyed cylinder with thumbturn.

GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) diameter hole and one corner notch
Side Mount:
One 3/4" (19 mm) diameter hole and one U-cutout (hole on top)

COMES WITH:
Template and instructions

DOES NOT INCLUDE:
Double-keyed cylinders; keyed cylinder/thumbturn; optional keepers (must be ordered separately)

DOUBLE DOOR APPLICATION:
For double door installations, a bottom patch lock is required on the inactive leaf to properly secure the pair of doors.

Choose the AMR205CCA patch lock for a durable, versatile glass door locking solution — order or request a quote today.
