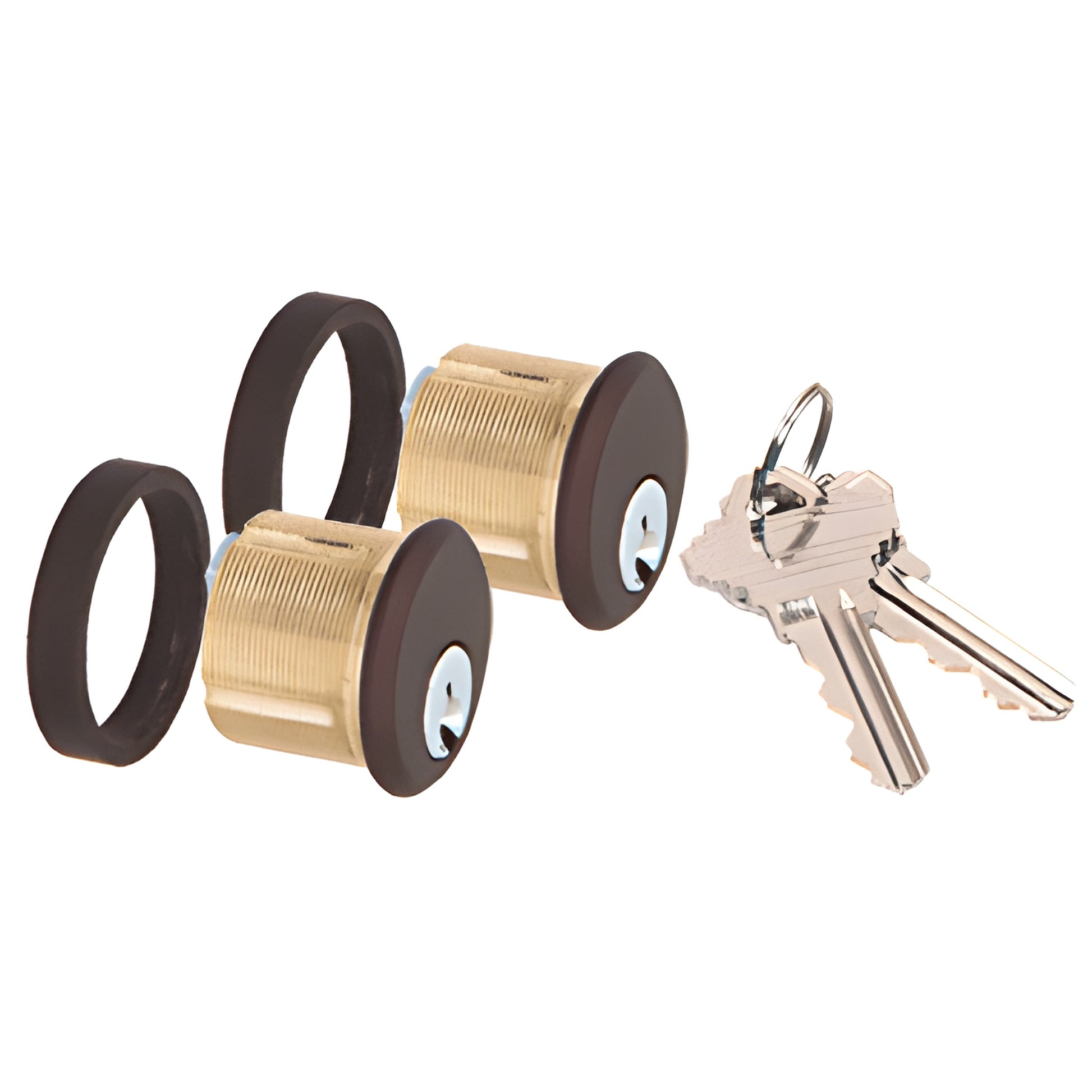

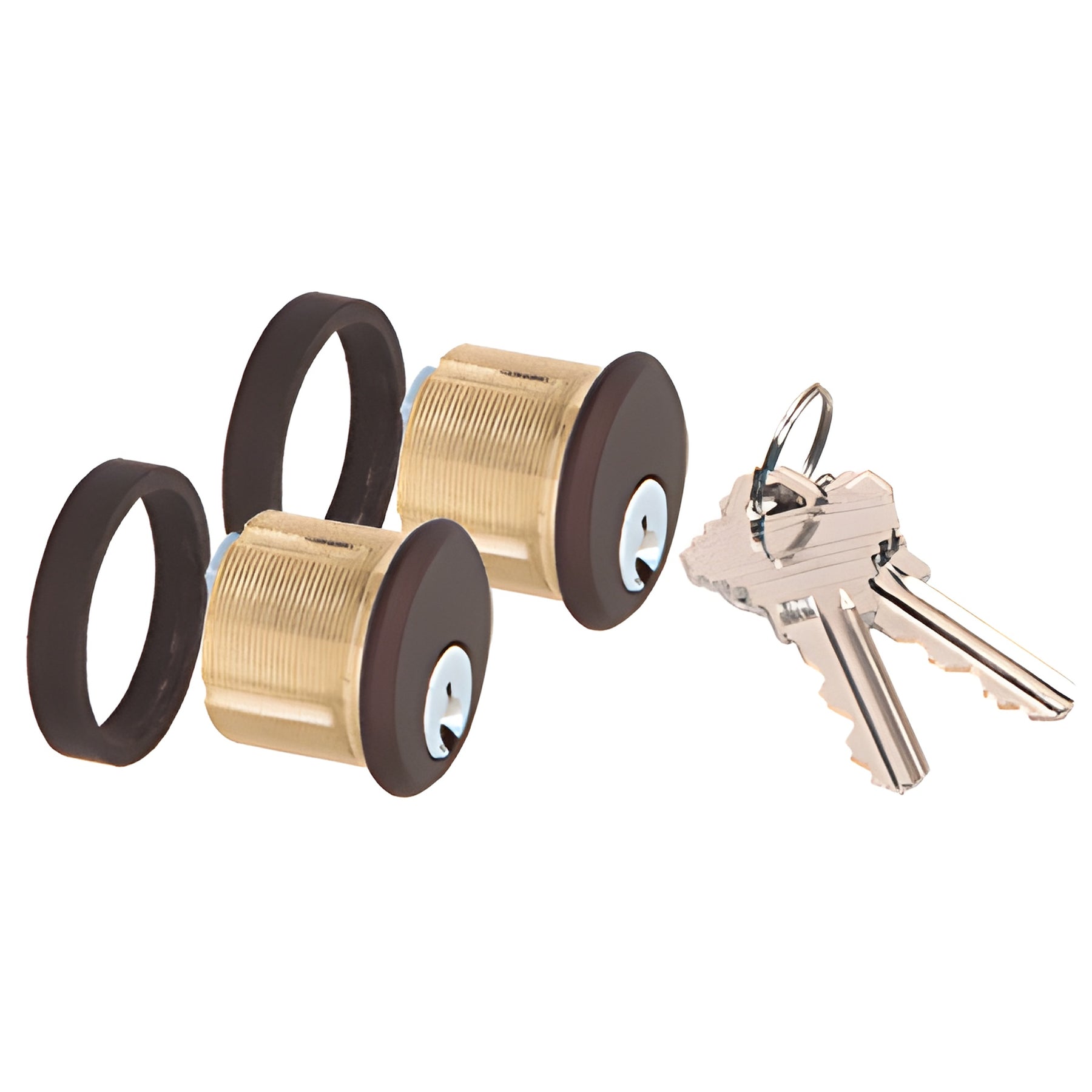

CRL AMR Series Black Bronze Anodized Double-Keyed Lock Cylinders

• High-density cast body with integrated lock mechanism
• Gaskets fit 3/8" or 1/2" (10 or 12 mm) glass
• Available in five architectural finishes

The CRL American Style Patch Lock (SKU: AMR205CCDU) is a versatile patch lock for glass doors and panels. Mountable on the top or bottom edge of a door, it also installs on the vertical edge and secures to a jamb using the supplied Keeper. For sidelites and glass-panel installations use the AMR206 Sidelite Mount Keeper. Optional keepers such as AMR207 and AMR208 accommodate most installation types.

Optional cylinders (sold separately) include AMR205CC double-keyed cylinders and AMR205CT single-keyed cylinder with thumbturn.

GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) diameter hole and one corner notch.
Side Mount:
One 3/4" (19 mm) diameter hole and one U-cutout (hole on top).

COMES WITH:
Template and instructions.

DOES NOT INCLUDE:
Double-keyed cylinders; keyed cylinder/thumbturn; optional keepers (must be ordered separately).

DOUBLE DOOR APPLICATION:
For double-door installations, a bottom patch lock is required on the inactive leaf to properly secure the pair.

Choose the AMR205CCDU for a secure, architectural-grade patch lock solution for glass doors—order or request a quote today.
