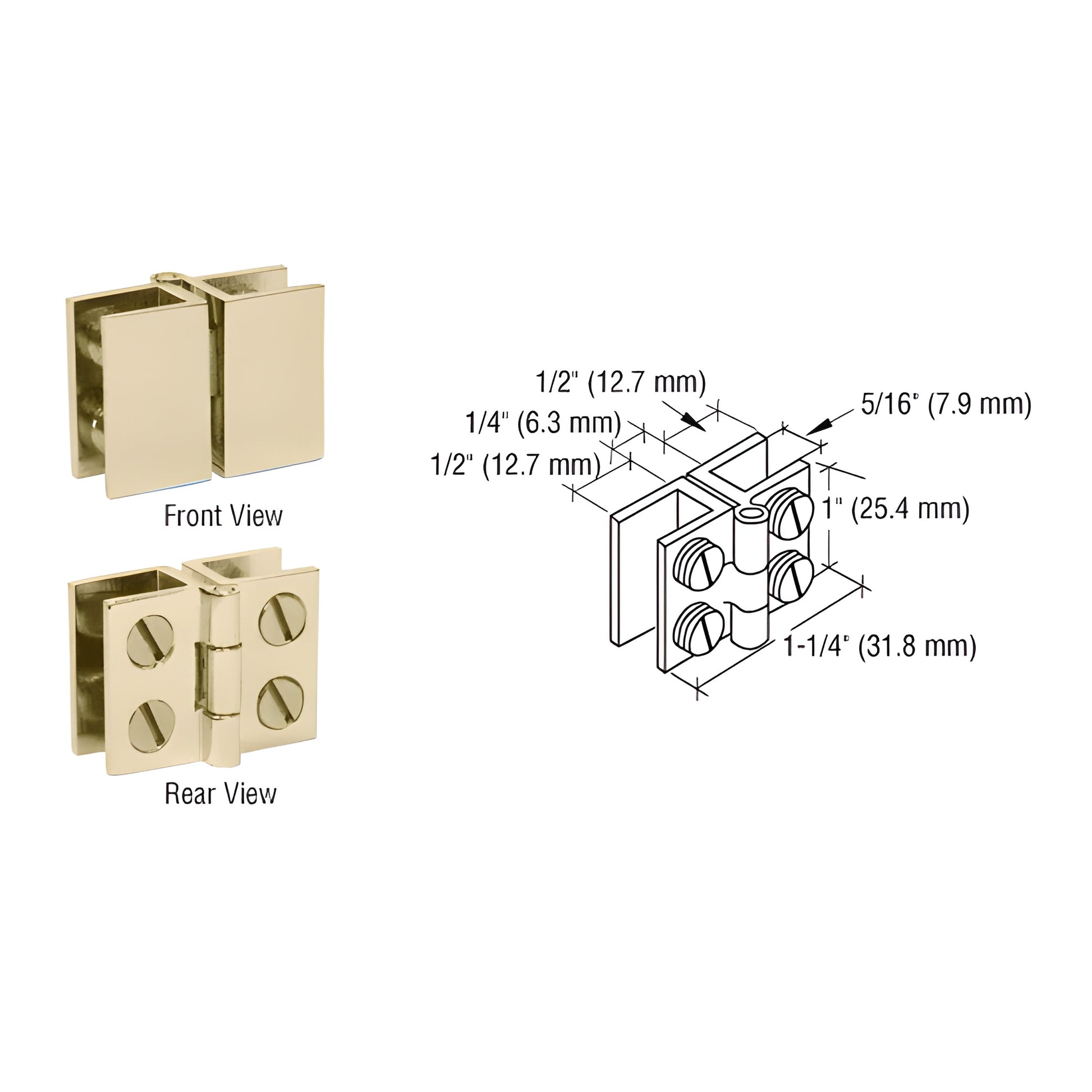

CRL Brass Mini Glass-to-Glass Set Screw Inswing Glass Door Hinge
CRL Brass Mini Glass-to-Glass Set Screw Inswing Glass Door Hinge
Regular price
$60.79 CAD
Regular price
Sale price
$60.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH182
Shipping Weight: 3.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Brass
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
1 in. (25.4 mm)
Material
Brass
Maximum Door Width
16 in. (406.4 mm)
Open Width
1-1/4 in. (31.8 mm)
Pack Quantity
2
Weight Capacity
8 lbs. (3.6 kg)
Overview
- For 3/16" and 1/4" (5 and 6 mm) thick glass
- No holes or cut-outs required — plastic-tipped set screws secure the glass
- Use monolithic tempered glass
- Two per package
These CRL Inswing Hinges (SKU: EH182) are engineered for glass-to-glass inswing installations in showcases and stereo cabinets where panels operate in a 180° plane. Designed for no-drill attachment, the glass is gripped with plastic-tipped set screws for a secure, damage-free mount. Recommended maximum door width: 16" (406 mm). Recommended maximum door weight: 8 lbs. (3.6 kg). Two hinges per pack.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time. For care and maintenance details, see the Brass Finish Disclaimer in the Technical References section below.
Ideal for glass display case doors and museum or retail showcases requiring low-profile, no-drill glass-to-glass inswing hinges. Order EH182 today to secure tempered glass panels without cutting or drilling.
