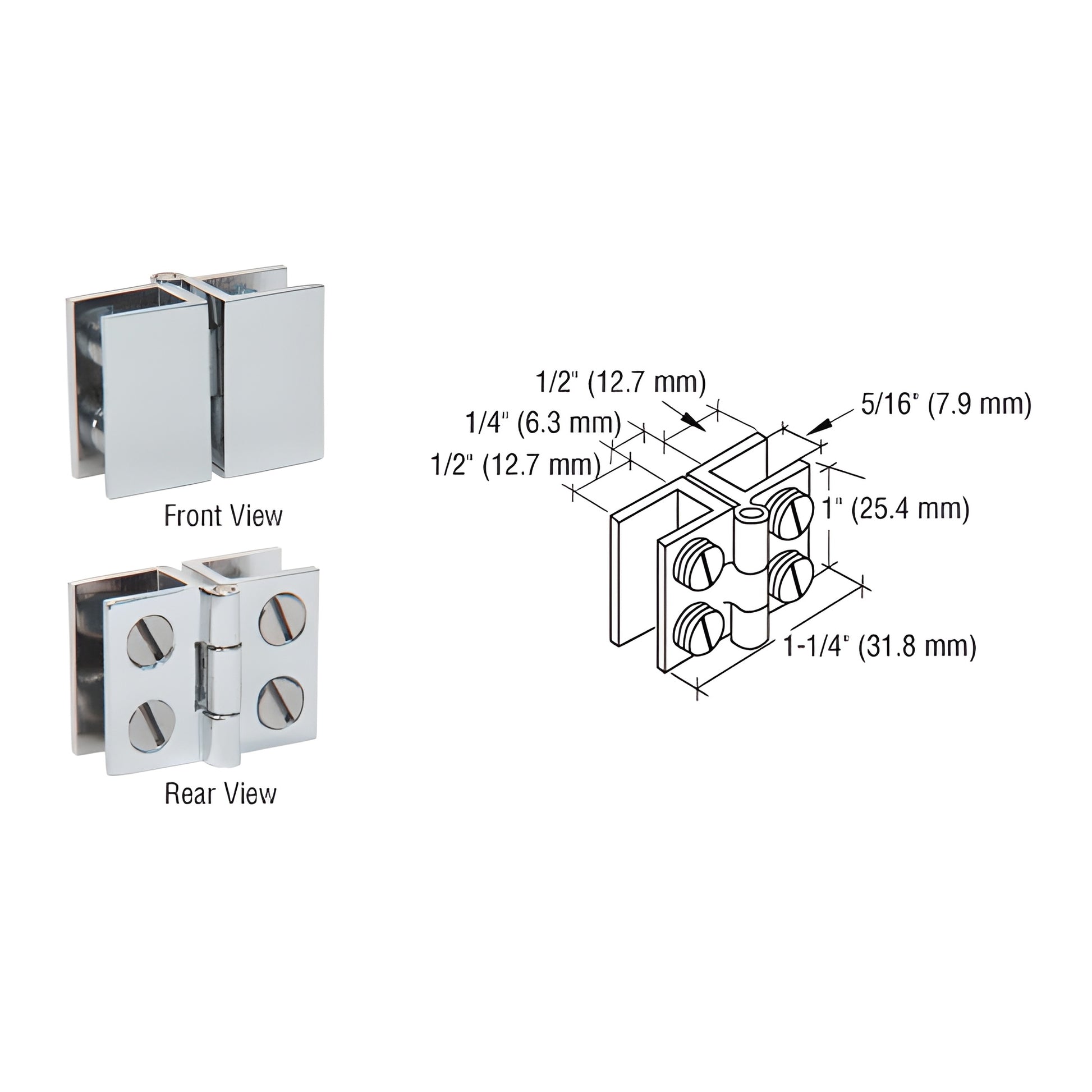

CRL Chrome Mini Glass-to-Glass Set-Screw Inswing Shower Door Hinge
CRL Chrome Mini Glass-to-Glass Set-Screw Inswing Shower Door Hinge
Regular price
$58.04 CAD
Regular price
Sale price
$58.04 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH180
Shipping Weight: 3.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
1 in. (25.4 mm)
Material
Brass
Maximum Door Width
16 in. (406.4 mm)
Open Width
1-1/4 in. (31.8 mm)
Pack Quantity
2
Weight Capacity
8 lbs. (3.6 kg)
Overview
- For 3/16" and 1/4" (5 and 6 mm) thick glass
- No holes or cut-outs required — no-drill attachment with plastic-tipped set screws
- Use with monolithic tempered glass
- Two per package
CRL Inswing Hinges (SKU: EH180) — glass-to-glass 180° inswing hinges engineered for showcase and stereo cabinets. Designed for monolithic tempered glass, they secure to the door without drilling using plastic-tipped set screws. Recommended maximum door width: 16" (406 mm). Recommended maximum door weight: 8 lbs (3.6 kg). Two hinges per pack.
Ideal for glass display cabinets and museum showcases seeking a clean, no-drill glass hinge solution. Order EH180 inswing hinges now to complete your installation.
Specifications
CAD Drawings - dwg
