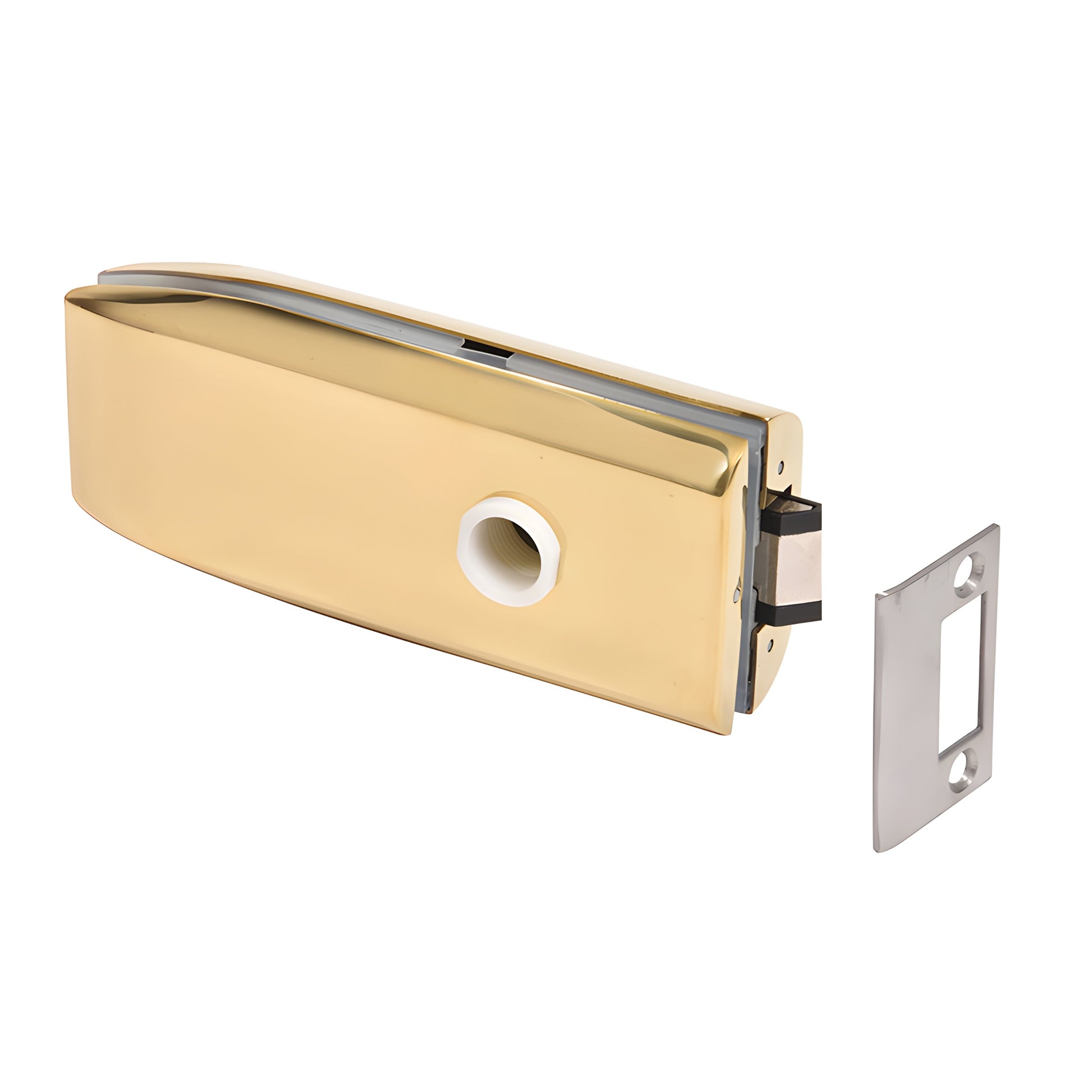

• Polished brass glass-mounted latch PTH312BR with cylinder hole and separate strike plate, for 3/8-1/2" tempered glass.
  • Polished brass glass-mounted latch PTH312BR with cylinder hole and separate strike plate, for 3/8-1/2" tempered glass.
1 2

CRL

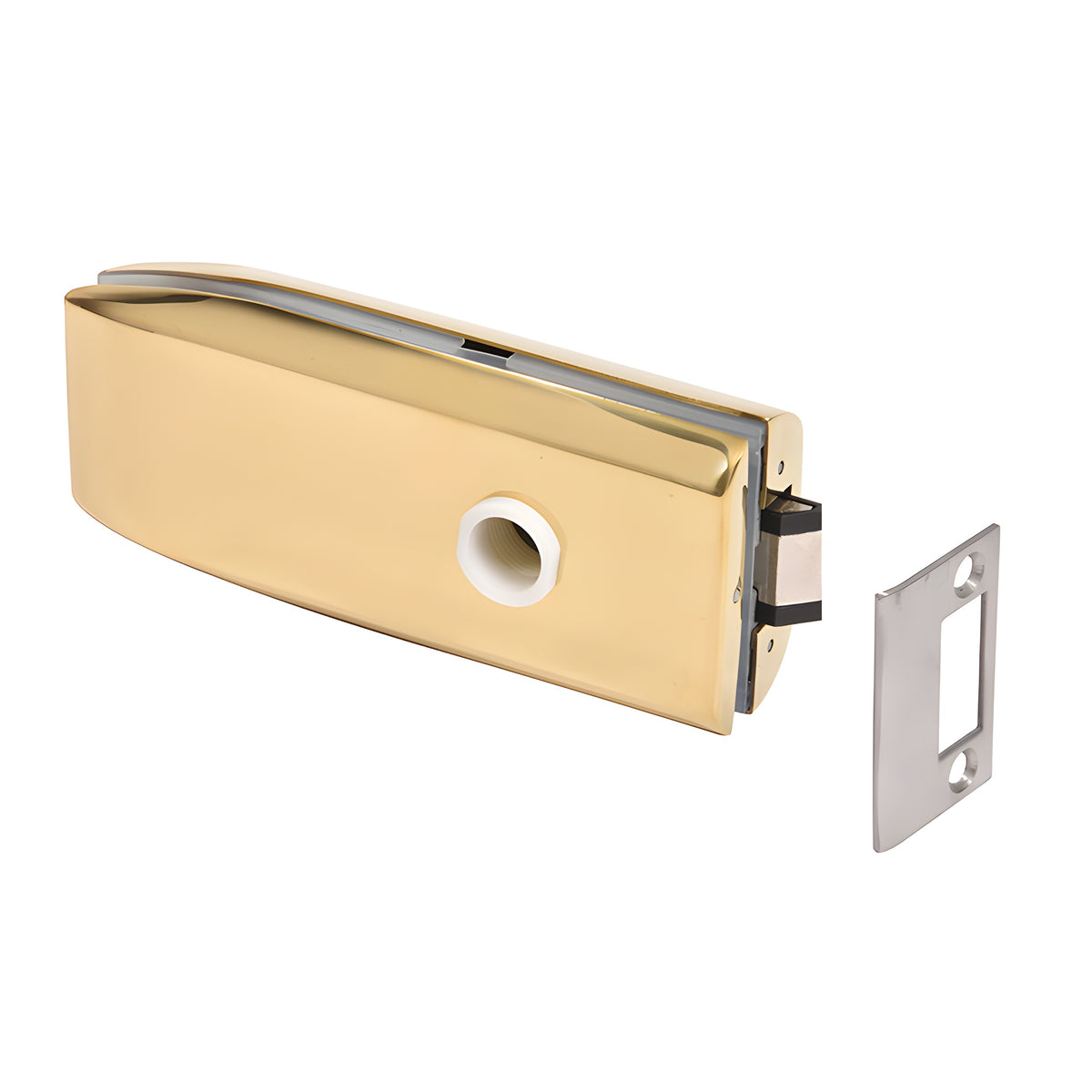

CRL Brass Passage Latch for Glass Doors

CRL Brass Passage Latch for Glass Doors

$123.12 CAD
$123.12 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PTH312BR
Shipping Weight: 1.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Brass
Glass Mounting Holes Diameter
1-7/8 in. (48 mm)
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)

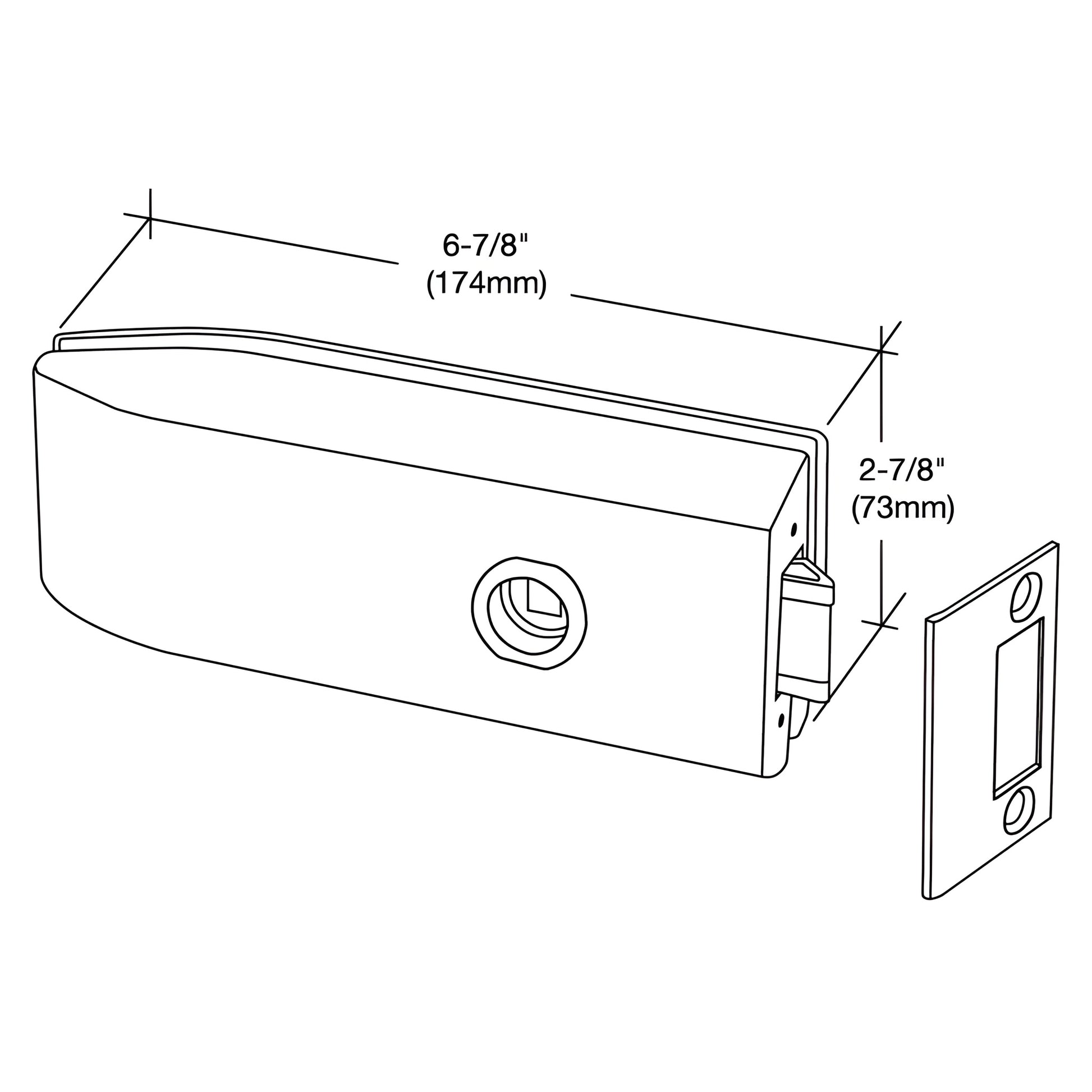

Height
2-7/8 in. (73 mm)
Length
6-7/8 in. (175 mm)
Material
304 Grade Stainless Steel

Overview

  • Works on Single or Double Doors
  • Fits 3/8" or 1/2" (10 or 12 mm) Monolithic Tempered Glass
  • 304 Grade Stainless Steel construction
  • Use with Monolithic Tempered Glass

The CRL PTH311 Glass Mounted Latch (SKU PTH312BR reference) ships assembled for use with the EC4 keyed cylinder on outswing doors and on inswing doors when a PTH314 Glass Mounted Latch Keeper is not used. When installing on inswing doors with a PTH314 keeper, use the EC3 extended length keyed cylinder.

NOTE: On double-door installations, secure the door with the keeper using a bottom lock to hold the inactive leaf in place.

GLASS FABRICATION REQUIRED:
Two 1-7/8" (48 mm) holes in monolithic tempered glass

COMES WITH:
EC3 and EC4 series cylinder/thumbturn with 3 keys, template, and instructions.

Shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images represent the actual item or a close likeness; colors may vary by monitor settings.

Brass Finish Advisory:
Brass finishes, while durable, can oxidize and develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance.


Ideal for glass storefronts and commercial glass doors requiring a keyed glass-mounted latch for 3/8"–1/2" monolithic tempered glass. Order now to secure your glass door hardware.
