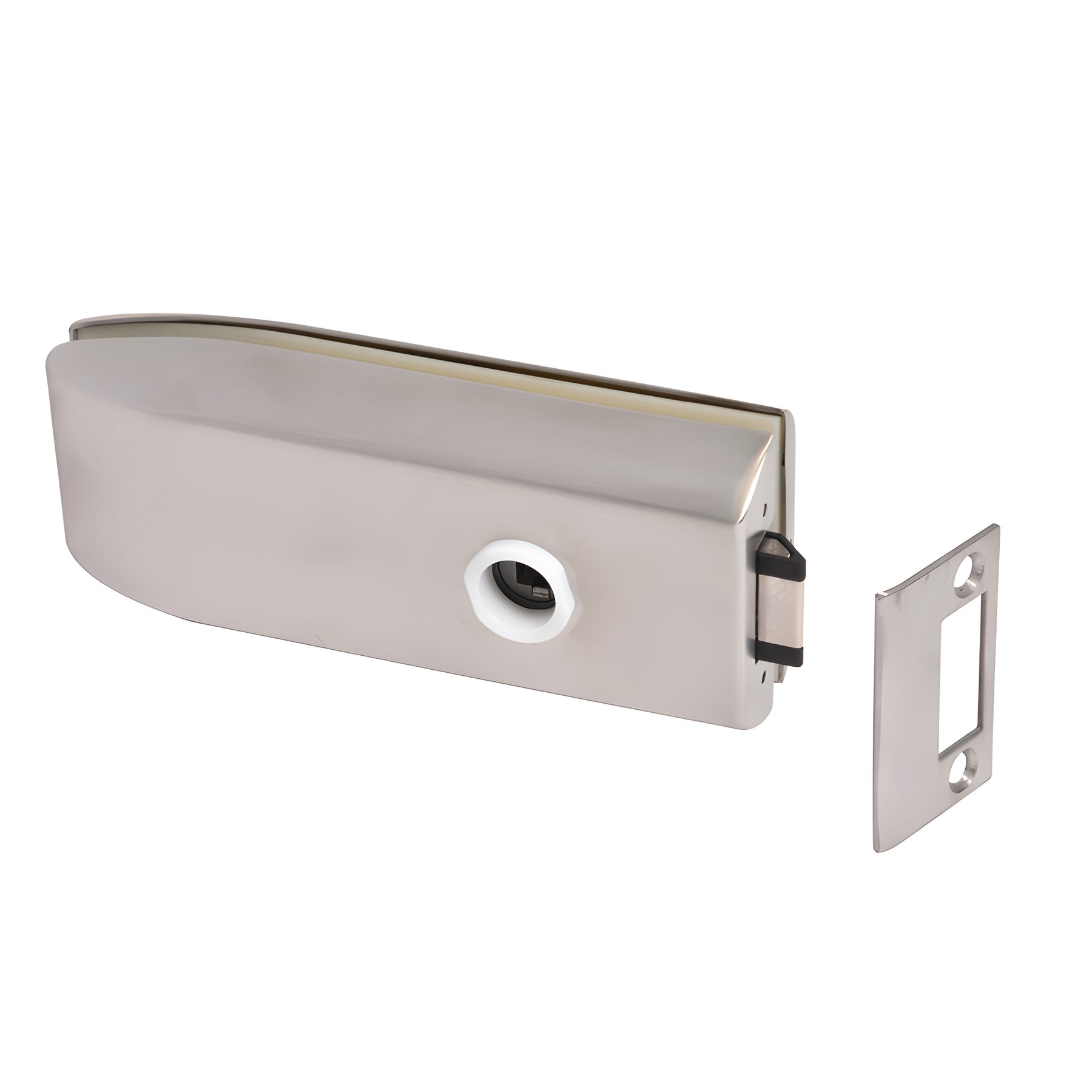

CRL Brushed Stainless Glass Door Passage Latch
CRL Brushed Stainless Glass Door Passage Latch
Regular price
$112.86 CAD
Regular price
Sale price
$112.86 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PTH312BS
Shipping Weight: 2.37 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.37 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glass Mounting Holes Diameter
1-7/8 in. (48 mm)
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)

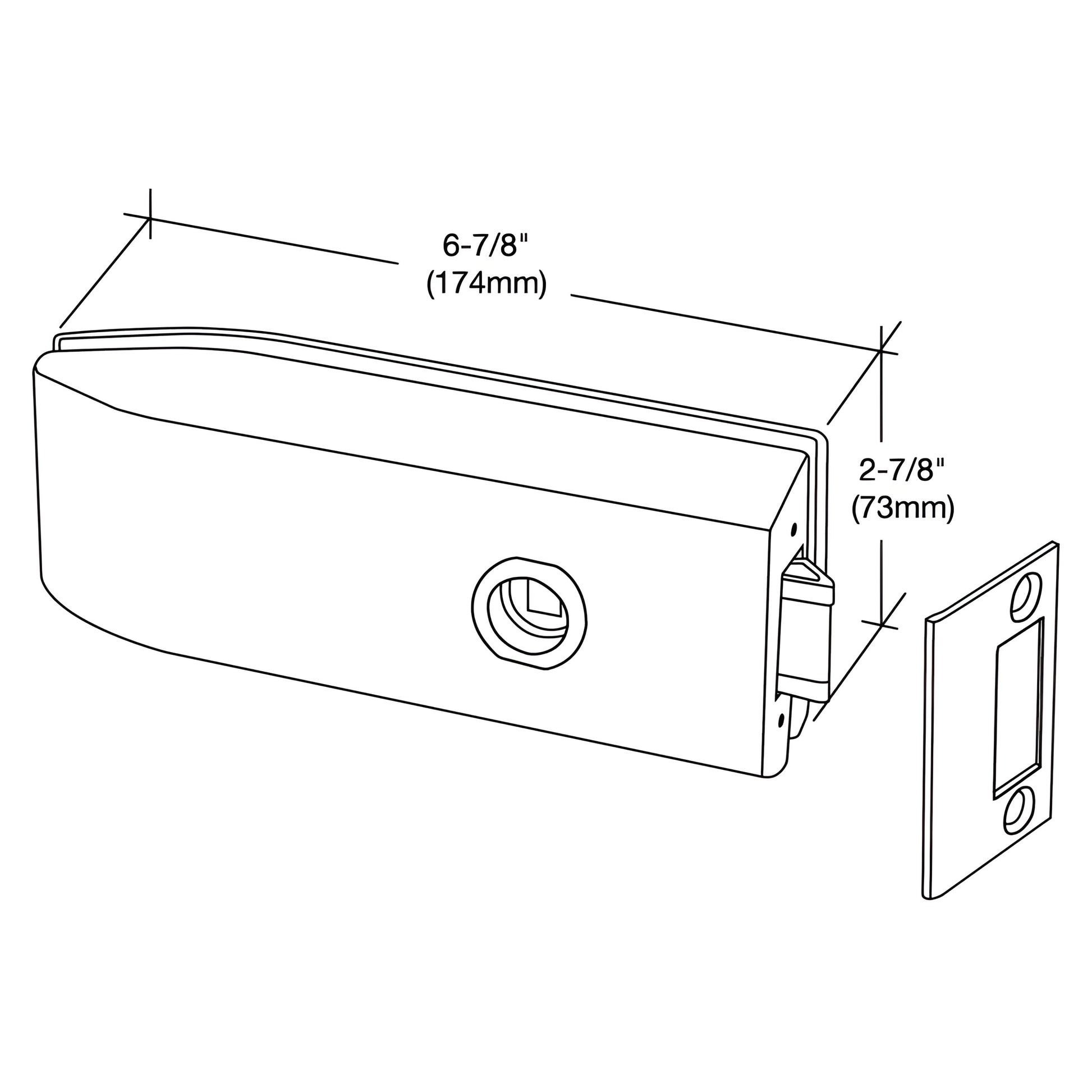

Height
2-7/8 in. (73 mm)
Length
6-7/8 in. (175 mm)
Material
304 Grade Stainless Steel
Overview
- Works on single or double glass doors
- Fits 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
- 304 grade stainless steel construction
- Designed for monolithic tempered glass
The CRL PTH311 Glass Mounted Latch arrives pre-assembled for use with the EC4 keyed cylinder on all outswing doors and on inswing doors when no PTH314 Glass Mounted Latch Keeper is used. For inswing doors using a PTH314 keeper, the EC3 extended-length keyed cylinder is required.
NOTE: On double-door installations, secure the door with the keeper using a bottom lock to hold it in place.
GLASS FABRICATION REQUIRED:
Two 1-7/8" (48 mm) holes in the glass
COMES WITH:
EC3 and EC4 series cylinder/thumbturn with 3 keys, installation template, and instructions.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for more details.
SKU: PTH312BS
Durable 304 stainless construction and pre-assembled cylinder compatibility make this a reliable choice for commercial and residential tempered glass doors. Order now to get the complete latch kit with cylinders, keys and installation template.
