CRL

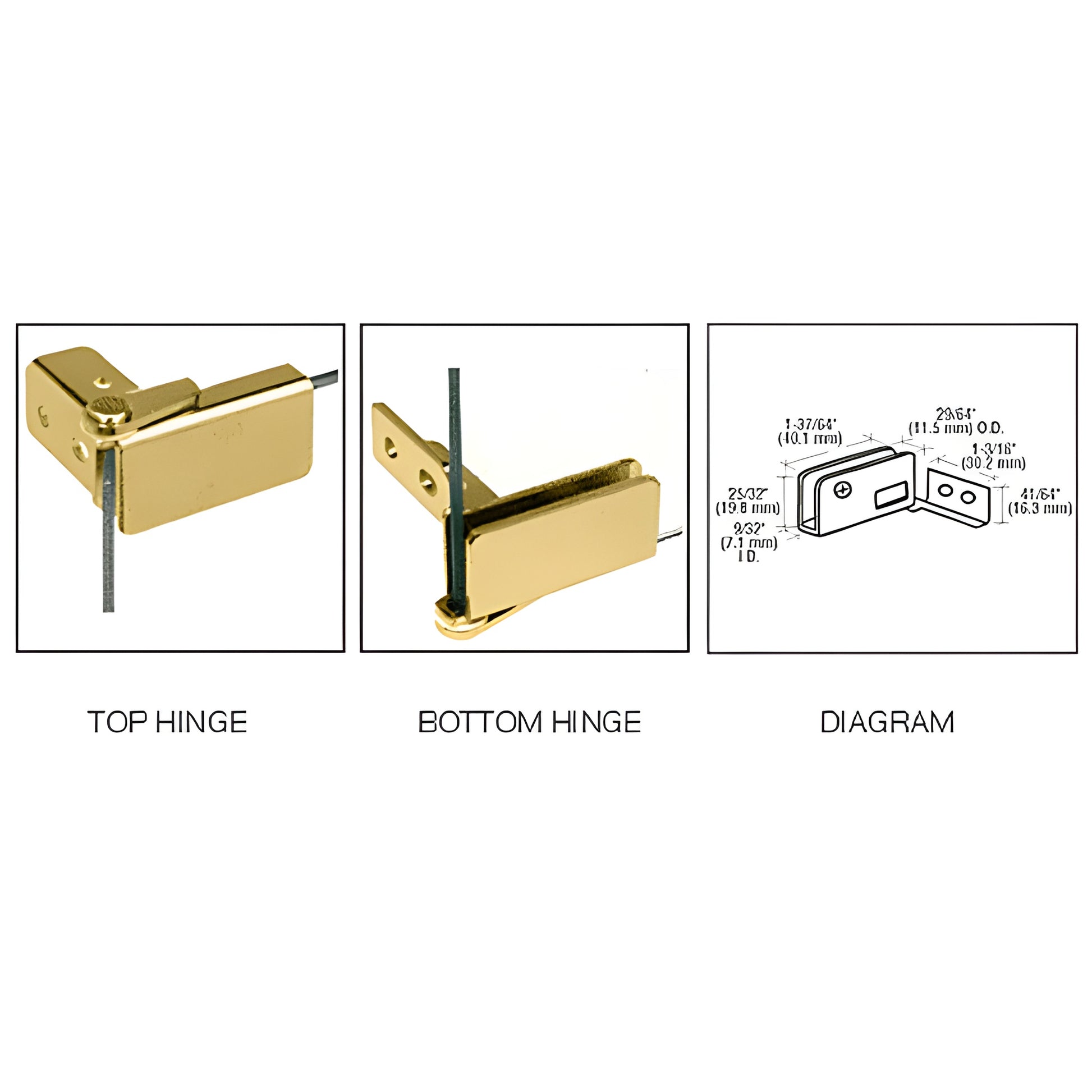

CRL Brass Surface-Mount Hinge for Frameless Glass Doors
CRL Brass Surface-Mount Hinge for Frameless Glass Doors
Regular price
$13.80 CAD
Regular price
Sale price
$13.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GDH96BR
Shipping Weight: 3.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Brass
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
25/32 in. (19.8 mm)
Material
Brass
Maximum Door Width
18 in. (457.2 mm)
Pack Quantity
2
Weight Capacity
16 lbs. (7.3 kg)
Width
1-37/64 in. (40.1 mm)
Overview
- Precision-machined hinge for 3/16" (5 mm) tempered glass
- Also fits 1/4" (6 mm) glass — engineered for stereo cabinet doors and display cases
- Use with monolithic tempered glass for safety and durability
CRL Standard Mount Hinges are installed in drilled holes in the cabinet frame; set screws secure the glass in the hinge openings. Includes nylon bushings for drilled-hole installation. For faster installation use Cat. No. GDH5J1G drill jig and Cat. No. GDH5WDFAB drill bit. Hinges are steel with a maximum weight capacity of 16 lbs. (7 kg) per pair. SKU: GDH96BR
CRL's stereo cabinet hardware is purpose-built for fabricating cabinets that house electronic components, china, collectibles, and display cases. Precision-manufactured hinges and accessories ensure a secure fit and long service life. Available finishes: brass, chrome, and black to match wood finishes and room décor. Components are designed to work with 3/16" (5 mm) tempered glass for glass cabinet doors and display enclosures.
SPECIFICATIONS:
Glass Height: Opening Plus 5/16" (7.9 mm)
Single Door Width: Opening Plus 3/4" (19 mm)
Double Door Width: Opening Divided by 2, Plus 11/32" (8.7 mm). Maximum Door Dimensions 18" (457 mm) W x 39" (991 mm) H.
Brass Finish Advisory:
Brass is durable but can oxidize and develop a tarnished appearance over time, regardless of packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance.
For matching hinges, drill jigs, and technical support for glass cabinet hinge installation, contact CRL or add SKU GDH96BR to your cart today.
