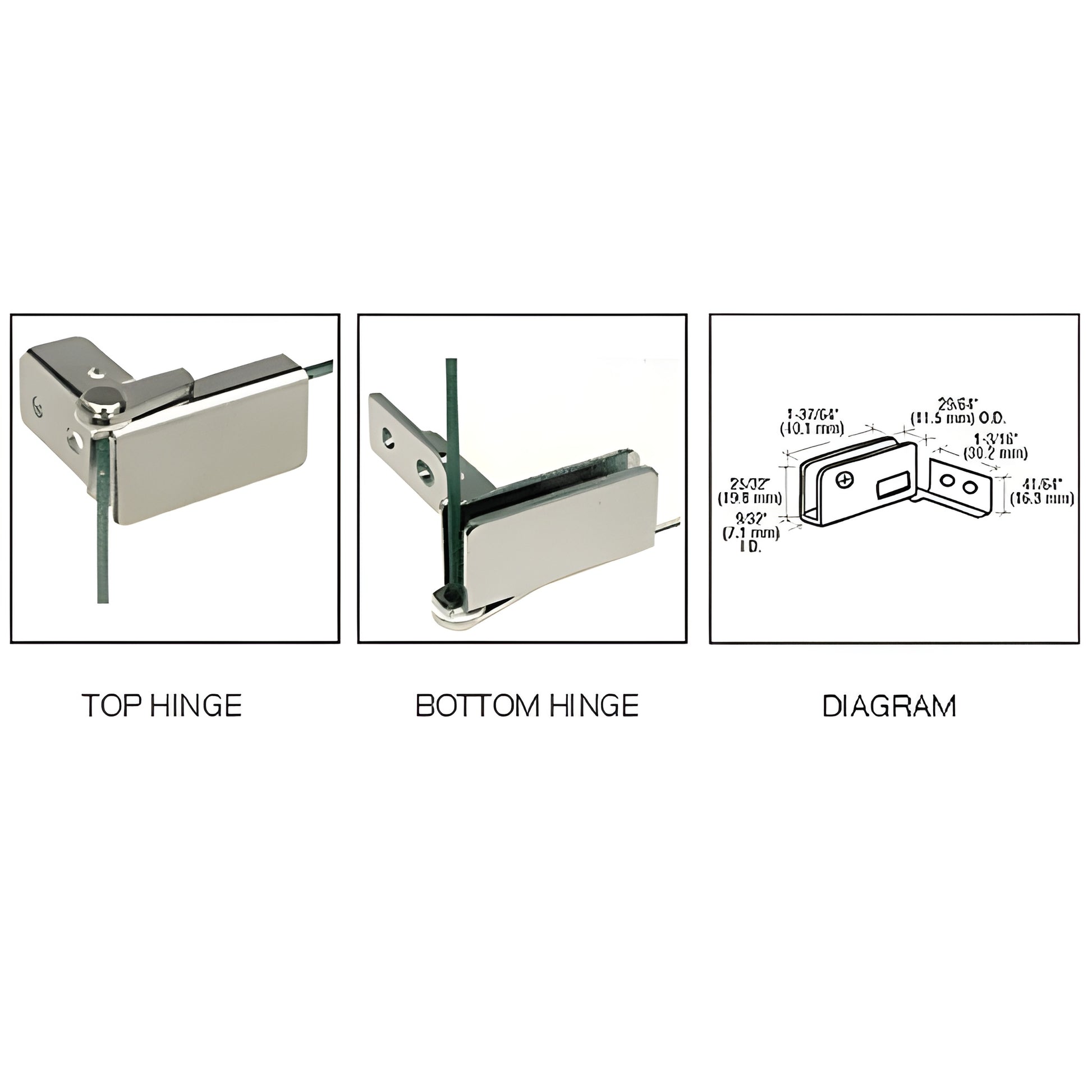

CRL Chrome Surface-Mount Hinge for Frameless Glass Doors
CRL Chrome Surface-Mount Hinge for Frameless Glass Doors
Regular price
$16.57 CAD
Regular price
Sale price
$16.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GDH96CH
Shipping Weight: 14.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
25/32 in. (19.8 mm)
Material
Brass
Maximum Door Width
18 in. (457.2 mm)
Pack Quantity
2
Weight Capacity
16 lbs. (7.3 kg)
Width
1-37/64 in. (40.1 mm)
Overview
- Precision-machined hinge for 3/16" (5 mm) tempered glass doors
- Also fits 1/4" (6 mm) glass — compatible with monolithic tempered glass
- Includes nylon bushings for drilled-hole mounting in cabinet frames
CRL Standard Mount Hinges (SKU: GDH96CH) — heavy-duty steel cabinet hinge engineered for glass cabinet doors and stereo cabinet hardware. These drilled-hole, set-screw hinges secure monolithic tempered glass and include nylon bushings for smooth operation. Recommended drill jig: Cat. No. GDH5J1G with GDH5WDFAB drill bit for fast, accurate installation. Maximum weight per pair: 16 lbs. (7 kg). Available finishes: brass, chrome, and black to match wood finishes and room décor.
CRL's stereo cabinet hardware is precision-manufactured for electronic component cabinets, china cabinets, and collectibles displays. All components are designed to work with 3/16" (5 mm) tempered glass and provide a precise fit for long-lasting performance.
SPECIFICATIONS:
Glass Height: Opening Plus 5/16" (7.9 mm)
Single Door Width: Opening Plus 3/4" (19 mm)
Double Door Width: Opening Divided by 2, Plus 11/32" (8.7 mm). Maximum Door Dimensions 18" (457 mm) W x 39" (991 mm) H.
