CRL Brass Transom-Mount Patch Connector with Support Fin, Glass Door
CRL Brass Transom-Mount Patch Connector with Support Fin, Glass Door
Regular price
$151.33 CAD
Regular price
Sale price
$151.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH71BR
Shipping Weight: 1.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Brass
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Overview
- For 3/8" or 1/2" (10 or 12 mm) glass
- Use monolithic tempered glass only

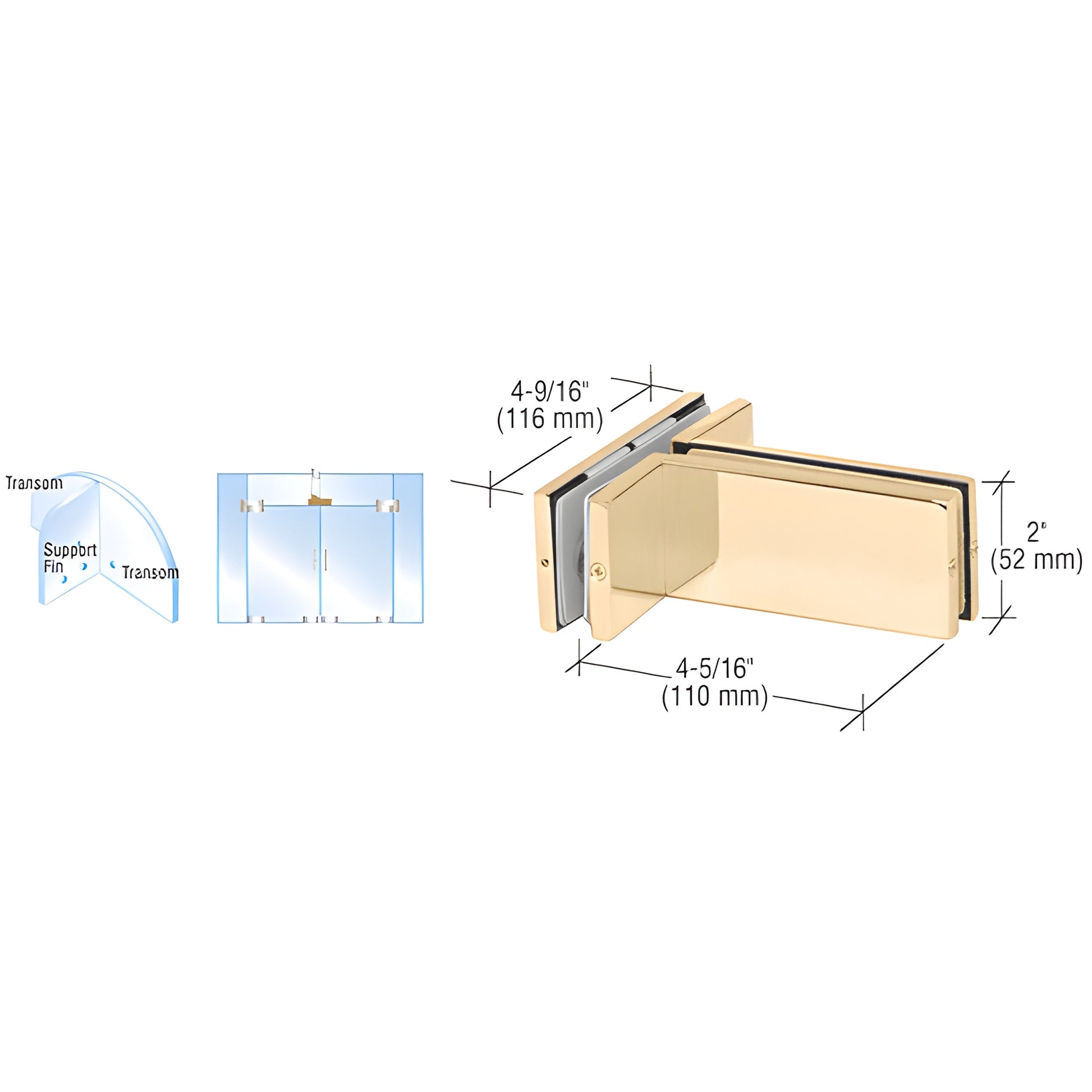

CRL Transom Mounted Patch Connector with Support Fin Bracket (SKU: PH71BR) — transom-mounted patch connector designed to provide additional lateral support for one- or two-lite transoms. Ideal for frameless glass transom applications requiring improved structural strength, this support fin bracket secures the support fin to the ceiling with a Ceiling Mounted Support Fin Bracket. Follow approved design criteria (refer to GANA or the manufacturer's manual) when sizing the support fin glass.
Glass Fabrication Required:
Four 3/4" (19 mm) diameter holes
Comes With:
Template and instructions
Product Warning:
Not for use with laminated glass. Use only with monolithic tempered glass.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished look over time regardless of packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance guidance.
For specifications, installation guidance, or to order SKU PH71BR, contact CRL Customer Service or add the item to your cart today.
