CRL Satin Anodized Transom Mounted Patch Connector With Support Fin Bracket
CRL Satin Anodized Transom Mounted Patch Connector With Support Fin Bracket
Regular price
$137.54 CAD
Regular price
Sale price
$137.54 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH71A
Shipping Weight: 1.17 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.17 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Glazing Thickness | 3/8 in.,1/2 in. (10 mm,12 mm) |
Overview

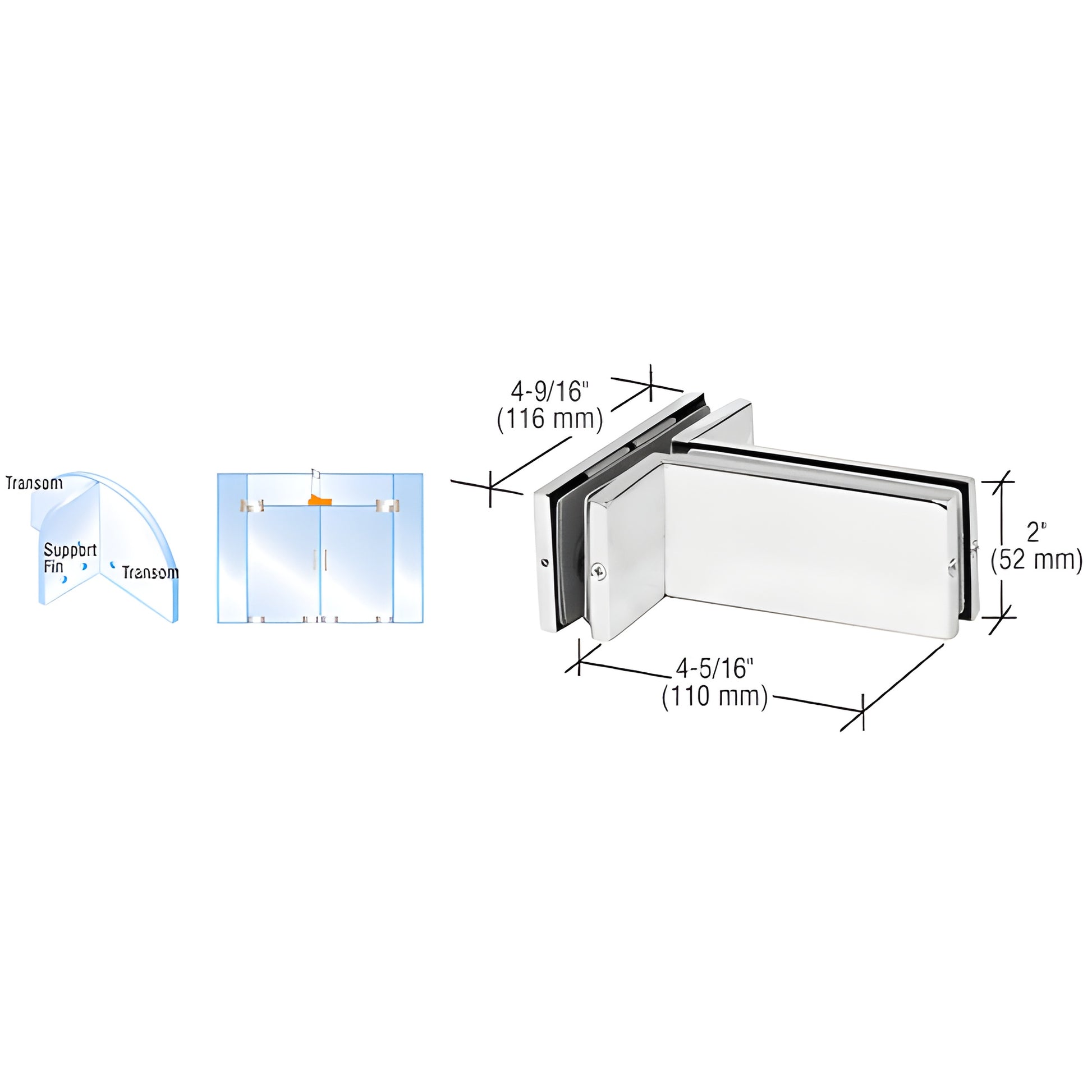

The CRL Transom Mounted Patch Connector with Support Fin Bracket is designed for 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, providing essential lateral support for one or two lite transoms to enhance structural strength.
Ensure that the support fin glass is sized according to approved design criteria, referencing GANA or the Manufacturer's Manual, and secure it to the ceiling with a Ceiling Mounted Support Fin Bracket.
Note that this fitting requires glass fabrication, including four 3/4" (19 mm) diameter holes, and it comes with a template and instructions for easy installation.
Please be aware that these fittings are not suitable for laminated glass, and for exact shipping weights or costs, contact CRL Customer Service prior to placing your order.
Ensure that the support fin glass is sized according to approved design criteria, referencing GANA or the Manufacturer's Manual, and secure it to the ceiling with a Ceiling Mounted Support Fin Bracket.
Note that this fitting requires glass fabrication, including four 3/4" (19 mm) diameter holes, and it comes with a template and instructions for easy installation.
Please be aware that these fittings are not suitable for laminated glass, and for exact shipping weights or costs, contact CRL Customer Service prior to placing your order.
