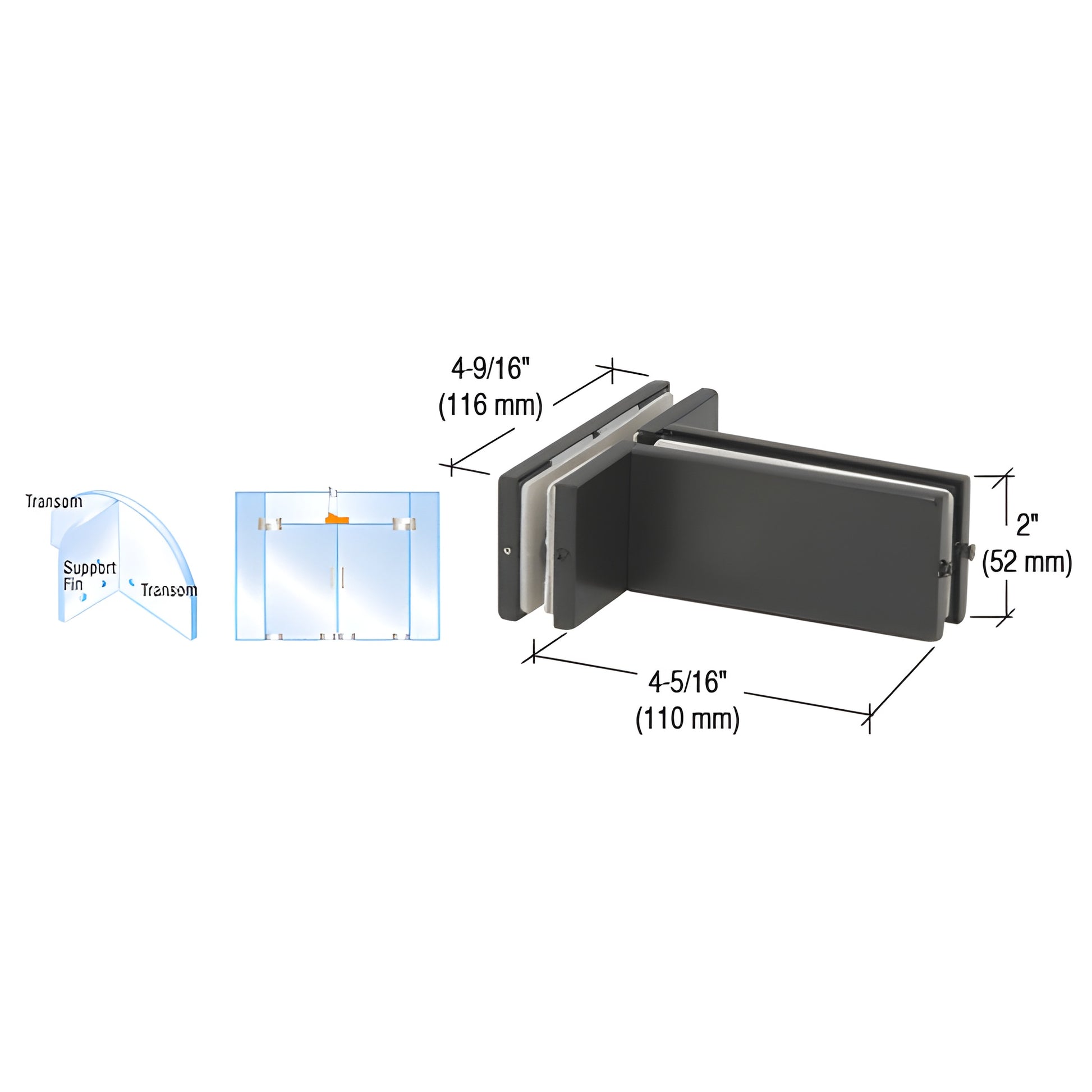

• PH71DU black bronze anodized transom-mounted patch connector with support fin bracket for 3/8" or 1/2" glass
1 1

CRL

CRL Bronze Transom Patch Connector for Glass Doors with Support Fin

CRL Bronze Transom Patch Connector for Glass Doors with Support Fin

$134.20 CAD
$134.20 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH71DU
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)

Overview

  • For 3/8" or 1/2" (10 or 12 mm) glass
  • Use monolithic tempered glass

This CRL Transom Mounted Patch Connector with Support Fin Bracket (SKU: PH71DU) provides lateral reinforcement for one- or two-lite transoms where extra structural strength is required. Ideal for commercial storefronts and interior glass transom systems, the bracket secures the support fin to the ceiling using a Ceiling Mounted Support Fin Bracket. Follow approved design criteria (refer to GANA or the manufacturer's manual) to size the support fin glass correctly.

GLASS FABRICATION REQUIRED:
Four 3/4" (19 mm) diameter holes

COMES WITH:
Template and instructions

Product Warning:
These fittings are not for use with laminated glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor settings.



Order the PH71DU transom mounted patch connector today to add reliable lateral support to your tempered glass transom installation.

Specifications

Templates
PH71 Template
