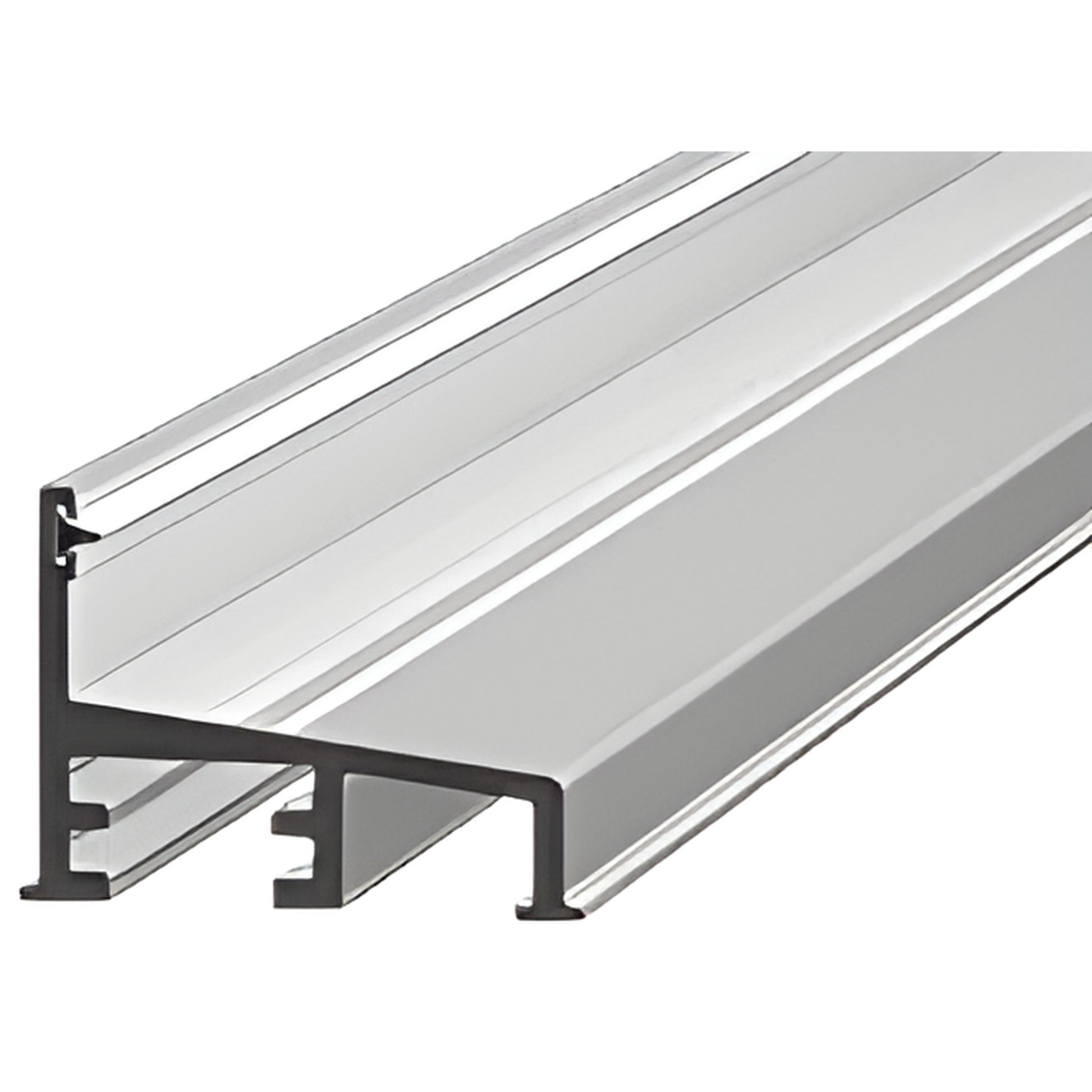

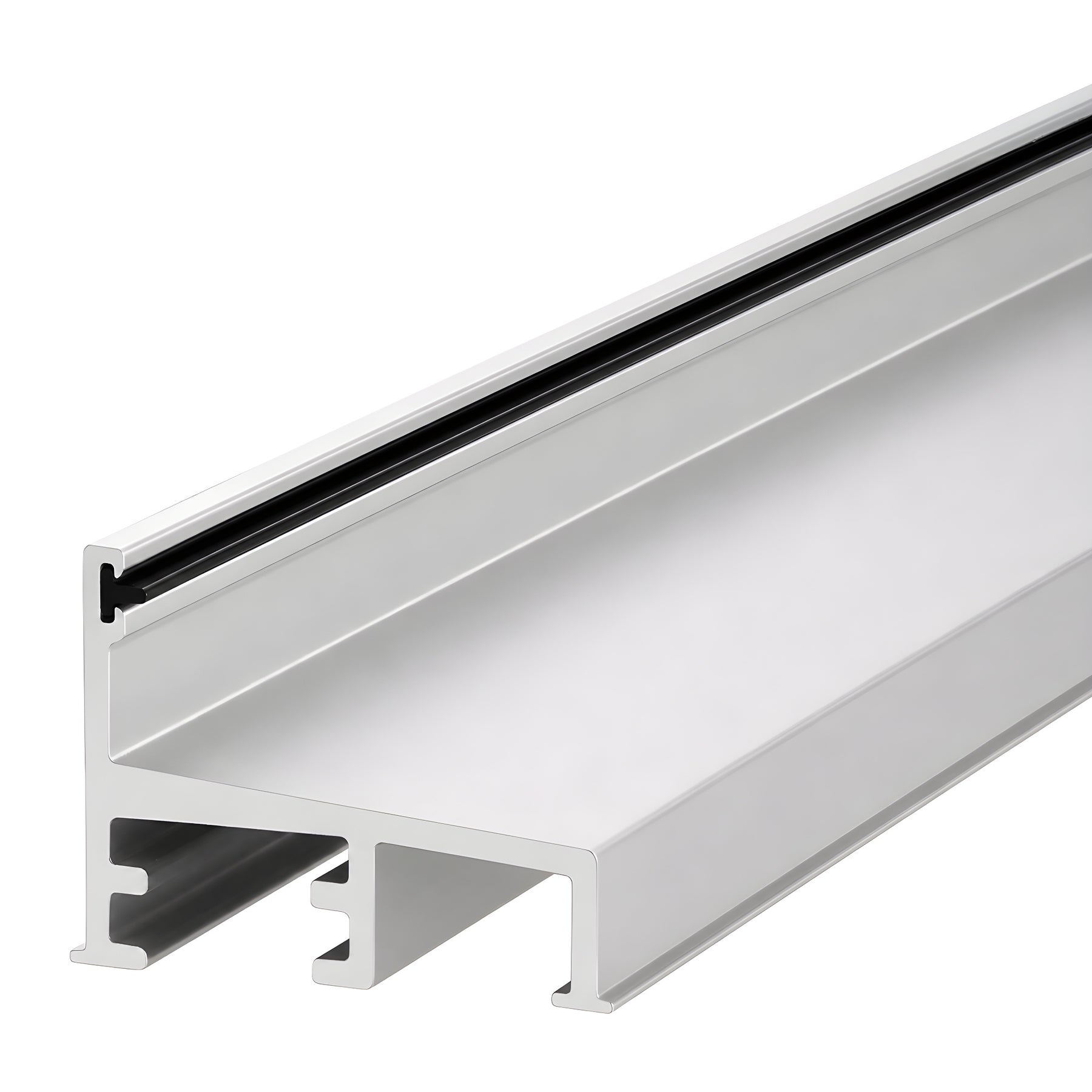

CRL Brite Anodized 72 in Replacement Bottom Sill CK/DK Cottage Sliders

• Individual supplementary extrusions and hardware components to convert our frameless shower door kits into angled enclosures or wider inline units
• Bottom sill extrusion used in all Cottage Series applications
• Available finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel and Oil Rubbed Bronze
• Do-it-yourself kit components, or send a drawing to customize a unit
• Designed for use with monolithic tempered glass

CRL DK Cottage Series components (SKU: DK63BA) are engineered to add versatility to frameless sliding shower door kits. These frameless shower door components let you add panels for a designer enclosure or build a custom sliding unit by combining headers, header fillers, side jambs, bottom sills, sidelite sills, clear polycarbonate vertical jambs, top hangers and accessory items. Stock lengths available for quick assembly.

Email or fax a drawing with dimensions and we will assemble a customized kit including everything except the glass and silicone. Installation instructions are included with each custom kit.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (Aluminum), Jamb Seals (Polycarbonate), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thicknesses: 1/4" or 3/8" (6 or 10 mm) (Glass not included)
Recommended Maximum Slider Sizes:
1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m)
3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob – One 1/2" (12 mm) diameter hole; Top Hangers – Four 1/2" (12 mm) diameter holes (two per glass panel)

Product Warning:

Hardware package includes corners and header bracket required to convert an inline shower door kit into an angled enclosure when used with the appropriate extrusions above. Hardware package must be ordered separately. Polycarbonates are translucent in color.
