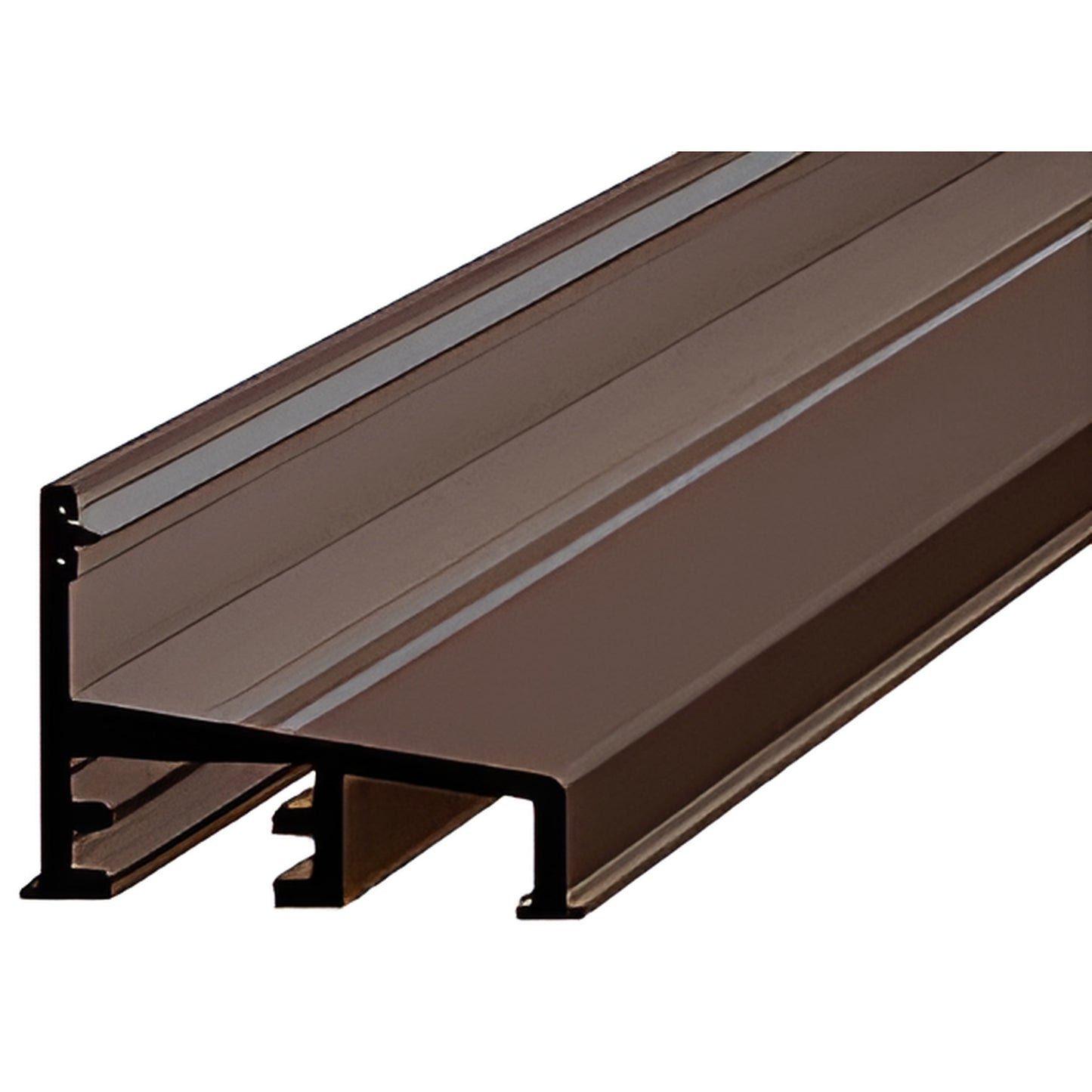

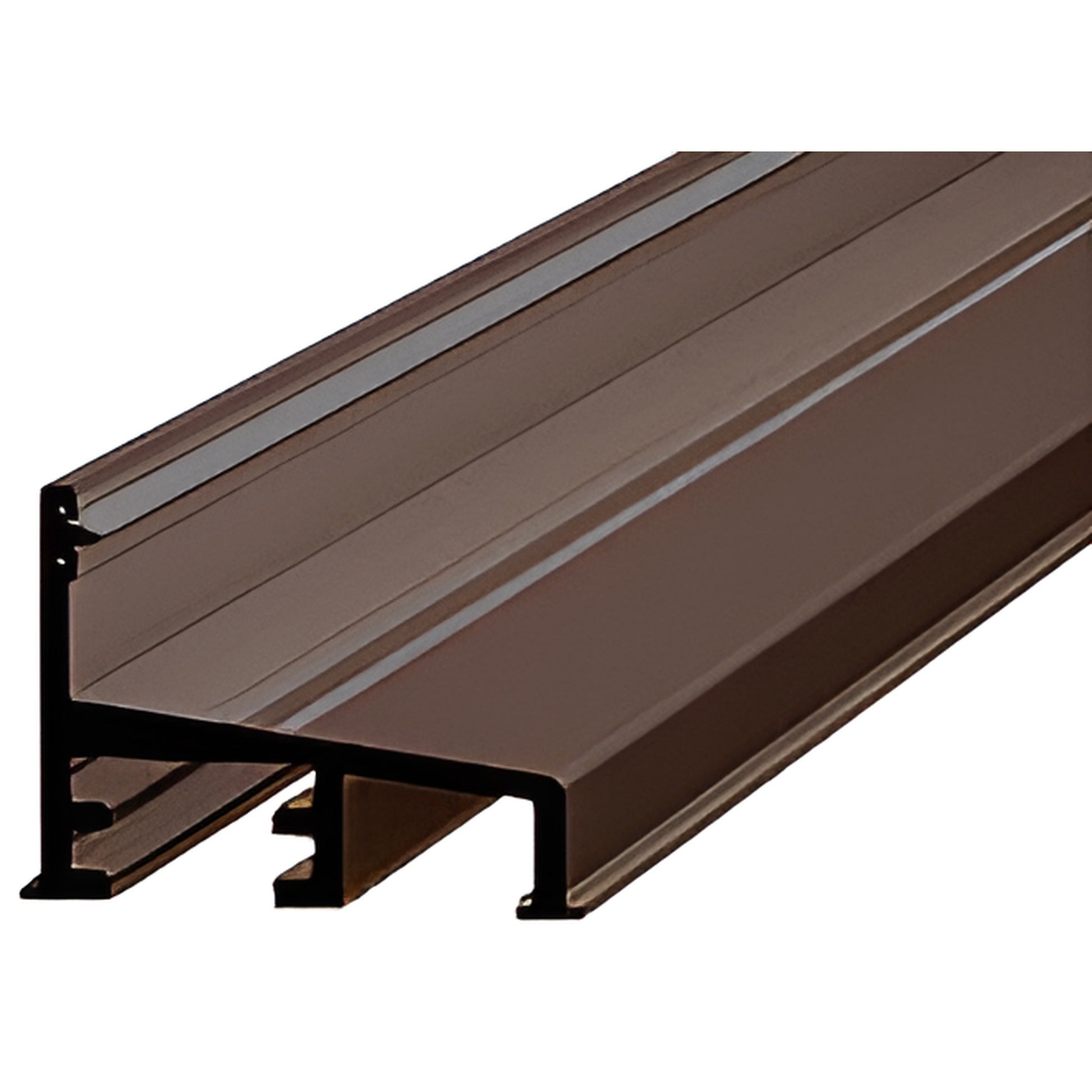

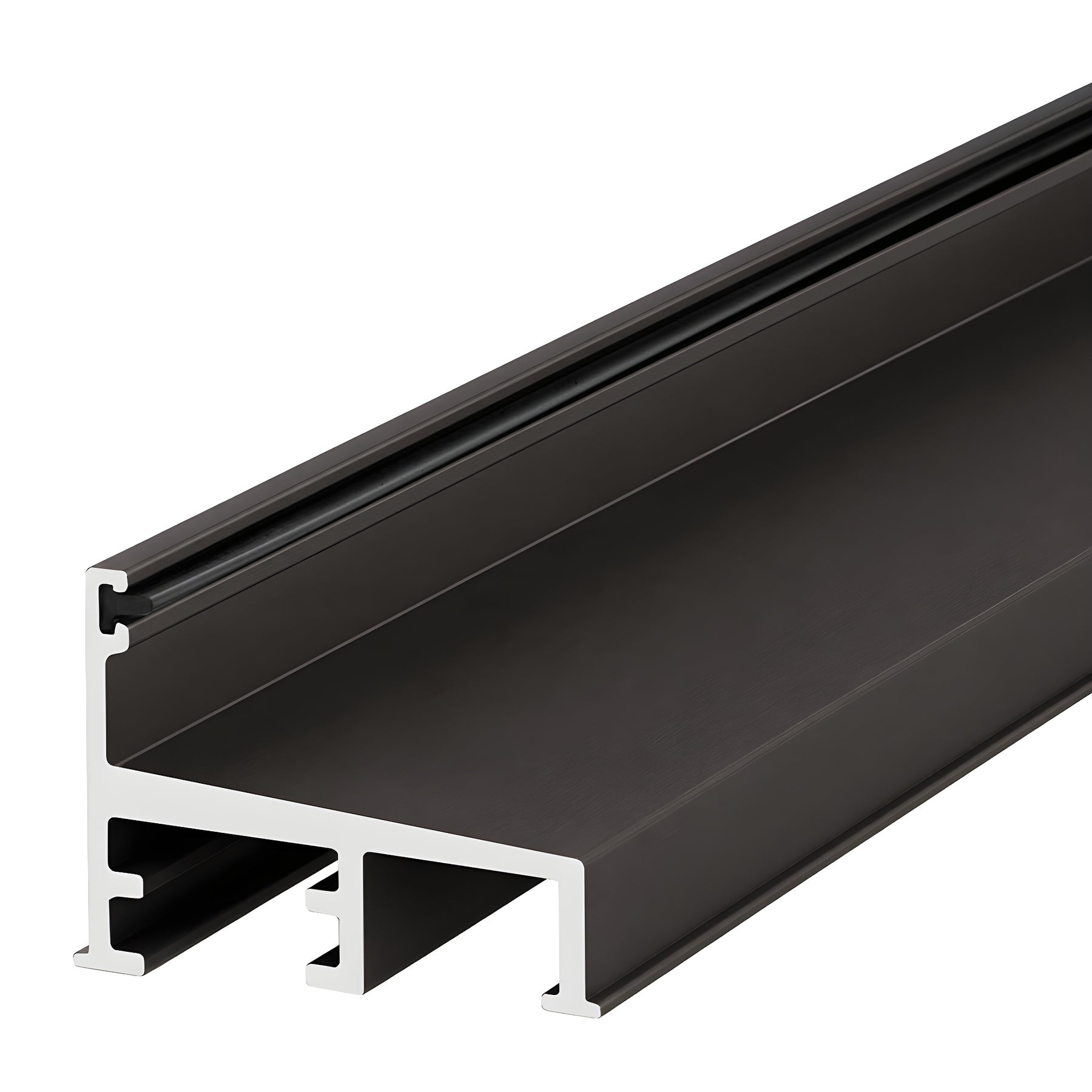

CRL 72 in Oil Rubbed Bronze Threshold for CK/DK Cottage Sliders

• Individual supplementary extrusions and hardware components to convert our frameless shower door kits into angled enclosures or wider inline units
• Bottom sill extrusion used in all Cottage Series applications
• Available finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel, Oil Rubbed Bronze
• Do-it-yourself or send a drawing to customize a unit
• Designed for monolithic tempered glass

DK Cottage Series components (SKU: DK630RB) are engineered to add versatility to CRL frameless sliding shower door kits. Use these modular extrusions and accessories to add panels, build a wider inline unit, or create a custom angled enclosure. Stock items include headers, header fillers, side jambs, bottom sills, sidelite sills, clear polycarbonate vertical jambs, top hangers and accessory hardware. Ideal long-tail uses: frameless sliding shower door conversion kit components, custom angled shower enclosure parts, and DIY frameless shower door extension extrusions.

Send a scaled drawing with dimensions by email or fax and we will configure a customized kit that includes all required hardware (glass and silicone not included). Installation instructions included in each custom kit.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (aluminum), jamb seals (polycarbonate), towel bar (brass tubing), knob (solid brass)
Glass Thicknesses: 1/4" or 3/8" (6 or 10 mm) — glass not included
Recommended Maximum Slider Sizes:
1/4" (6 mm) glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m)
3/8" (10 mm) glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob – one 1/2" (12 mm) diameter hole; Top Hangers – four 1/2" (12 mm) diameter holes (two per glass panel)

Product Warning:
Hardware package includes corners and header bracket required to convert an inline shower door kit into an angled enclosure when used with appropriate extrusions (must be ordered separately). Polycarbonate jambs are translucent in color.
