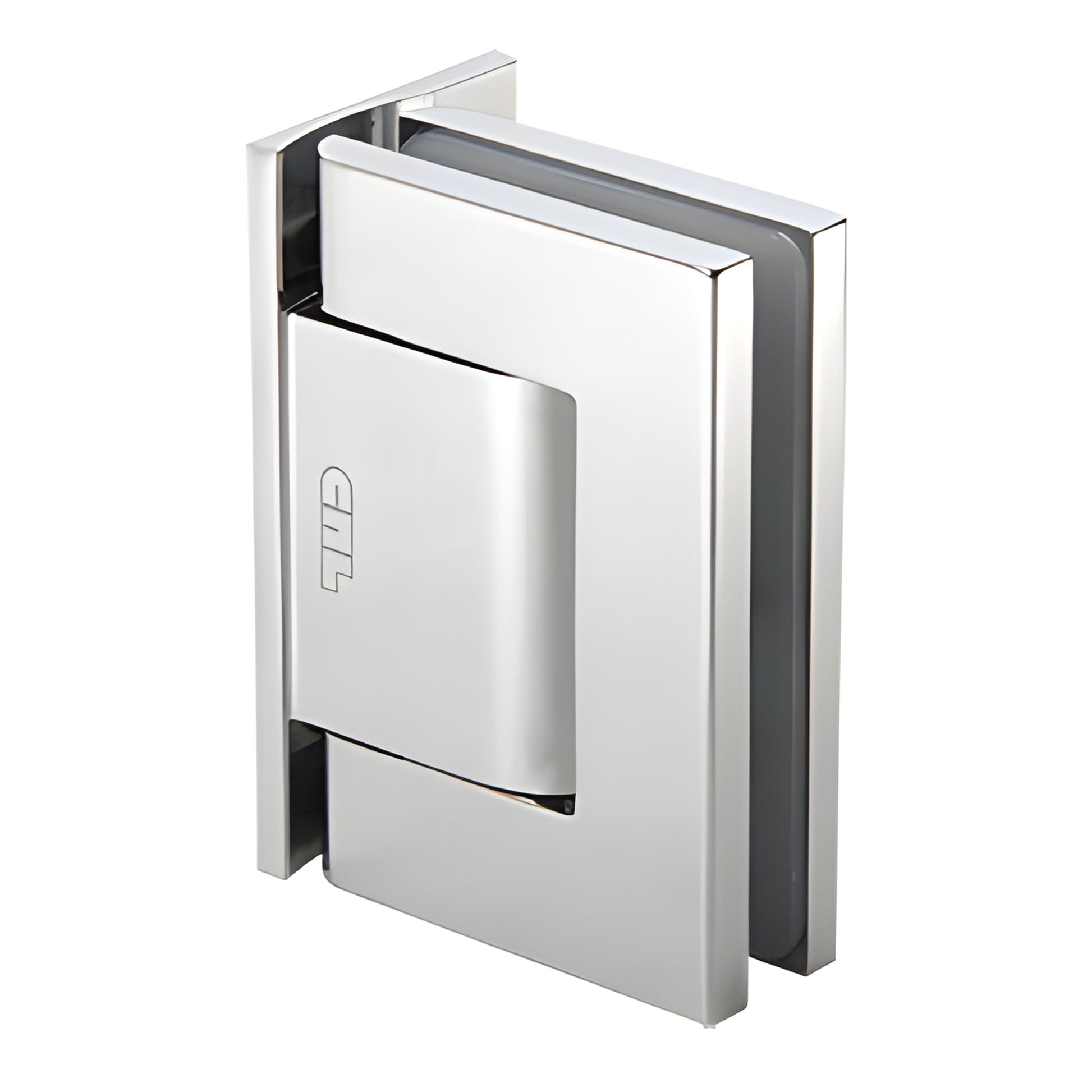

CRL Brite Chrome Wall-to-Glass Shower Door Hinge Offset Hold-Open

• For self-closing glass doors from 5/16" to 9/16" (8 to 13.52 mm) thick
• Designed for use on interior doors — ideal for bathroom and all-glass installations
• Aluminum body available in three finishes: Brite Chrome, Brushed Satin, and Satin Anodized
• Adjustable closing speed (control valve)
• Alternative to floor closers and patch fittings — torque setting: 9 Nm minimum, 10 Nm maximum

This CRL Offset Back Plate Wall Mount Hinge (SKU: H8011CH) is an Oil Dynamic hinge engineered as a self-closing glass door hinge for interior applications. It swings in and out a full 90° with positive stops at 0° and ±90°, and includes an adjustable closing speed for controlled, quiet operation. Suitable for doors up to 39" (1 m) wide; maximum capacity using two hinges is 220 lbs. (100 kg).

The Oil Dynamic Hinge combines automatic mechanical hinge function with hydraulic damping—allowing installation of a true all-glass, self-closing door without floor-mounted or overhead closers. This wall-mount hinge is ambidextrous and especially useful for retrofits where minimizing floor or header work is important.

Properly installed, two Oil Dynamic Hinges support 5/16" to 9/16" (8 to 13.52 mm) thick glass doors up to 39" (1 m) wide and 220 lbs. (100 kg). A control valve lets you fine-tune closing speed. Note: do not use more than two hinges on one door. Not suitable for exterior or humid conditions.

The Oil Dynamic Hinge features an aluminum body in configurations for Wall Mount and Glass-to-Glass applications and has been tested to over 1 million cycles for long-lasting service.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90° inwards and outwards
Closing Type: Automatic closing from 0° to 80° with adjustable speed
Special Feature: Holds open at 90°; adjustable closing speed. No hold-open models available (except H8060)
Cut-Out Required
Includes: Snap-in molded gaskets for 5/16" to 9/16" glass; hex screws
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

NOTE: Do not use more than two hinges on one door. Not suitable for humid conditions or exterior use.<
