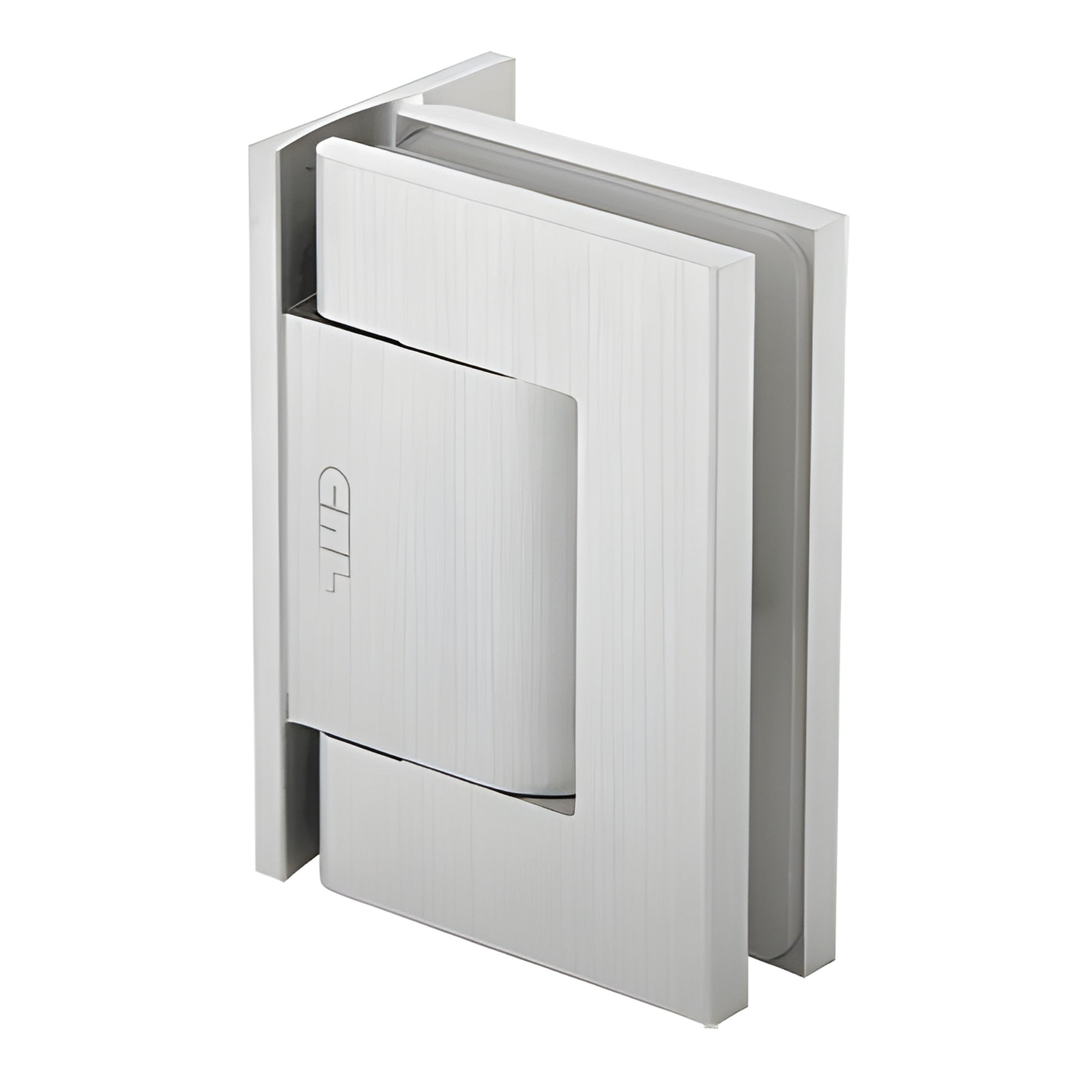

CRL Satin Anodized Vernon Oil Offset Glass Door Hinge Hold-Open

• For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm) Thick
• Designed for Use on Interior Doors (bathroom and shower applications)
• Aluminum Body in Your Choice of Three Finishes: Brite Chrome, Brushed Satin, and Satin Anodized
• Adjustable Closing Speed (oil-dynamic hydraulic control)
• A Great Alternative to Floor Closers and Patch Fittings. Torque Setting: 9Nm Minimum – 10Nm Maximum

This CRL Offset Back Plate Wall Mount Hinge (SKU H8011SA) is an oil-dynamic, self-closing glass door hinge that swings in and out a full 90 degrees with positive stops at 0°, +90° and -90°. Adjustable closing speed makes it ideal for interior bathroom glass doors and retrofit all-glass installations where floor or overhead closers are not desired. For single doors up to 39" (1 m) wide. Maximum capacity using two hinges: 220 lbs. (100 kg).

The Oil Dynamic Hinge blends automatic mechanical hinge convenience with hydraulic door-closer performance. It enables a self-closing glass door without floor-mounted or overhead devices, letting you install an all-glass interior door without extensive retrofitting.

Properly mounted, two Oil Dynamic Hinges support 5/16" to 9/16" (8 to 13.52 mm) thick glass doors up to 39" (1 m) wide and weighing up to 220 lbs. (100 kg). A control valve adjusts closing speed. The hinge is ambidextrous and holds open at 90° for design flexibility.

The Oil Dynamic Hinge features an aluminum body in Wall Mount and Glass-to-Glass configurations. It has been tested for durability (over 1 million cycles) to ensure long-lasting service.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Degrees Inward and Outward
Closing Type: Automatic Closing from 0 to 80 Degrees (adjustable)
Special Feature: Holds Open at 90 Degrees; Adjustable Closing Speed. No Hold Open Models Available (Except H8060 Model).
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Hex Screws
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

NOTE: Do not use more than two hinges. Not suitable for humid conditions or exterior/outdoor use.
