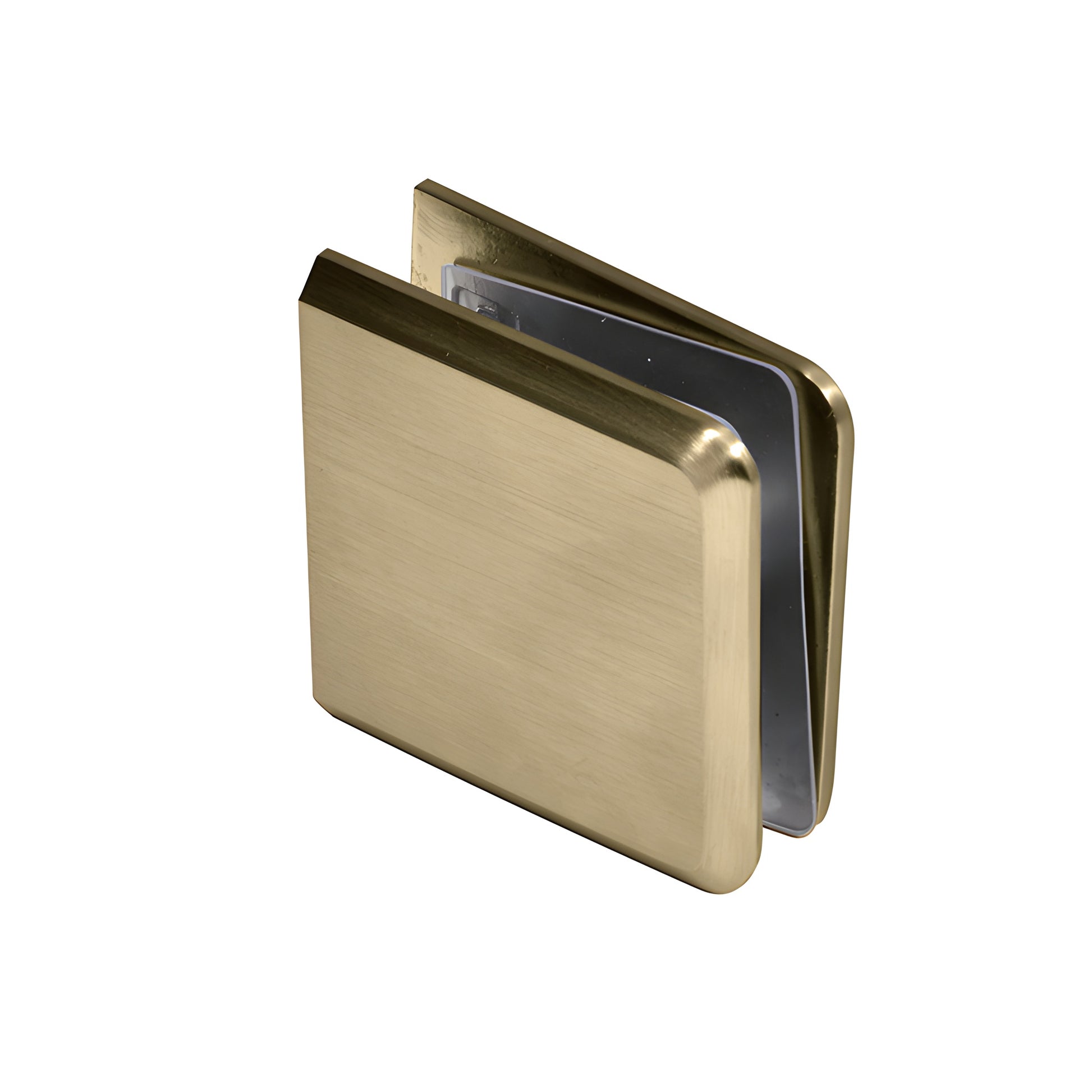

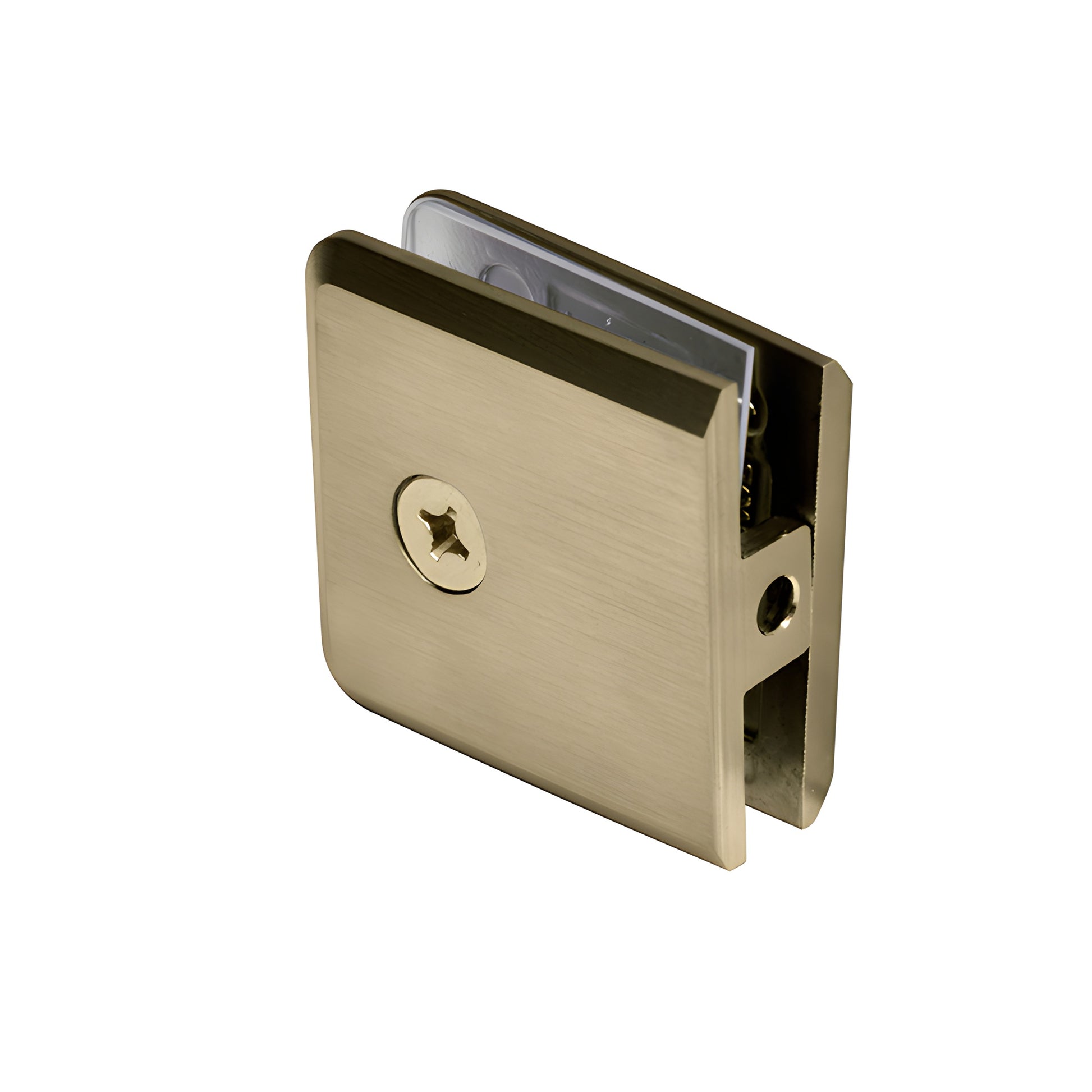

CRL Brushed Bronze Heavy-Duty Beveled Hole-in-Glass Wall Clamp
CRL Brushed Bronze Heavy-Duty Beveled Hole-in-Glass Wall Clamp
Regular price
$30.32 CAD
Regular price
Sale price
$30.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BCU4BBRZ
Shipping Weight: 7.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Beveled
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Brushed Bronze
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall / Ceiling Mount
Replacement Clamping Screw
P615BBRZ
Overview
- Fits 3/8" to 1/2" (10–12 mm) monolithic tempered glass
- Hole-in-glass, beveled wall-mount clamp for frameless shower enclosures
- Solid brass construction for corrosion resistance and durable finish
- Creates an 'all-glass' appearance as an alternative to U-channel
- Glass fabrication required—see specifications for hole/notch sizes
CRL Beveled Wall Mount Clamps (Hole-in-Glass Style) — SKU: BCU4BBRZ mount directly to wall, ceiling, or floor to secure fixed vertical glass panels in frameless shower installations. Designed for a minimal 3/16" (5 mm) clearance between the glass and the wall; use clear silicone to create a clean, water-resistant seal.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 requires notch; BCU4, BGC037 and BGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Specifications
Templates
