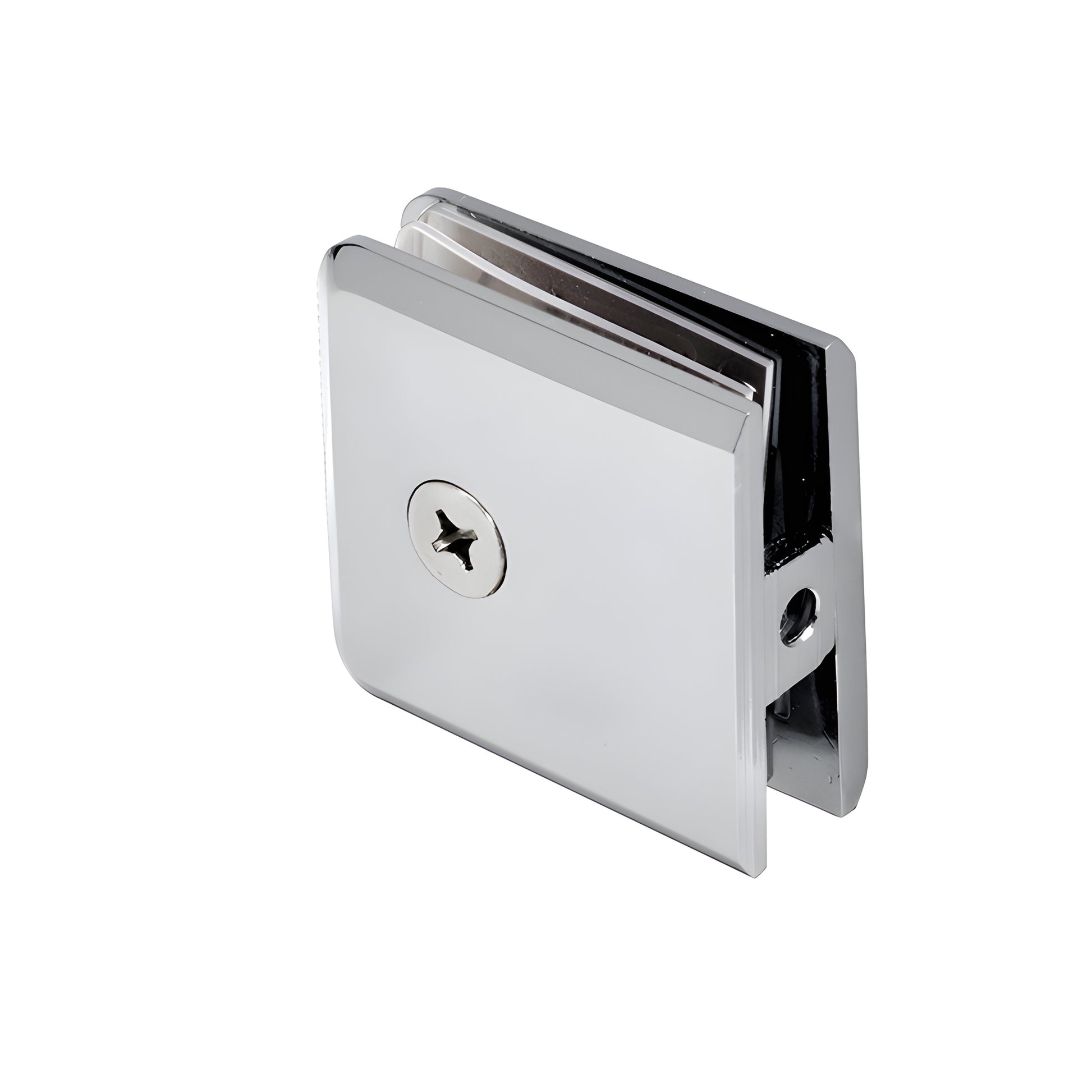

• Polished chrome beveled wall-mount glass clamp (BCU4CH) for 3/8-1/2 (10-12mm) frameless shower panels.

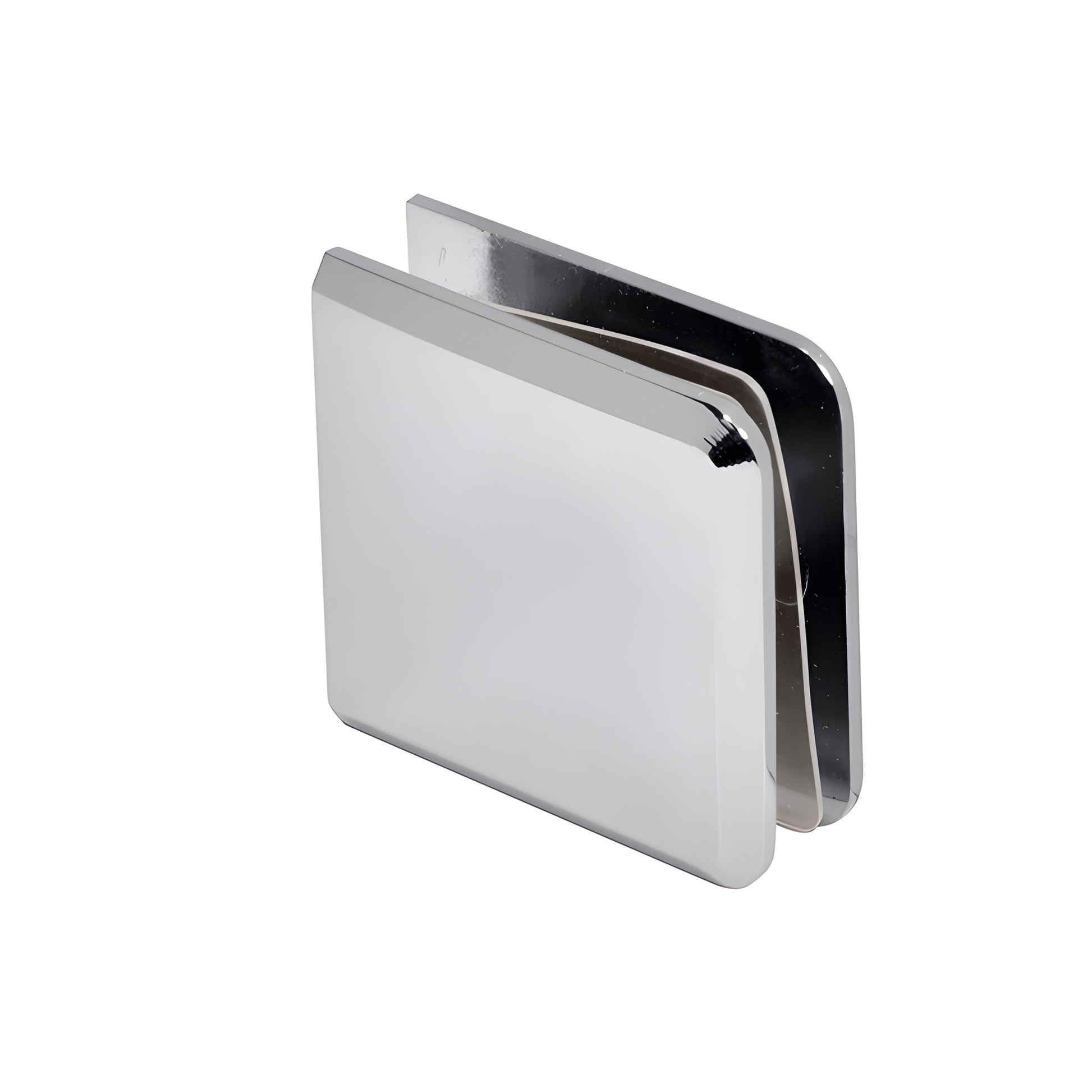

  • Polished chrome beveled wall-mount glass clamp (BCU4CH) for 3/8-1/2 (10-12mm) frameless shower panels.

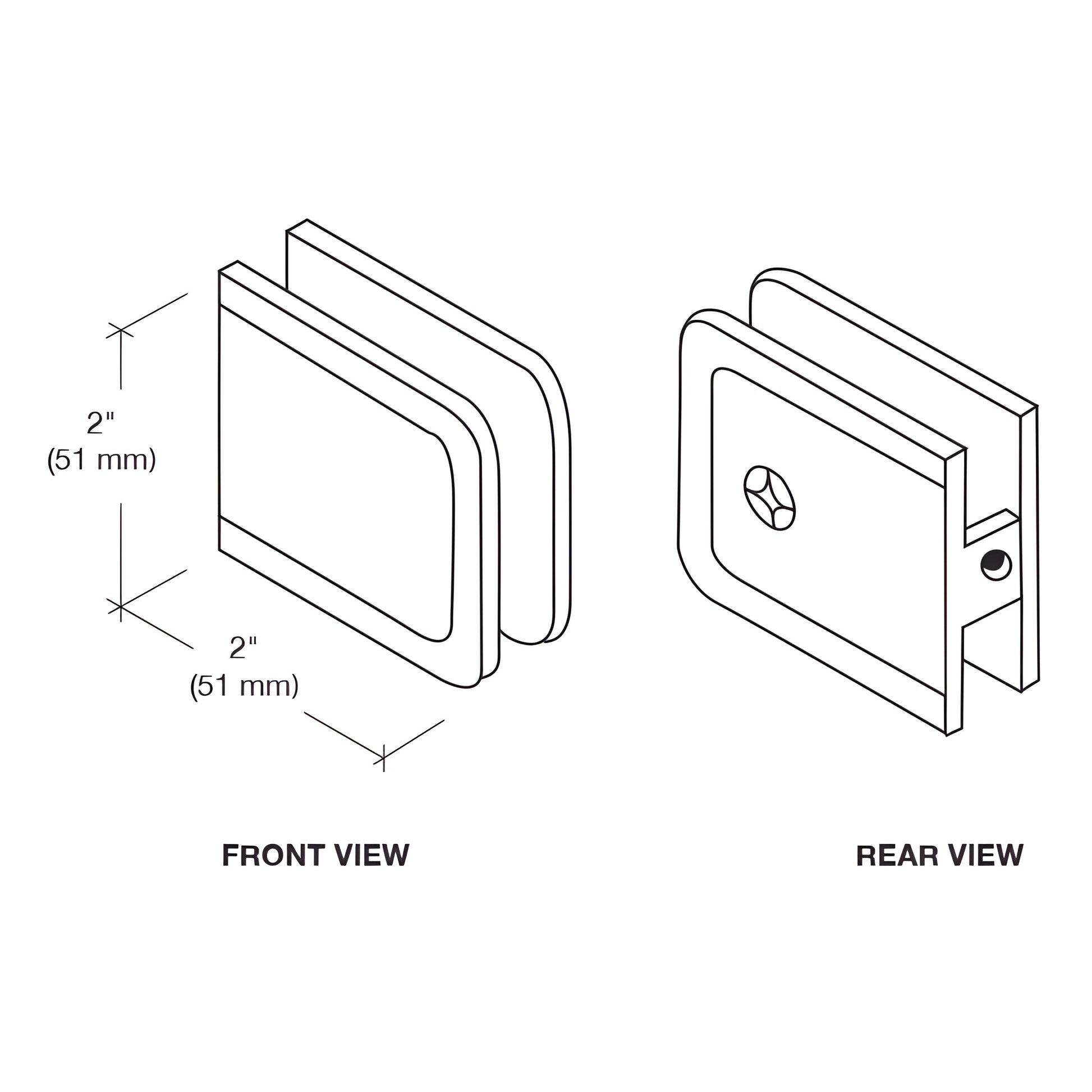

  • Polished chrome beveled wall-mount glass clamp (BCU4CH) for 3/8-1/2 (10-12mm) frameless shower panels.
1 3

CRL

CRL Polished Chrome Heavy-Duty Wall-Mount Clamp for Beveled Glass

CRL Polished Chrome Heavy-Duty Wall-Mount Clamp for Beveled Glass

$20.58 CAD
$20.58 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# BCU4CH
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Design Style
Beveled
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Chrome
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall / Ceiling Mount
Replacement Clamping Screw
P615CH

Overview

  • For 3/8" to 1/2" (10 to 12 mm) glass
  • Use monolithic tempered glass
  • Secures fixed panels of glass for frameless shower enclosures
  • Solid brass construction
  • Clamps create a clean "all-glass" appearance as an alternative to traditional U-channel
  • Glass fabrication required to accommodate clamps

CRL Beveled Wall Mount Clamps (Hole-in-Glass Style) — SKU: BCU4CH mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between the glass and the wall is 3/16" (5 mm). Use clear silicone to create a neat, water-resistant seal. Ideal for frameless shower installations and other architectural glass applications where a minimal, beveled wall clamp is desired.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 requires notch; BCU4, BGC037 and BGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor.

Order the BCU4CH solid brass beveled wall mount clamp today to achieve a sleek, frameless shower look.

Specifications

Templates
BCU4 Template
