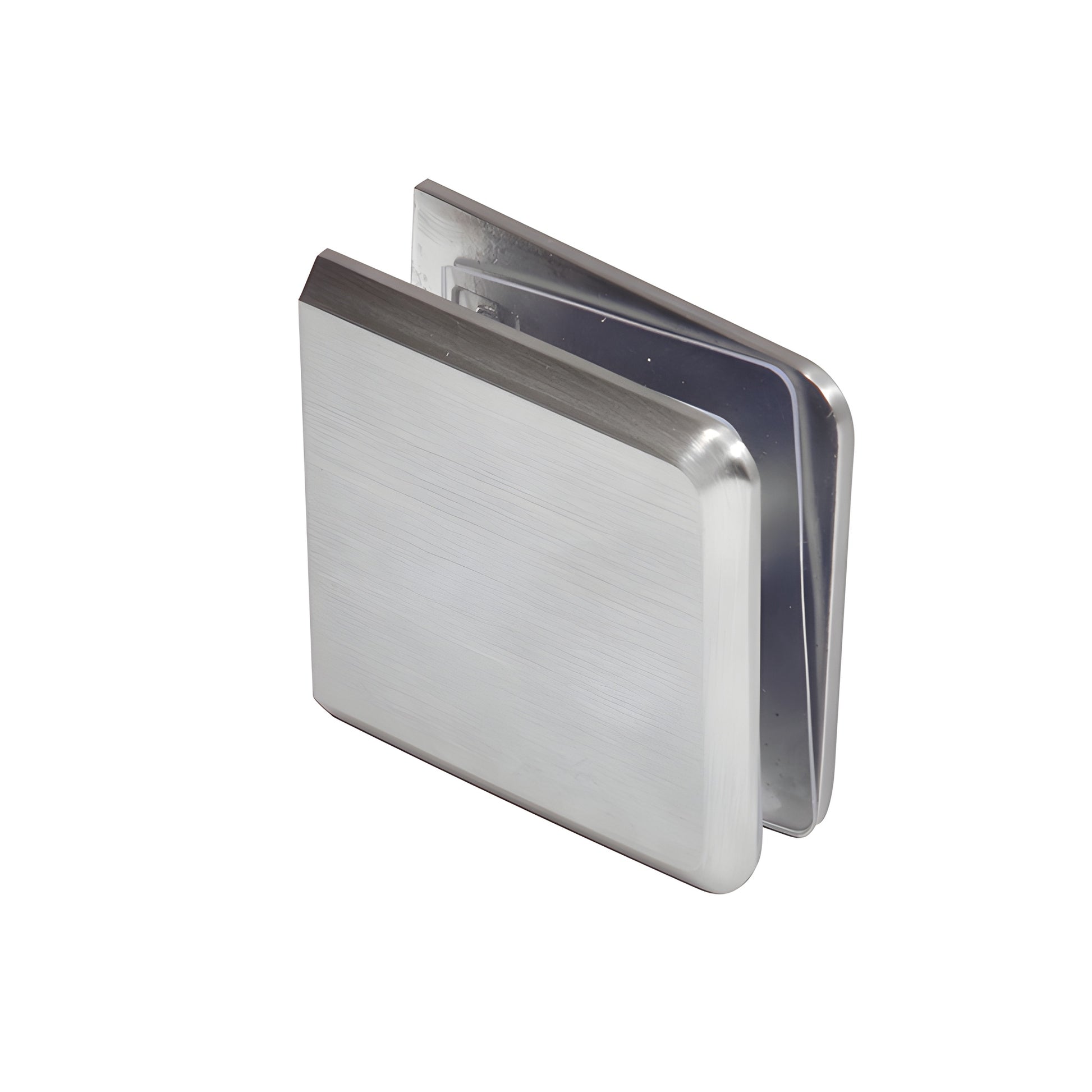

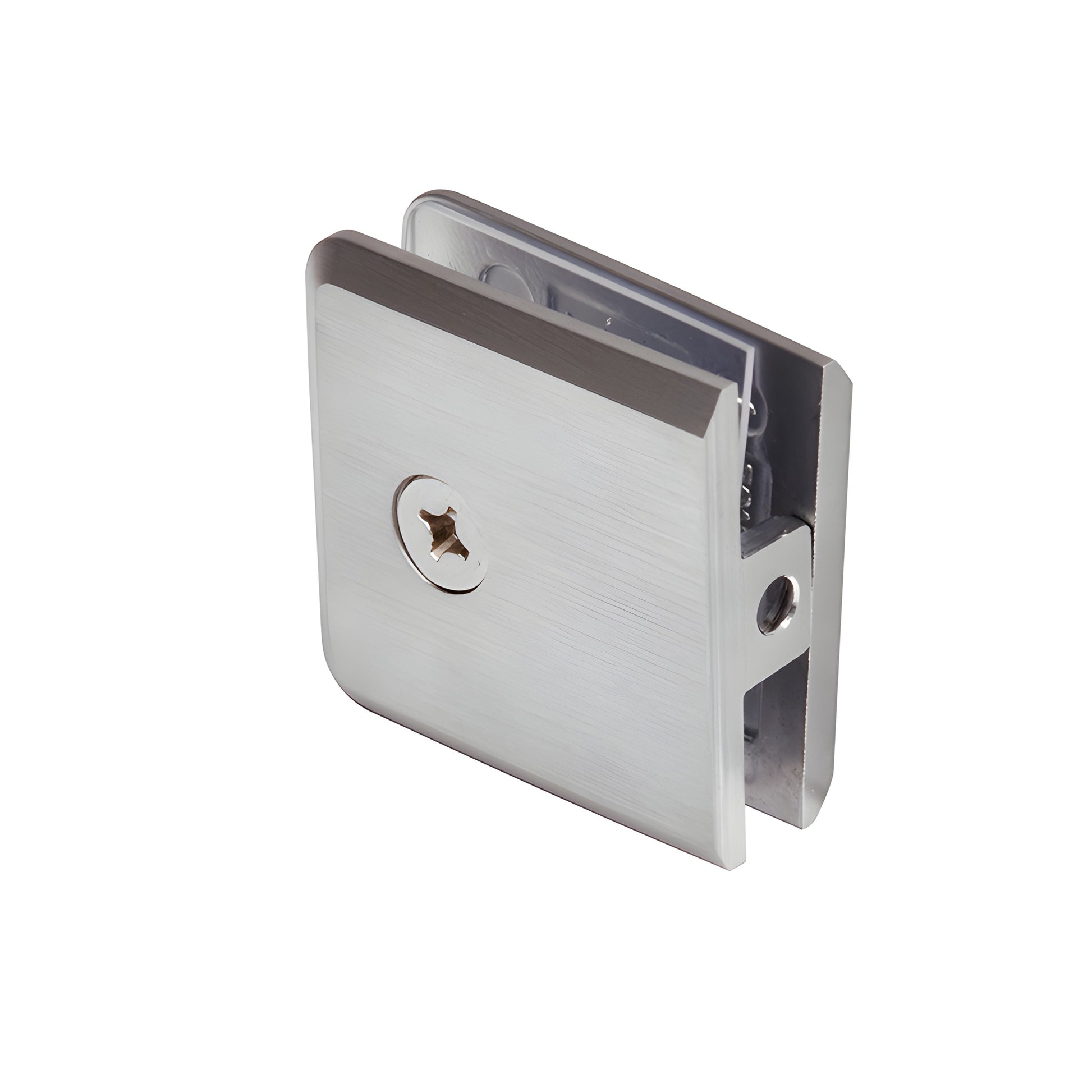

CRL Brushed Chrome Heavy-Duty Beveled Hole-in-Glass Wall Clamp
CRL Brushed Chrome Heavy-Duty Beveled Hole-in-Glass Wall Clamp
Regular price
$40.08 CAD
Regular price
Sale price
$40.08 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BCU4BCH
Shipping Weight: 6.08 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.08 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Chrome
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall / Ceiling Mount
Replacement Clamping Screw
P6150RB
Overview
- For 3/8" to 1/2" (10 to 12 mm) glass
- Use monolithic tempered glass
- Secures fixed panels of glass for frameless shower enclosures
- Solid brass construction for corrosion resistance and lasting finish
- Hole-in-glass, beveled wall-mount clamps provide a clean "all-glass" appearance vs. traditional U-channel
- Glass fabrication required to accommodate clamps (see specifications)
CRL Beveled Wall Mount Clamps (Hole-in-Glass Style) — SKU: BCU4BCH
These wall-mount glass clamps install to the wall, ceiling, or floor to secure vertical fixed glass panels in frameless shower systems and glass partition projects. Clearance between glass and wall is 3/16" (5 mm). Apply clear silicone for a neat, water-resistant seal. Ideal for architects, fabricators, and installers seeking a minimal, all-glass aesthetic.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 requires notch; BCU4, BGC037 and BGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Order BCU4BCH beveled wall-mount clamps for a sleek frameless shower or glass partition solution — add to cart or contact us for fabrication guidance.
