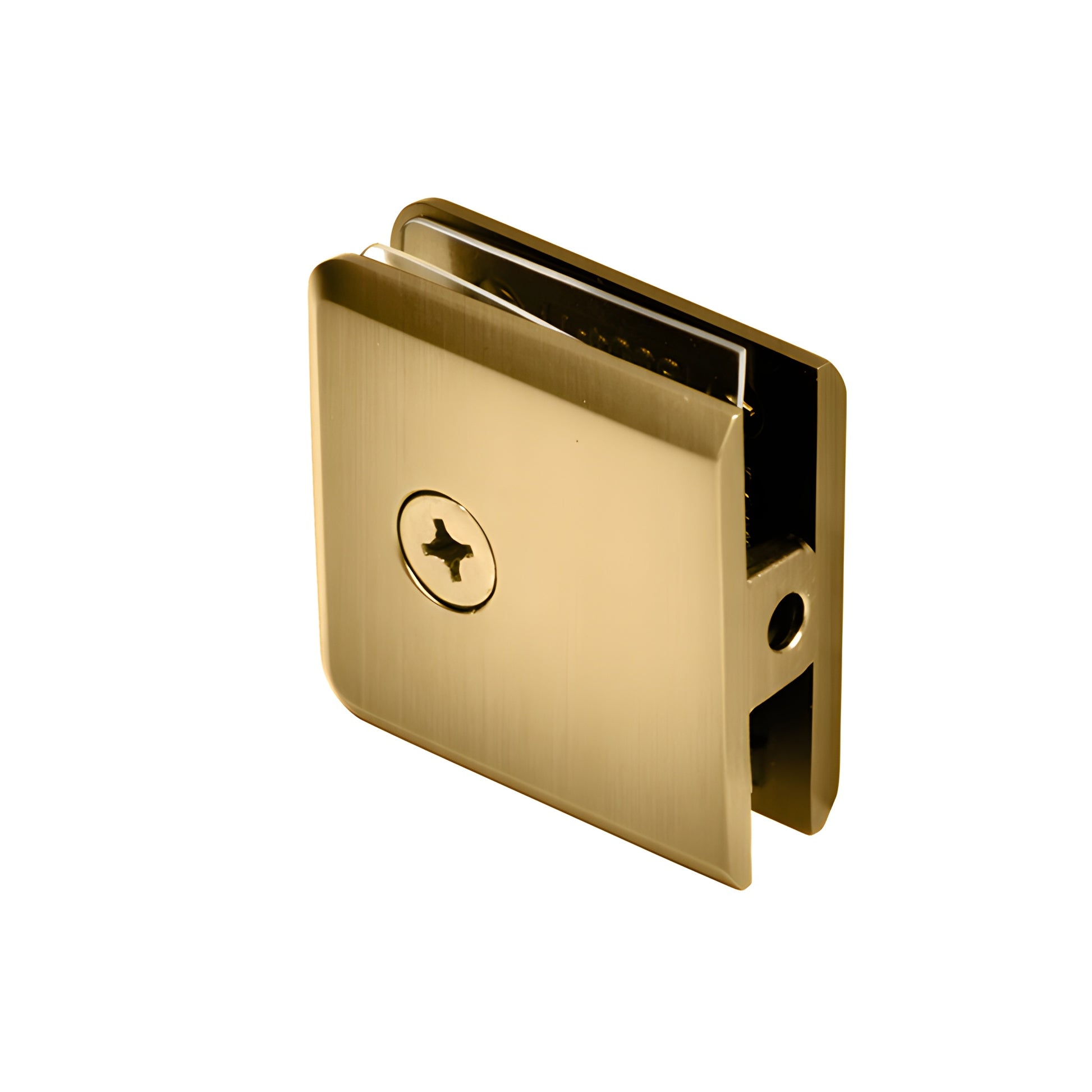

CRL Satin Brass Heavy-Duty Beveled Hole-in-Glass Panel Wall Clamp
CRL Satin Brass Heavy-Duty Beveled Hole-in-Glass Panel Wall Clamp
Regular price
$21.66 CAD
Regular price
Sale price
$21.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BCU4SB
Shipping Weight: 7.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Beveled
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall / Ceiling Mount
Replacement Clamping Screw
P615SB
Overview
- For 3/8" to 1/2" (10 to 12 mm) glass
- Use monolithic tempered glass
- Secures fixed panels of glass for frameless shower enclosures
- Solid brass construction for durability
- Hole-in-glass, beveled wall-mount style for a clean "all-glass" look
- Glass fabrication required to accommodate clamps (see specifications)

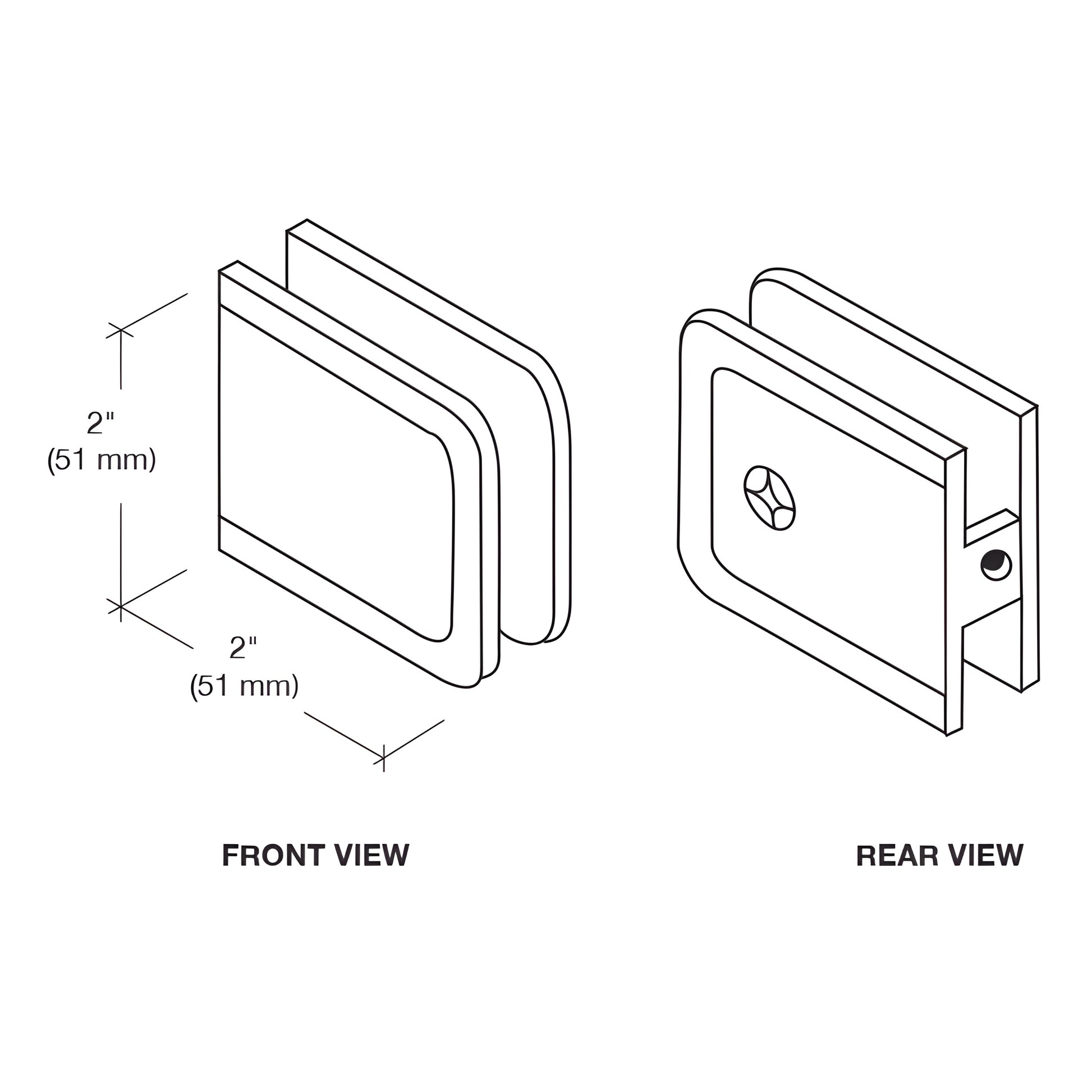

CRL Beveled Wall Mount Clamps (Hole-in-Glass Style) mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between the glass and the wall is 3/16" (5 mm). Clear silicone can be used to provide a clean, water-resistant seal. Ideal for frameless shower glass clamps and wall-mount glass clamps where a minimalist, all-glass appearance is desired.
SKU: BCU4SB
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 requires notch; BCU4, BGC037 and BGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of packaging or storage. For details, see the Brass Finish Disclaimer in the Technical References section.
Choose these beveled, hole-in-glass wall-mount clamps for a durable, visually minimal solution to secure frameless shower panels. Order BCU4SB now or contact us for glass fabrication guidance.
