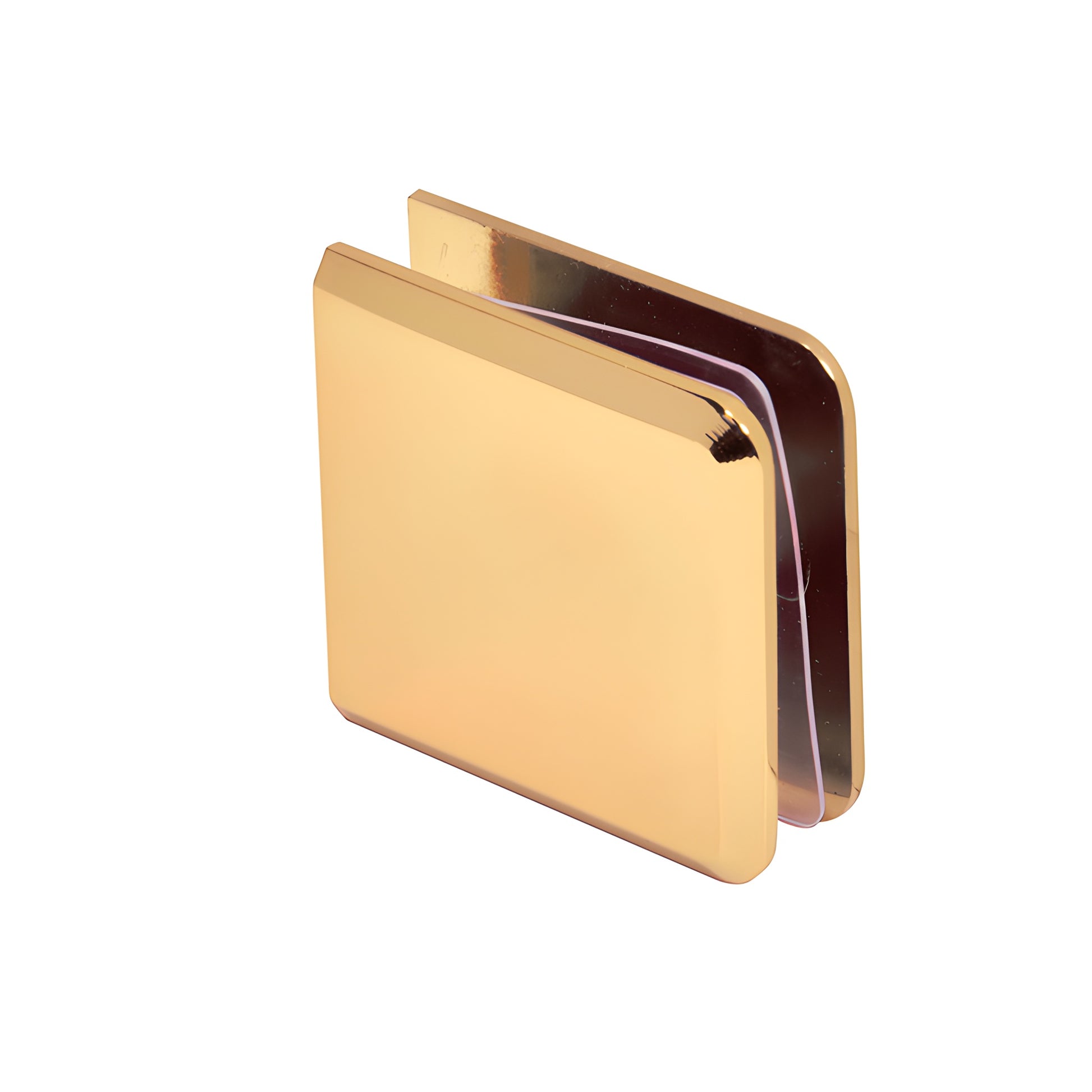

CRL French Gold Beveled Hole-in-Glass Wall Mount Glass Clamp
CRL French Gold Beveled Hole-in-Glass Wall Mount Glass Clamp
Regular price
$49.83 CAD
Regular price
Sale price
$49.83 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BCU4FG
Shipping Weight: 6.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
French Gold
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall / Ceiling Mount
Replacement Clamping Screw
P6150RB
Overview
- For 3/8" to 1/2" (10 to 12 mm) glass
- Use monolithic tempered glass
- Secures fixed panels of glass for frameless shower enclosures

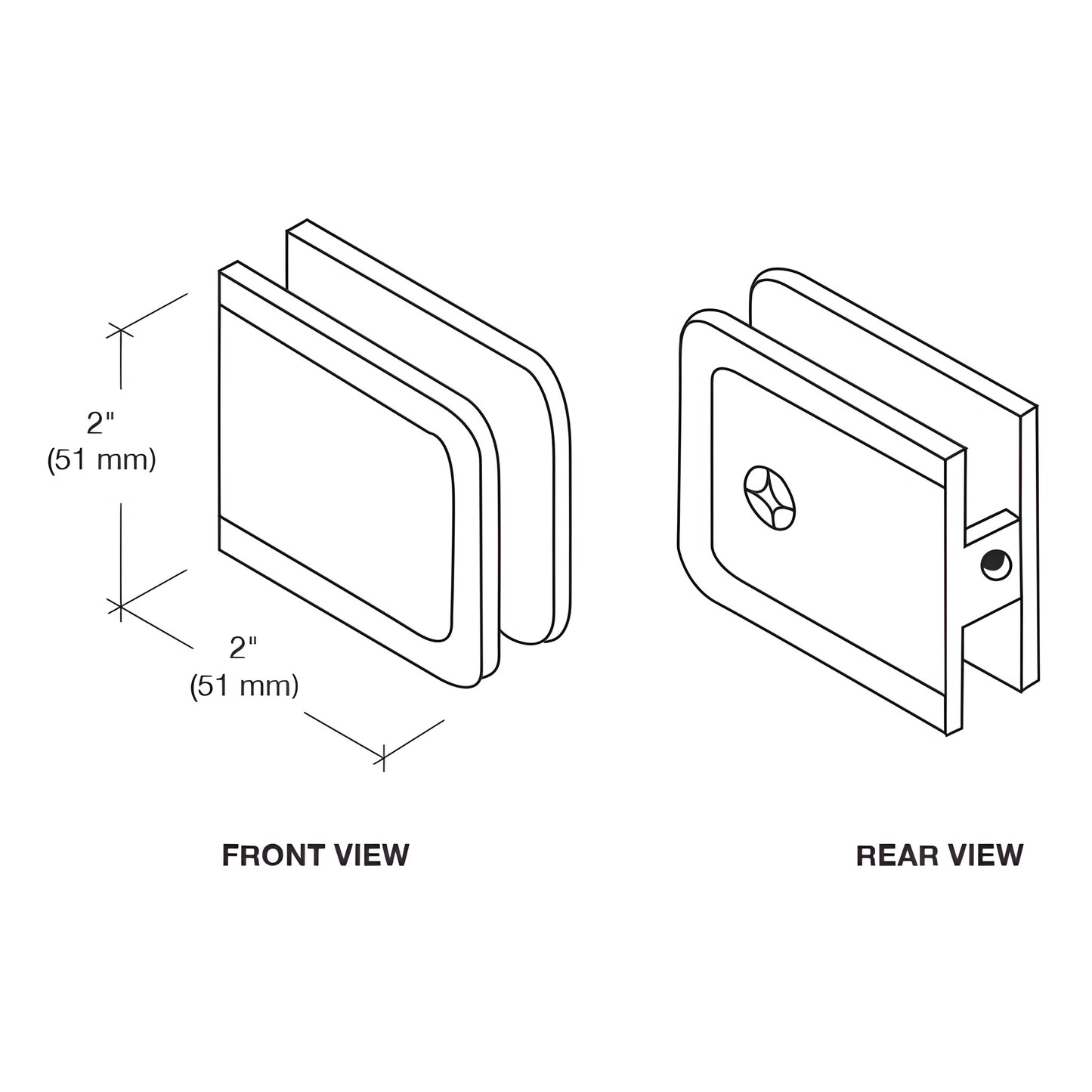

- Solid brass beveled wall-mount clamps (hole-in-glass style)
- Modern alternative to U-channel—clamps preserve an all-glass look
- Glass fabrication required to accommodate clamps (see specifications)
CRL Beveled Wall Mount Clamps (Hole-in-Glass Style) mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between the glass and the wall is 3/16" (5 mm), and clear silicone can be used to provide a clean, water-resistant seal. Ideal for frameless shower enclosure installations where an all-glass aesthetic and durable brass hardware are desired.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 requires notch; BCU4, BGC037 and BGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
SKU: BCU4FG
Ready to complete your frameless shower project? Add the BCU4FG wall-mount clamps to your cart or contact CRL for fabrication guidance.
