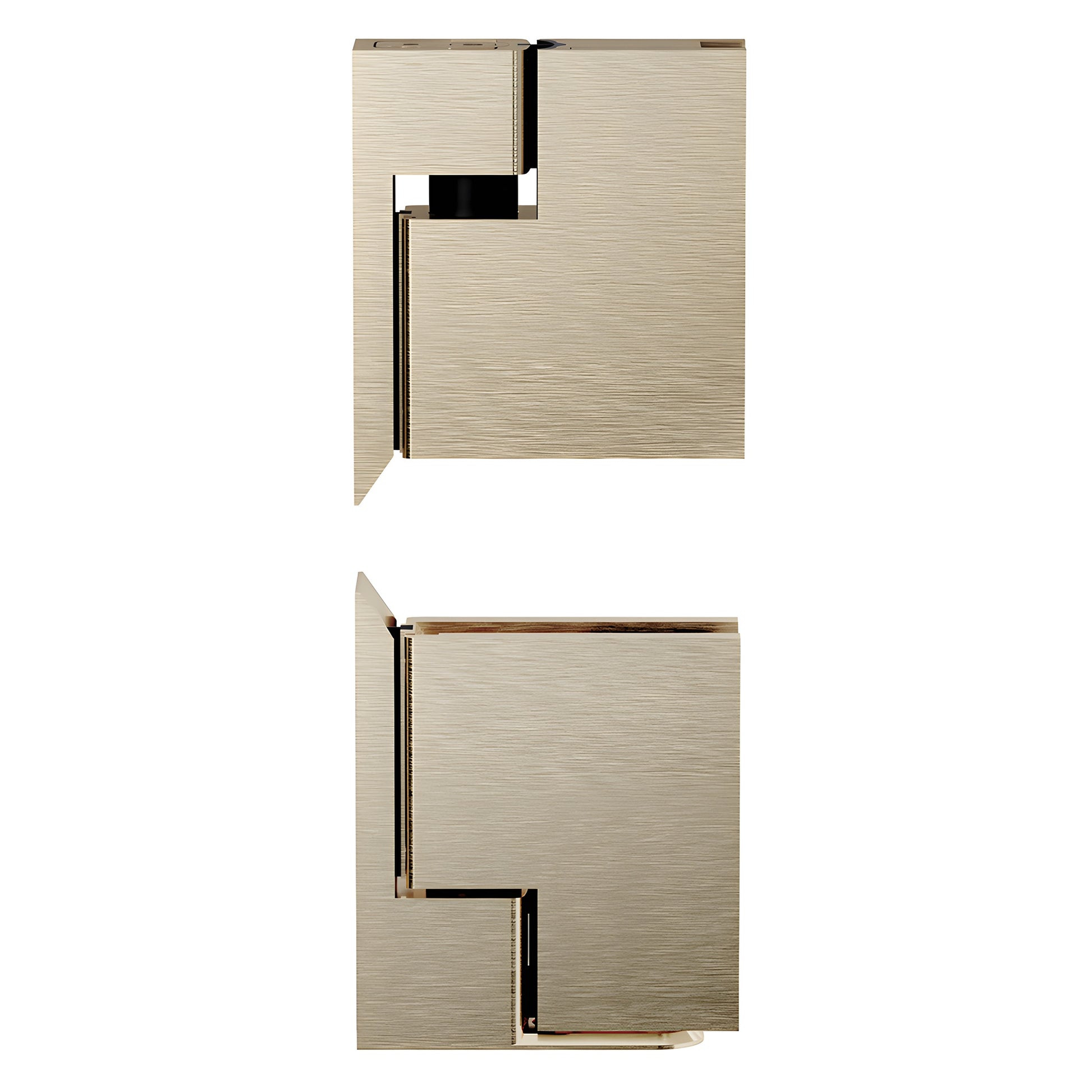

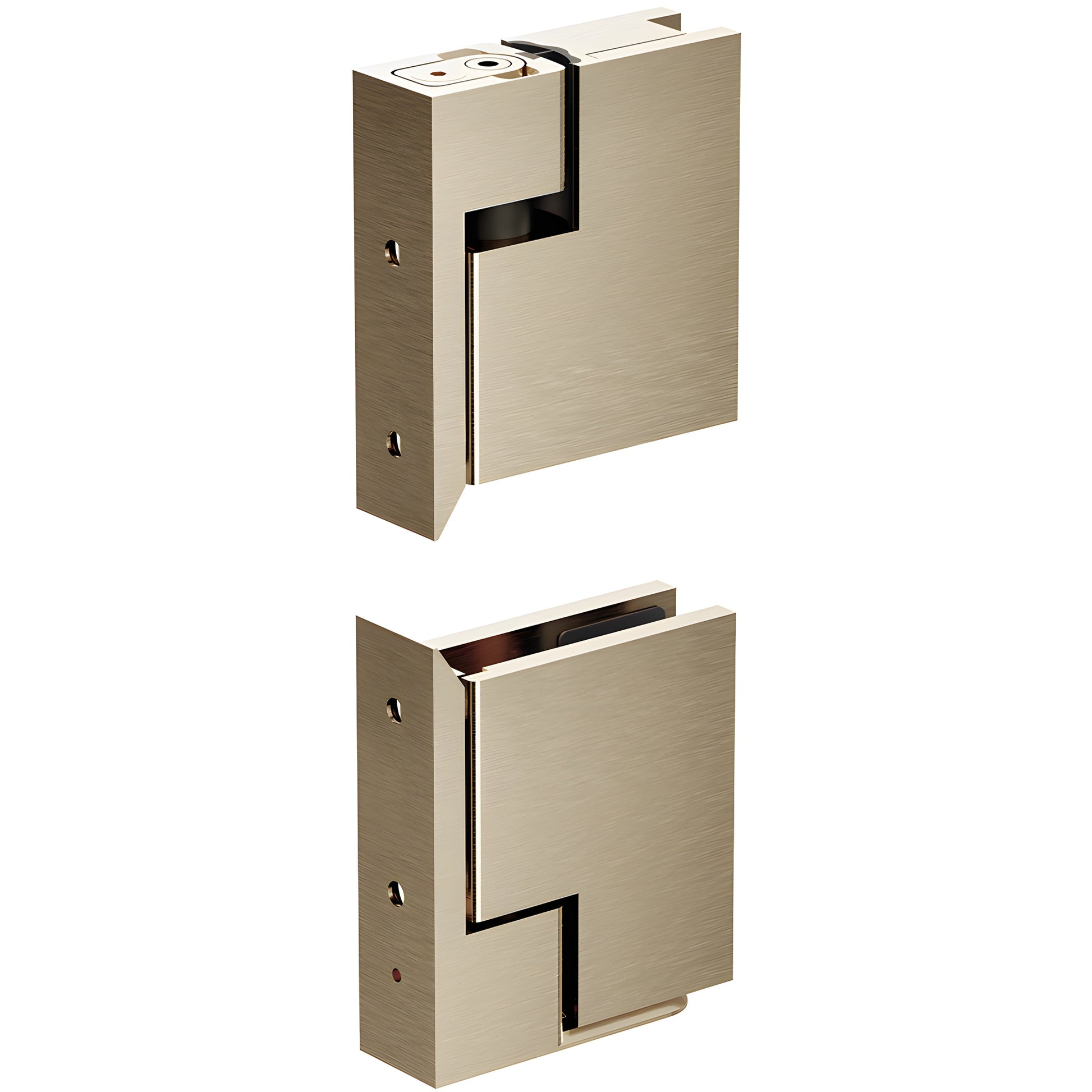

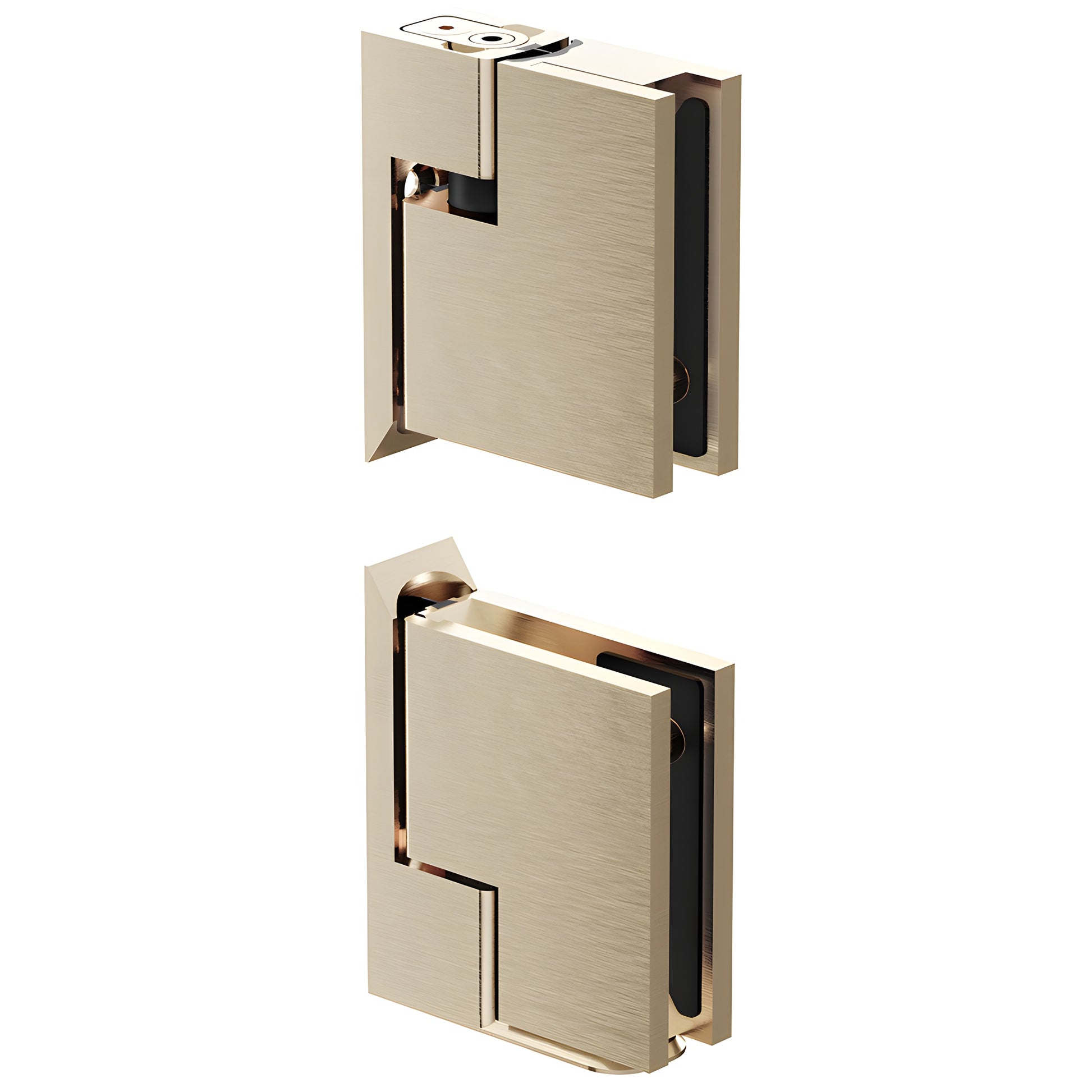

CRL Brushed Bronze Zero Hinge Set for Frameless Glass Shower Doors

• Works with 3/8" to 1/2" (10 to 12 mm) thick glass
• Glass fabrication required

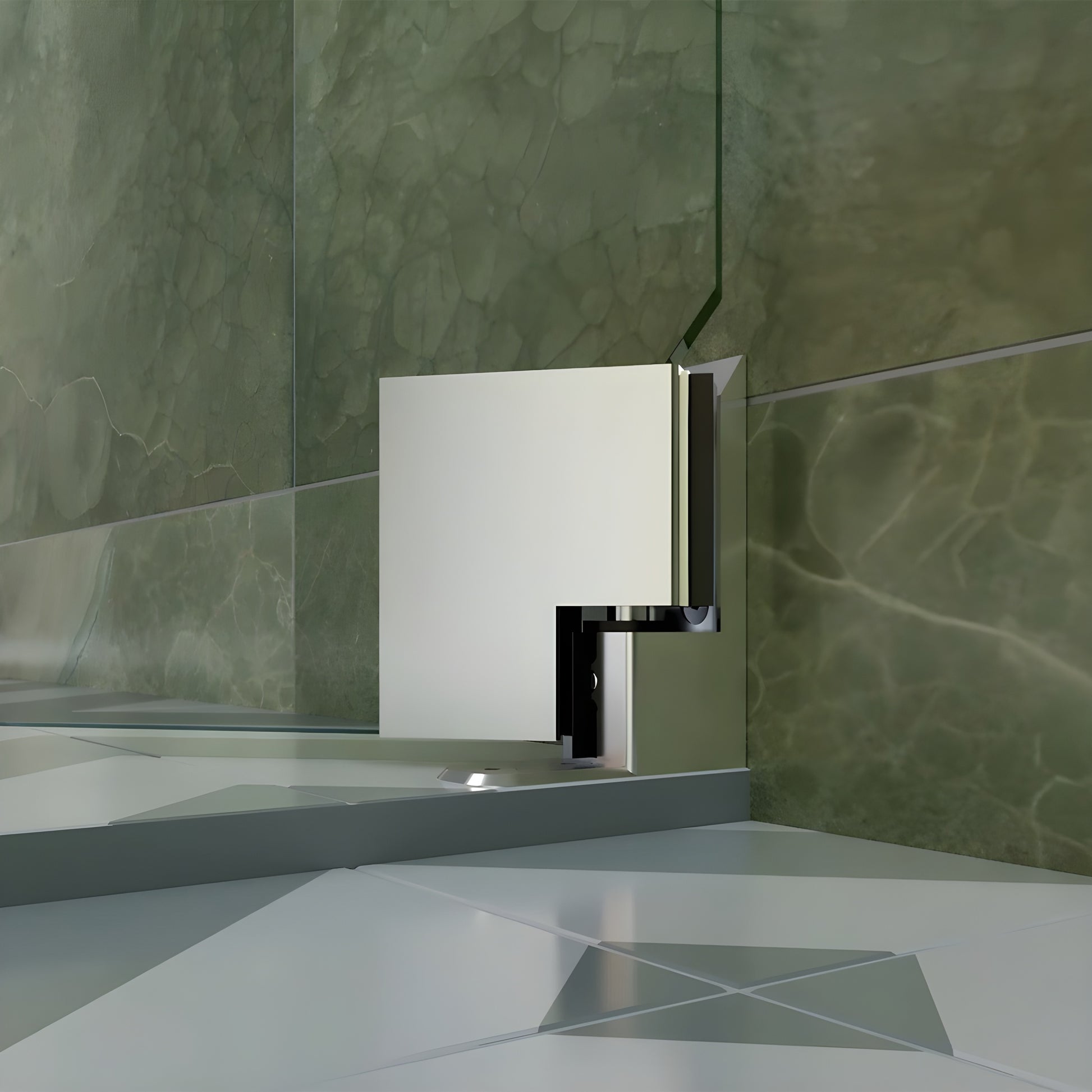

• Versatile installation: glass-to-wall or glass-to-glass; wall or floor (pivot) mount
• Rise-and-fall action: lifts door 1/4" (6.35 mm) on opening
• Snap-on covers conceal mounting hardware for a clean aesthetic
• Accessory kit for 90° & 135° installation sold separately
• Sleek modern design with integrated clamp for floor installations
• Self-centers from 60° and offers adjustable positive closure up to ±15°
• *U.S. Patent 12,241,298

The CRL Zero Hinge Set (SKU: ZER000BBRZ) is a next-generation shower door hinge engineered for precision alignment and barrier-free design. Built for 3/8" (10 mm) and 1/2" (12 mm) glass, the hinge’s rise-and-fall mechanism reduces sweep friction and supports wheelchair-accessible shower thresholds. The dedicated top and bottom Zero Hinges are position-specific and not interchangeable.

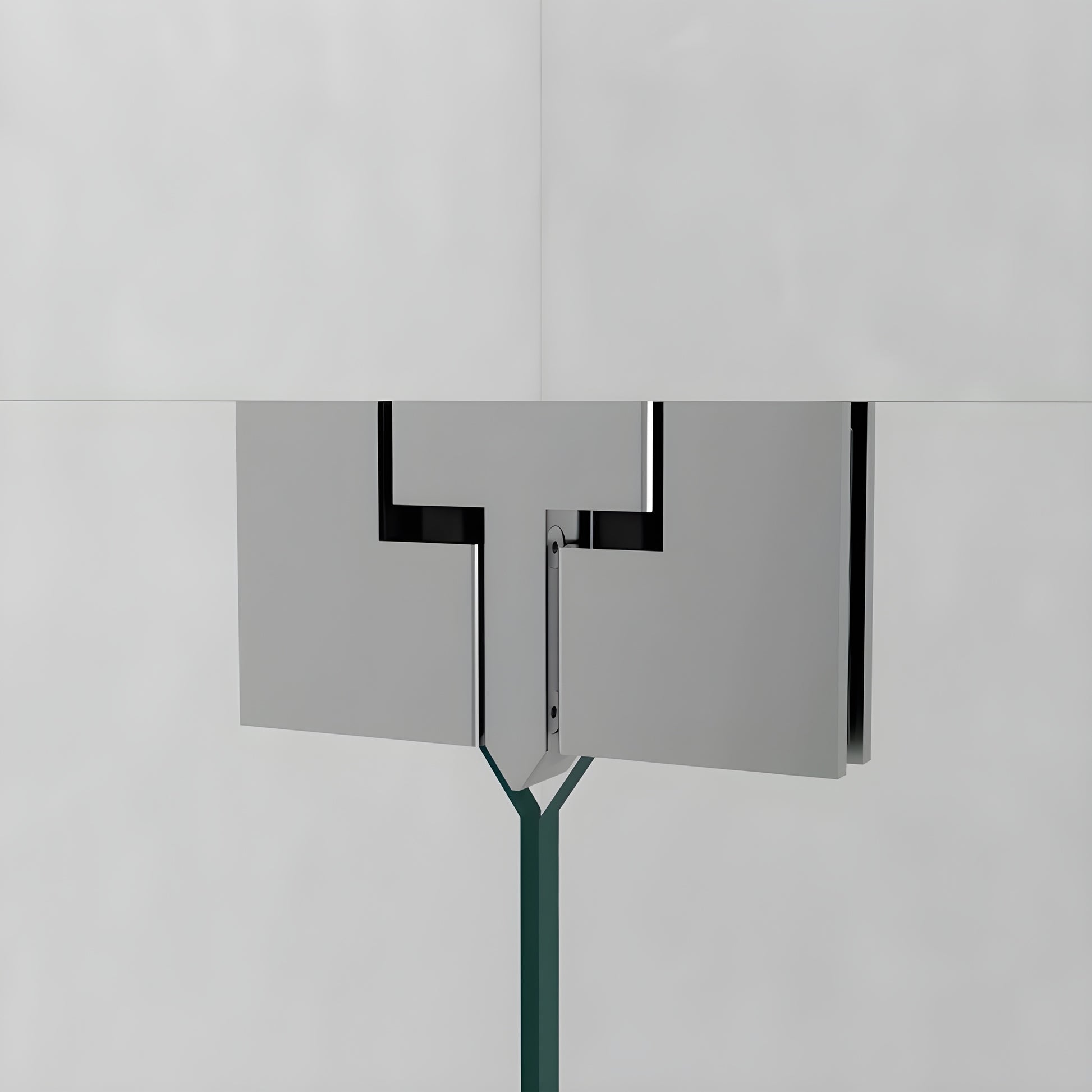

Its versatile technology fits multiple applications—glass-to-wall or glass-to-glass—and can be used as a pivot hinge when mounted to the wall or floor. The integrated clamp reduces extra hardware for 90°, 135°, or 180° installations, making it an ideal choice for frameless shower door projects requiring a minimalist, durable solution.

Note: For 135° installations, use the glass cut-out specified in the Technical Documentation. For full-height installations, ensure a minimum clearance of 2 3/16” (56 mm) from the top hinge and allow an additional 1/8” space below the glass for the fully compressed sweep.

Ready to upgrade your frameless shower with a self-centering, ADA-friendly hinge? Check availability or request technical documentation.
