CRL Brushed Nickel Frameless Shower Door Zero Hinge Set

• Fits 3/8" to 1/2" (10 to 12 mm) thick glass
• Glass fabrication required
• Versatile installation: glass-to-wall or glass-to-glass
• Rise-and-fall action: 1/4" (6.35 mm)

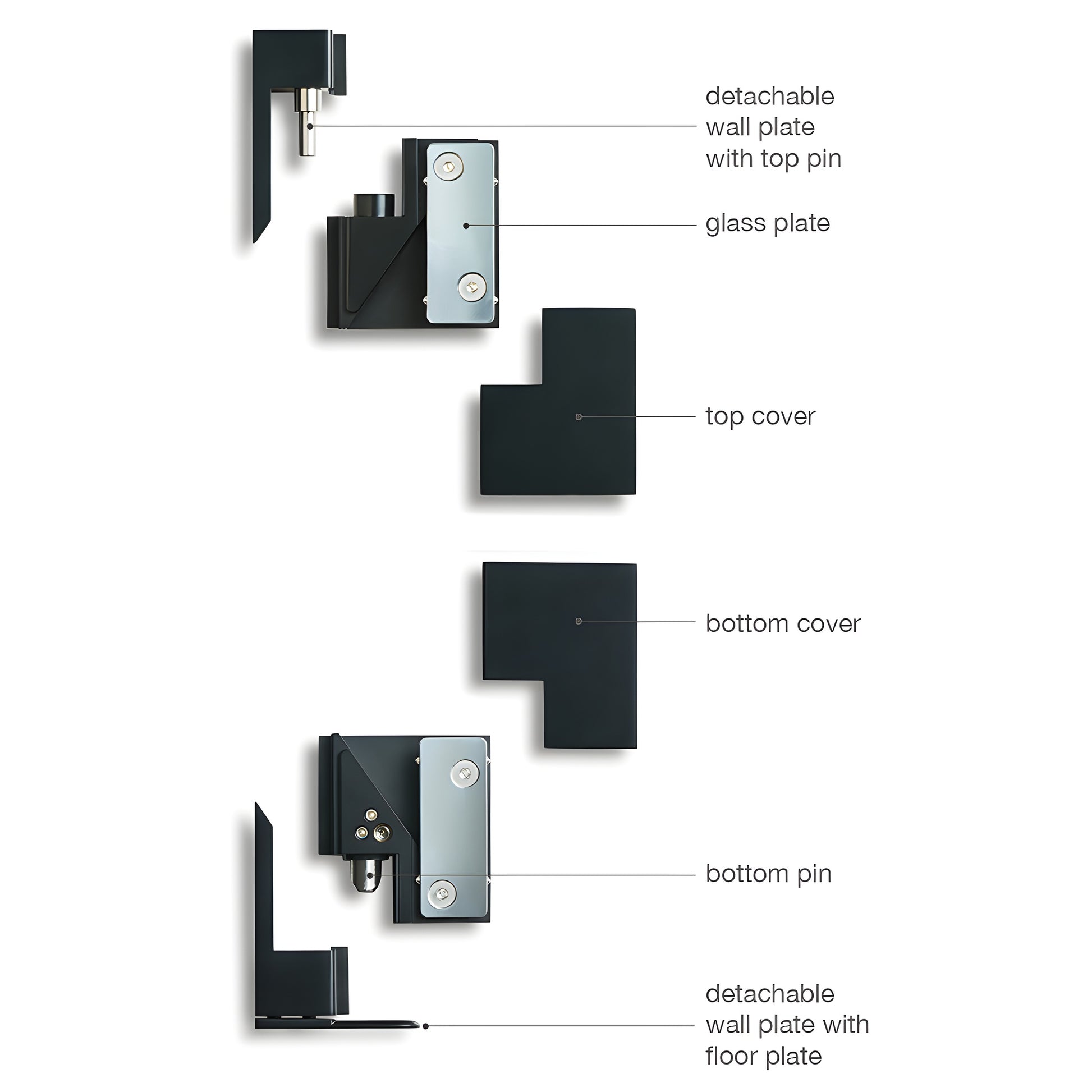

• Snap-on covers conceal mounting hardware
• Accessory kit for 90° & 135° installation sold separately
• Sleek new design for modern frameless shower doors
• Self-centers from 60° (±60° of closed position)
• Adjustable positive closure up to +/-15°
• Dedicated top and bottom hinges — position-specific, not interchangeable
• *U.S. Patent 12,241,298

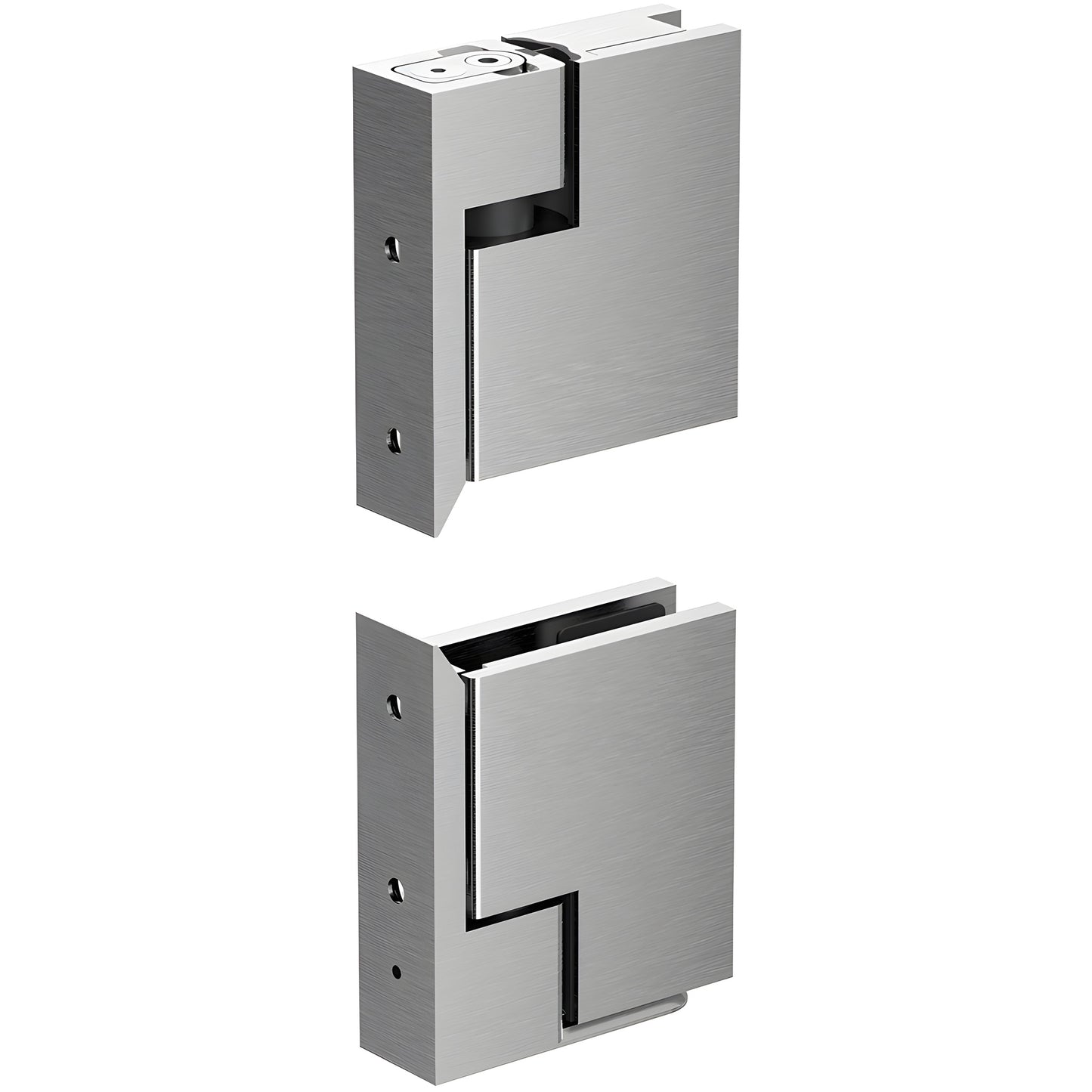

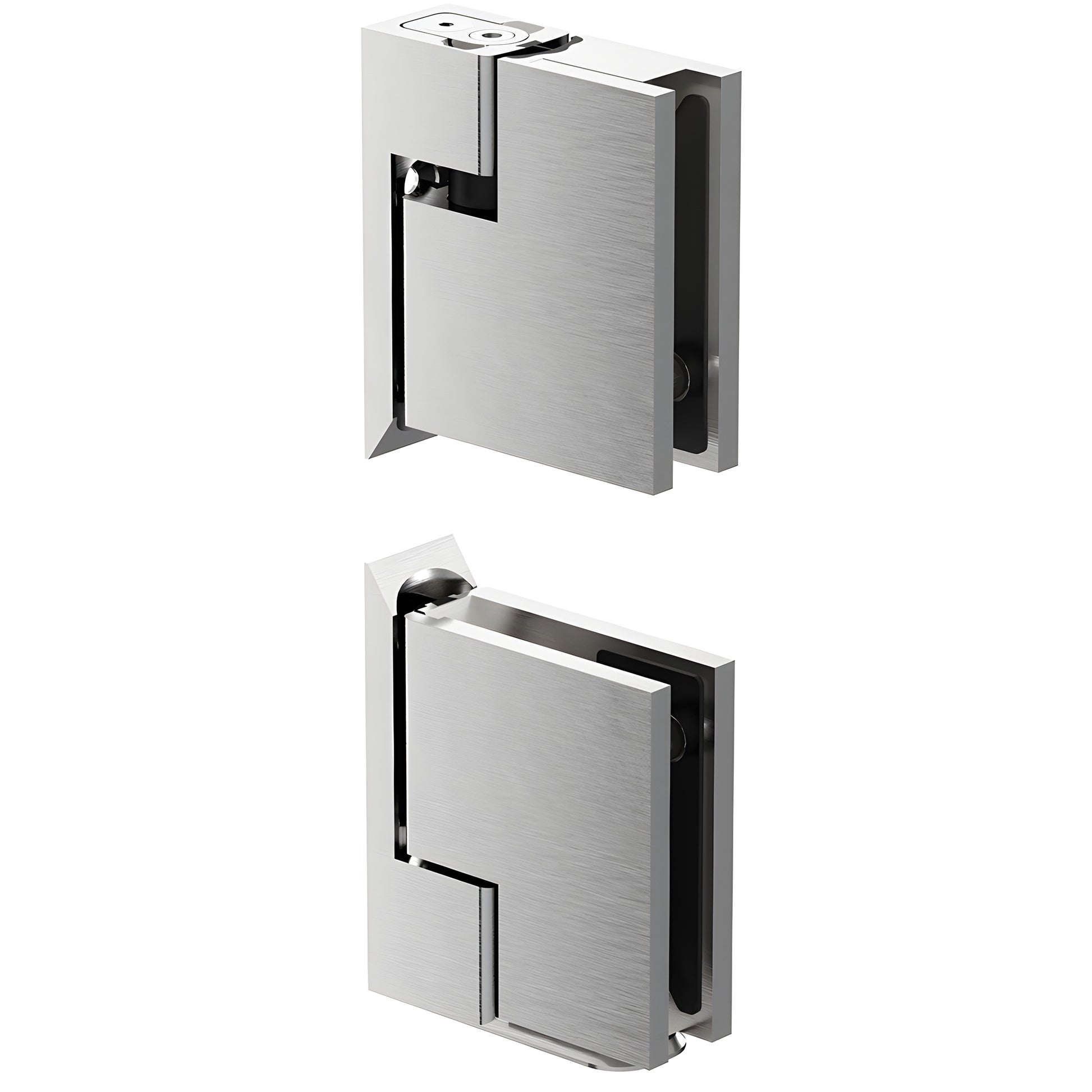

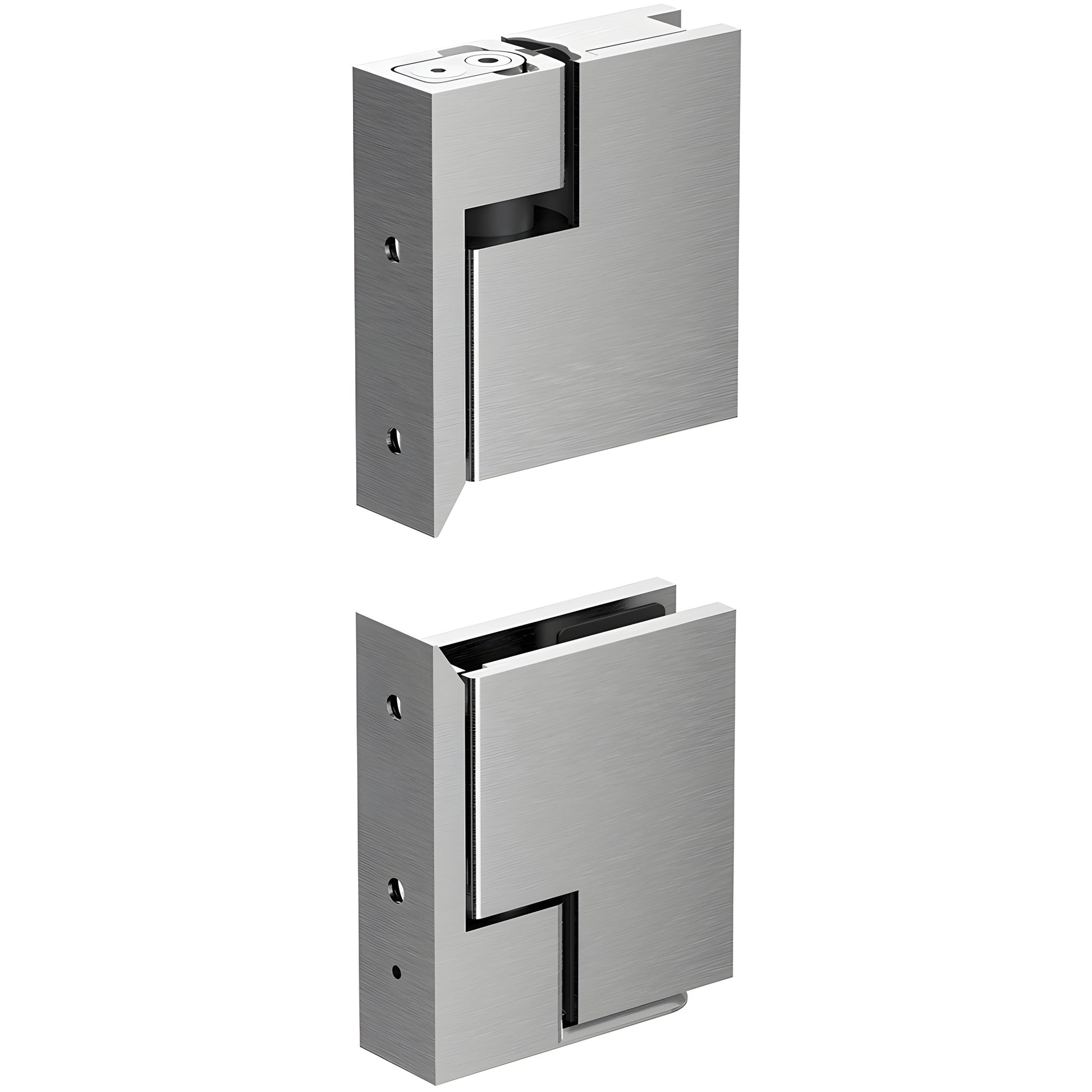

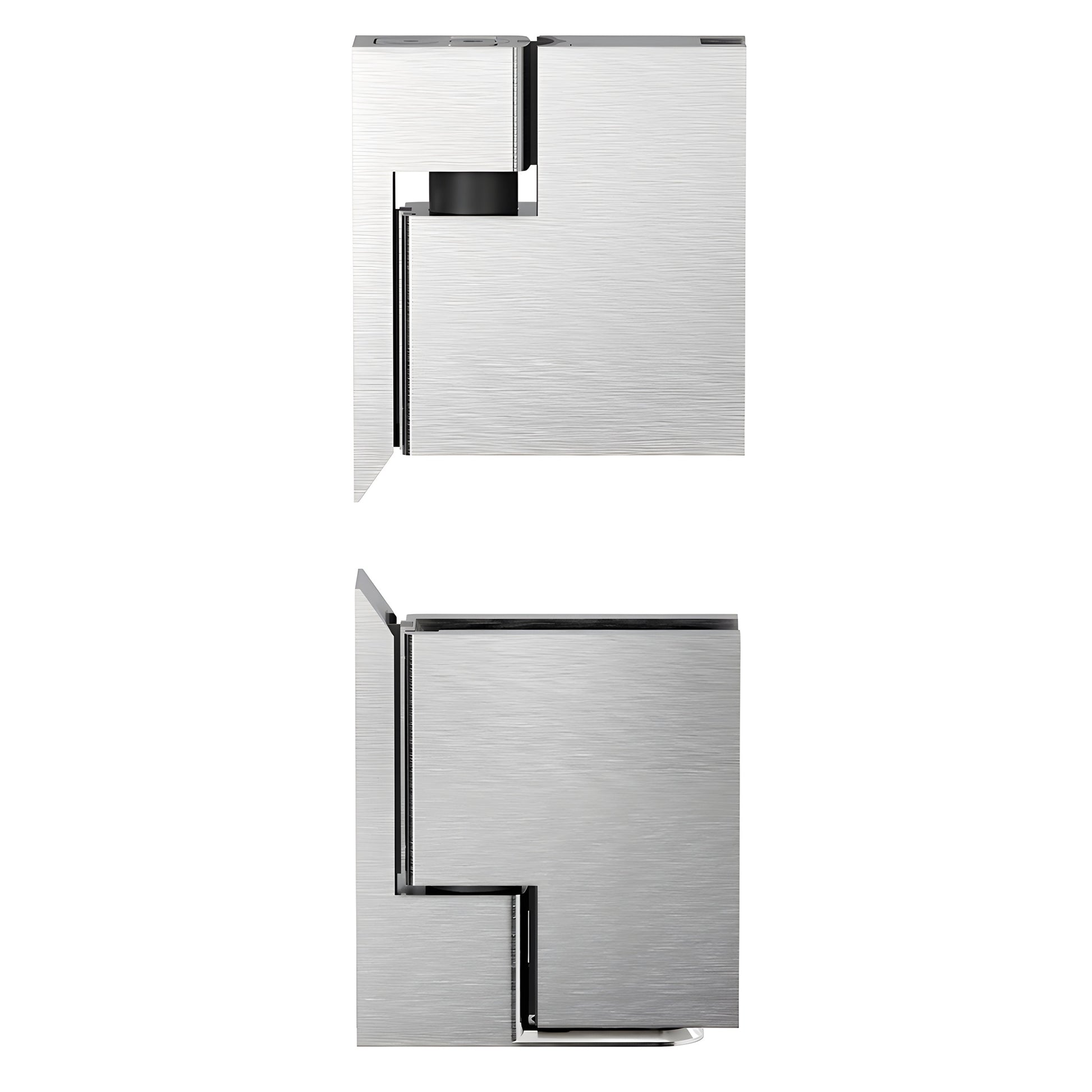

CRL Zero Hinge Set (SKU: ZER000BN) delivers a sleek, next-generation hinge solution for frameless shower doors and barrier-free installations. Designed for 3/8" (10 mm) and 1/2" (12 mm) glass, the Zero Hinge Set features a 1/4" rise-and-fall mechanism that lifts the door on opening to minimize sweep contact—helpful for ADA-compliant, wheelchair-accessible shower thresholds and reduced friction with bottom sweeps.

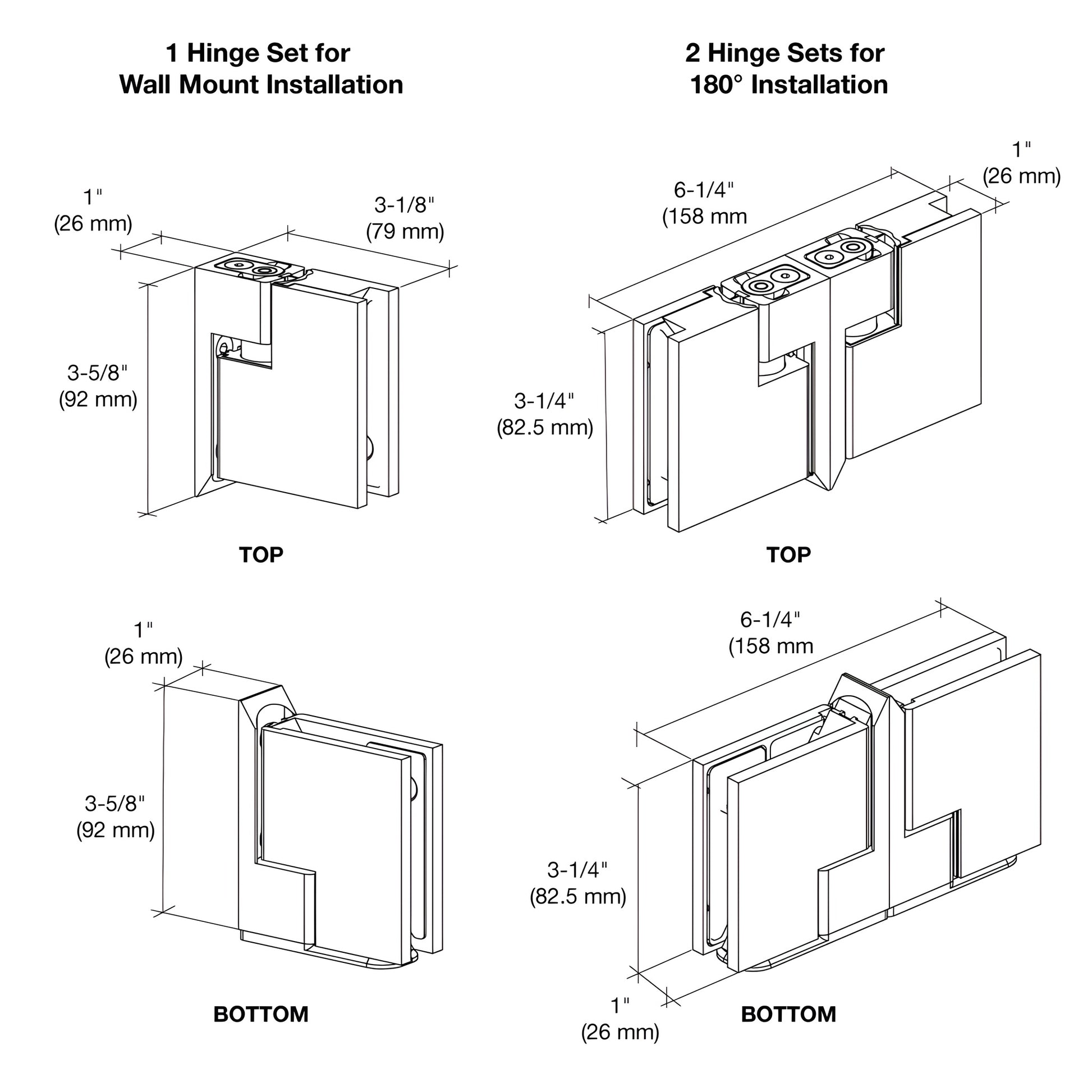

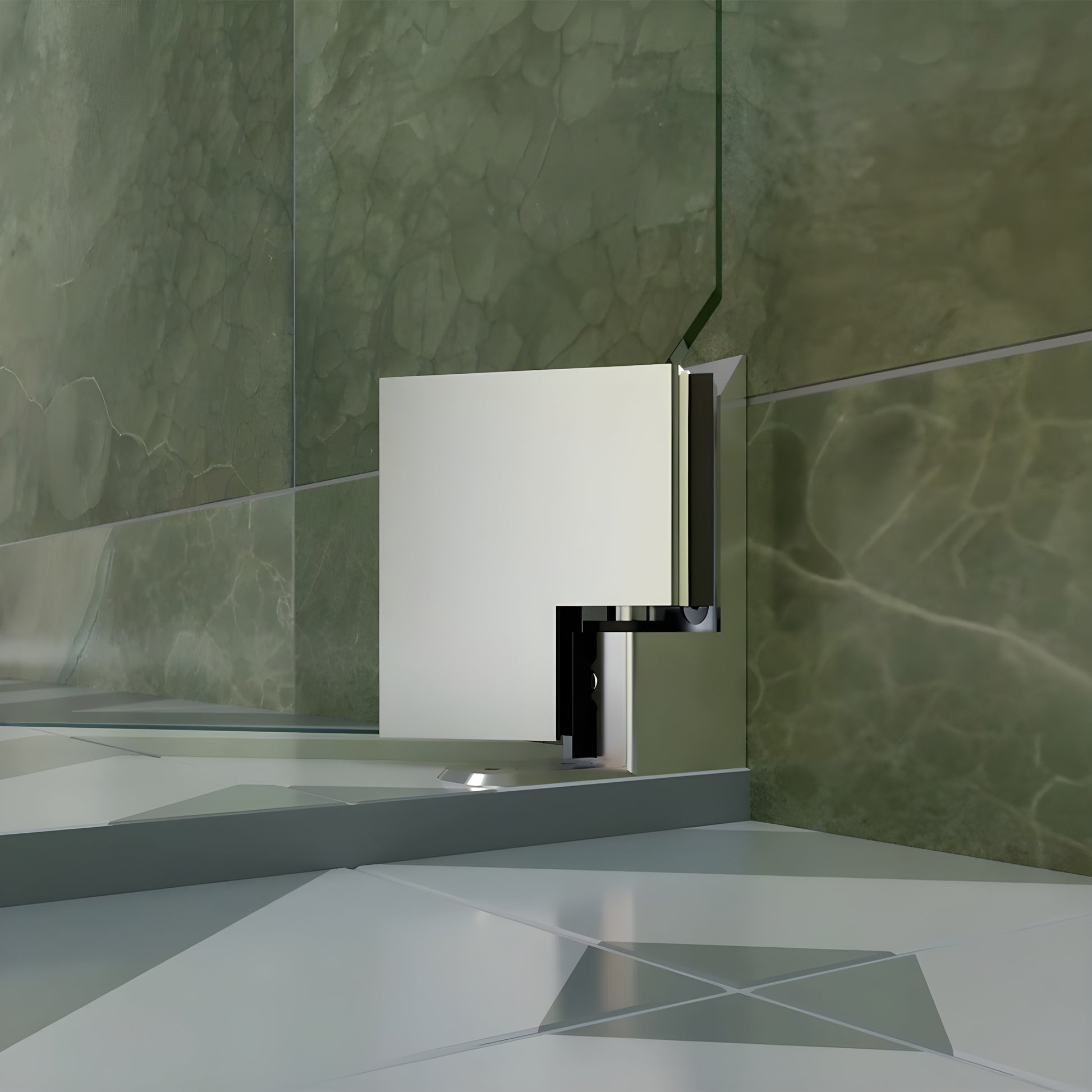

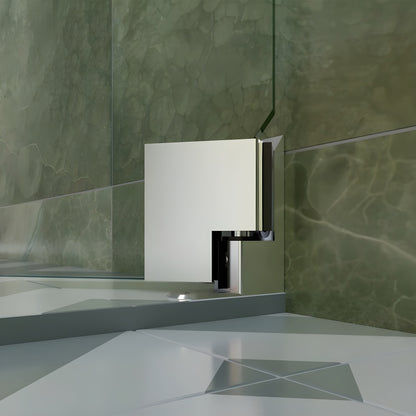

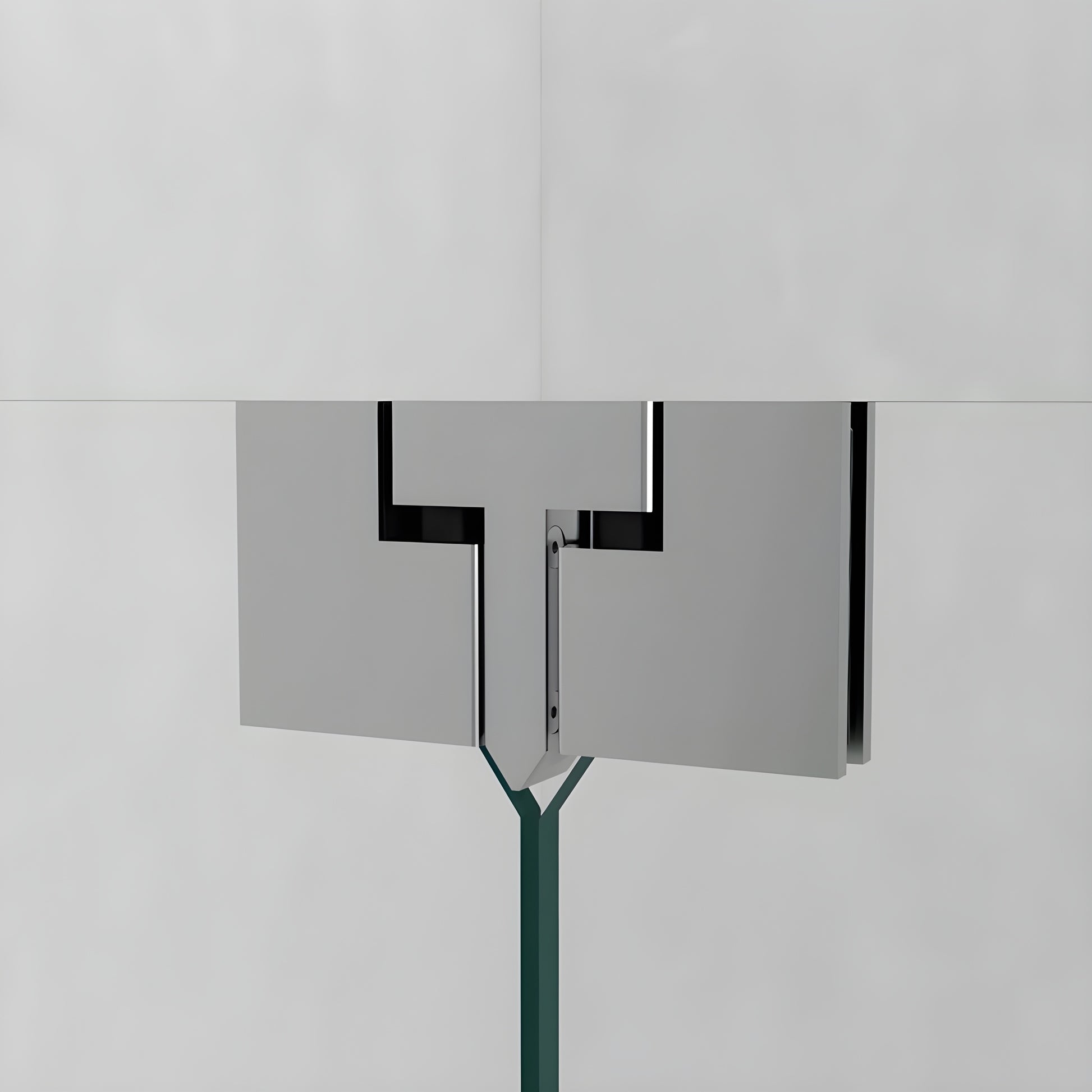

The Zero Hinge Set is self-centering within ±60° for precise door alignment. Its versatile technology supports glass-to-wall and glass-to-glass applications and can be installed on a wall or floor as a pivoting hinge. For floor-mounted installations, the integrated clamp reduces the need for additional hardware. Accessory kits enable 90°, 135°, or 180° configurations.

Installation notes: For 135° installations, use the glass cut-out specified in the Technical Documentation. For full-height installations, allow a minimum clearance of 2 3/16" (56 mm) from the top hinge and an additional 1/8" space below the glass for the fully compressed sweep.

Highlight: patented, self-centering frameless shower hinge for 3/8"–1/2" glass—ideal for ADA-friendly and modern shower projects. Order the CRL Zero Hinge Set (ZER000BN) or contact us for technical documentation and accessory recommendations.
