Product Details
- Works with 3/8" to 1/2" (10 to 12 mm) Thick Glass
- Glass Fabrication Required
- Versatile Installation Options
- Rise and Fall Action - 1/4" (6.35mm)
- Snap-on Covers Conceal Mounting Hardware
- Accessory Kit for 90° & 135° Installation Sold Separately
- Sleek New Design
- Self-centers from 60°
- Adjustable Positive Closure (up to +/-15°)
- *U.S. Patent 12,241,298
- Apply medium-strength threadlocker on cover plate screws

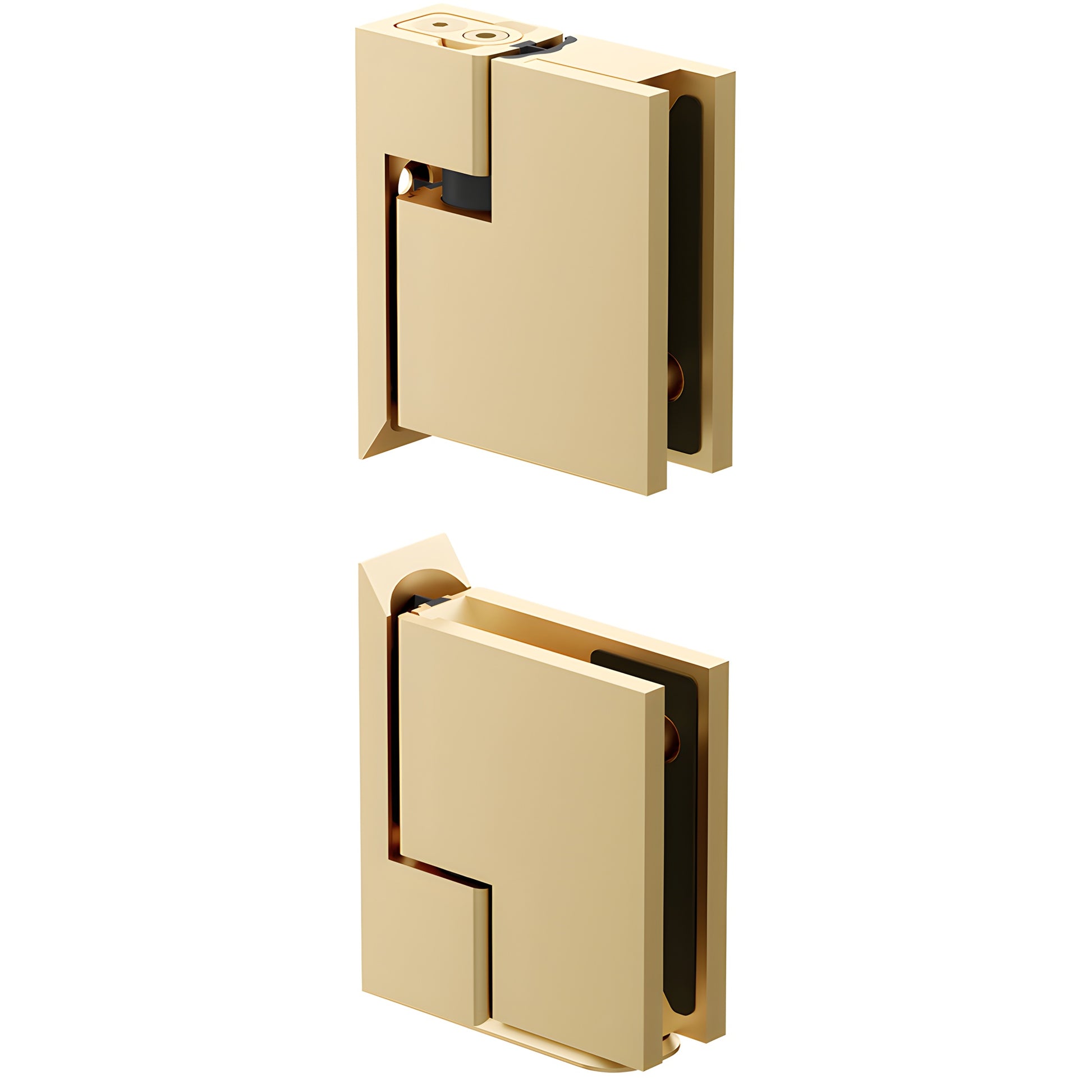

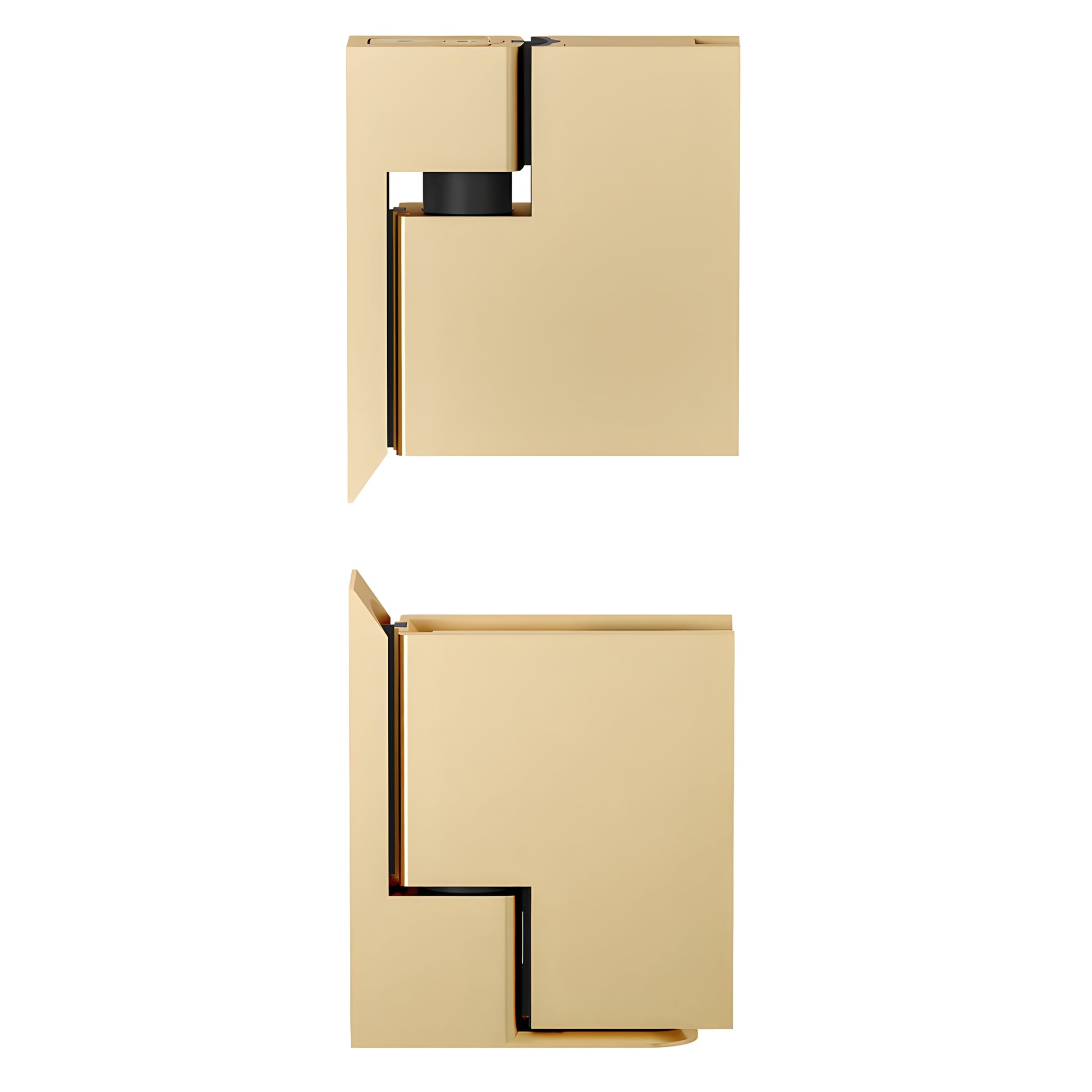

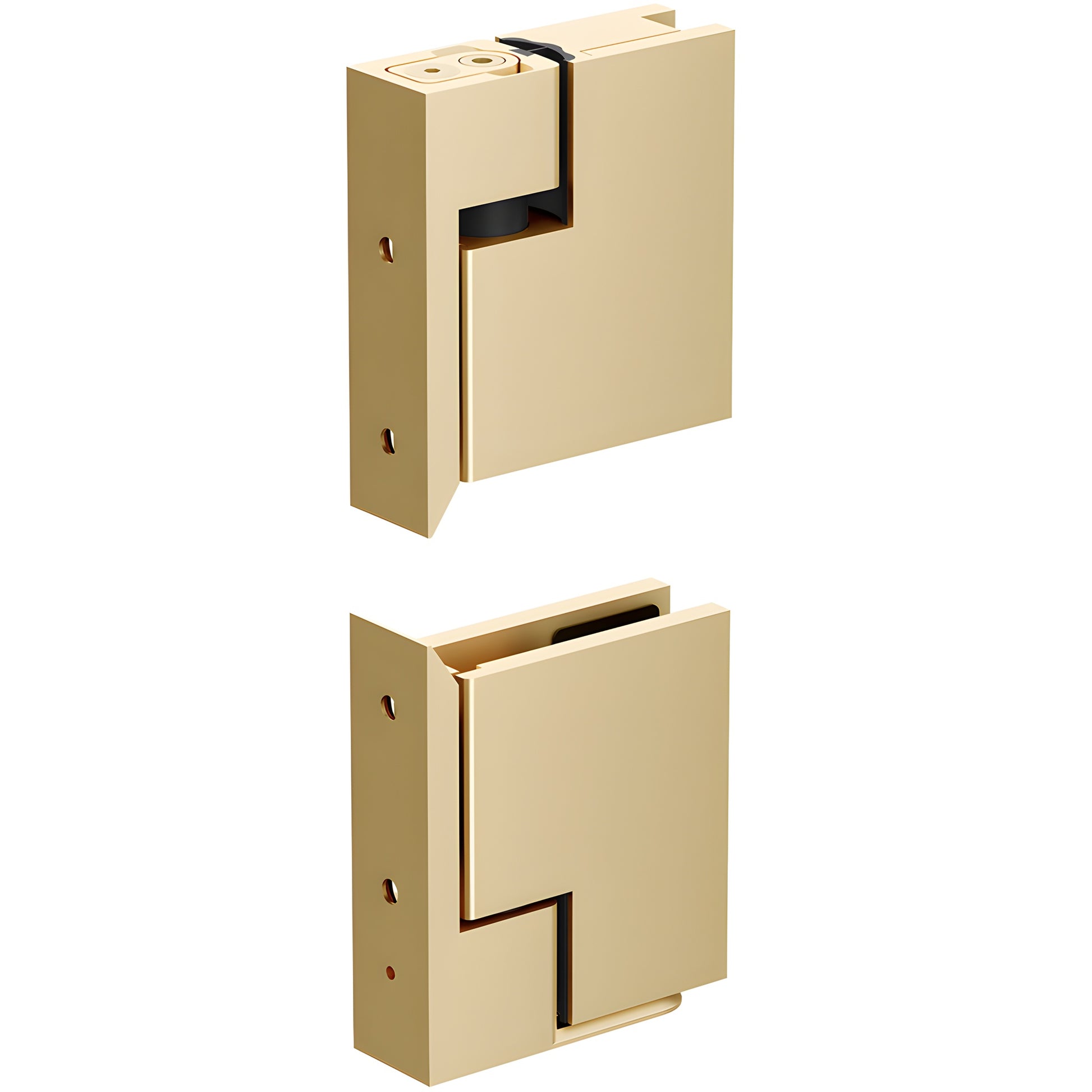

The CRL Zero Hinge Set offers a sleek, next-generation solution for shower installations, featuring a modern design and advanced technological breakthrough.

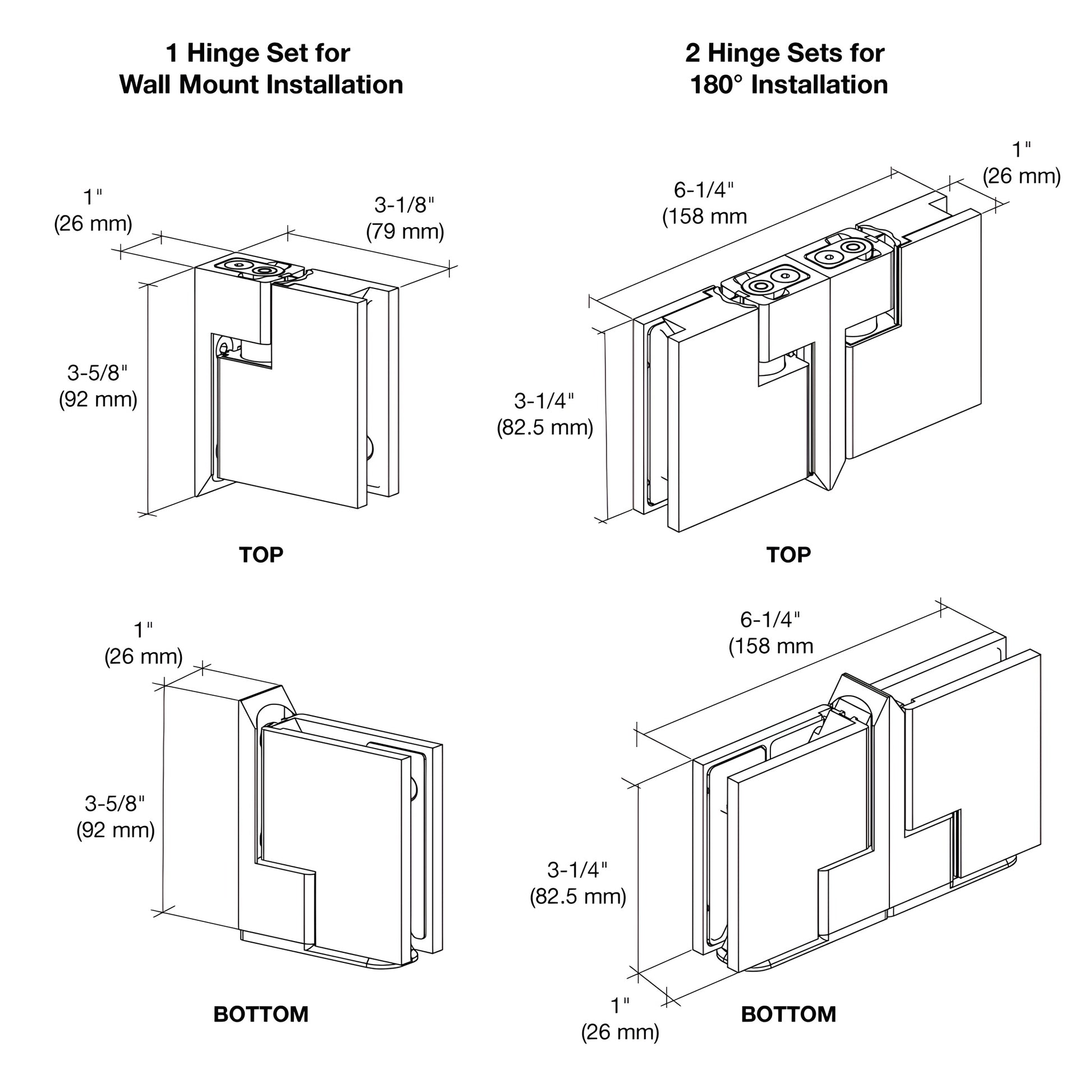

The Zero Hinge Set is self-centering within +/-60° of the closed position, ensuring precise alignment. It accommodates 3/8"" (10 mm) and 1/2"" (12 mm) glass and utilizes a rise-and-fall mechanism that lifts the glass door by 1/4" (6.35mm) upon opening. This provides the option to eliminate the need for a bottom sweep and reduces friction with the sweep, facilitating barrier-free wheelchair accessibility. The dedicated top and bottom Zero Hinges are position-specific and are not interchangeable.

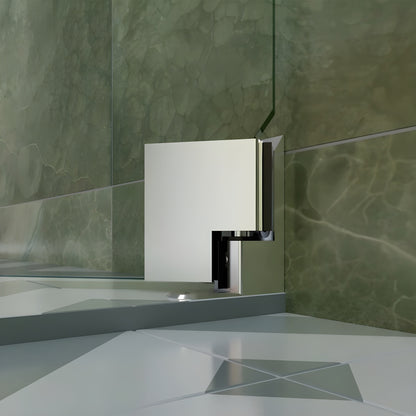

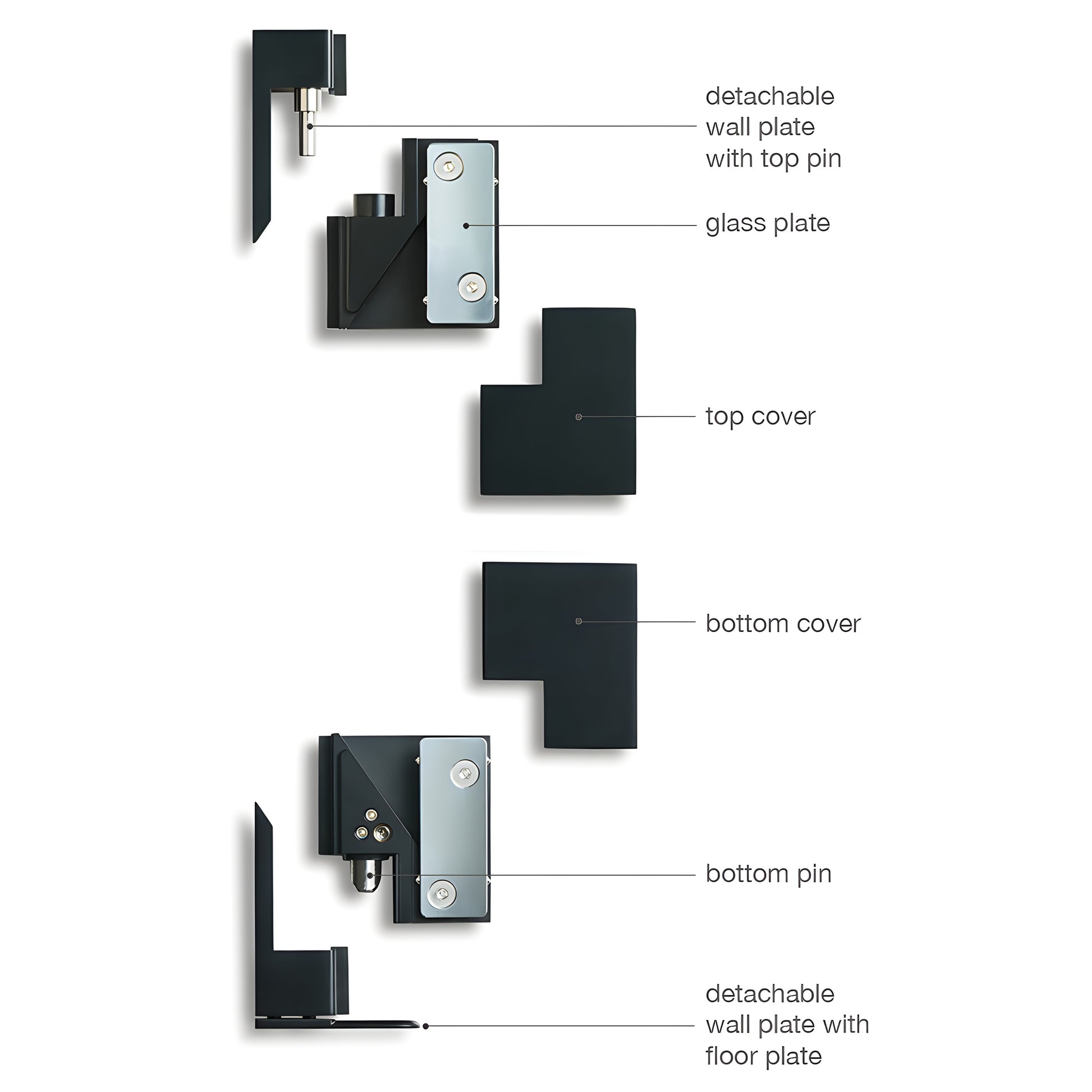

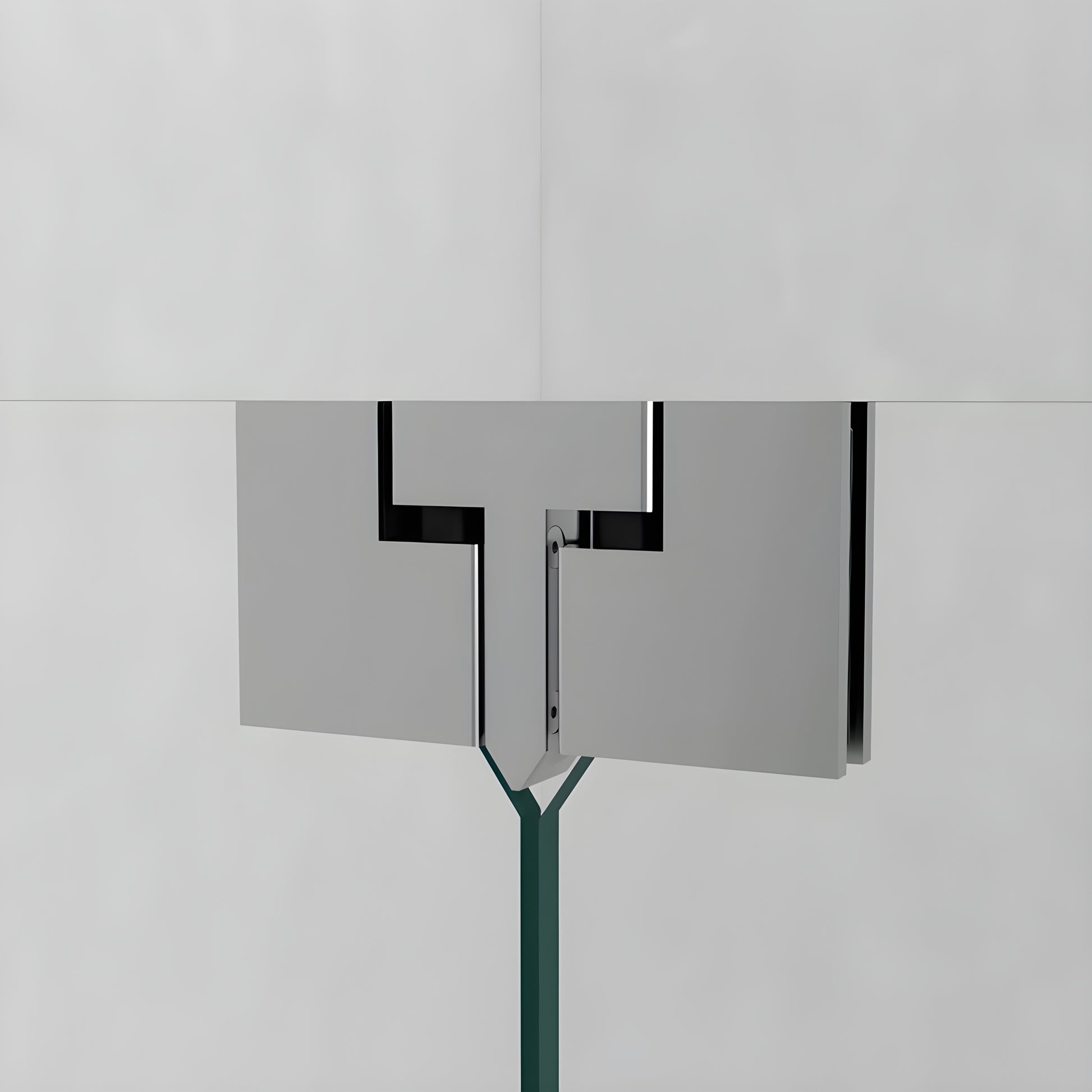

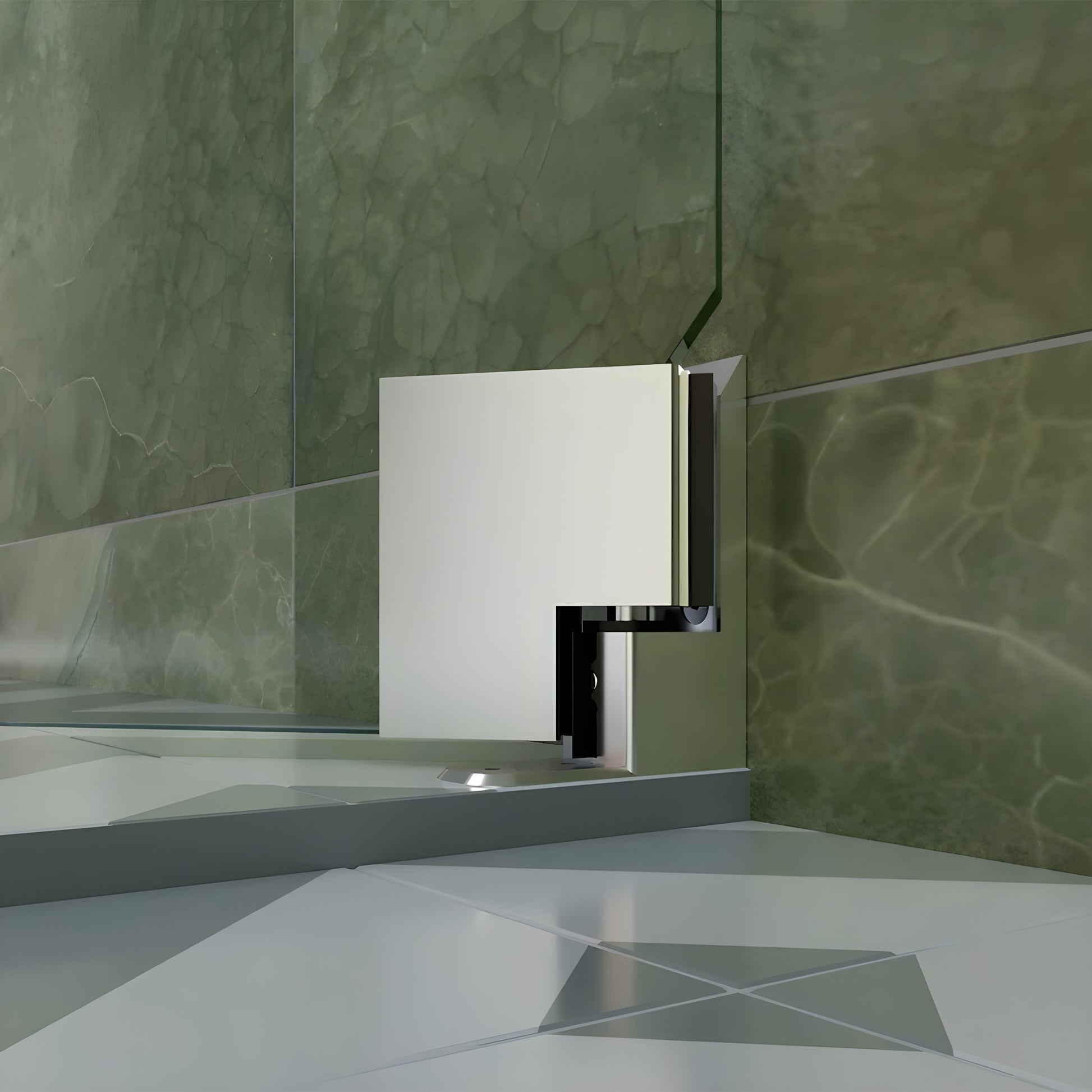

Its versatile technology allows the Zero Hinge Set to suit multiple applications, whether glass-to-wall or glass-to-glass. It can be installed on the wall or floor (acting as a pivoting hinge). The integrated clamp feature for floor installations reduces the need for additional hardware, for 90°, 135°, or 180° applications.
Note: For 135° installations, use the glass cut-out specified in the Technical Documentation. For full-height installations, ensure a minimum clearance of 2 3/16” (56 mm) from the top hinge and allow an additional 1/8” space below the glass for the fully compressed sweep.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
