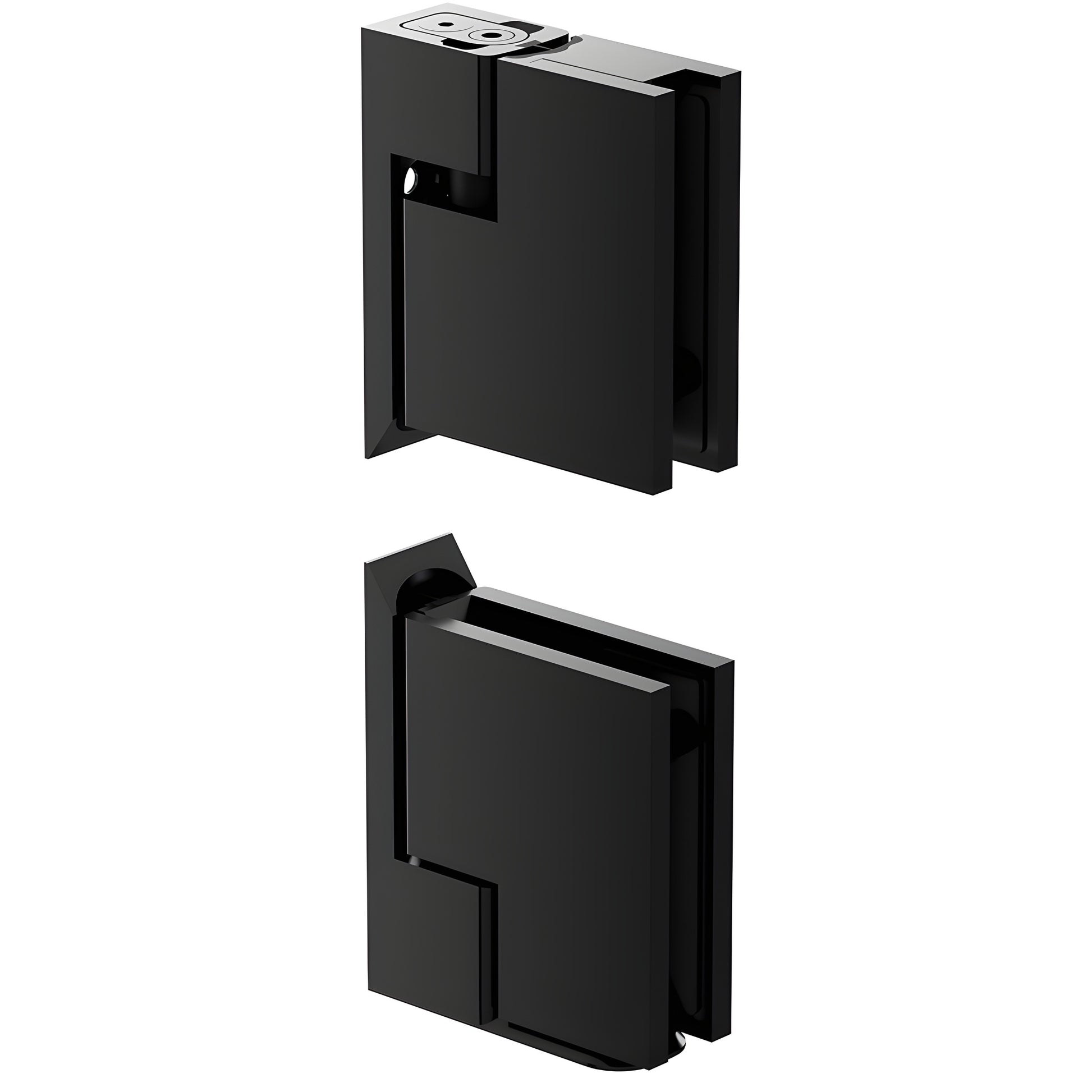

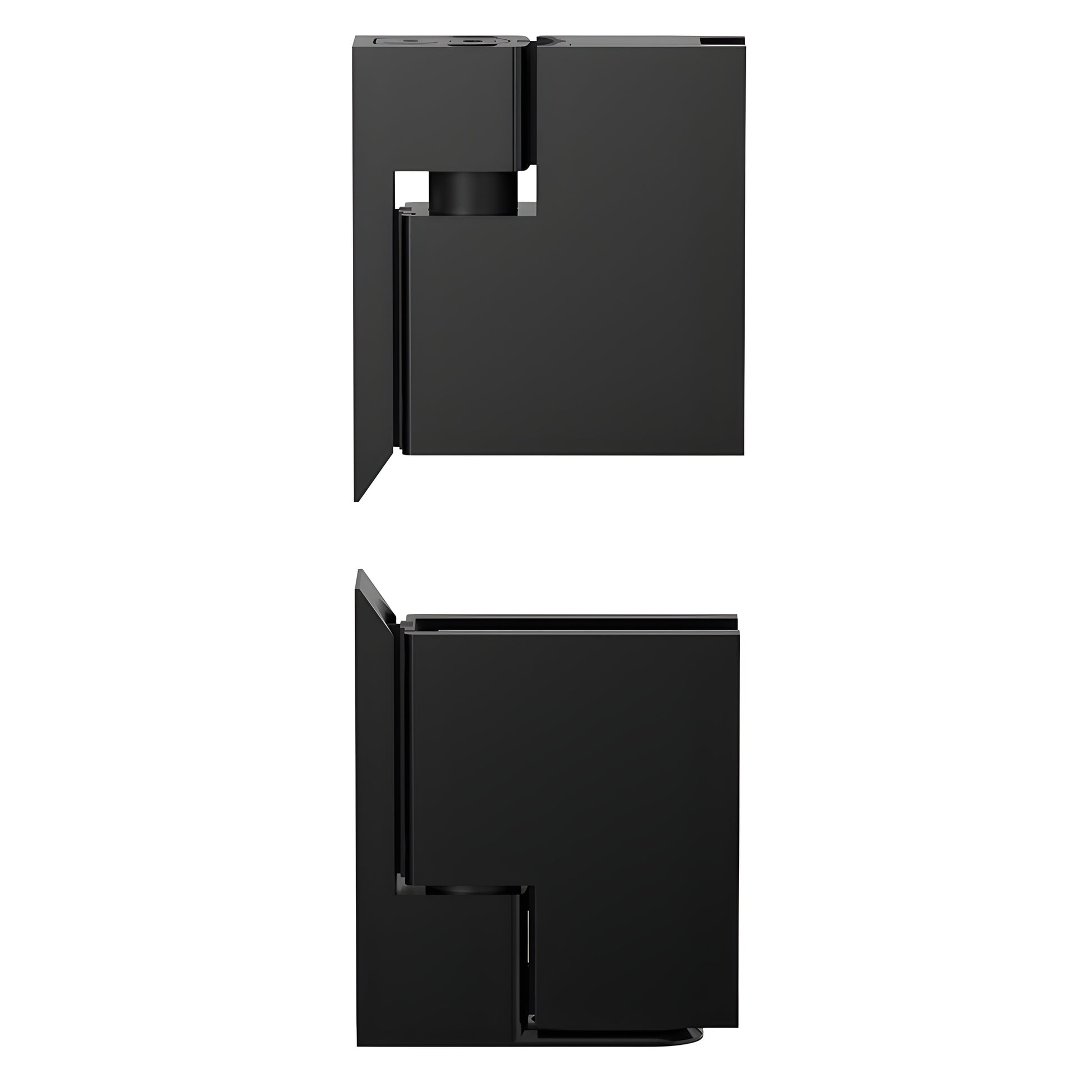

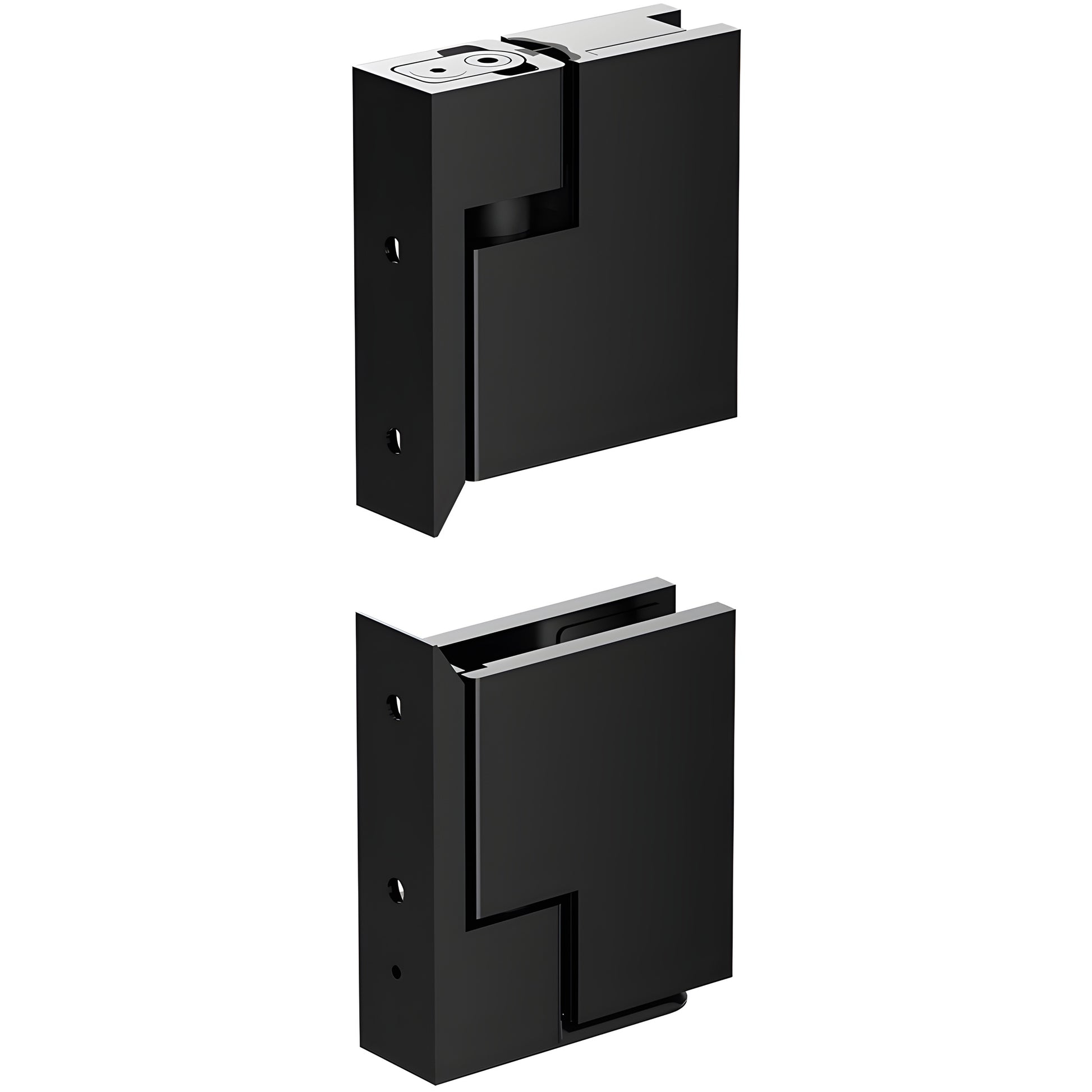

CRL Matte Black Zero Gap Hinge Set for Frameless Glass Doors

• Works with 3/8" to 1/2" (10 to 12 mm) thick glass
• Glass fabrication required
• Versatile installation: glass-to-wall or glass-to-glass; wall, floor, or pivoting hinge
• Rise-and-fall action — lifts door 1/4" (6.35 mm) on opening for low-threshold or barrier-free installations

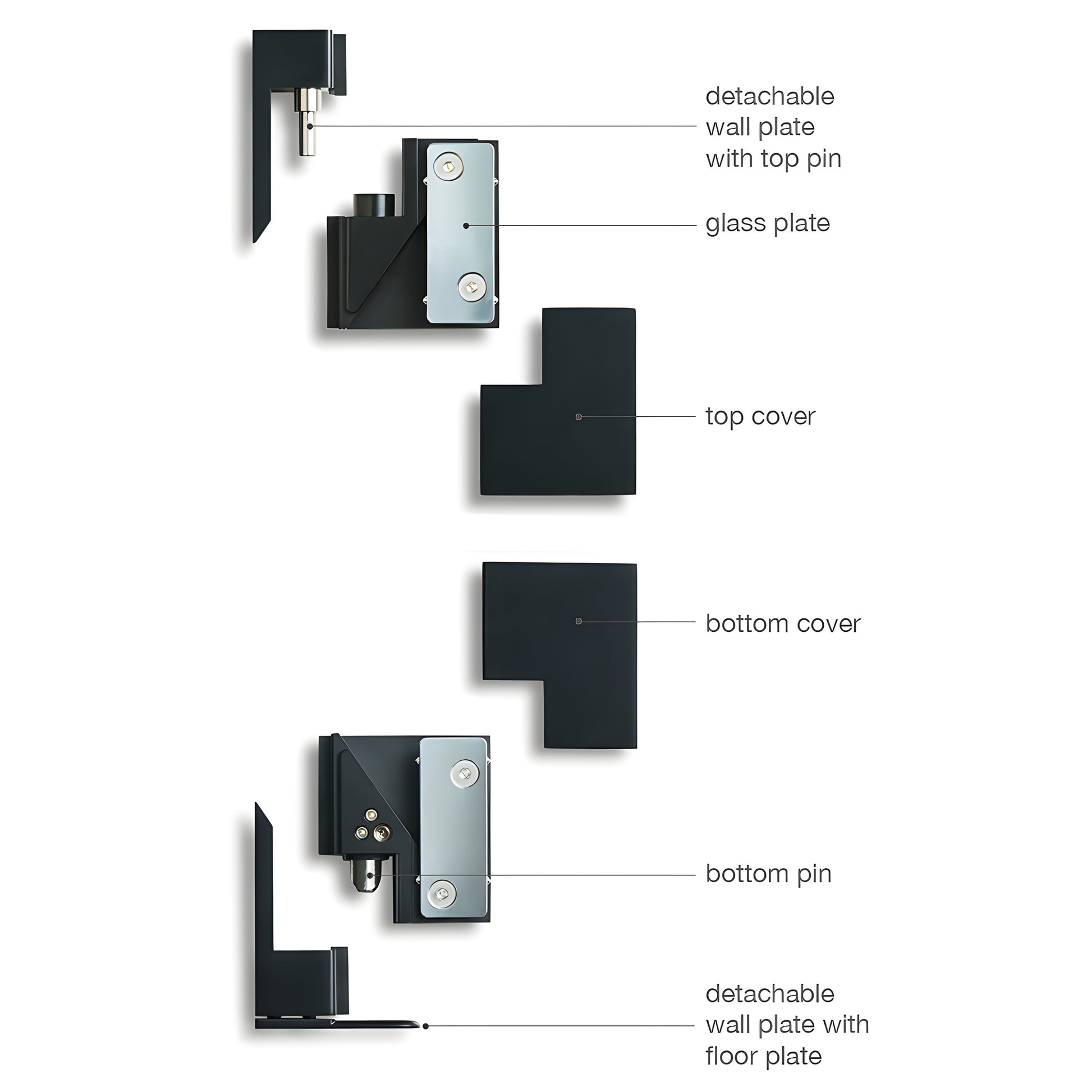

• Snap-on covers conceal mounting hardware for a clean, contemporary look
• Accessory kit for 90° & 135° installation sold separately
• Sleek new design with dedicated top and bottom, position-specific hinges (not interchangeable)
• Self-centers from 60°; adjustable positive closure up to +/-15° for precise door alignment
• *U.S. Patent 12,241,298

The CRL Zero Hinge Set (SKU: ZER000MBL) is a next-generation, self-centering hinge system engineered for glass shower doors and low-threshold entries. Designed for 3/8" (10 mm) and 1/2" (12 mm) glass, the Zero Hinge features a rise-and-fall mechanism that reduces sweep friction and enables barrier-free wheelchair accessibility when used without a bottom sweep. Its integrated clamp option simplifies floor installations and adapts to 90°, 135°, or 180° applications.

Key long-tail benefits: ideal as a zero hinge set for glass shower doors, a self-centering glass shower hinge, and a rise-and-fall hinge for 3/8 to 1/2 inch glass. The modern aesthetic and concealed hardware make it a durable, low-profile choice for residential and commercial shower installations.

Note: For 135° installations, follow the glass cut-out in the Technical Documentation. For full-height installations, maintain a minimum 2 3/16" (56 mm) clearance from the top hinge and allow an additional 1/8" clearance below the glass for a fully compressed sweep.

Order the CRL Zero Hinge Set (ZER000MBL) today to upgrade your glass shower installation with a sleek, ADA-friendly hinge solution.
