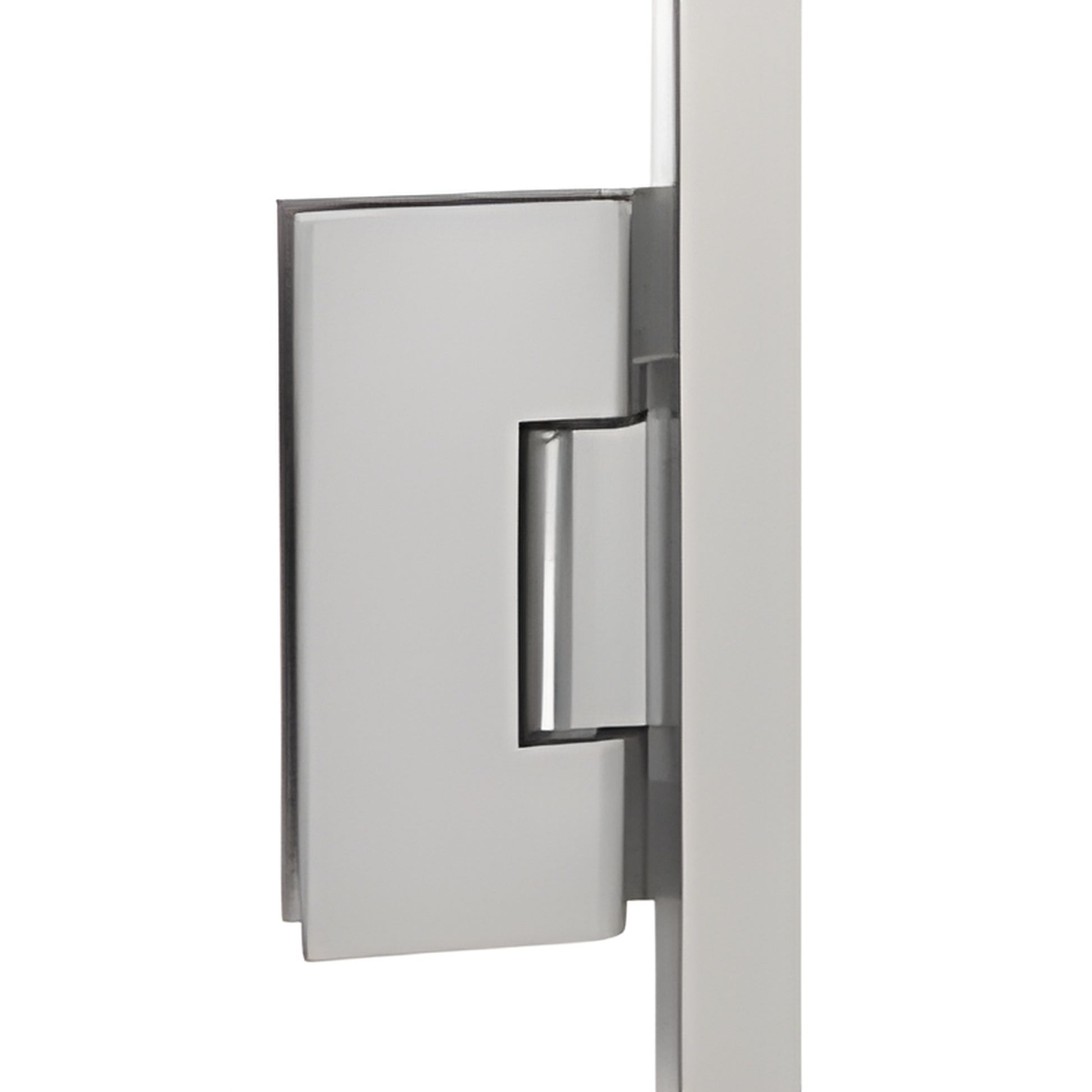

CRL Brushed Nickel Vienna 72" Hinge Kit for Glass Shower Doors

CRL Brushed Nickel Vienna 72" Hinge Kit for Glass Shower Doors

Regular price $766.65 CAD
Regular price Sale price $766.65 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# V1E03372BN
Shipping Weight: 9.81 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Nickel
Glazing Thickness
1/2 in. (12 mm)
Length
72 in. (1829 mm)
Material
Aluminum
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight
100 lbs. (45.4 kg)
Maximum Door Width - 1/2 Glass
30 in. (762 mm)
Maximum Door Width - 3/8 Glass
36 in. (914 mm)
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Vienna

Overview

  • 72" (1.83 m) High Vienna Series kit for tempered glass shower doors (SKU V1E03372BN)
  • Includes heavy-duty hinges, extrusion and vinyl seal
  • Fits 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
  • 5° hinge pins for positive closure—provides a water-resistant seal at both sides and the bottom
  • Self-centering from 15° for reliable alignment
  • Bottom sweeps included for both 3/8" (10 mm) and 1/2" (12 mm) glass
  • Reversible hinge mount (left or right when viewed from inside); door must swing out

CRL Heavy-Duty Kits are engineered for durable, commercial-grade performance and include components to create a water-resistant shower door assembly. Use with monolithic tempered glass for optimal strength and safety.

NOTE: 3/8" glass maximum door width 36" (914 mm); max weight 100 lbs (45 kg). 1/2" glass maximum door width 30" (762 mm); max weight 100 lbs (45 kg).

Most shipping weights are approximate. If you need exact weight for shipping cost calculations, contact CRL Customer Service before ordering. Product images are representative; actual color may vary with monitor settings.

Shop SKU V1E03372BN now to get a heavy-duty 72" Vienna Series hinge kit for tempered glass shower doors.
