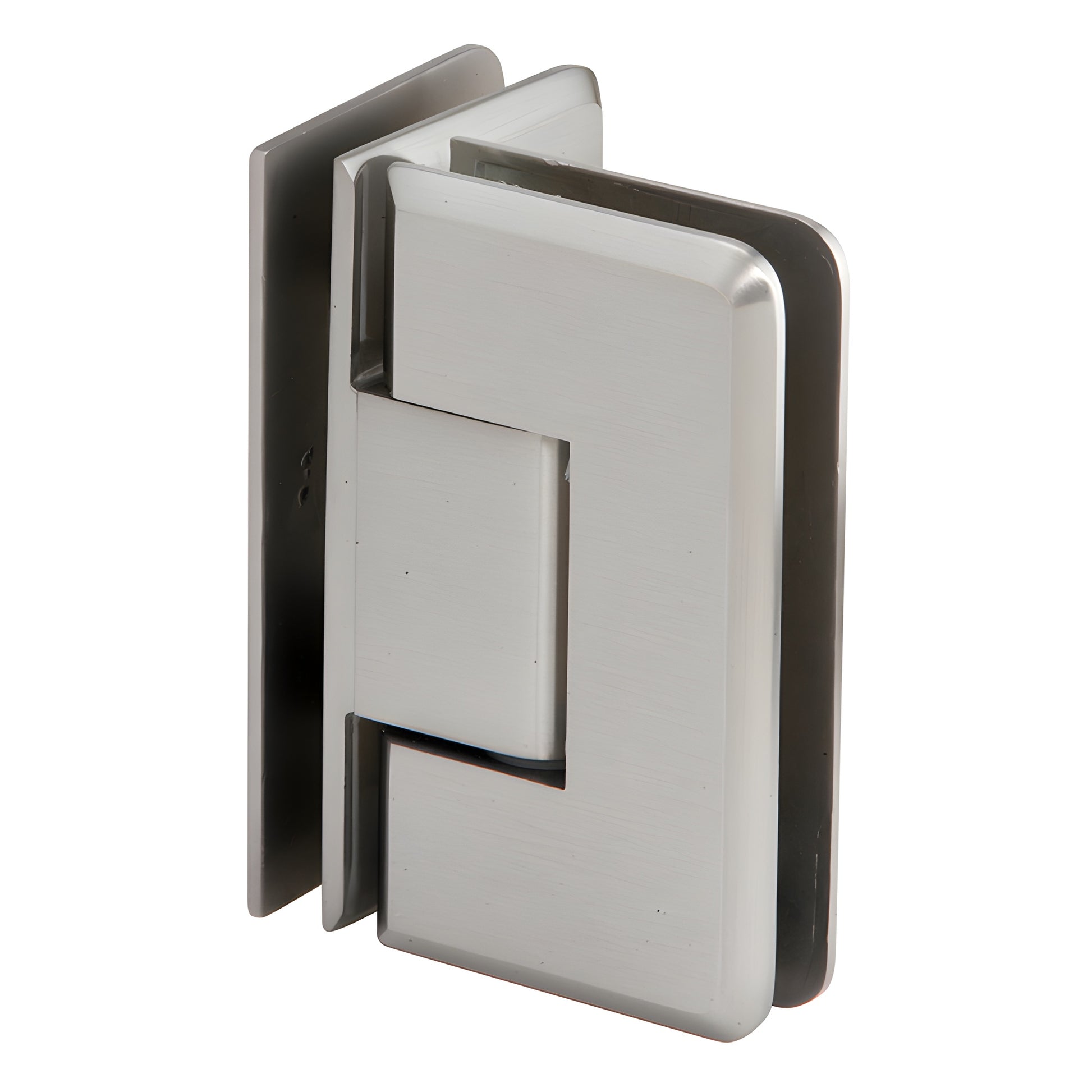

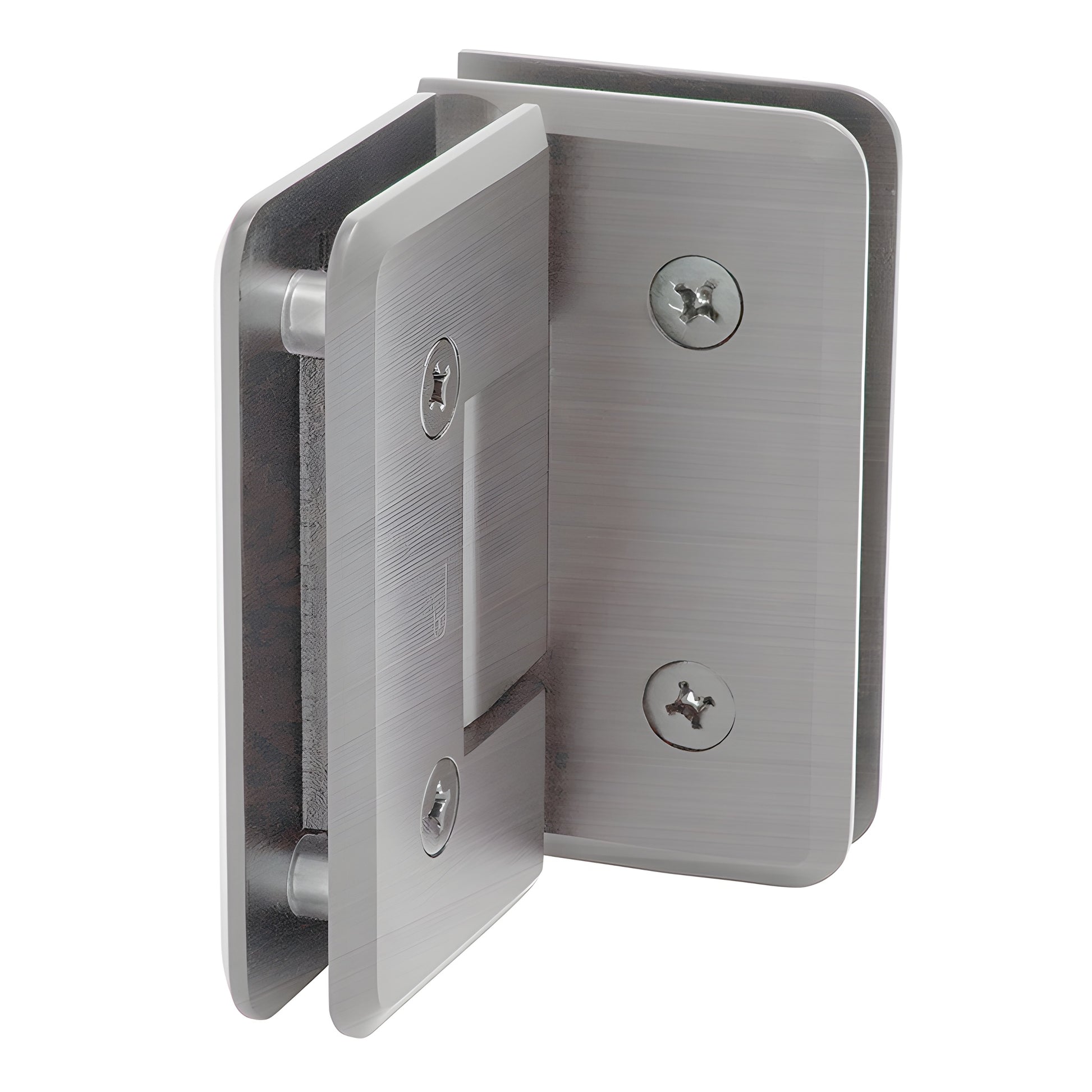

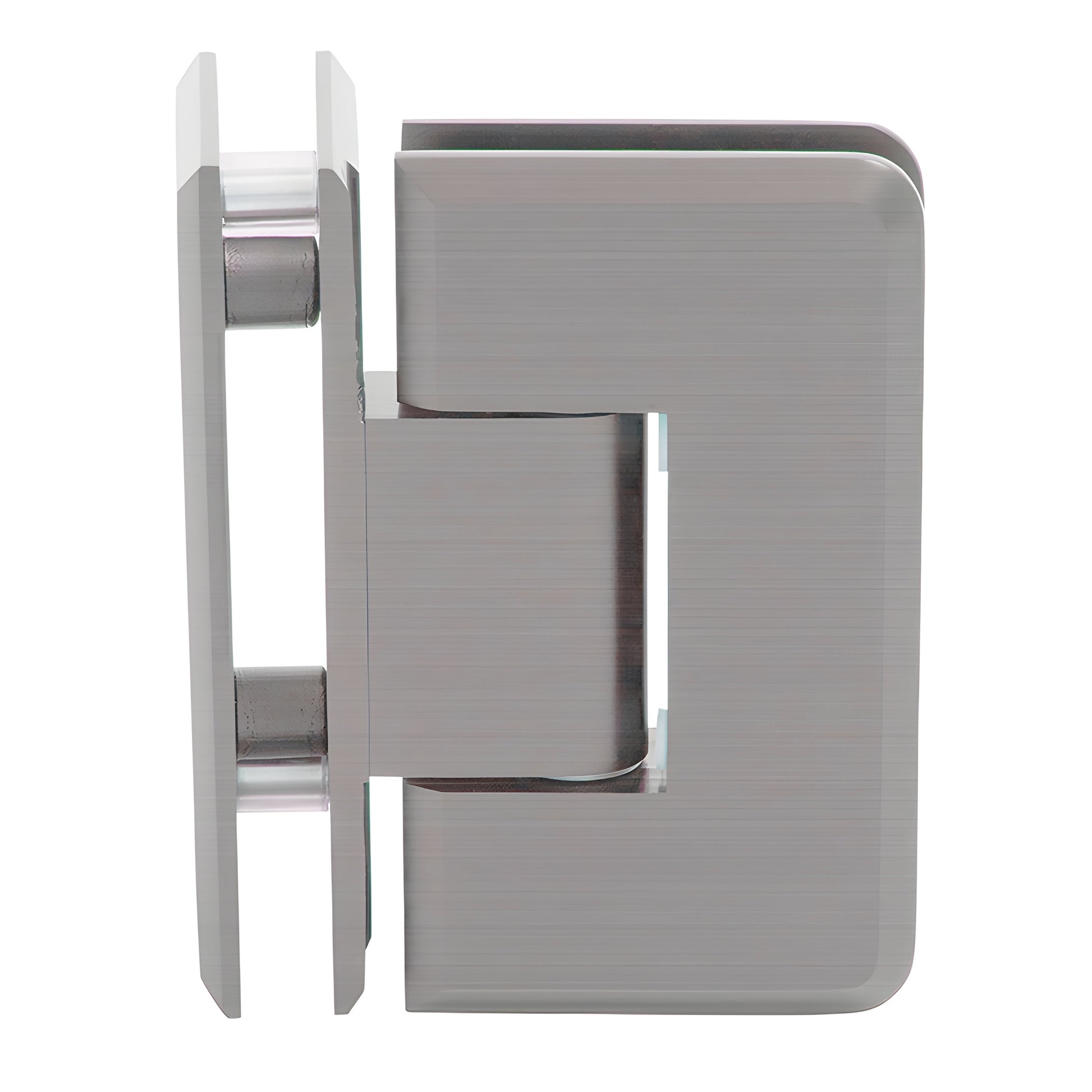

CRL Brushed Nickel Cologne 092 Series 90º Glass-to-Glass Hinge
CRL Brushed Nickel Cologne 092 Series 90º Glass-to-Glass Hinge
Regular price
$218.36 CAD
Regular price
Sale price
$218.36 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C0L092BN
Shipping Weight: 2.64 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.64 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Design | Style Beveled |
| Edge | Profile Beveled |
| Enclosure | Type Corner, Tailor Made Solutions |
| Finish/Color | Brushed Nickel |
| Glass To Glass Angle | 90 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |

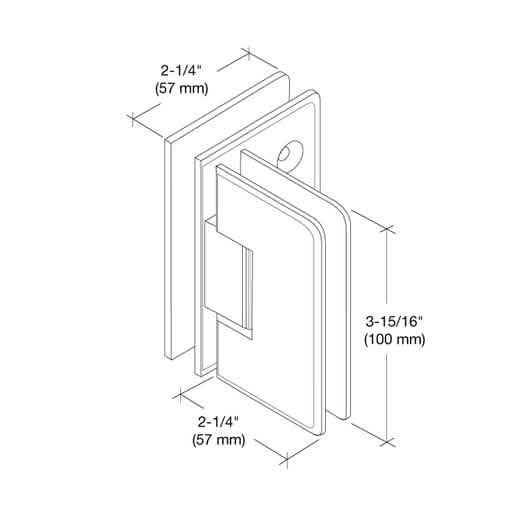

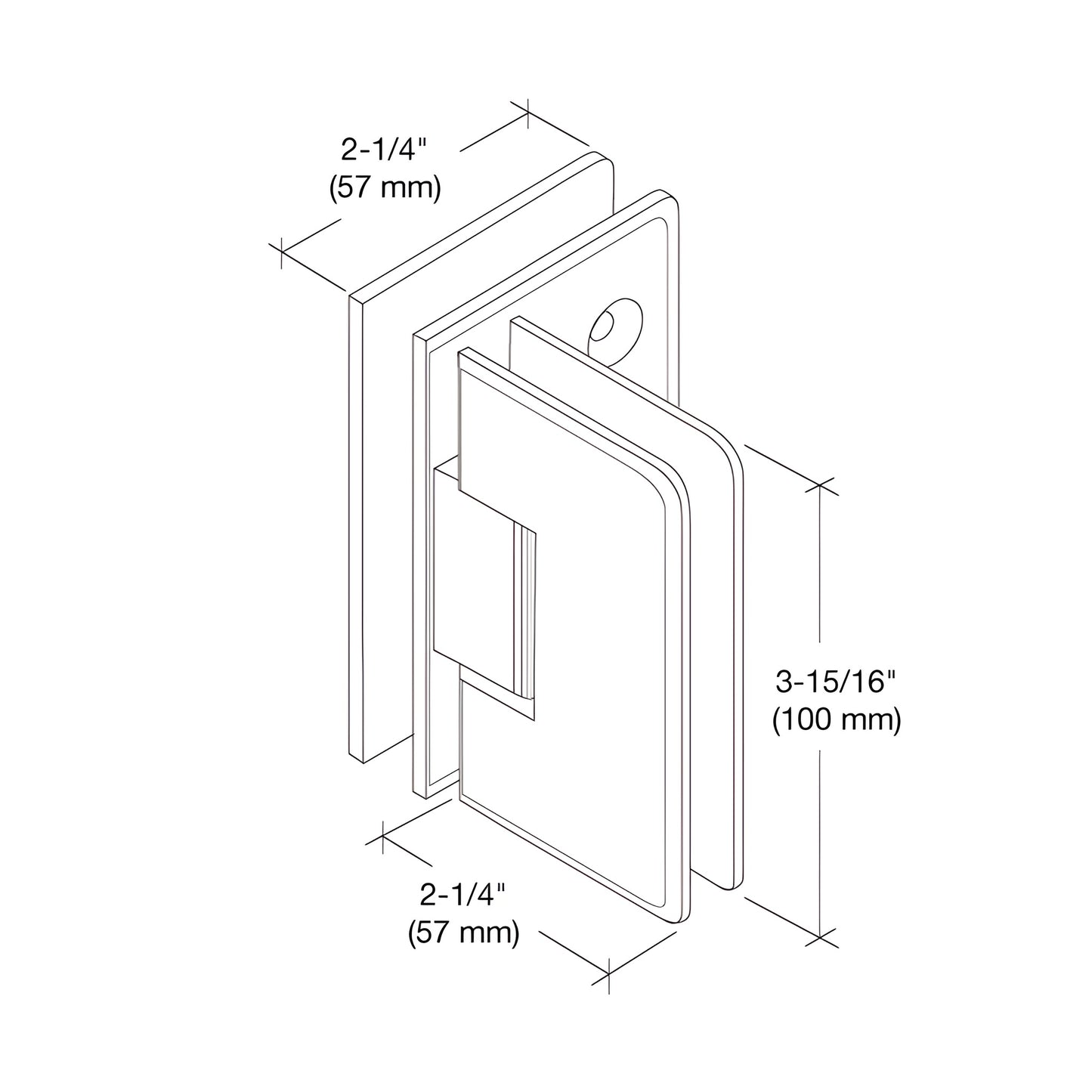

| Height 3-15/16 in. | (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque 60 lbf.in | (677.9 cN.m) |
| Maximum Door Weight - 2 Hinges 110 lbs. | (49.9 kg) |
| Maximum Door Weight - 3 Hinges 140 lbs. | (63.5 kg) |
| Maximum Door Width 36 in. | (914 mm) |
| Mounting | Type Glass To Glass |
| Opening Style Swing | (side) |
| Self-Centering Yes | Cologne |
| Width - Door Portion 2-1/4 in. | (57 mm) |
| Width - Sidelite Portion | 2-1/4 |
Overview
CRL Cologne Hinges are designed to accommodate 3/8" to 1/2" (10 to 12 mm) glass and are available in several beautiful finishes.
These hinges offer a sleek appearance with radius corners and beveled edges, making them ideal for wider, heavier doors that require stronger support than traditional hinges.
Each hinge features a reversible pivot pin, allowing for both 90º and 85º settings, and is constructed from solid brass for durability.
With the option for custom pivot pins and finishes, CRL Cologne Hinges provide versatile solutions for various glass door installations.
For safety and optimal performance, use only the template included with the hinge and contact CRL Technical Sales for any custom requests.
These hinges offer a sleek appearance with radius corners and beveled edges, making them ideal for wider, heavier doors that require stronger support than traditional hinges.
Each hinge features a reversible pivot pin, allowing for both 90º and 85º settings, and is constructed from solid brass for durability.
With the option for custom pivot pins and finishes, CRL Cologne Hinges provide versatile solutions for various glass door installations.
For safety and optimal performance, use only the template included with the hinge and contact CRL Technical Sales for any custom requests.
