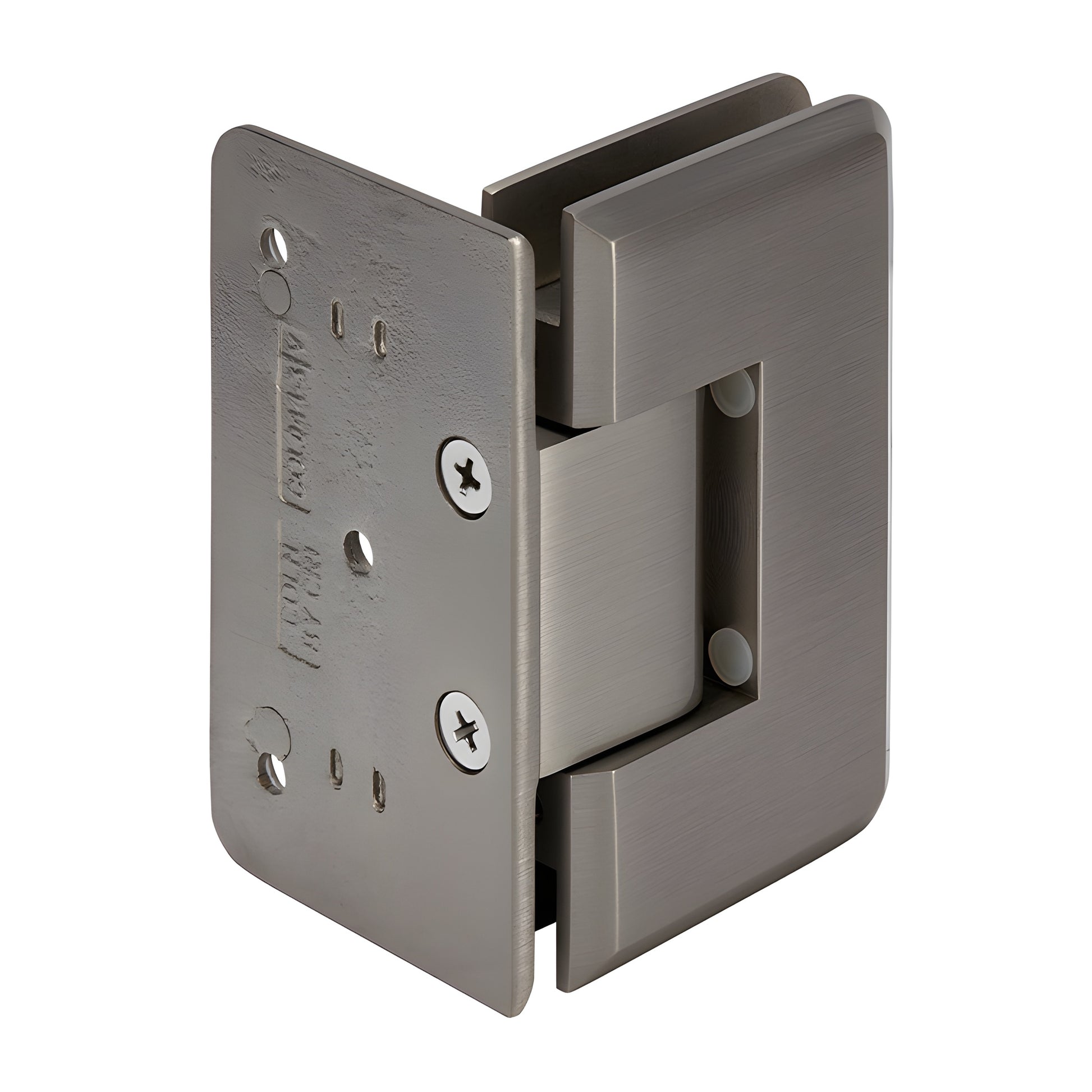

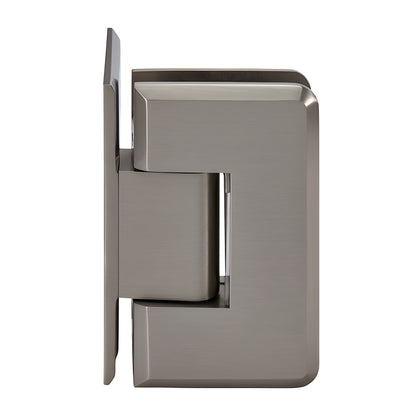

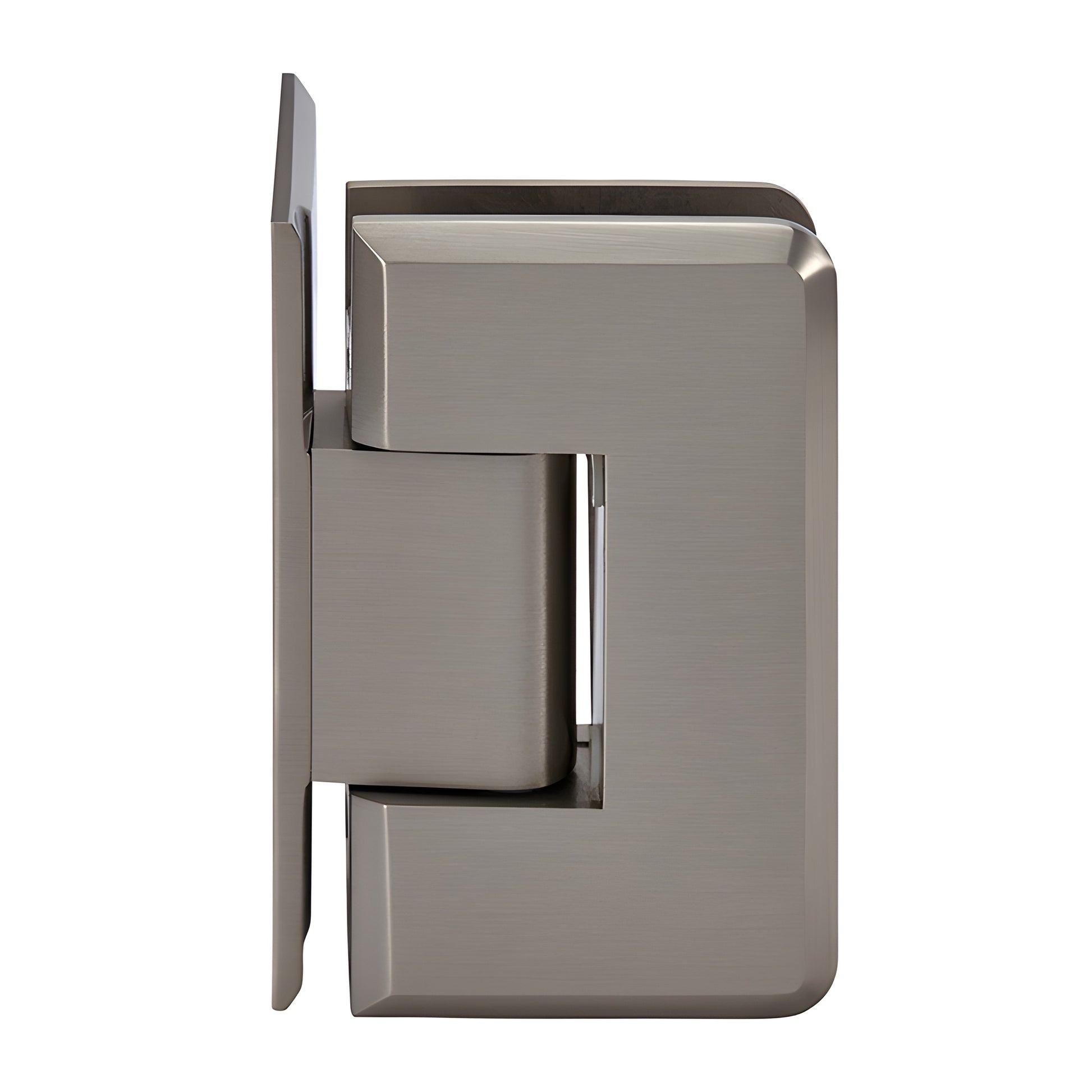

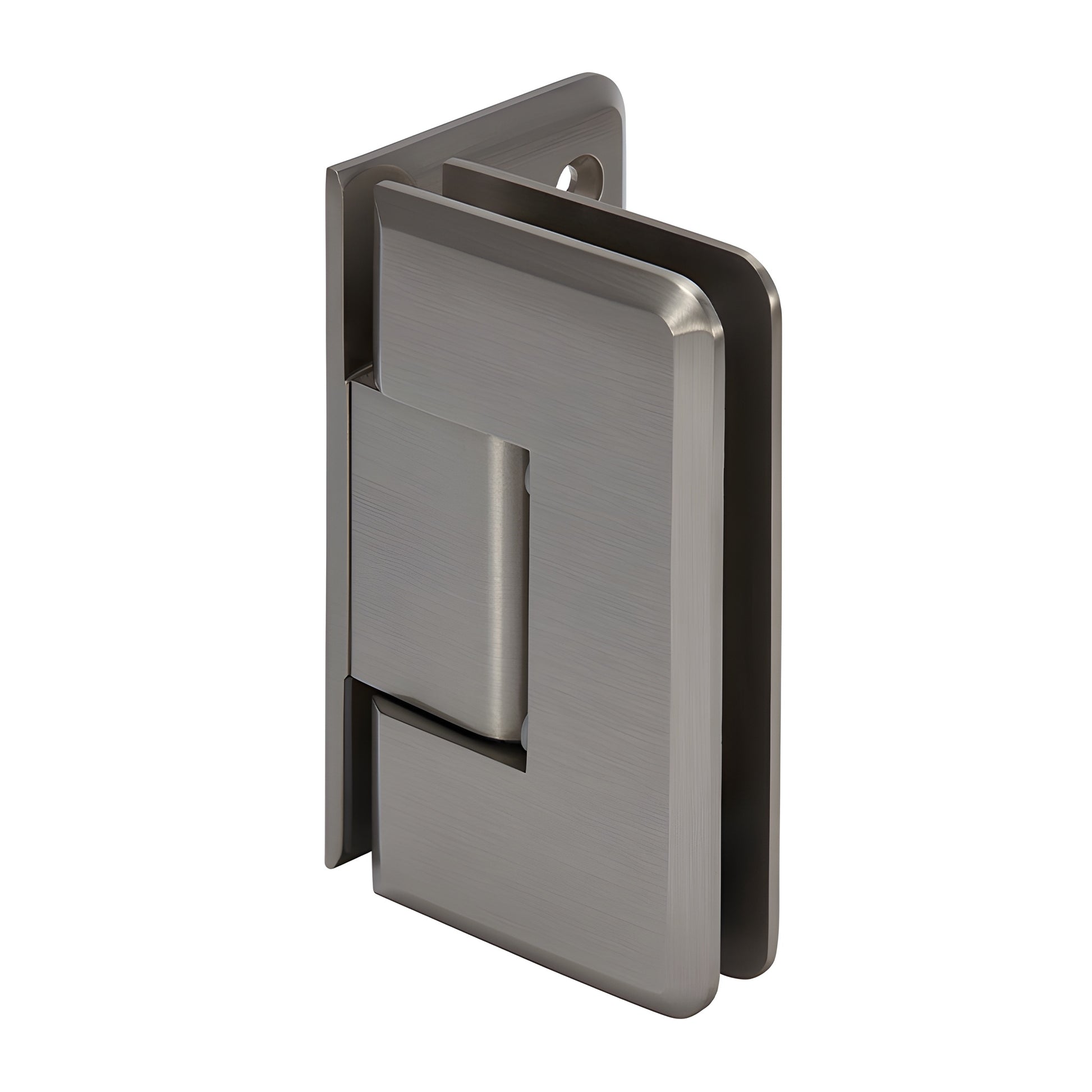

CRL Cologne 544 5° Brushed Nickel Wall-Mount Offset Glass Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes; custom finishes available on request
• 3 Year Warranty
• 5º Pre-Set Model (factory set for 5º tighter closure into shower interior)
• Use monolithic tempered glass

CRL Cologne Hinges (SKU: C0L544BN) provide a sleek alternative to Vienna hinges with radius corners and beveled edges. Engineered from solid brass for residential and hotel shower doors, Cologne Hinges are designed to support wider, heavier frameless glass doors that standard hinges cannot. Two internal steel pins offer mounting flexibility: leave both pins in place for CRL "mouse-ears" cut-outs or remove them for rectangular/square corner cut-outs (may fit some competitive cut-outs).

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with 90º activated; Pre-Set models ship with the 85º side activated for a 5º tighter closure into the shower interior. Rotate the pin (do not flip) to change the angle.

CUSTOM PIVOT PIN: Custom pivot pins are available up to 45º for off-angle installations where walls are not square to the door.

LOAD & DOOR WIDTH CAPACITY:
Using two hinges with 3/8" (10 mm) glass: holds up to 100 lbs (45 kg); max door width 34" (864 mm).
Using two hinges with 1/2" (12 mm) glass: holds up to 100 lbs (45 kg); max door width 32" (813 mm).
Using three hinges with 3/8" (10 mm) glass: holds up to 130 lbs (59 kg); max door width 34" (864 mm).
Using three hinges with 1/2" (12 mm) glass: holds up to 130 lbs (59 kg); max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Except C0L092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request by contacting the CRL Technical Sales Department.

Product Warning:
