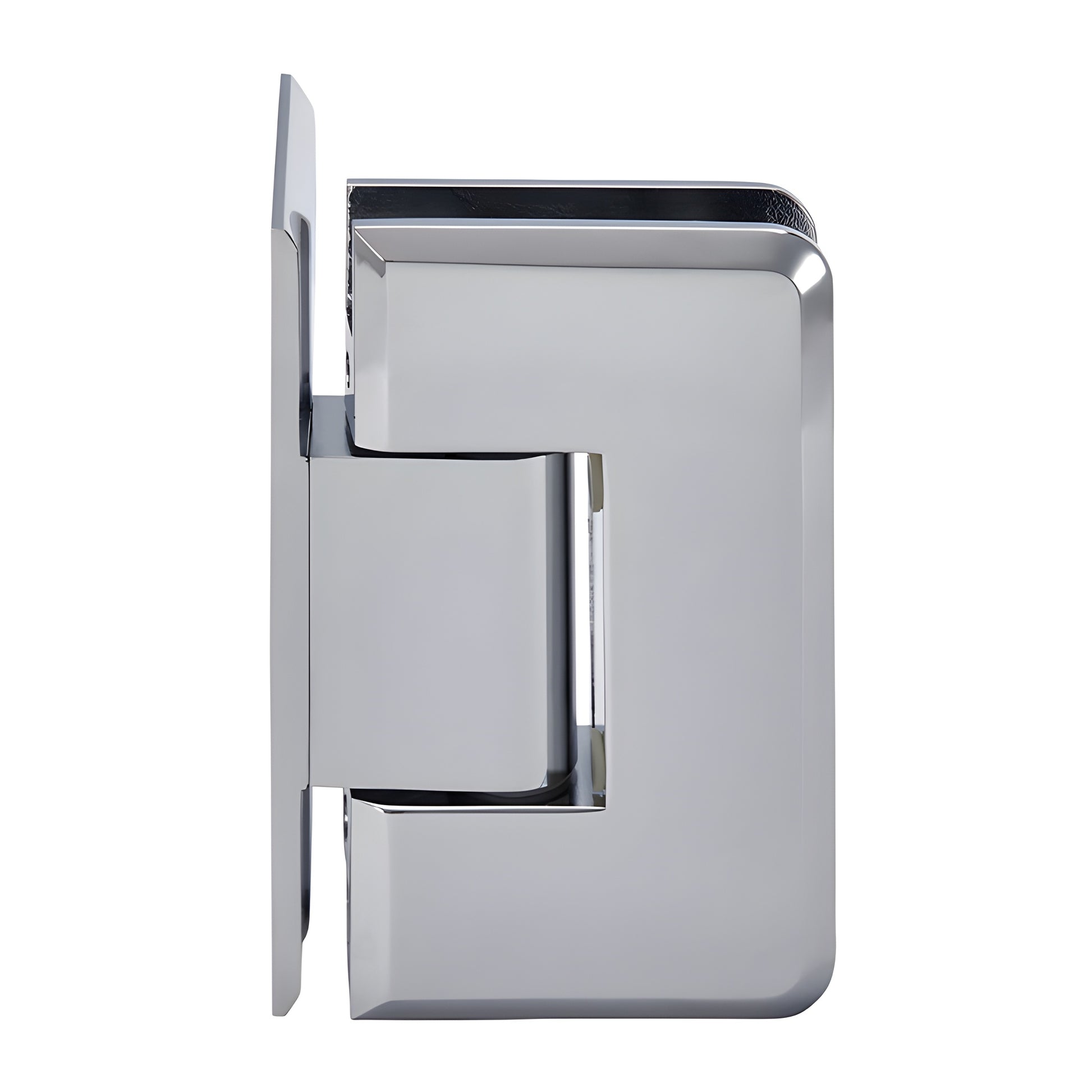

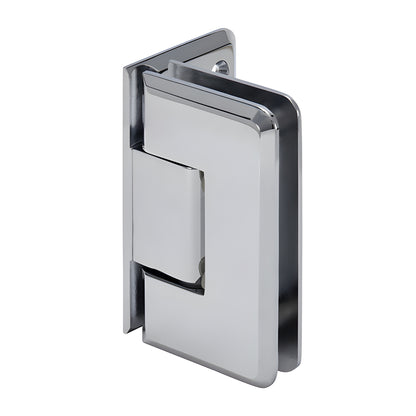

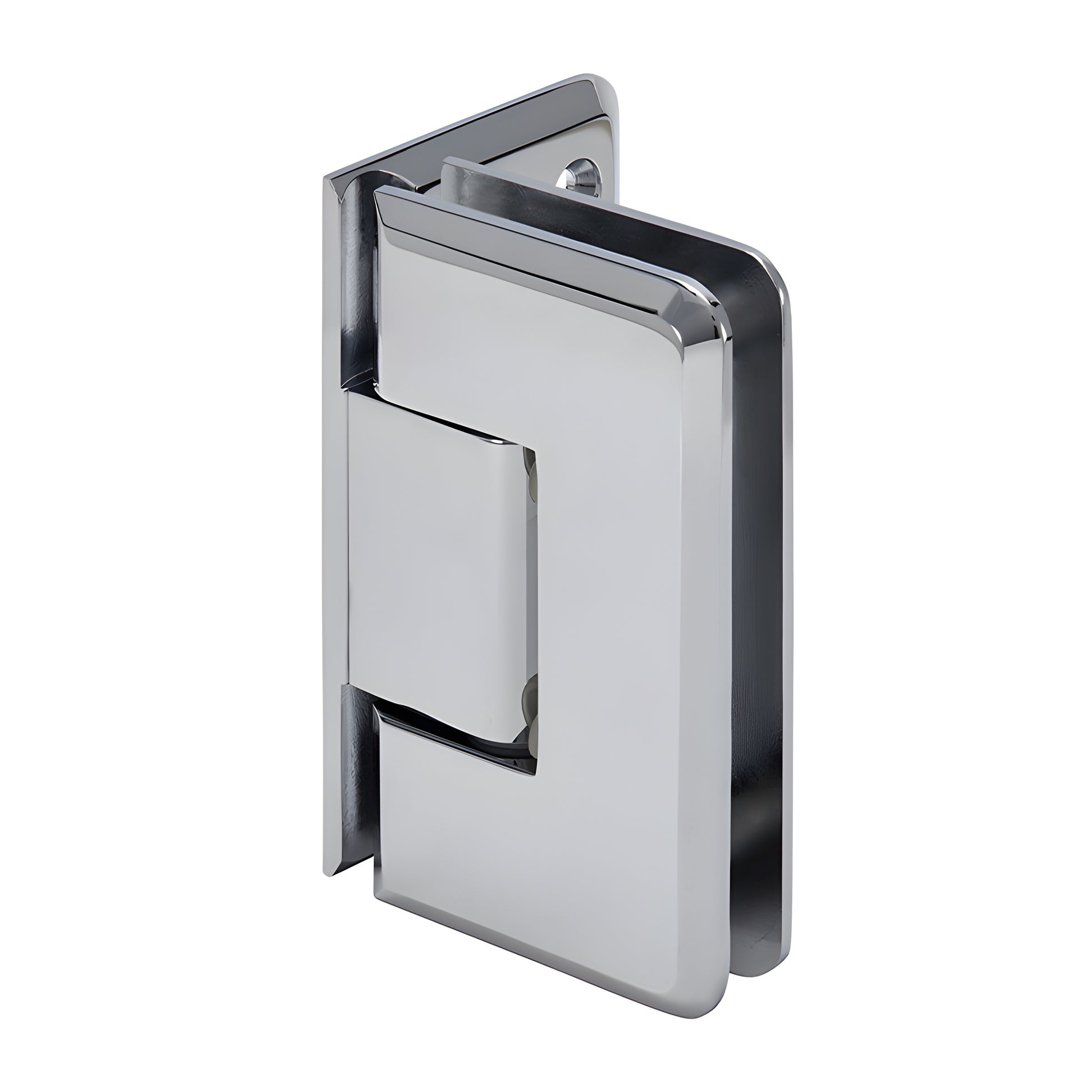

CRL Cologne 544 Polished Chrome 5° Pre-Set Glass Offset Wall Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in several beautiful finishes
• 3 Year Warranty
• 5º Pre-Set Model (factory set for 5º tighter closure into shower interior)
• Use monolithic tempered glass

CRL Cologne Hinges — SKU C0L544CH are premium solid-brass shower door hinges engineered for wider, heavier frameless glass shower doors. Similar to Vienna hinges but with radius corners and beveled edges, these brass shower hinges deliver a sleek, modern appearance and greater load capacity for residential and hotel shower door installations. Ideal long-tail search terms: "solid brass shower door hinge for 3/8 glass", "Cologne hinge for frameless shower door", "brass shower hinge 5 degree preset".

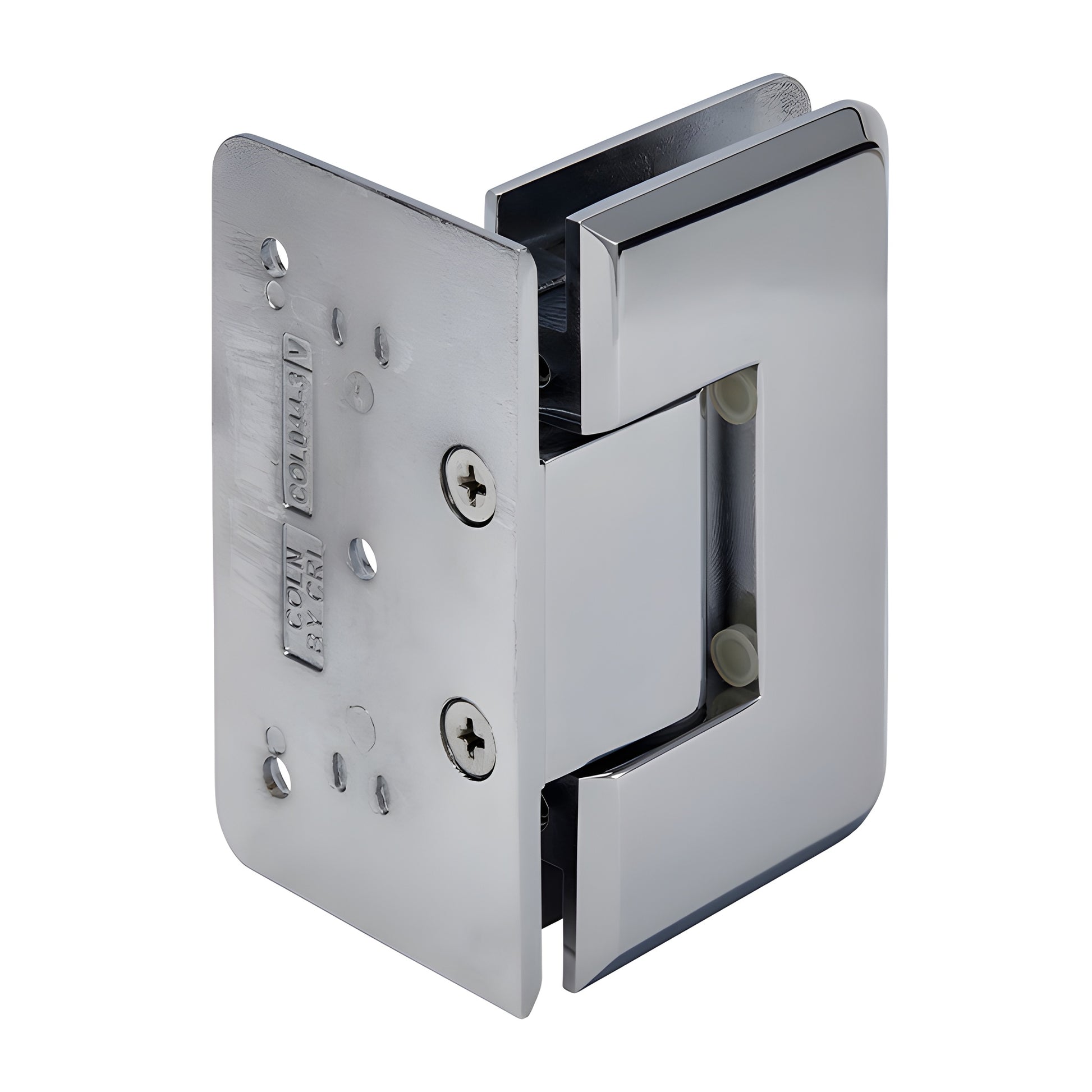

Two internal steel pins allow template flexibility: leave both pins in place for CRL "mouse-ears" cut-outs for added safety, or remove the pins for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs and some competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with 90º activated. Pre-Set models ship with the 85º side activated (5º tighter closure into the shower interior). Rotate the pin (do not flip) to change the active angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations—specify the required angle (up to 45º) if the standard pivot does not achieve the desired door closing position.

Performance (Load Capacities):
Using two hinges with 3/8" glass (10 mm): holds up to 100 lbs. (45 kg), max door width 34" (864 mm).
Using two hinges with 1/2" glass (12 mm): holds up to 100 lbs. (45 kg), max door width 32" (813 mm).
Using three hinges with 3/8" glass (10 mm): holds up to 130 lbs. (59 kg), max door width 34" (864 mm).
Using three hinges with 1/2" glass (12 mm): holds up to 130 lbs. (59 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-centering when within 15º of closed position
Cut-Out
