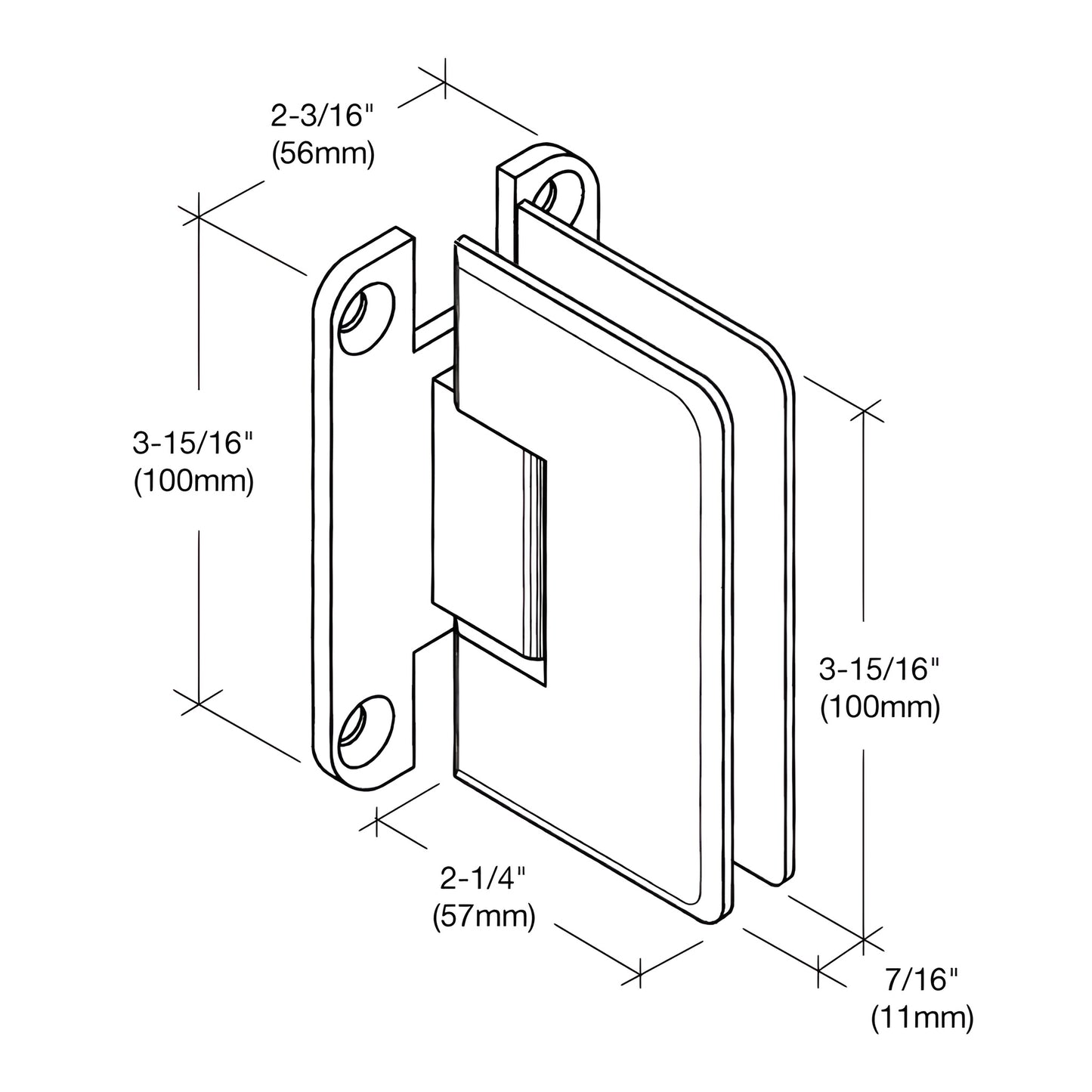

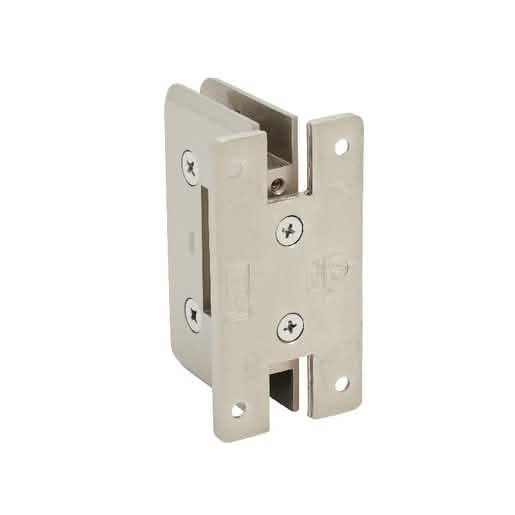

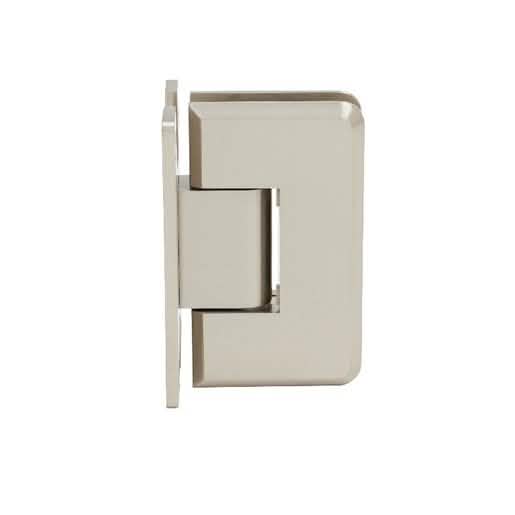

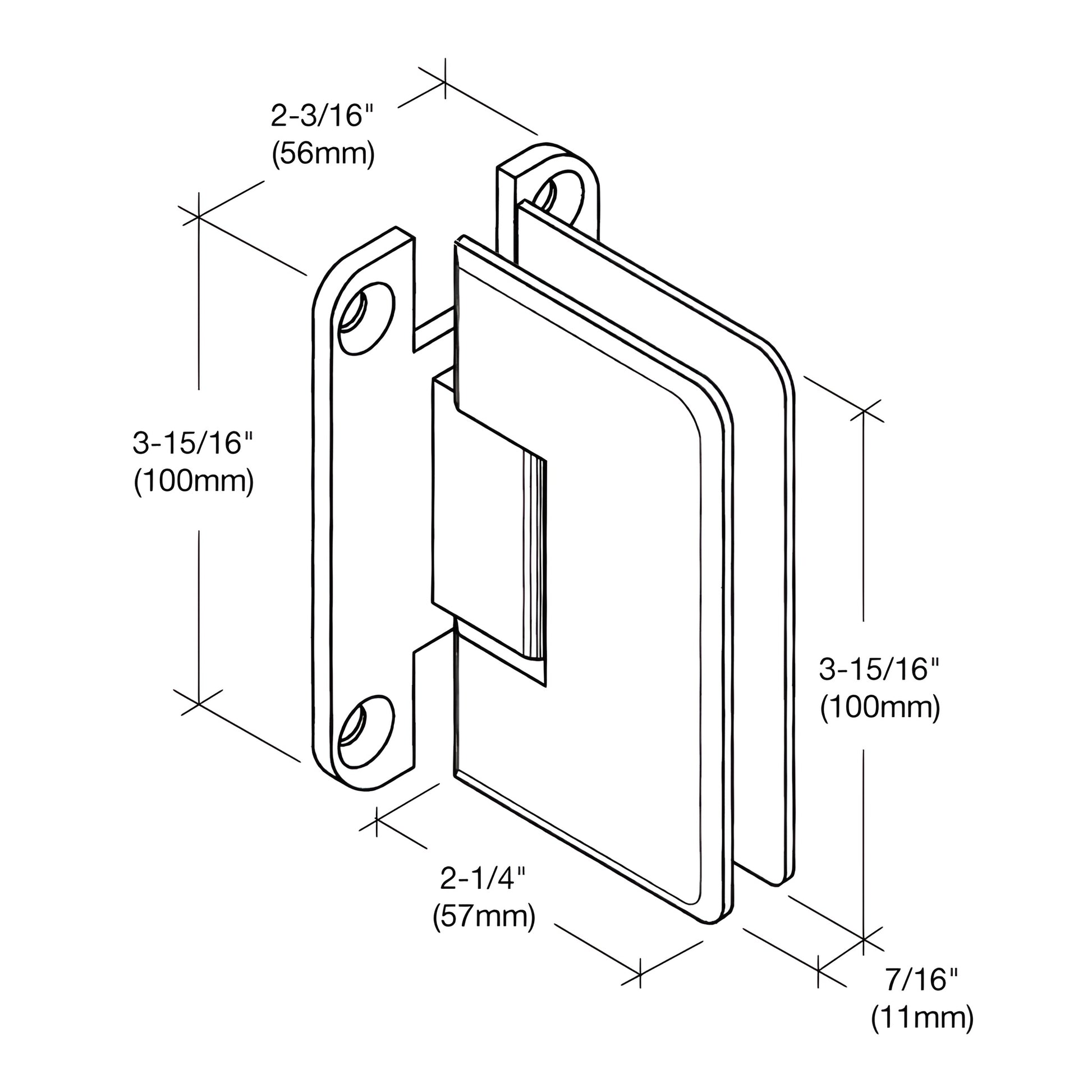

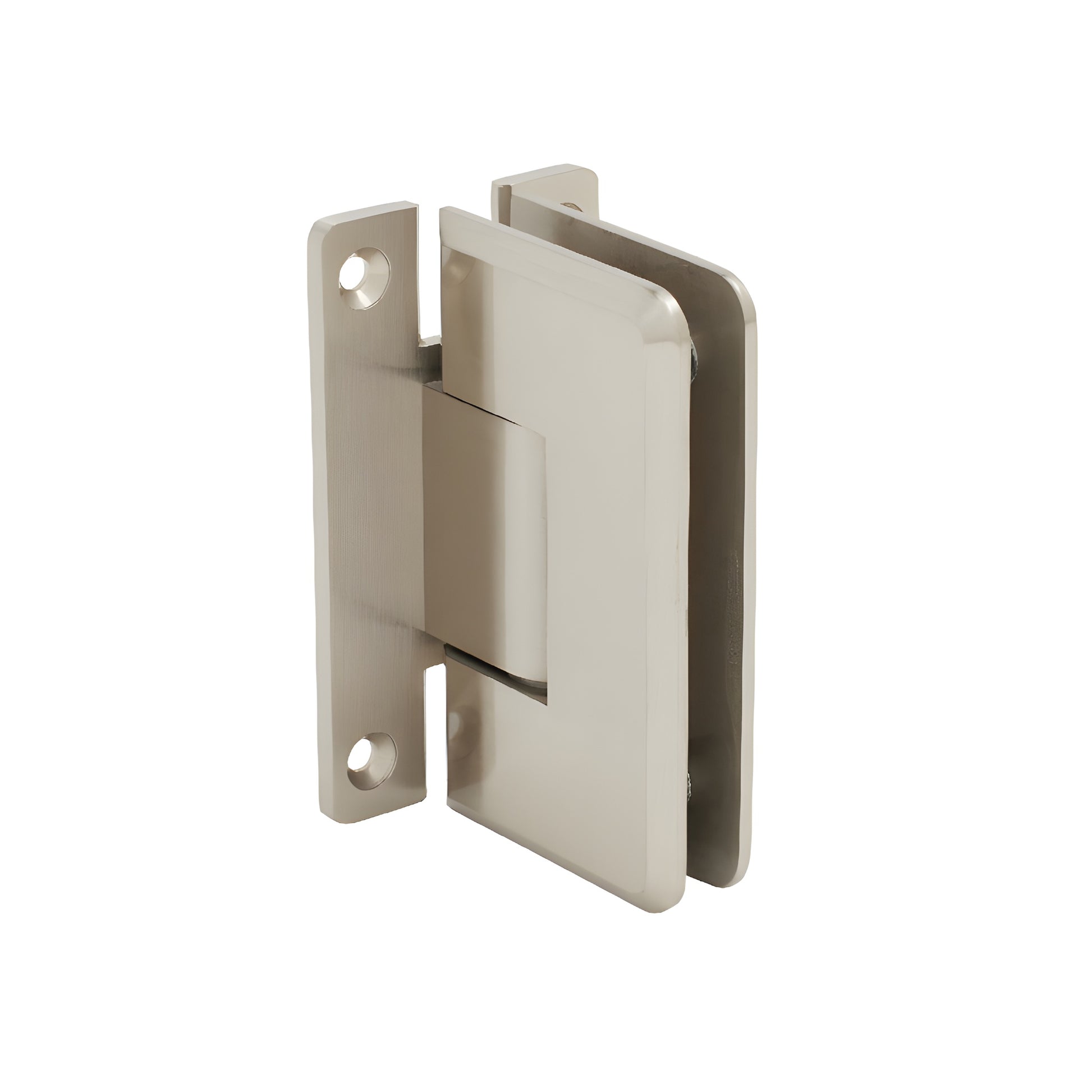

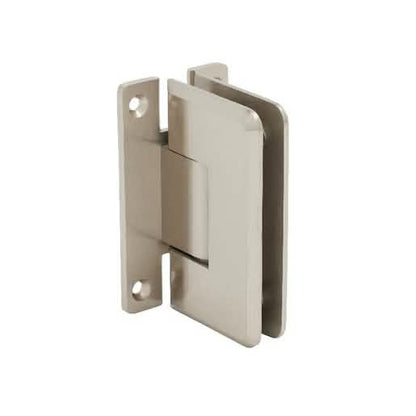

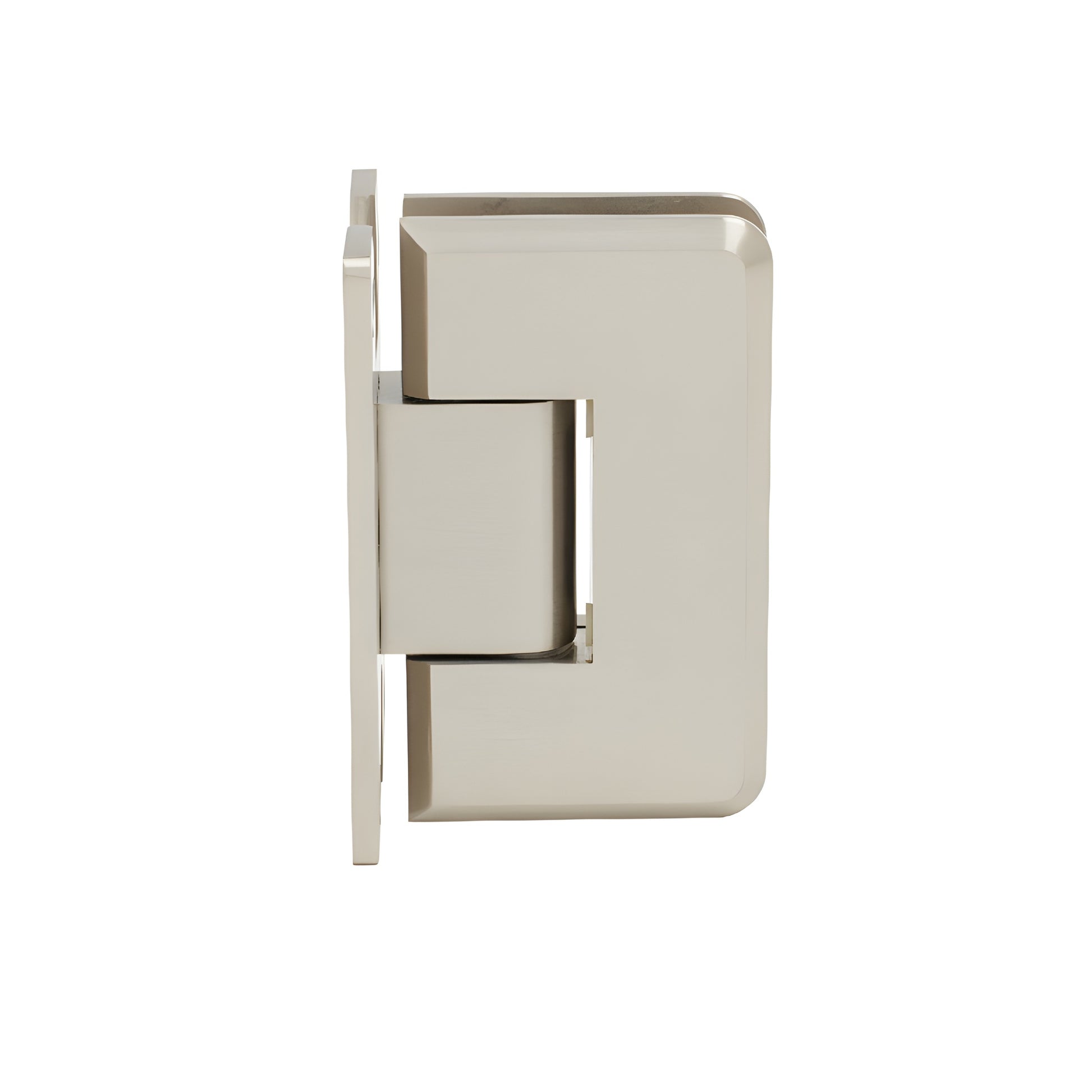

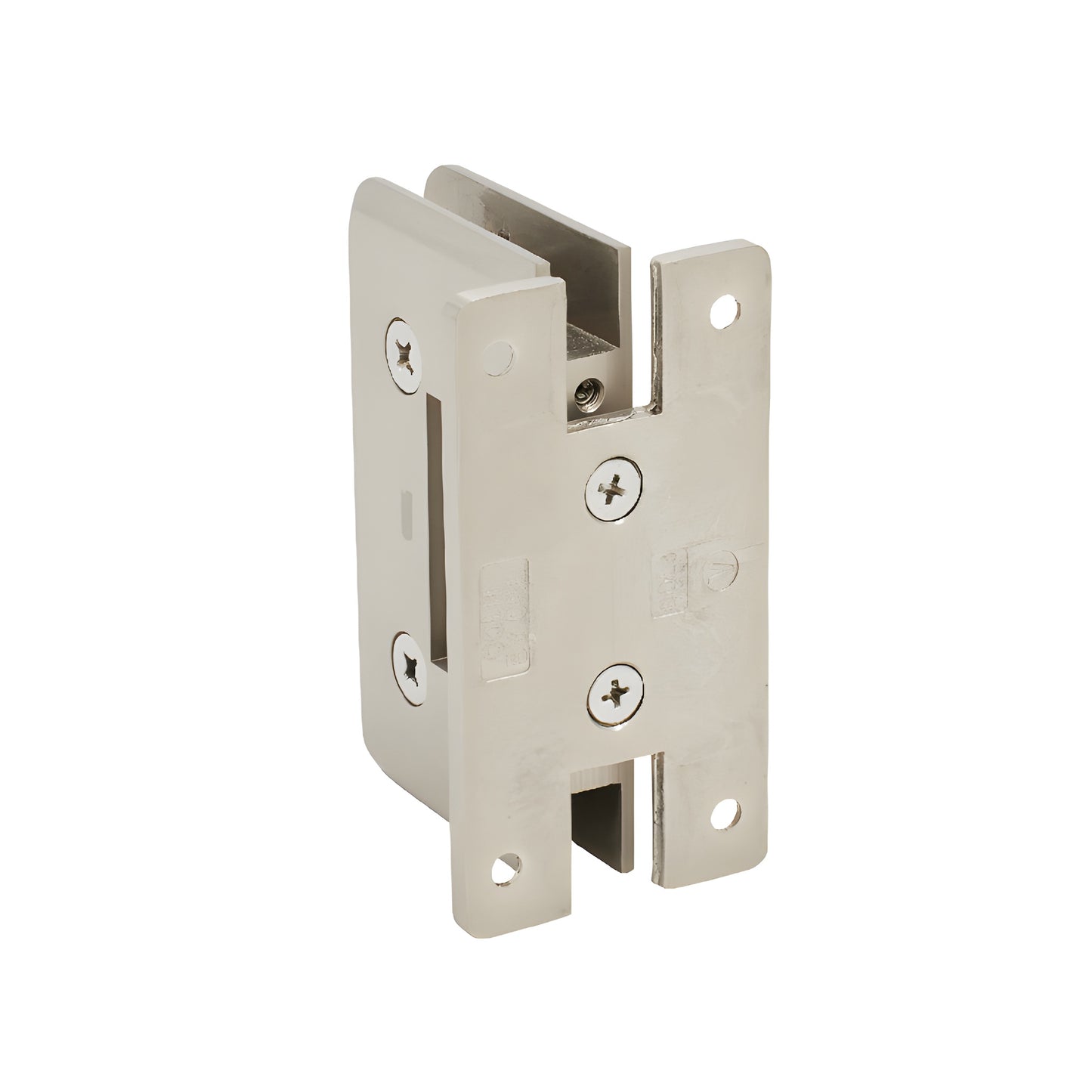

CRL Cologne Brushed Nickel Shower Door Wall-Mount Hinge Positive Close

• Special grooved internal pivot pin for a precise, positive closing action
• Available in wall-mount and 180° glass-to-glass Cologne hinges
• Stocked in four popular finishes; other finishes available by special order

The Positive Close Cologne Hinge (SKU: C0L067BN) features an internal grooved pivot pin that provides a positive closing action to zero degrees—distinct from typical self-centering Cologne hinges. Ideal for glass shower doors, this positive-close hinge improves door alignment and reliable shut every time.

Load Capacity
Using two hinges with 3/8" to 1/2" glass (10–12 mm): up to 110 lbs (50 kg), max door width 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10–12 mm): up to 140 lbs (63 kg), max door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10–12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° inward and outward
Closing Type: Positive closing to zero degrees
Includes: gaskets, Phillips screws, Allen screws, and glass fabrication dimensions (cut-out required)
Maximum clamping screw torque: 60 lbf·in (677.9 cN·m)

Custom finishes available upon request. Contact CRL Technical Sales Shower Door Department for special-order finishes or application questions.

Product Warning
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the included template—cut-out dimensions may differ from other brands.

Order the Positive Close Cologne Hinge (C0L067BN) today for dependable, precise glass shower door performance.
