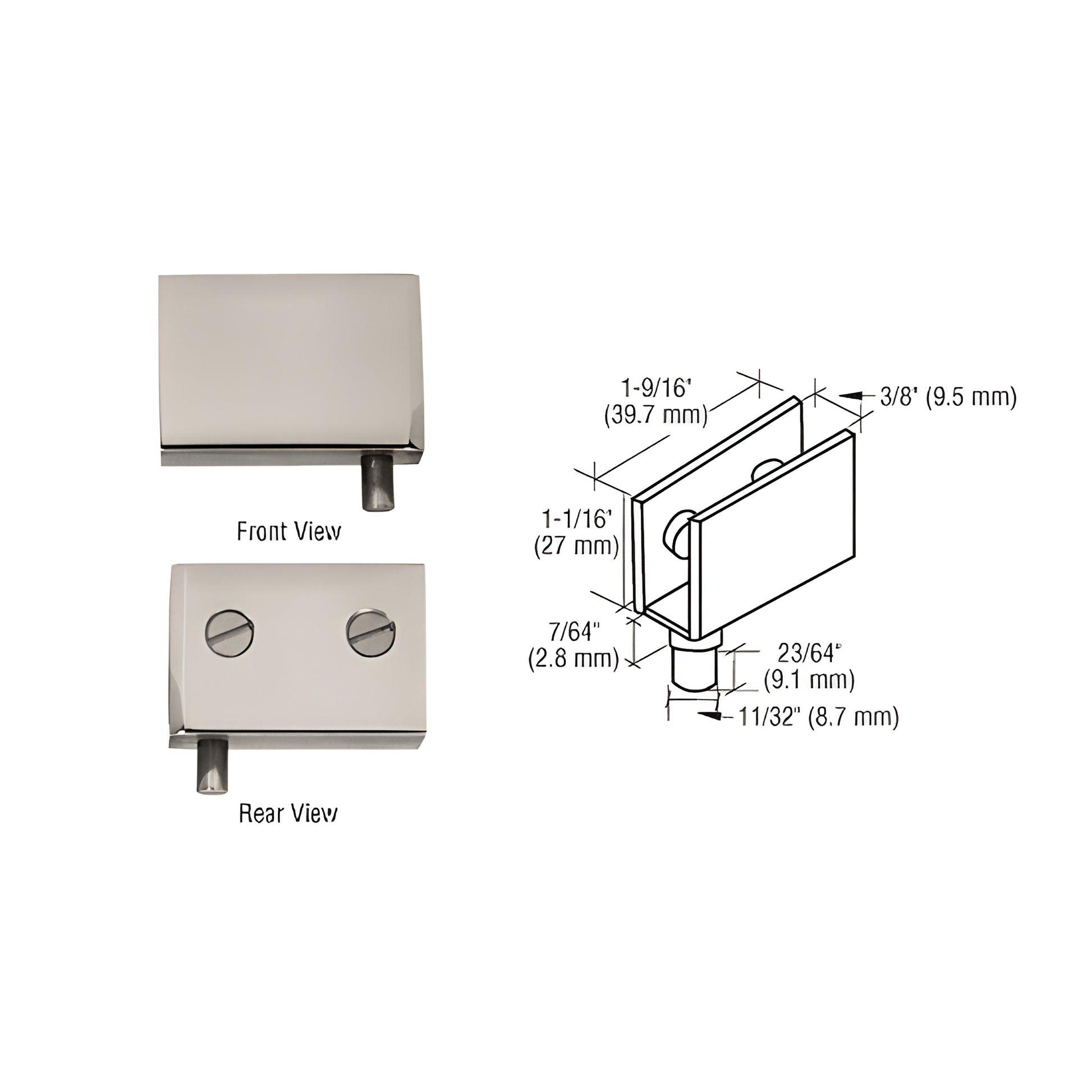

CRL Brushed Nickel Pivot Hinge for Glass & Shower Doors
CRL Brushed Nickel Pivot Hinge for Glass & Shower Doors
Regular price
$38.68 CAD
Regular price
Sale price
$38.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH225
Shipping Weight: 4.96 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.96 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Nickel
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
1-1/16 in. (27 mm)
Material
Brass
Maximum Door Width
14 in. (355.6 mm)
Pack Quantity
2
Weight Capacity
18 lbs. (8.2 kg)
Width
1-9/16 in. (39.7 mm)
Overview
- No Holes or Cut-Outs Required
- Available in Several Finishes
- Fits 1/4" to 5/16" (6 to 8 mm) Glass
- Easy-to-Install
Maximum recommended door size & weight:
- Standard Hinges: up to 14" (356 mm) wide, maximum 18 lbs. (8.2 kg)
- Wide Hinges: up to 20" (508 mm) wide, maximum 28 lbs. (12.7 kg)
- Minimum required clearance: 3/16" (5 mm) top and bottom
- One top-and-bottom set per pack
Product Warning:
If the glass door exceeds 14" (356 mm) width or 20 lbs. (9 kg) total weight, use Cat. No. EH324 Hinge (heavier duty).
SKU: EH225 — No-drill glass door hinge for frameless glass doors, available in multiple finishes. Order now to get the correct hinge for your glass thickness and application.
