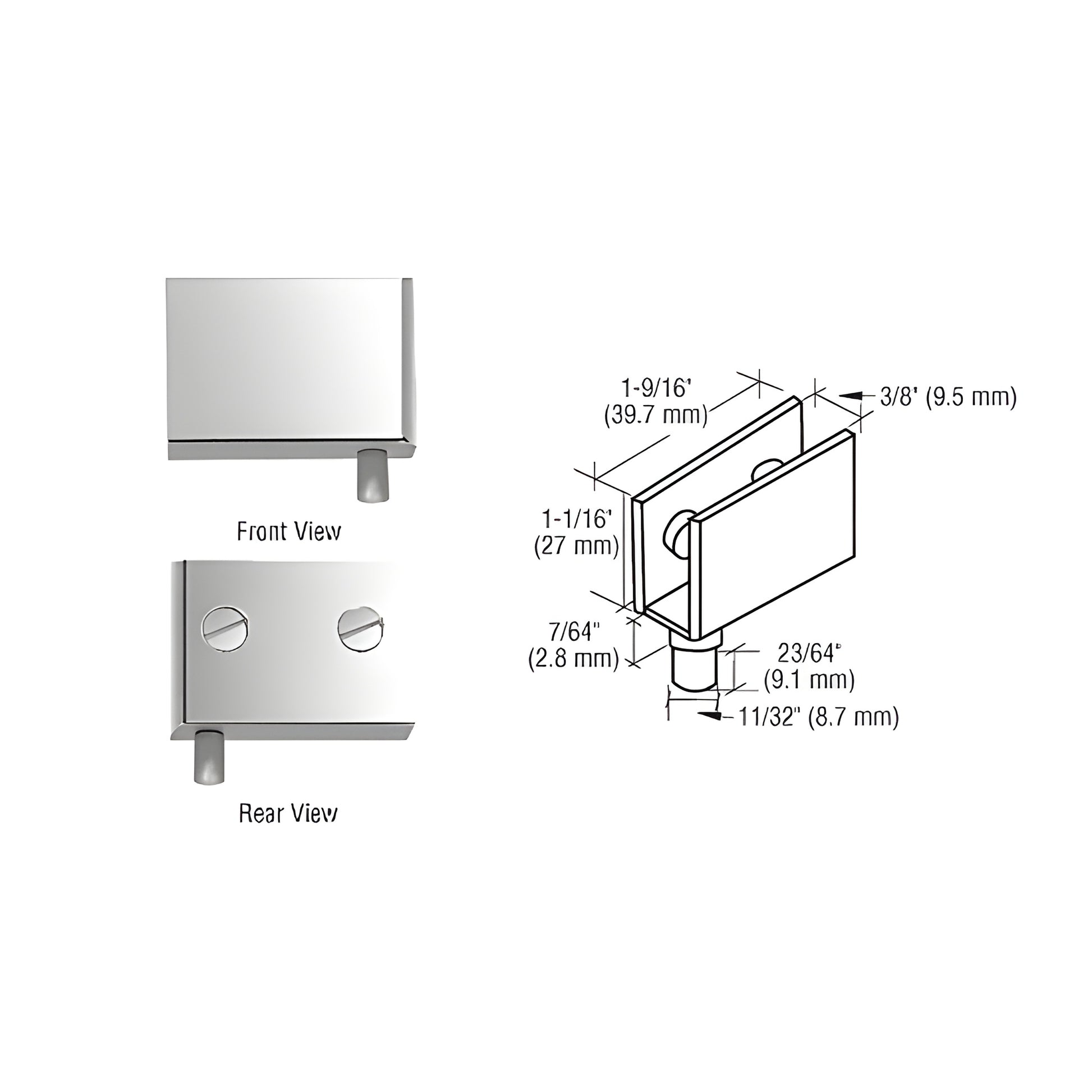

CRL Polished Chrome Frameless Glass Door Pivot Hinge
Item# EH224
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
1-1/16 in. (27 mm)
Material
Brass
Maximum Door Width
14 in. (355.6 mm)
Pack Quantity
2
Weight Capacity
18 lbs. (8.2 kg)
Width
1-9/16 in. (39.7 mm)
- No holes or cut-outs required for installation
- Available in several finishes
- Fits 1/4" to 5/16" (6 to 8 mm) glass
- Easy-to-install glass door hinge — ideal for frameless glass cabinets
Maximum recommended door width: 14" (356 mm) for Standard Hinges; 20" (508 mm) for Wide Hinges. Maximum weight capacity: 18 lbs. (8.2 kg) for Standard Series; 28 lbs. (12.7 kg) for Wide Series. Minimum required clearance: 3/16" (5 mm) top and bottom. One top-and-bottom set per pack. SKU: EH224.
Product Warning:
If the glass door exceeds 14" (356 mm) wide or 20 lbs. (9 kg) total weight, use Cat. No. EH324 hinge (heavier duty).
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Order EH224 today for a no-drill, easy-to-install glass hinge solution — contact CRL Customer Service to confirm finish availability and shipping weight.
CAD Drawings - dwg
