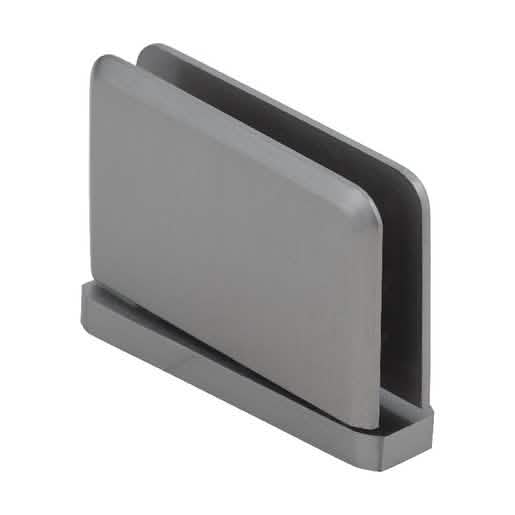

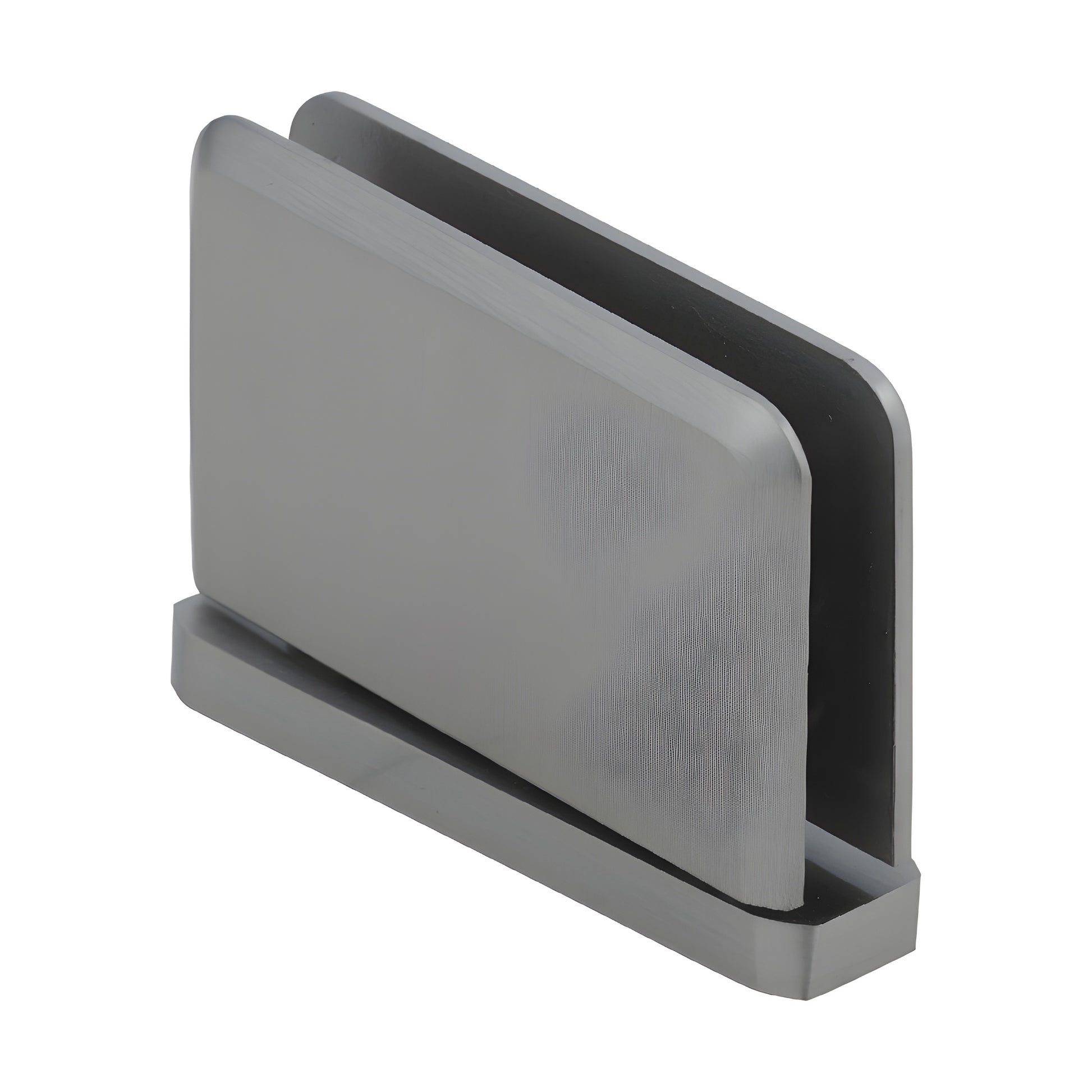

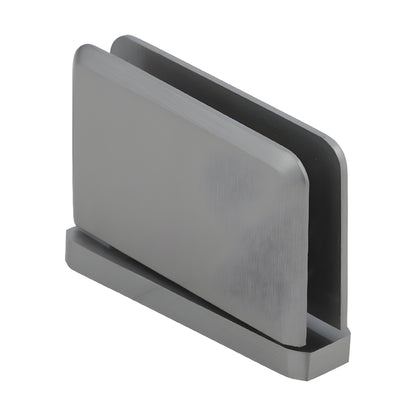

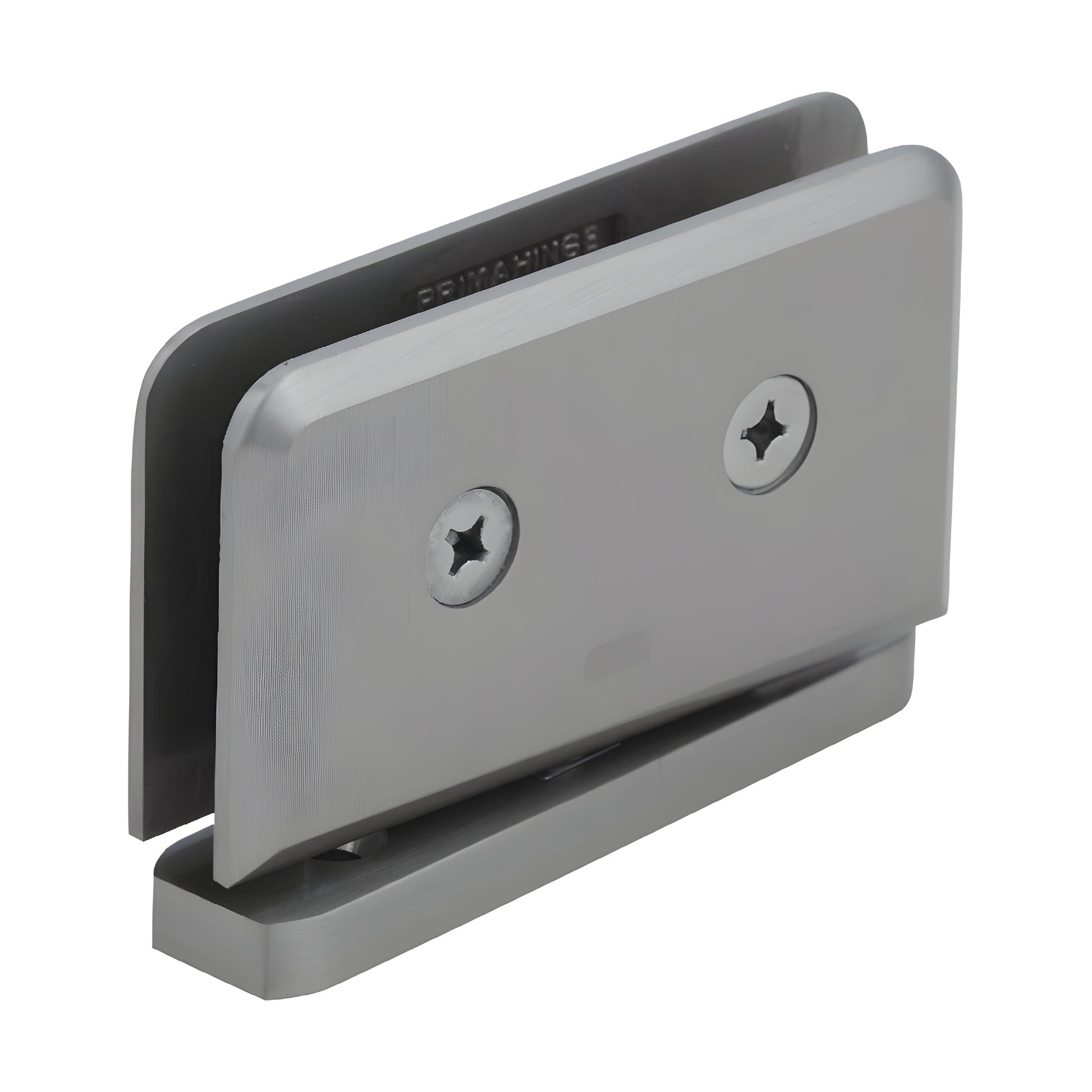

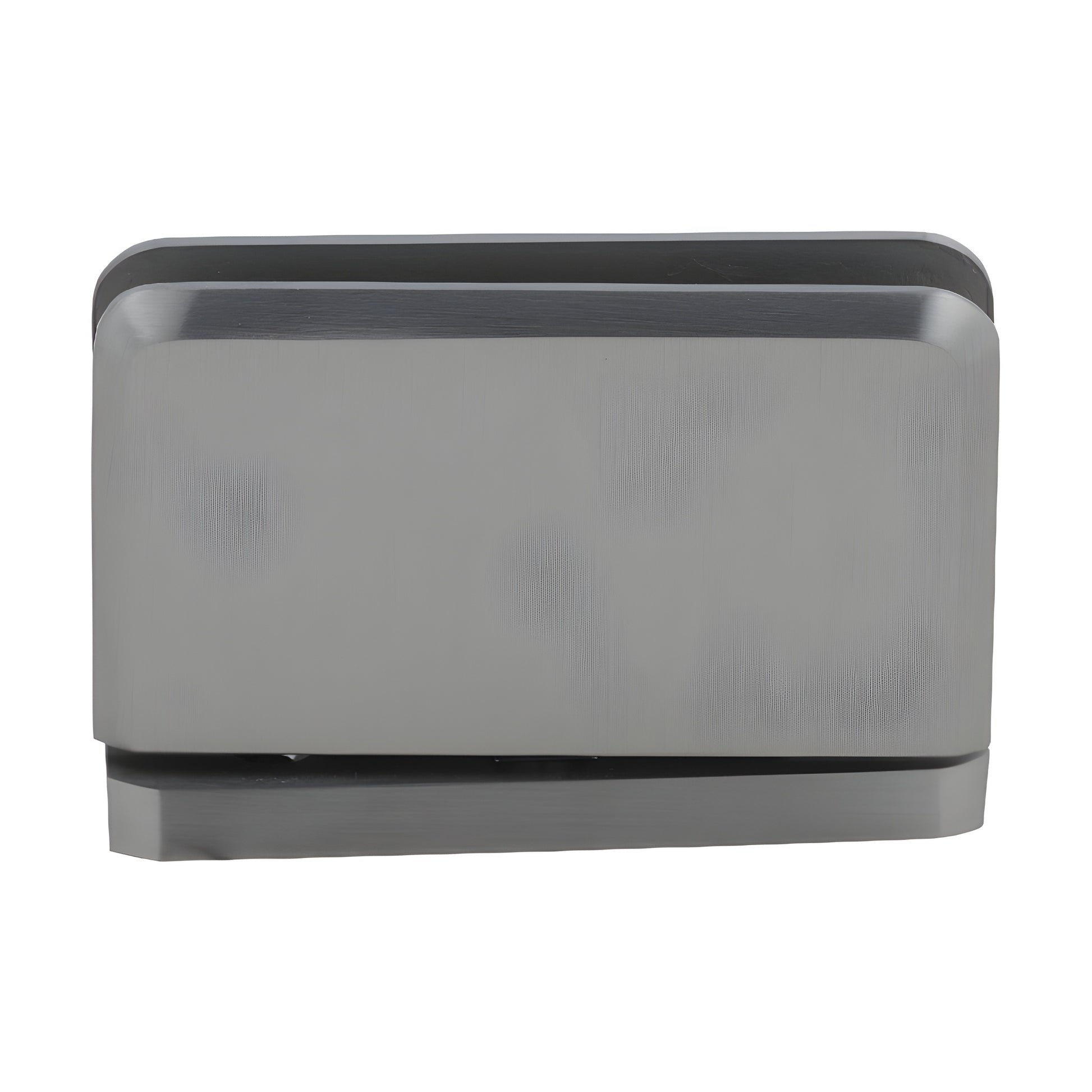

CRL Prima 01 Brushed Nickel 1-Pin Top/Bottom Mount Door Hinge

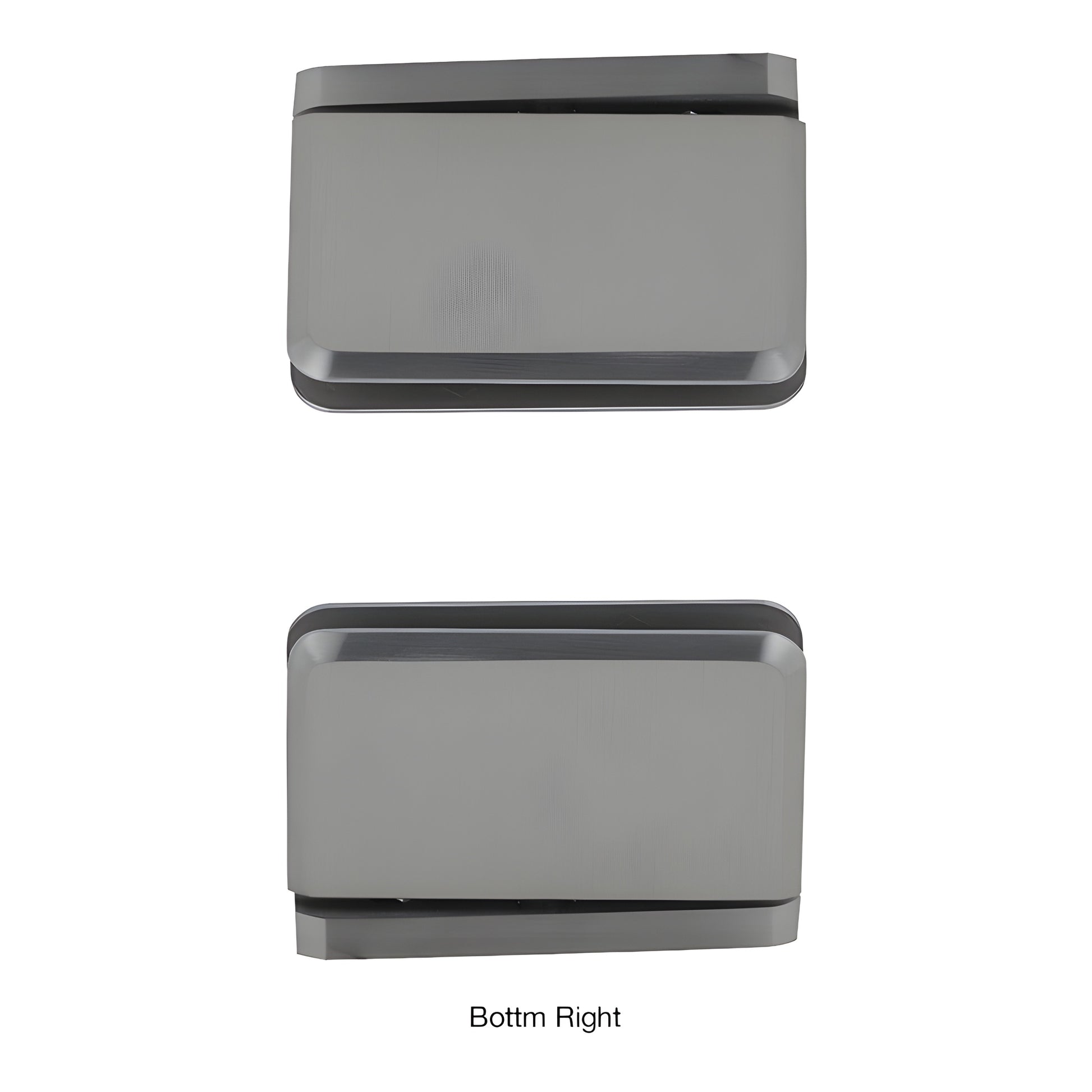

• Number One Pivot Pin Model — mount at top left or bottom right of door (viewed from outside)
• Pre-set 5° pivot pin for tighter shower door closure
• Fits 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
• Solid brass construction with full rotation hinge swing
• Self-centering within 15° of closed position
• Includes gaskets, screws, and glass fabrication dimensions
• Available in several finishes; custom finishes on request
• 3‑year warranty; U.S. Patent No. 5,297,313

CRL Prima 5° Pre-Set Hinges (SKU: PPH0151BN) are engineered as a 5 degree pre-set shower door hinge for tempered glass enclosures. Designed for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, these hinges use a Number One Pivot Pin at the top left or bottom right (viewed from outside) and a complementary Number Two Pivot Pin at the top right or bottom left. The pre-set 5° pivot pin moves the door slightly further into the shower enclosure to achieve a tighter seal against a strike jamb—ideal for frameless shower door installations and retrofit projects.

Performance: When installed as a pair on 8–10 mm glass, the hinges support up to 100 lbs. (45 kg) and a maximum door width of 31" (787 mm). They can be mounted floor-and-ceiling or into the CRL Deluxe Header System.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Pre-set 5° pivot pin for tighter closure on shower doors
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Ordering Tip: Order one Number One Pivot Pin model and one Number Two Pivot Pin model per door for correct orientation and optimal operation.

Custom finishes are available — contact the CRL Technical Sales Shower Door Department for options.

Product Warning:
CRL shower door hinges are intended for residential and hotel shower use. For applications outside intended use, obtain approval from CRL Shower Door Technical Sales. Use only the included template; cut-out dimensions may differ from other brands.
