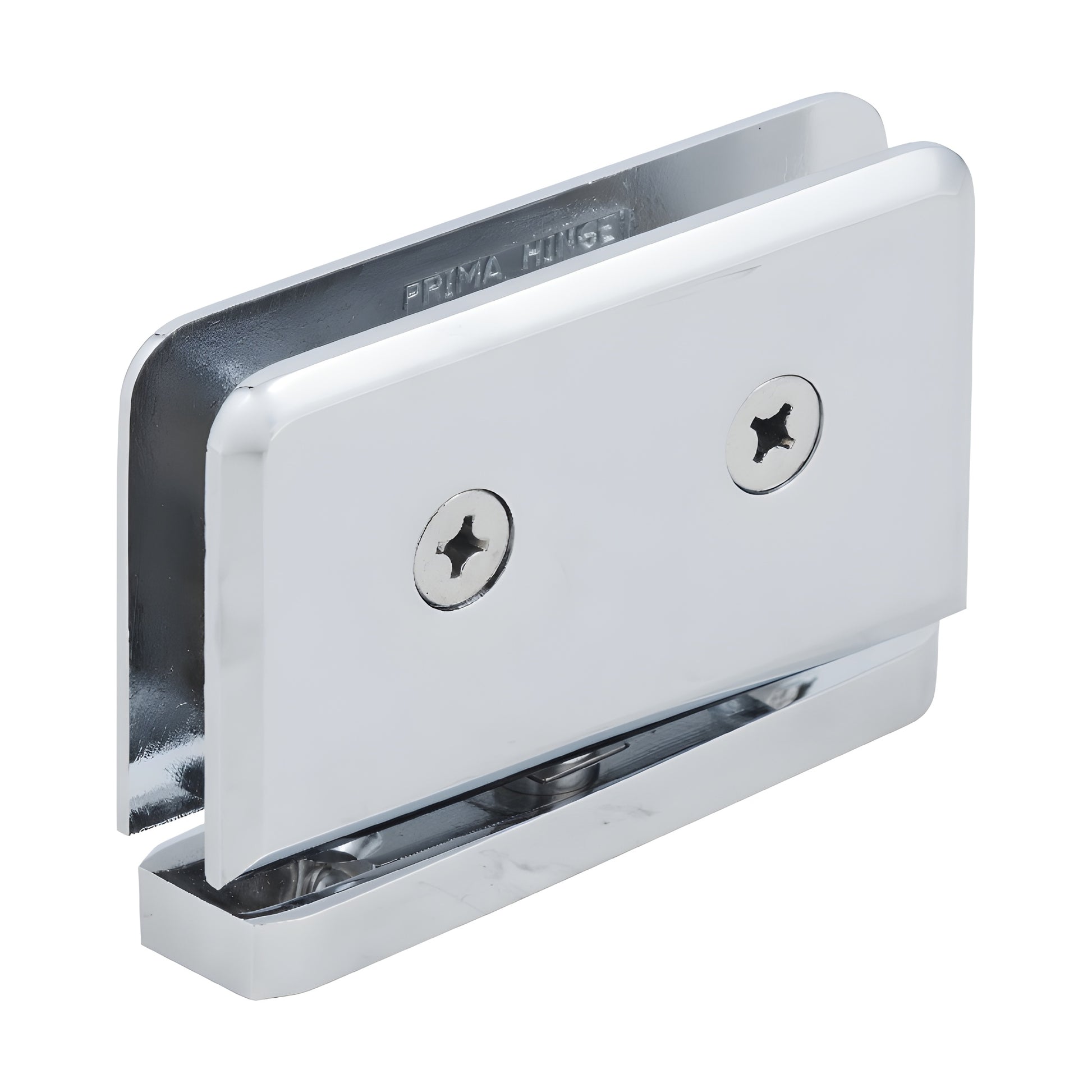

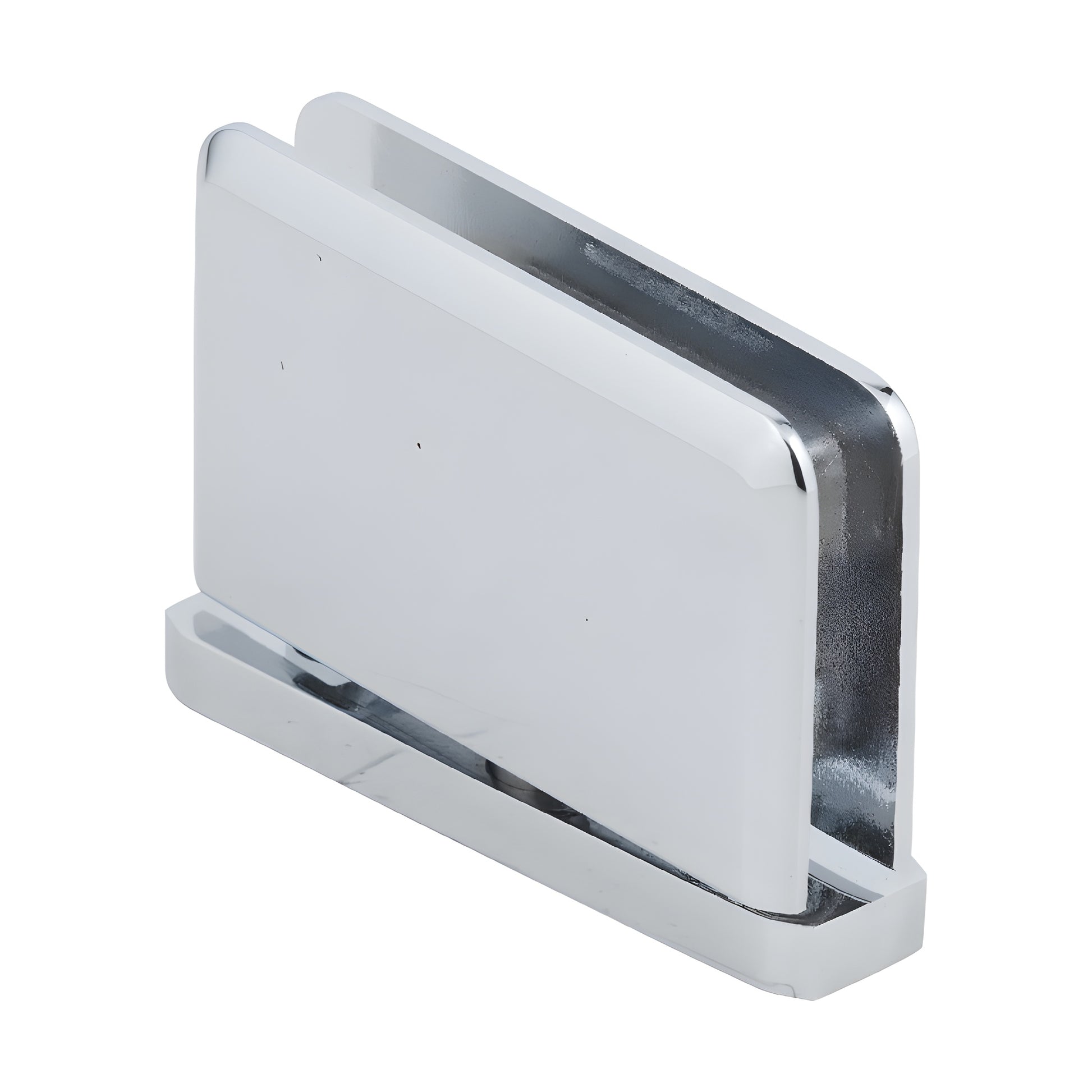

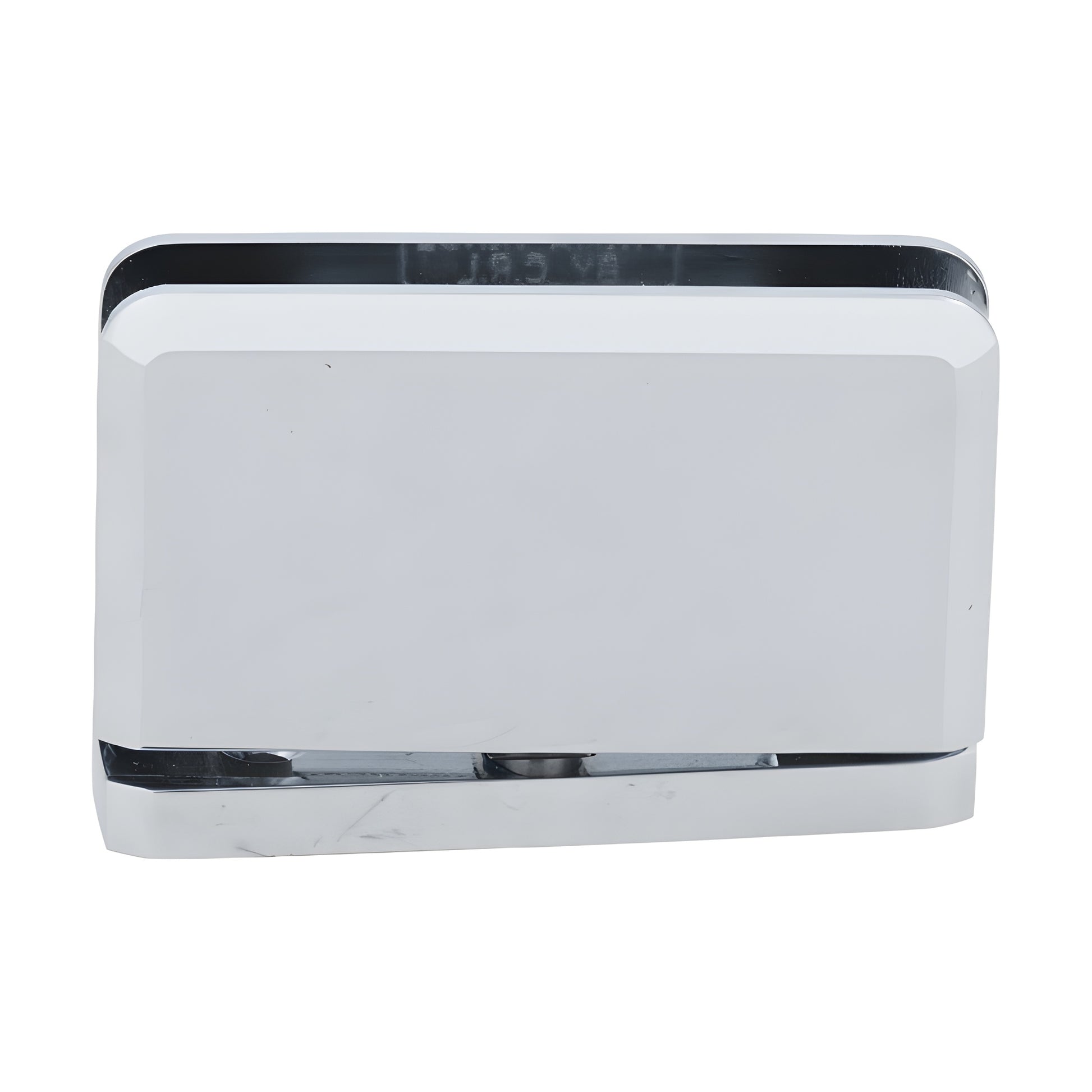

CRL Prima 01 Polished Chrome Glass Hinge #1 Pin Top-Left/Bottom-Right

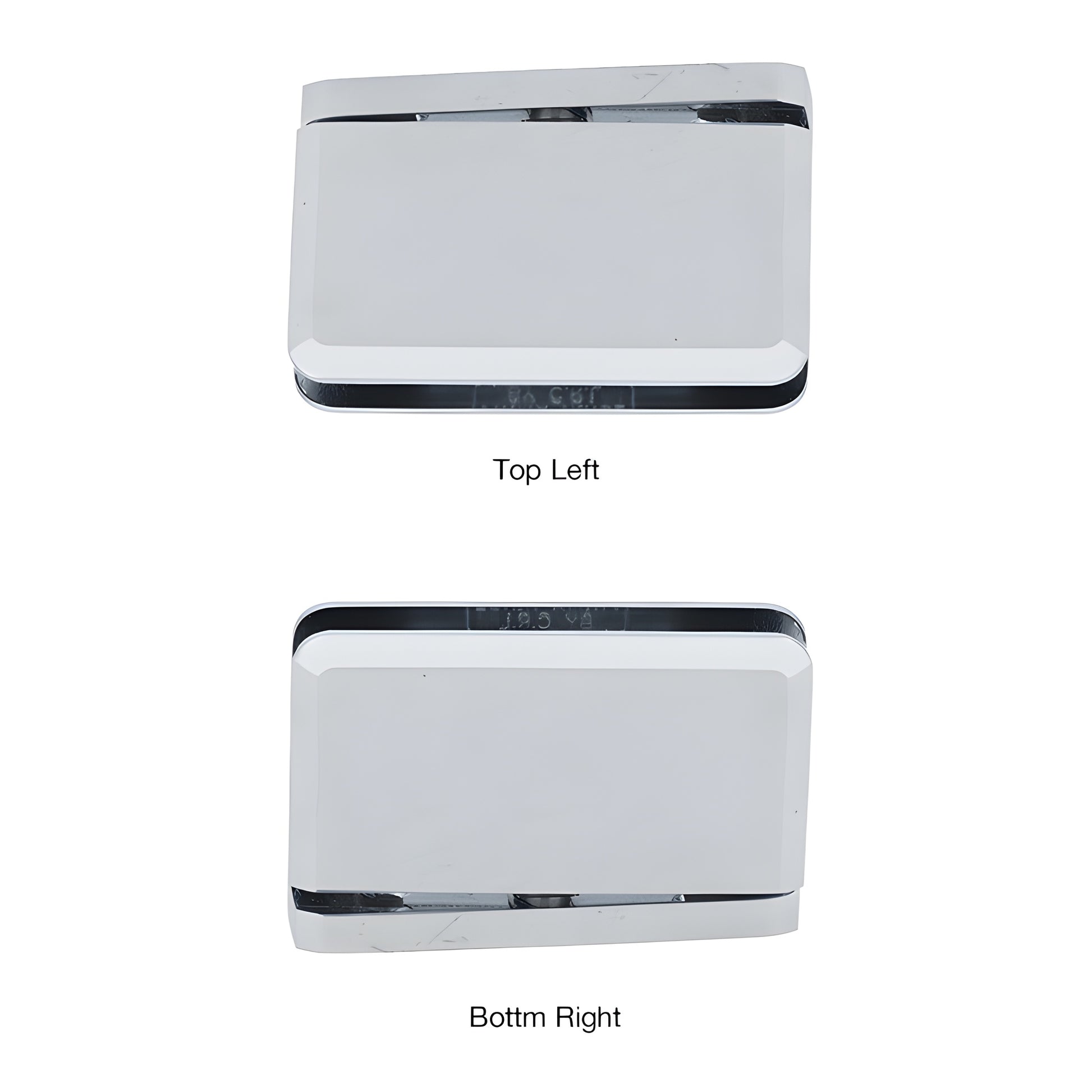

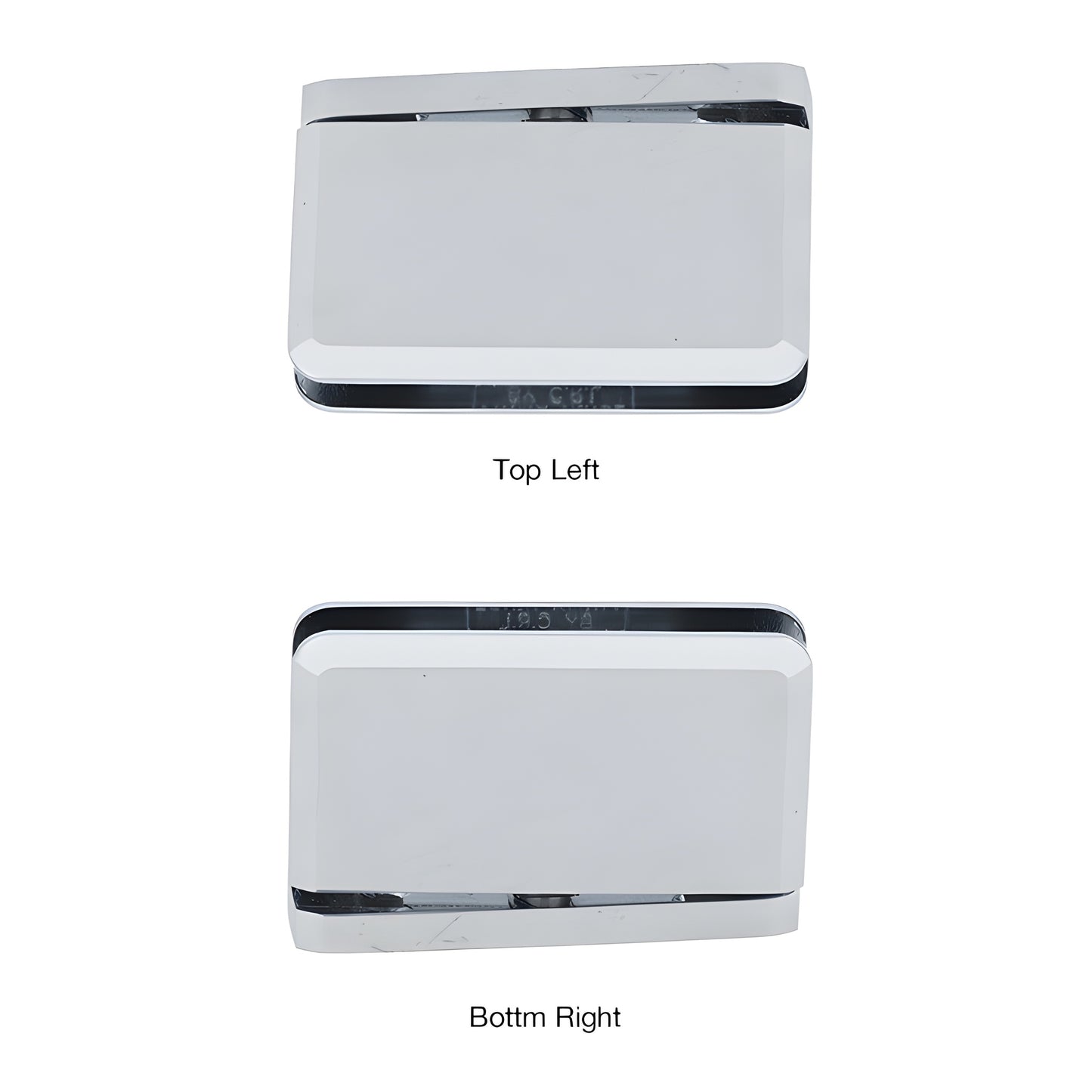

• Number One Pivot Pin model — mounts top left or bottom right of door (viewed from outside)
• Pre-set 5° pivot pin for tighter shower door closure
• Designed for monolithic tempered glass shower doors (8 mm–10 mm)
• Available in multiple finishes; custom finishes on request
• Solid brass construction with full-rotation hinge swing
• Self-centering within 15° of closed position
• 3‑year warranty
• U.S. Patent No. 5,297,313

CRL Prima 5° Pre-Set Hinges (SKU: PPH0151CH) are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. These 5° preset pivot pins move the door 5 degrees further into the shower enclosure for a tighter seal against a strike jamb—ideal for frameless and semi-frameless shower enclosures. Hinge pairs require one Number One Pivot Pin and one Number Two Pivot Pin per door: use #1 at the top left or bottom right, #2 at the top right or bottom left. Mounting options include floor-and-ceiling or installation into the CRL Deluxe Header System.

Performance: With two hinges on 8–10 mm glass, each hinge system supports up to 100 lbs (45 kg) and a maximum door width of 31" (787 mm).

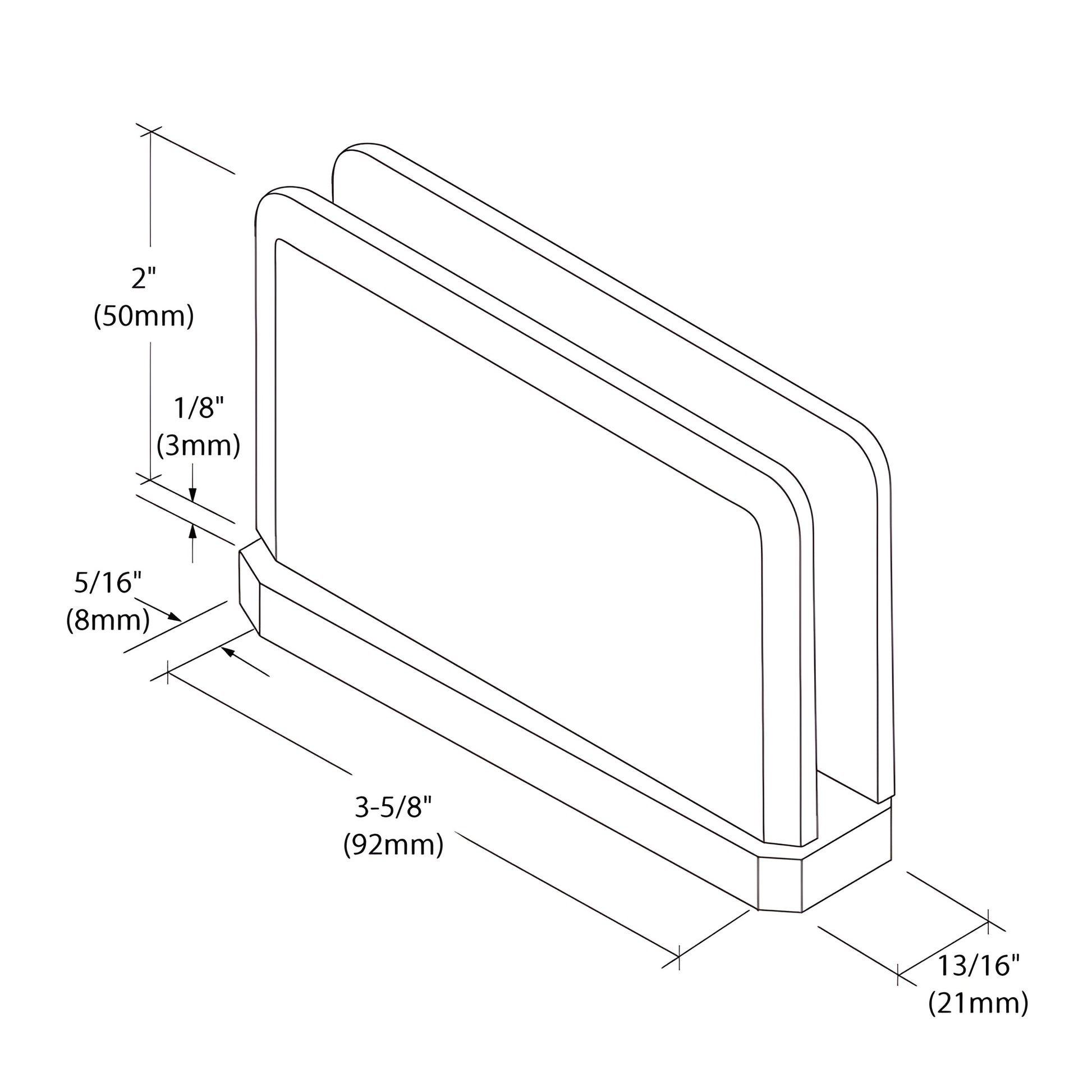

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) – 3/8" (10 mm) tempered safety glass
Special Features: Pre-set 5° pivot pin for tighter shower door closing
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

ORDERING TIP: Order one Number One Pivot Pin model and one Number Two Pivot Pin model per door to ensure proper swing and closing geometry.

Custom finishes are available on request — contact the CRL Technical Sales Shower Door Department for lead times and options.

Product Warning:
CRL shower door hinges are intended for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the included cut-out template; cut-out dimensions may differ from other brands.
