CRL Polished Chrome Cardiff Top/Bottom Mount Shower Door Hinge

• Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

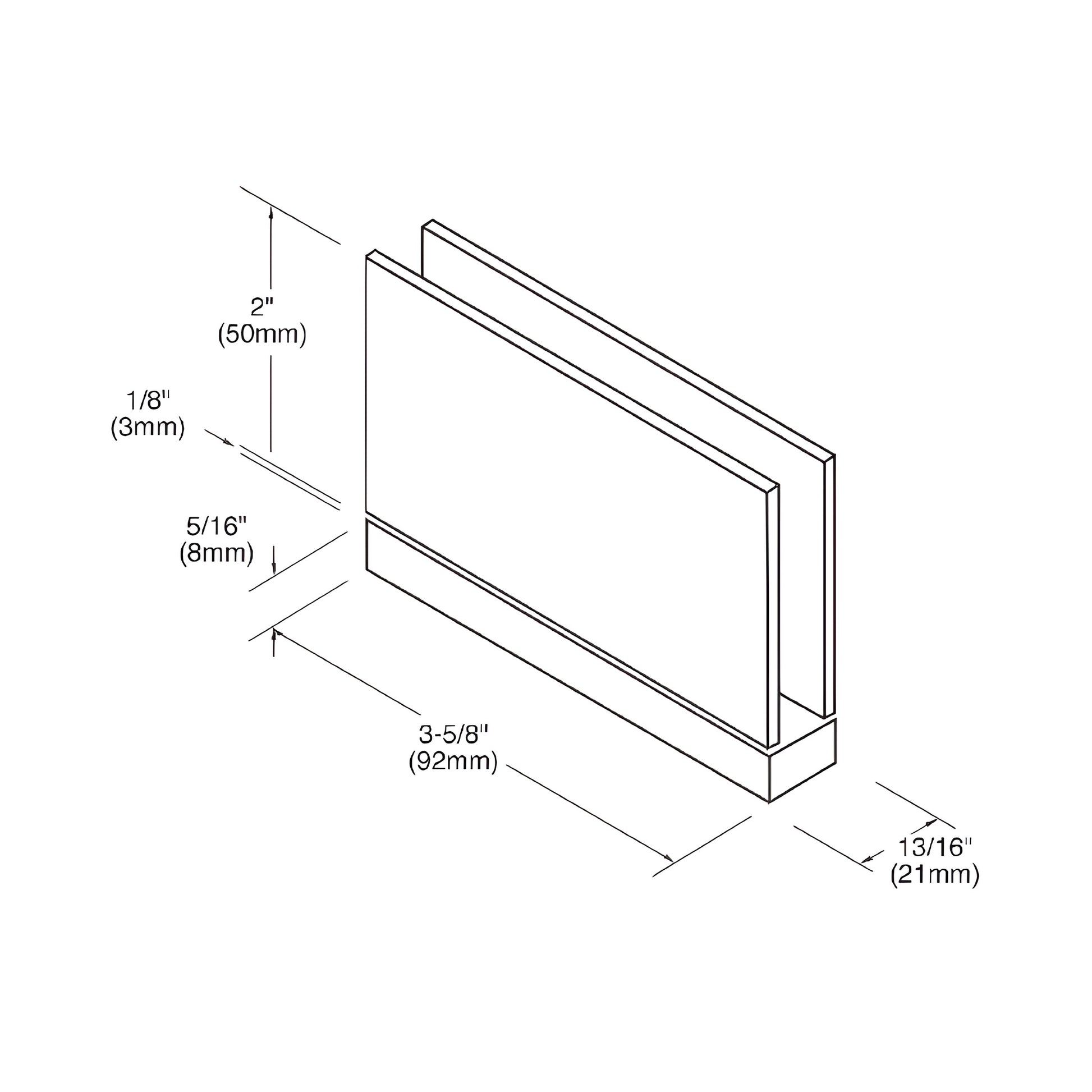

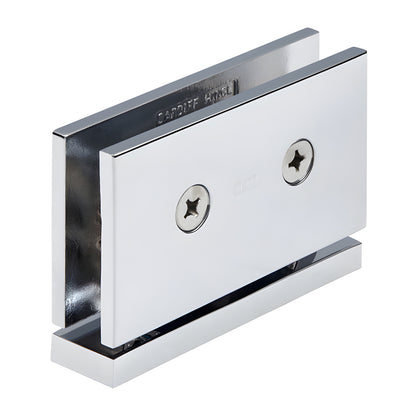

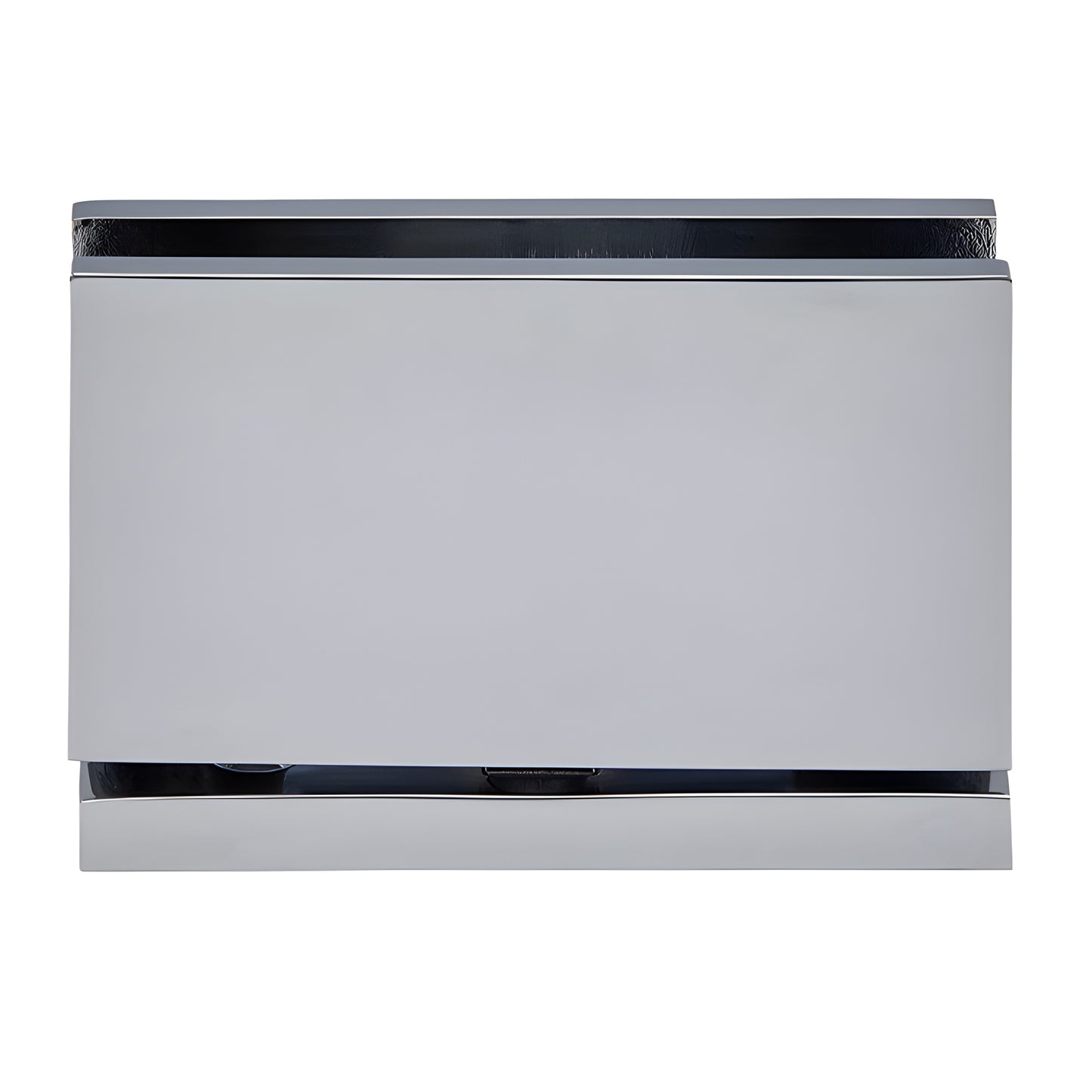

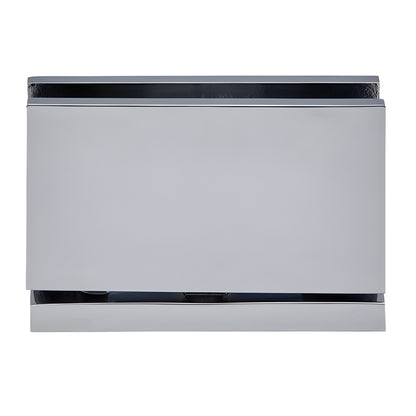

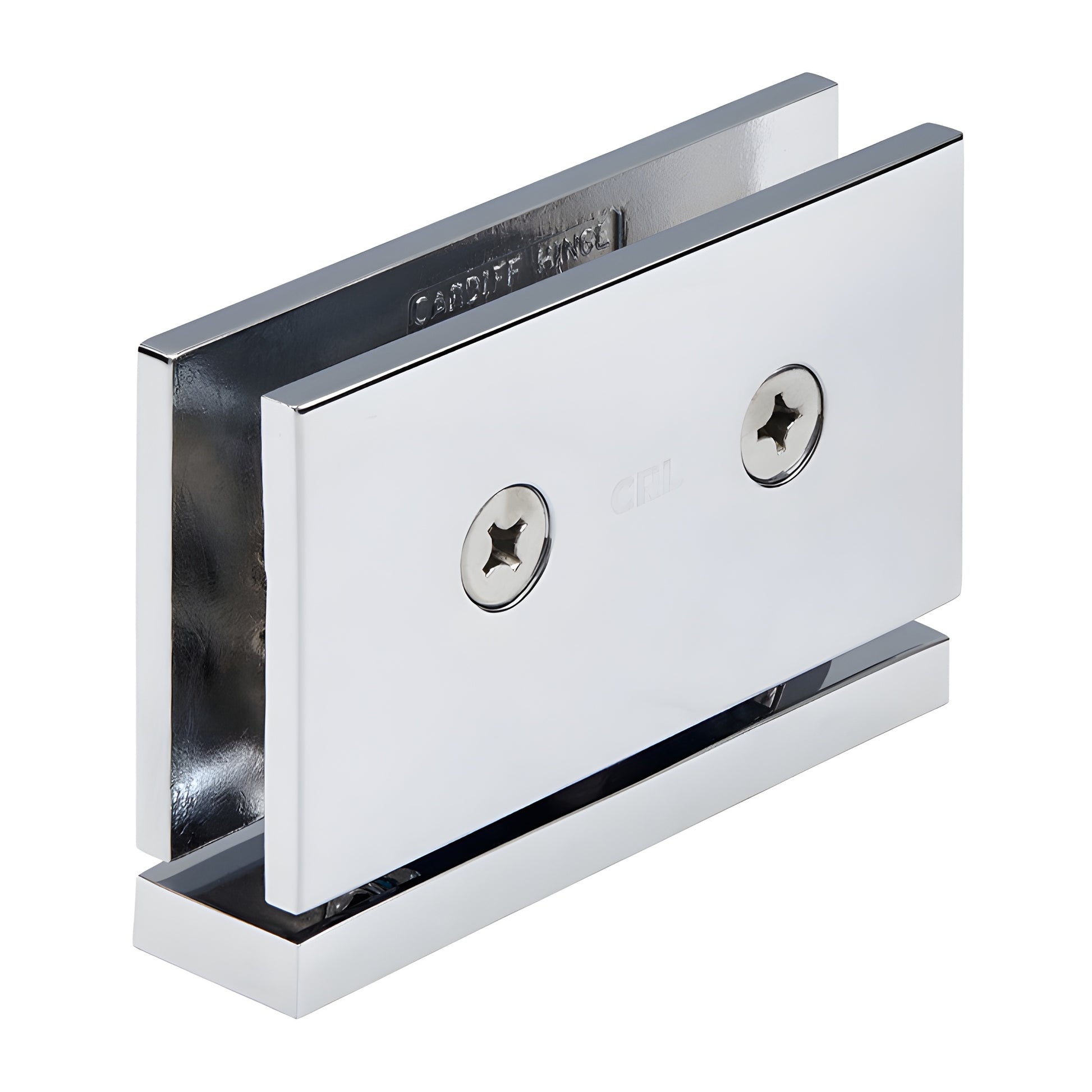

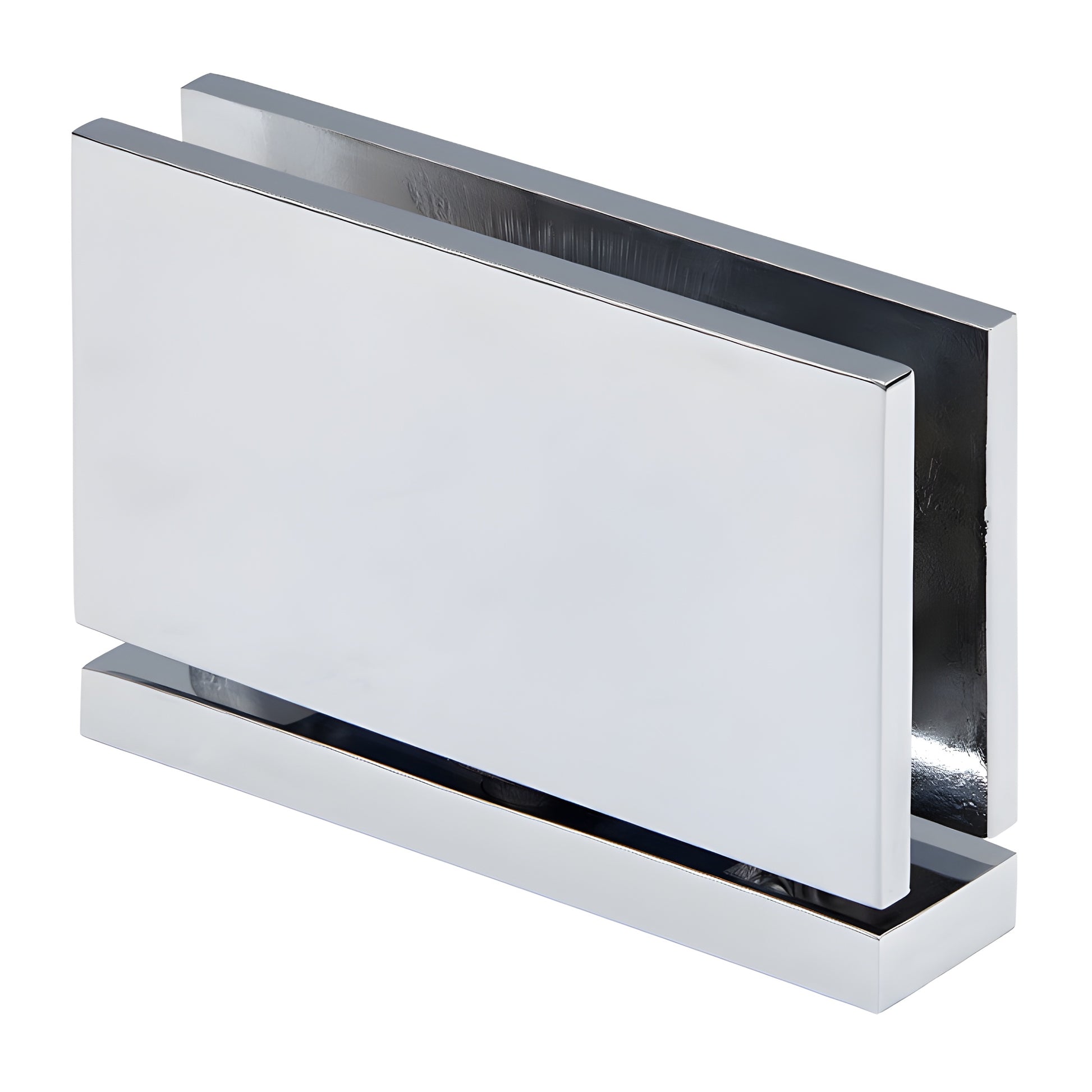

CRL Cardiff Series Pivot Hinges (SKU: CAR01CH) are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and expand installation options for frameless shower doors and glass enclosures. These top-or-bottom mount shower door hinges transfer most of the weight to the floor, can be inset from the wall to provide clearance for towel bars and projections, and reduce the number of cut-outs versus standard side-mount glass-to-glass hinges—making them a preferred choice for custom shower hinge applications. Cardiff pivot hinges are self-centering with four internal springs for maximum retention strength. Optional 5º pre-set pivot pin sets (sold separately) allow a 5º altered closing position and may be installed before or retrofitted after installation. The series adapts to the Deluxe Header System for enclosures that do not extend to the ceiling (HAB01 Adaptor Block ordered separately).

NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) — sold as a set of two (top and bottom). Not included with hinge purchase.

Performance: Using two hinges with 5/16" or 3/8" glass (8 or 10 mm), the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show and reduces cut-outs compared to standard side-mount hinges. Cat. No. CAR01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match those of other brands.
