- Top or Bottom Mount
- For Use with 1/4" (6 mm) Glass
- Available in Several Beautiful Finishes
- Use Monolithic Tempered Glass
- U.S. Patent 5,297,313

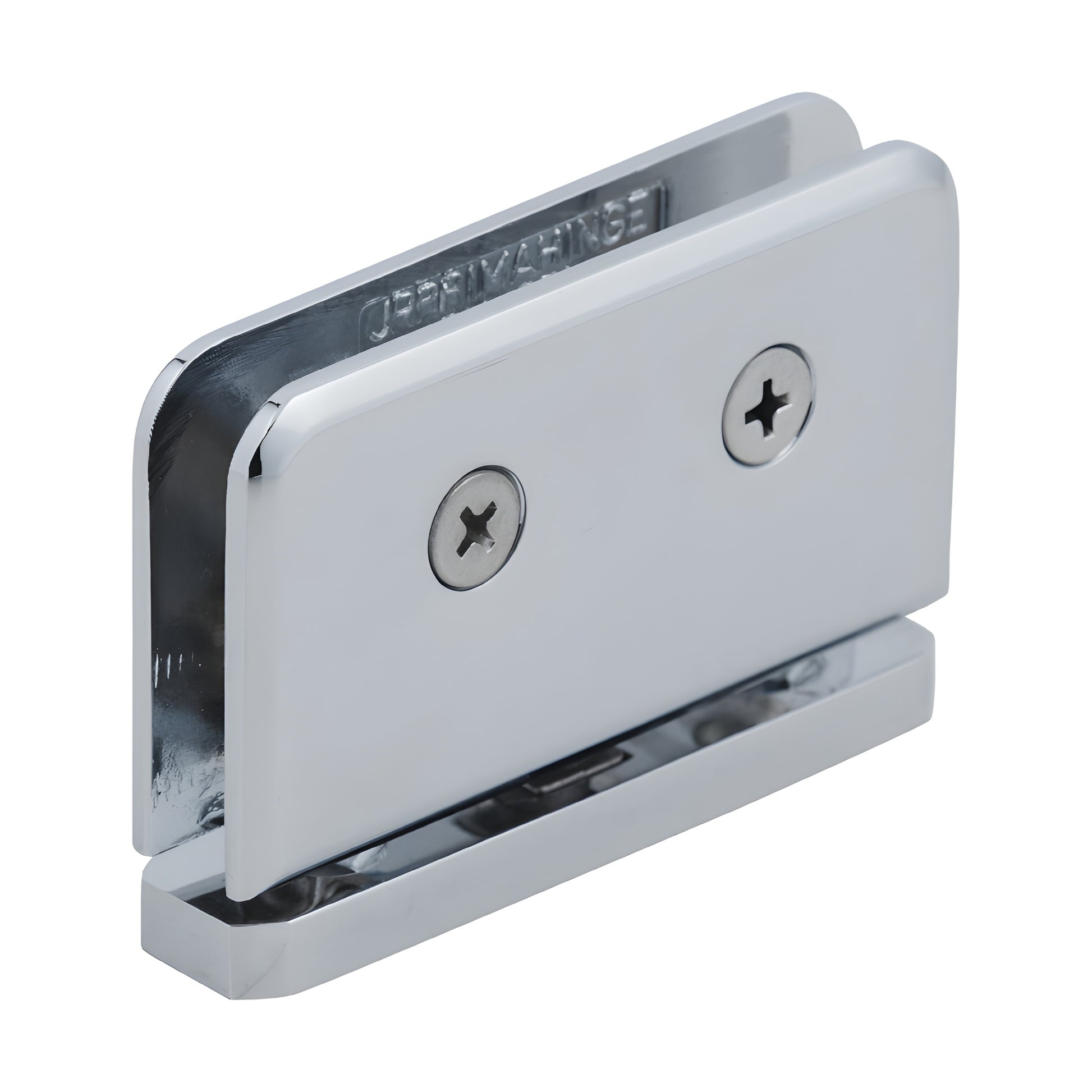

- Apply medium-strength threadlocker on cover plate screws
Advantages of
CRL Junior Prima Hinges
include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The JRPPH01 Model is adaptable to our Junior Header System. (must order JRHAB01 Junior Adaptor Block separately.)
SENIOR PRIMA
Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).
JUNIOR PRIMA
Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
SPECIFICATIONS
Glass Thickness
Senior Prima
1/2" (12 mm) Tempered Safety Glass
Junior Prima
1/4" (6 mm) Tempered Safety Glass
Special Feature
Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction
Solid Brass
Hinge Swings
Full Rotation
Closing Type
Self-Centering when within 15° of closed position.
Cut-Out Required
Includes
Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Product Warning
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
