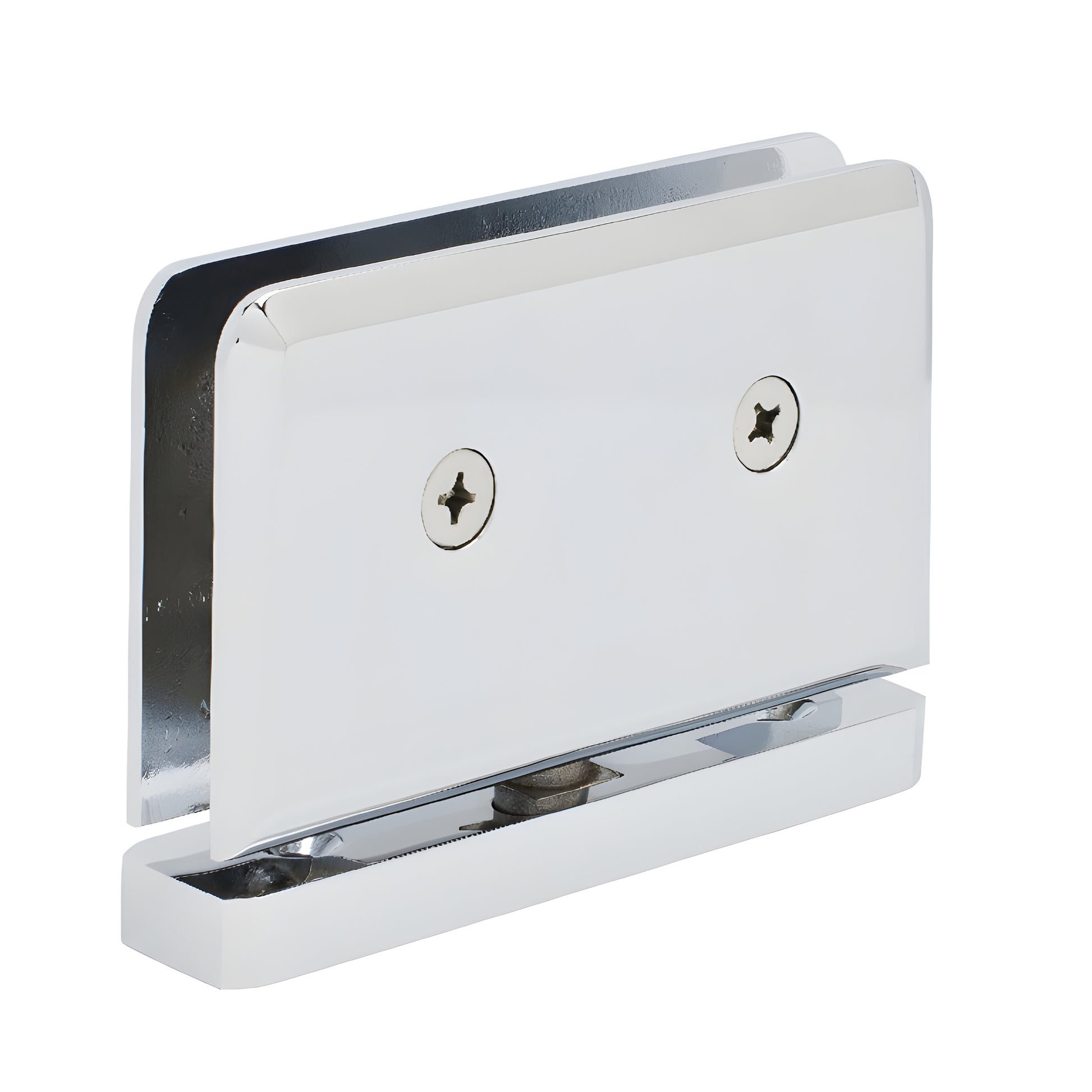

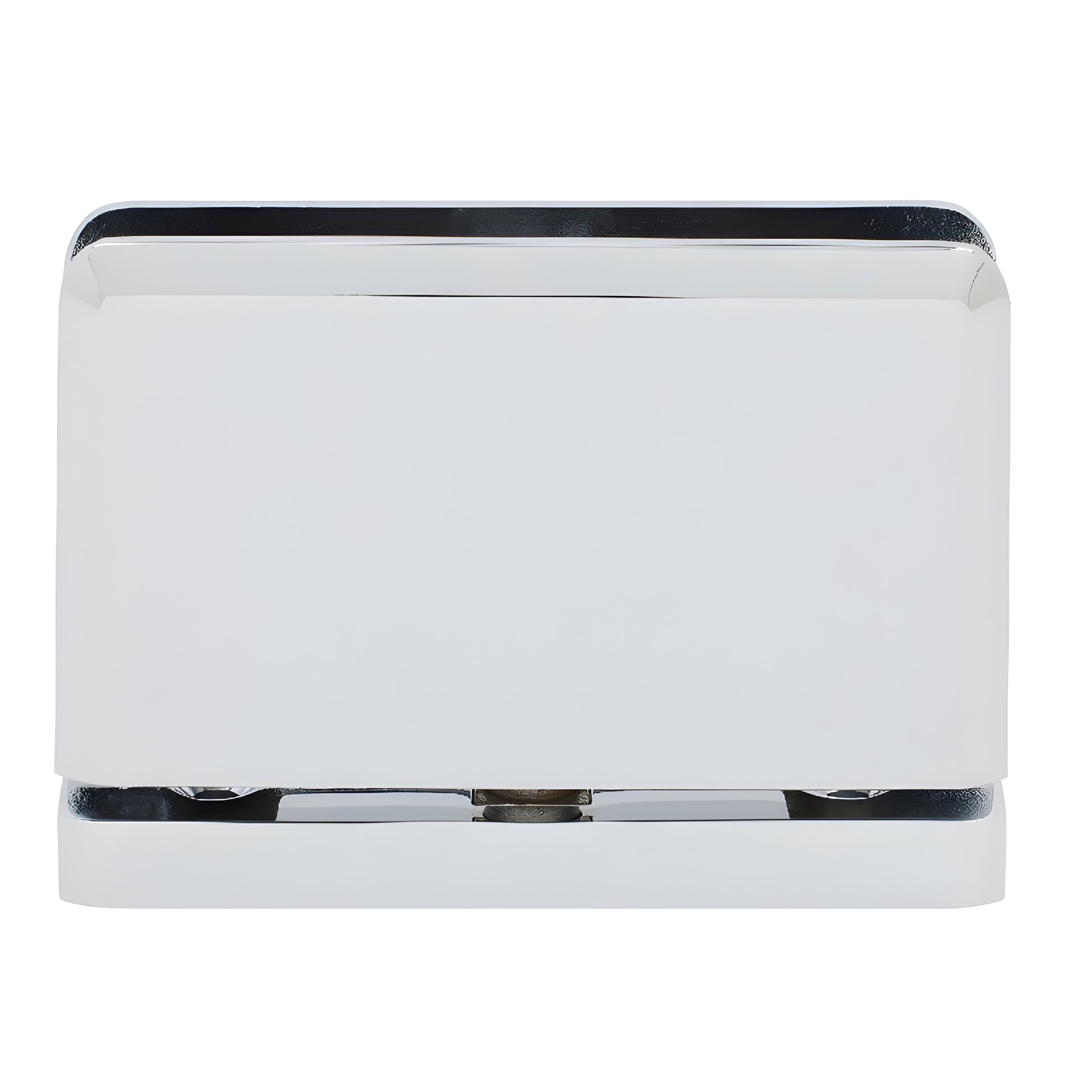

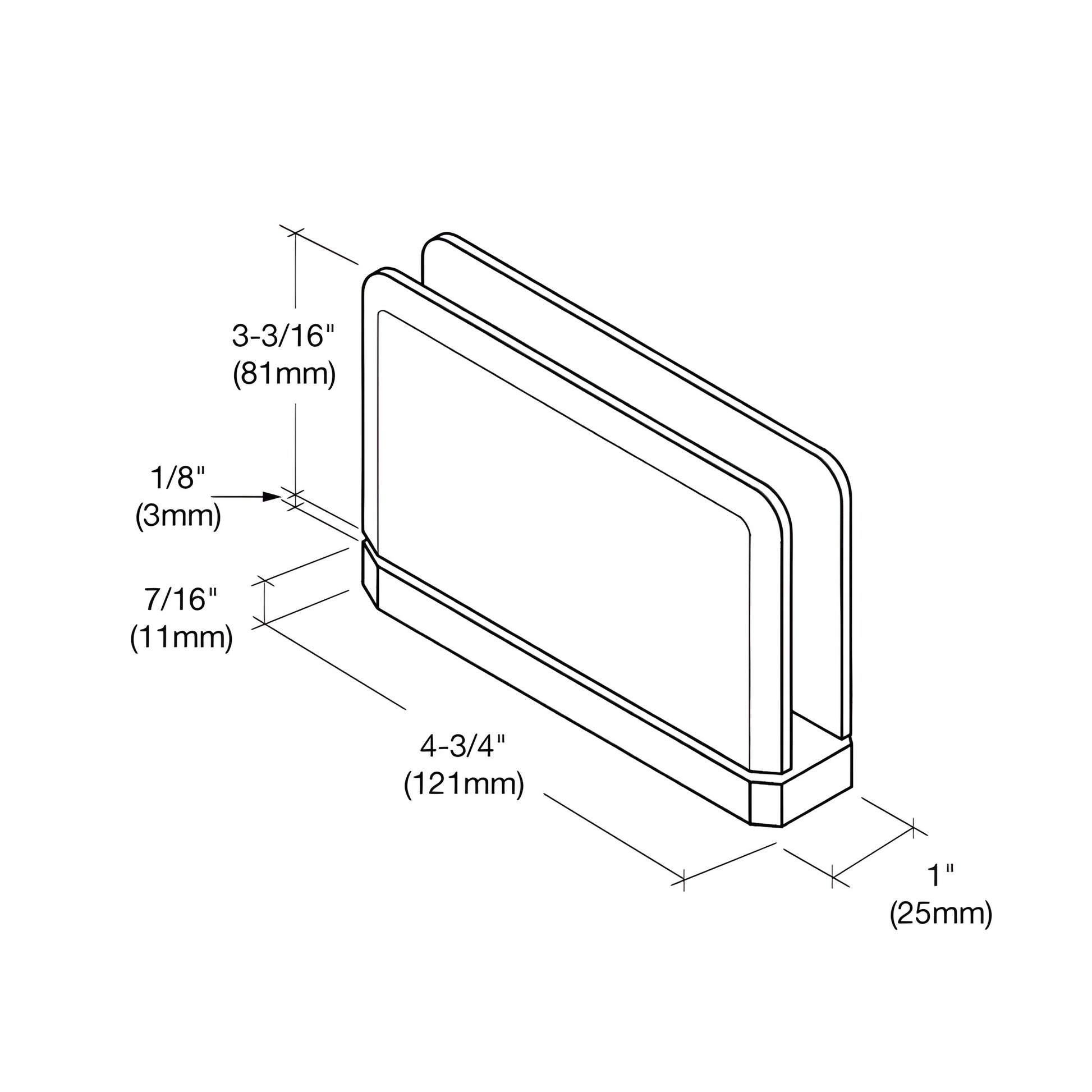

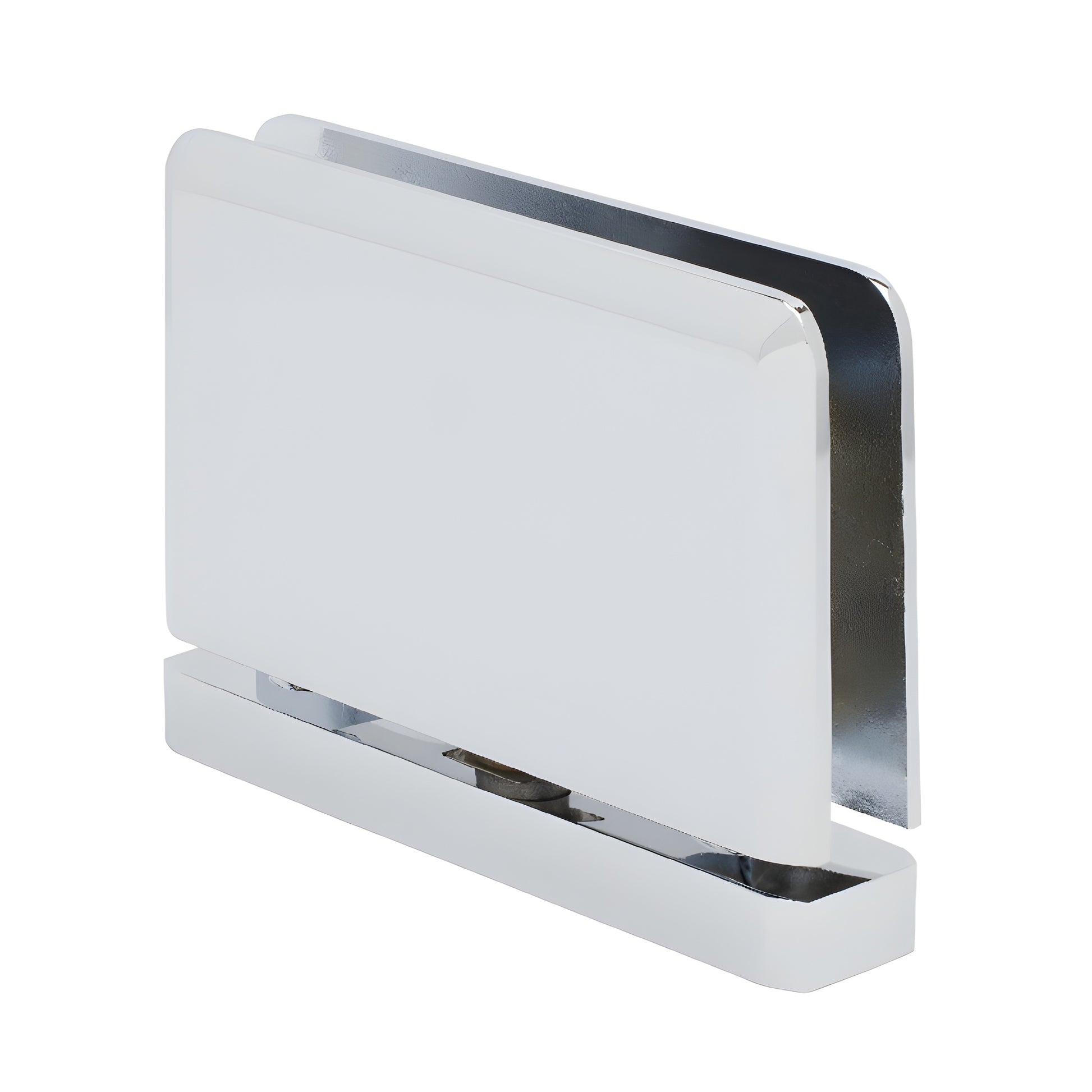

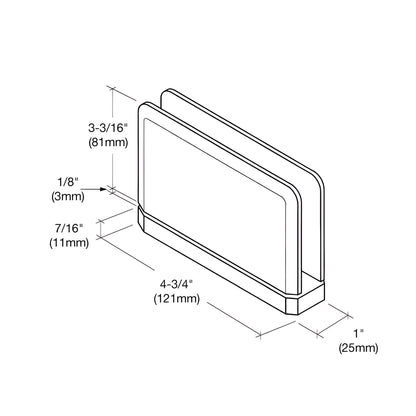

CRL Senior Prima 01 Polished Chrome Top/Bottom Shower Door Hinge

• Top or Bottom Mount
• For use with 3/8" or 1/2" (10 mm or 12 mm) glass
• Available in several beautiful finishes (custom finishes available on request)
• Designed for monolithic tempered glass
• 3 Year Warranty
• U.S. Patent 5,297,313

Advantages of CRL Senior Prima Hinges: these solid-brass glass shower pivot hinges are top-or-bottom mount to maximize glass exposure and reduce glass fabrication cut-outs versus side-mount glass-to-glass hinges. The design carries the majority of the weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is intended for doors with fixed transoms above them; when mounted vertically, either style works in movable transom installations. These pivot hinges are self-centering with four springs for maximum retention strength. The SRPPH01 model (SKU SRPPH01CH) adapts to CRL’s Deluxe Header System.

Important Compatibility Notes:

• Must order SRHAB01 Senior Adaptor Block separately for SRPPH01.
• SRPPH06 model is only compatible with the EZ-Adjust Header System and includes its adaptor.
• If using 3/8" (10 mm) glass with Senior Prima hinges, additional gaskets are required—see SRPPHGK (sold separately).

Using two hinges with 3/8" to 1/2" glass (10 mm to 12 mm), the hinge will hold up to 145 lbs. (65 kg) with a maximum door width of 36" (914 mm).

Special Feature: Top-and-bottom mount saves on glass fabrication costs and offers more exposed glass for a cleaner shower appearance.

Construction: Solid Brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Patent No. 5,297,313

Custom finishes available on request — contact the CRL Technical Sales Shower Door Department for finish and pricing information.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions for CRL hinges may not match other brands.
