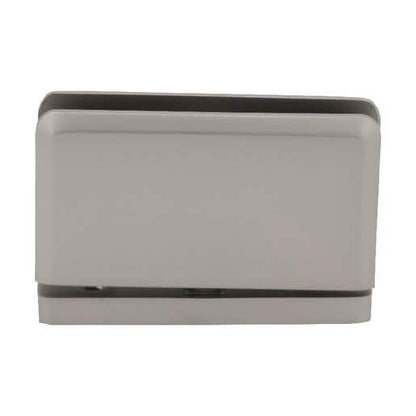

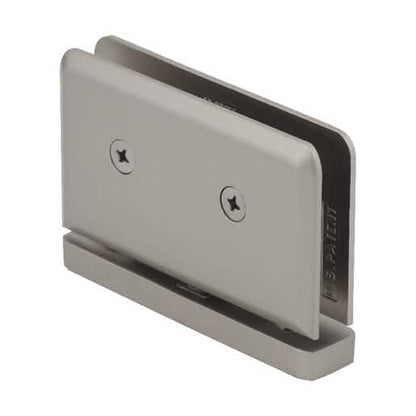

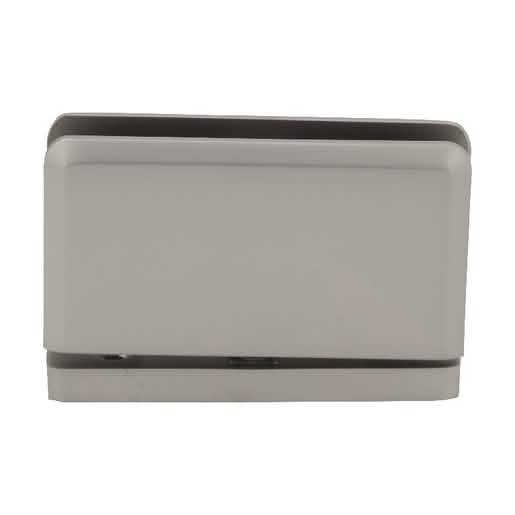

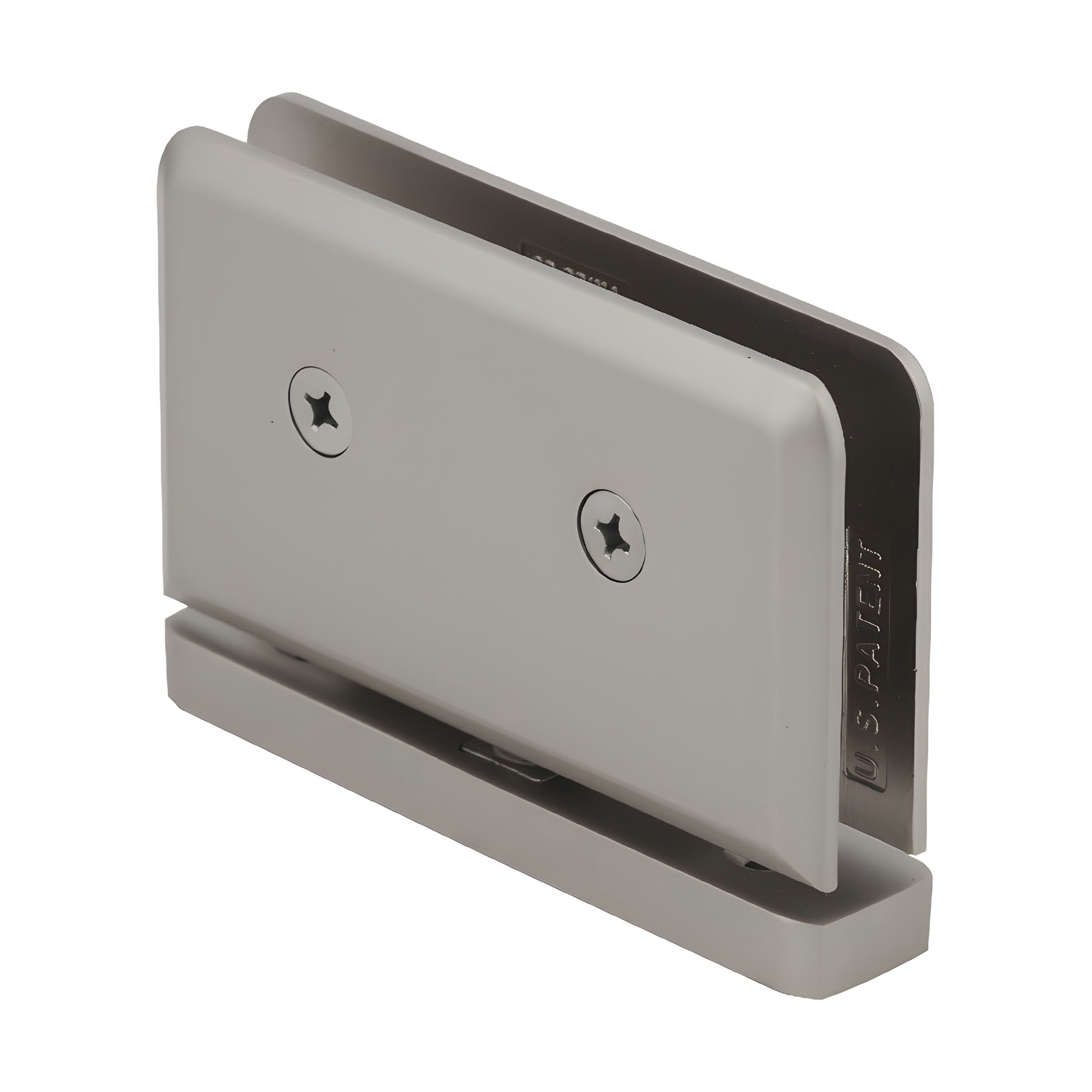

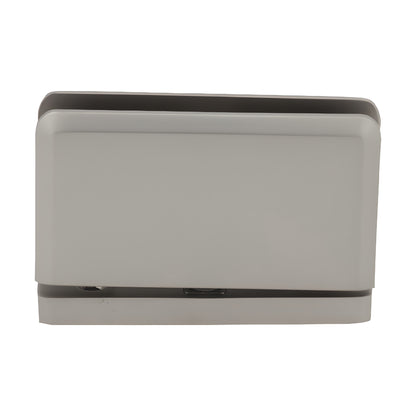

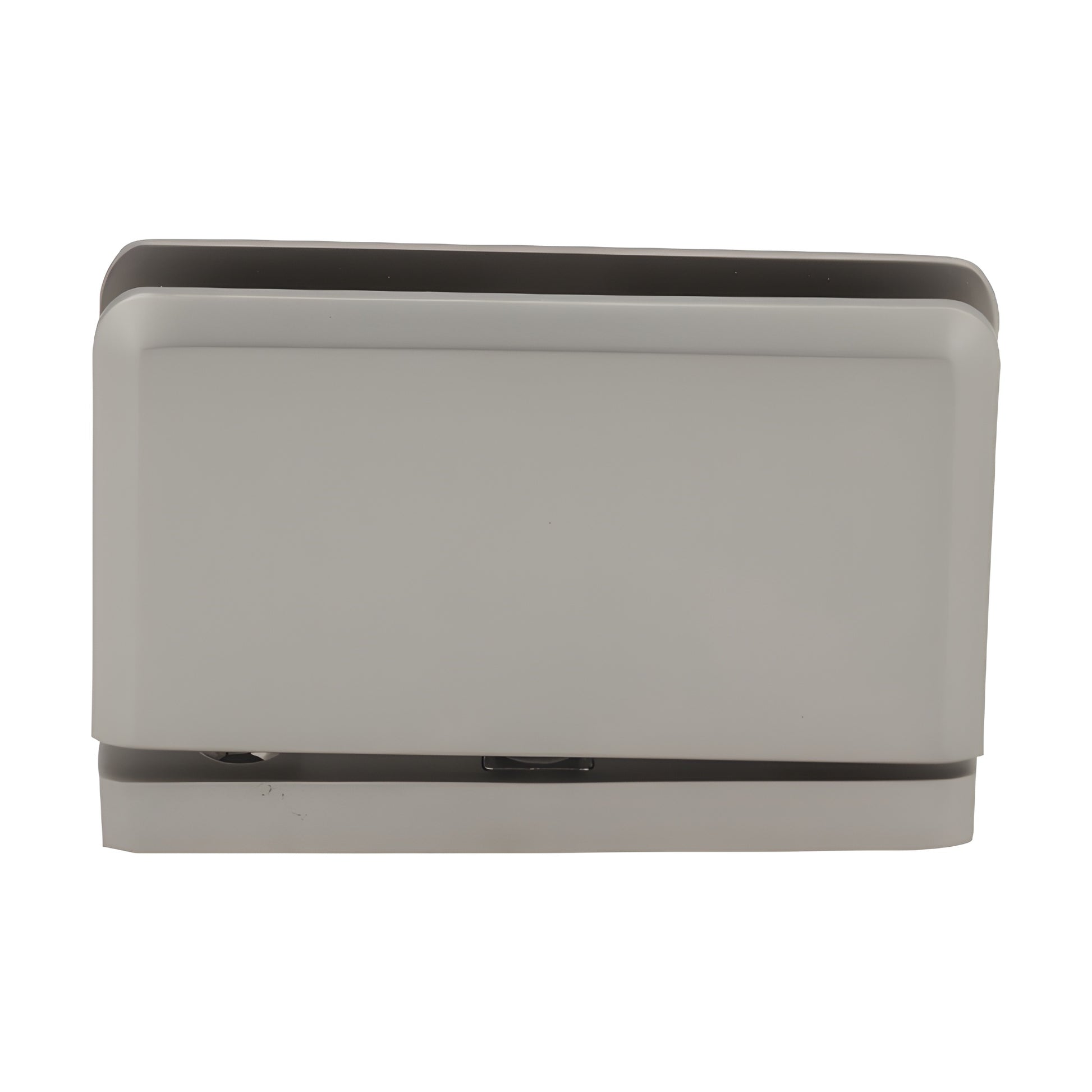

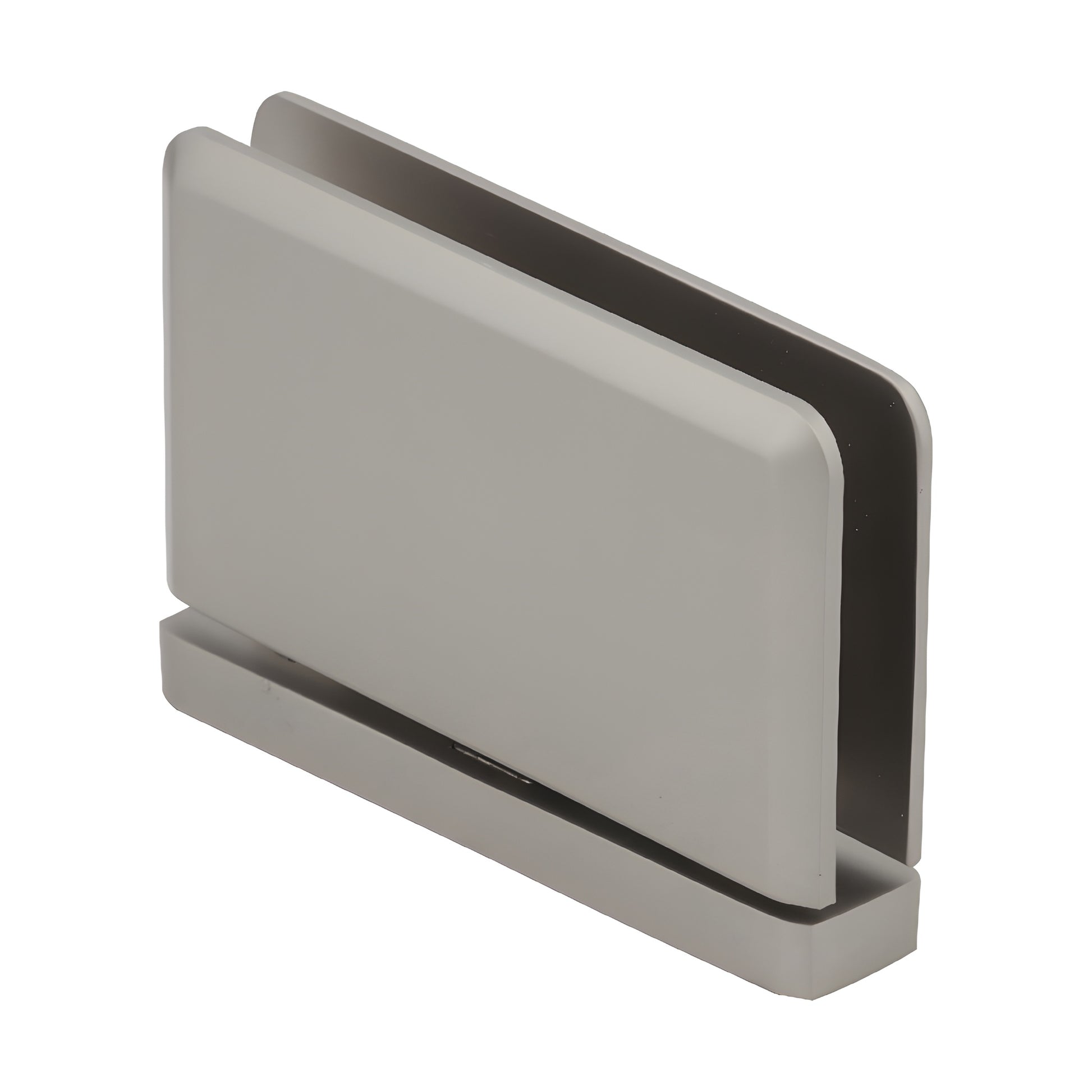

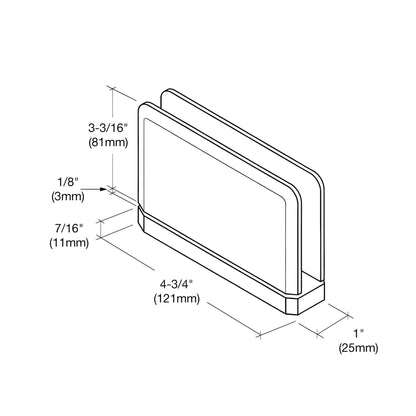

CRL Satin Nickel Senior Prima 01 Series Top/Bottom Mount Door Hinge

• Top or Bottom Mount
• For use with 1/2" (12 mm) tempered safety glass
• Available in several finishes
• Use monolithic tempered glass
• 3 Year Warranty
• U.S. Patent 5,297,313

Advantages of CRL Senior Prima Hinges (SKU: SRPPH01SN) include bottom-bearing load support and the ability to inset the hinge from the wall to provide clearance for towel bars and other projections. This glass-to-fixed transom pivot hinge is designed for doors with fixed transoms and can be used vertically in movable transom installations. The pivot hinge is self-centering with four springs for maximum retention strength. The SRPPH01 model adapts to CRL’s Deluxe Header System when used with the Senior Adaptor Block (SRHAB01 — sold separately).

NOTE: Must order SRHAB01 Senior Adaptor Block separately. SRPPH06 is compatible only with CRL’s EZ-Adjust Header System and includes its adaptor.

SENIOR PRIMA (1/2" / 12 mm glass): With two hinges on 1/2" tempered safety glass, holds up to 145 lbs (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA (1/4" / 6 mm glass): With two hinges on 1/4" tempered safety glass, holds up to 62 lbs (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:

Glass Thickness:
Senior Prima: 1/2" (12 mm) tempered safety glass
Junior Prima: 1/4" (6 mm) tempered safety glass

Special Feature: Top and bottom mount increases glass exposure and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require additional cut-outs.

Construction: Solid brass

Hinge Swings: Full rotation

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions

Patent: Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department for finish options and lead times.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. For other uses, obtain approval from CRL Shower Door Technical
