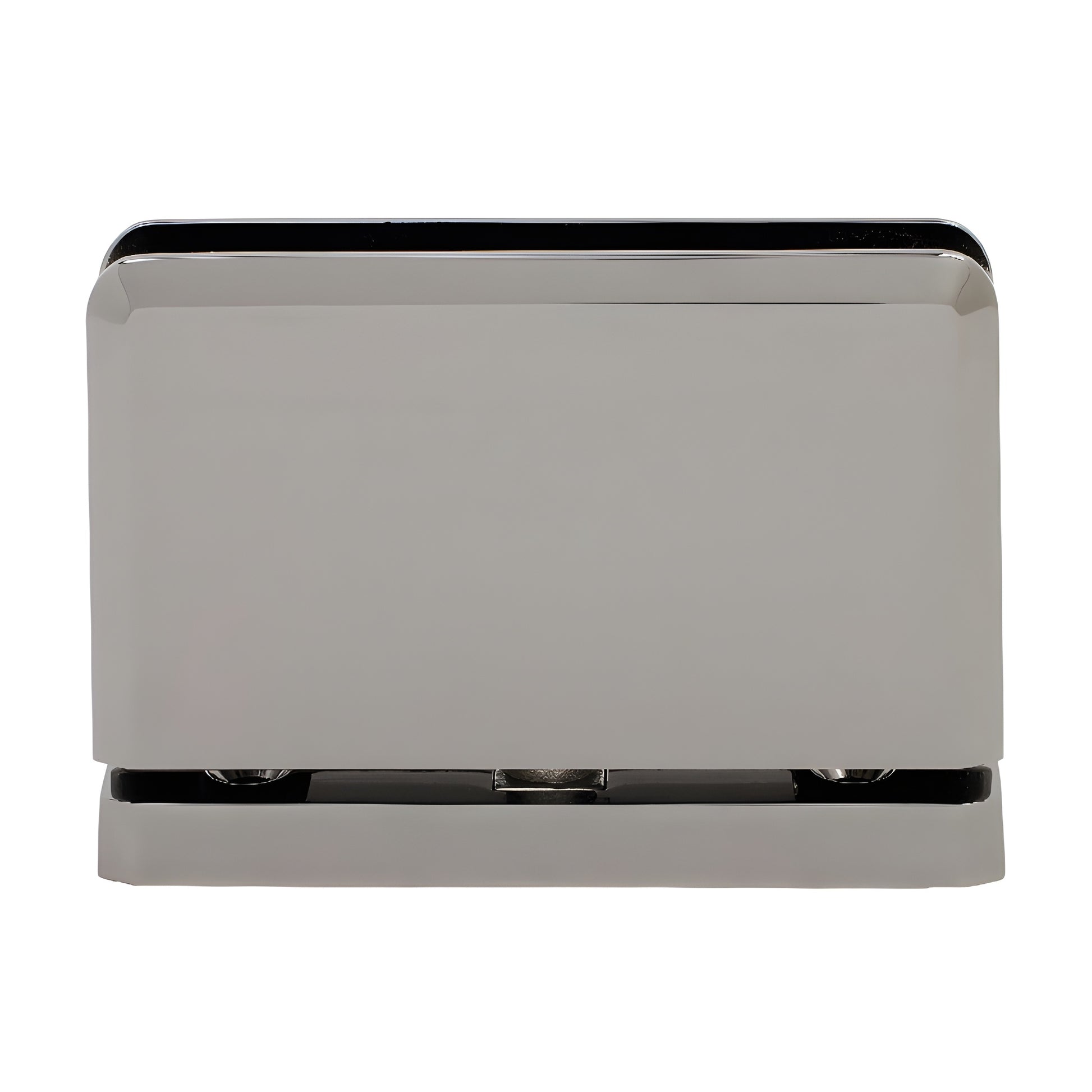

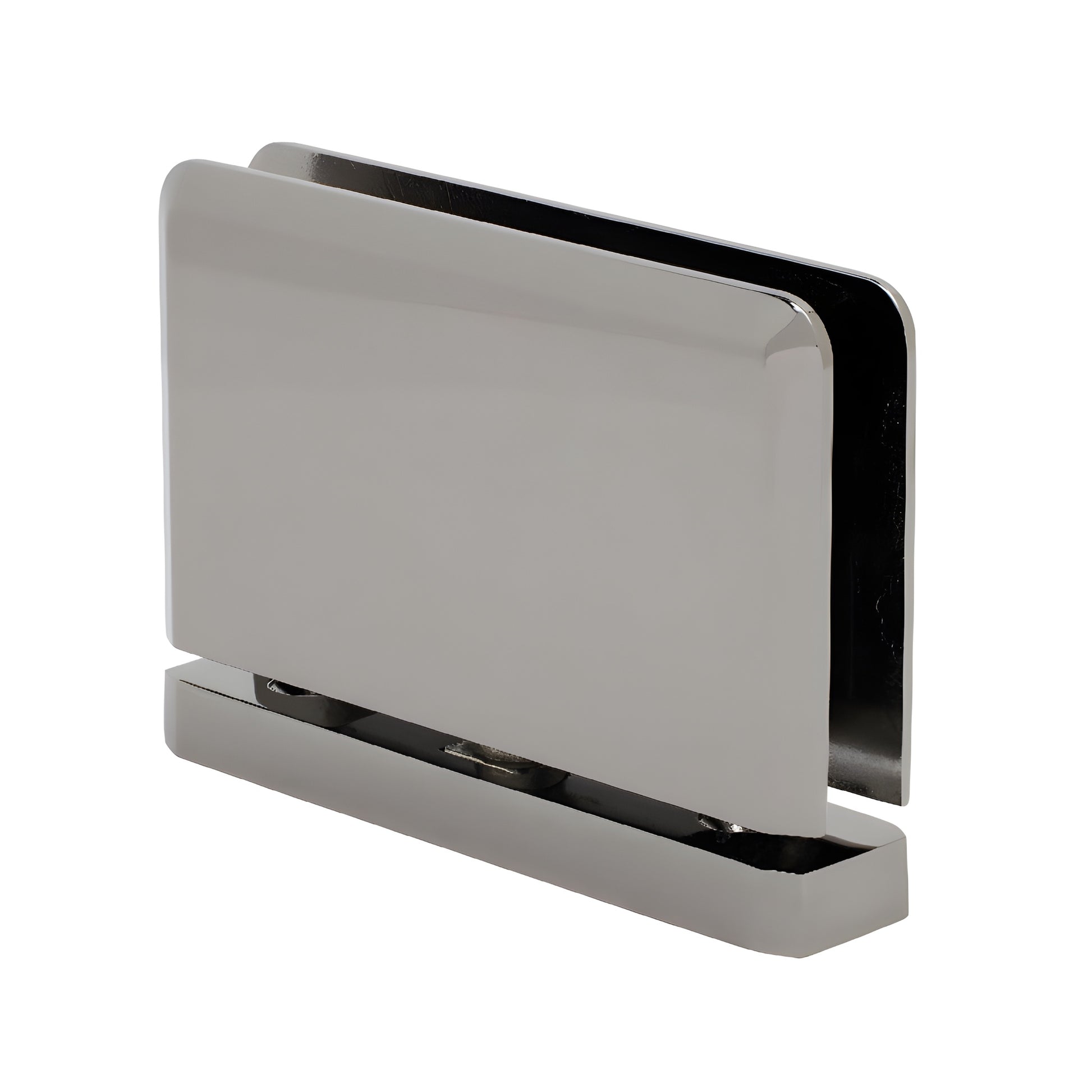

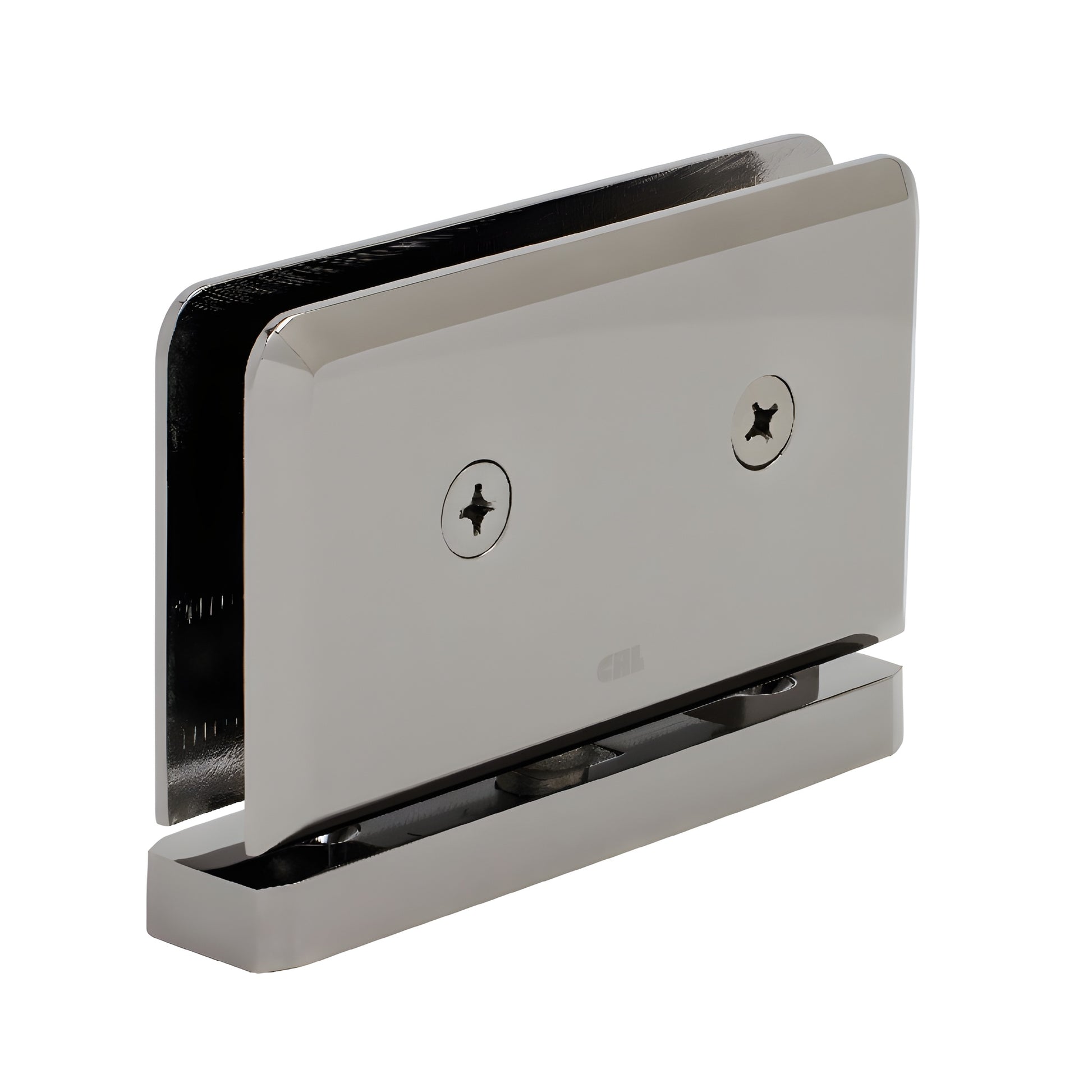

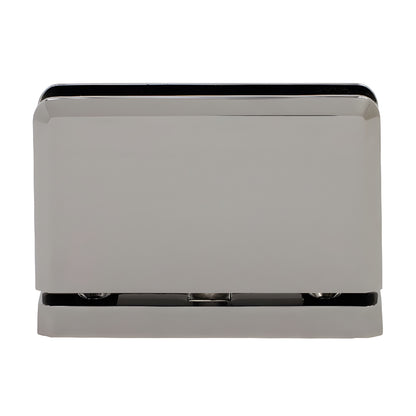

CRL Senior Prima 01 Gun Metal Top/Bottom Mount Shower Door Hinge

• Top or Bottom Mount
• For Use with 1/2" (12 mm) Glass
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass
• 3 Year Warranty
• U.S. Patent 5,297,313

Advantages of CRL Senior Prima Hinges (SKU: SRPPH01GM) include load-bearing on the bottom mount and the ability to inset the hinge from the wall to provide clearance for towel bars and other projections. This glass-to-fixed transom mount pivot hinge is designed for doors with fixed transoms above them and can be used vertically in movable transom installations. These self-centering pivot hinges use four springs for maximum retention strength and are adaptable to the Deluxe Header System.

Note: Order SRHAB01 Senior Adaptor Block separately. The SRPPH06 model is only compatible with the EZ-Adjust Header System and includes its required adaptor.

Performance:

• Senior Prima: With two hinges and 1/2" (12 mm) tempered safety glass, supports up to 145 lbs (66 kg); maximum door width 36" (914 mm).
• Junior Prima: With two hinges and 1/4" (6 mm) tempered safety glass, supports up to 62 lbs (28 kg); maximum door width 28" (711 mm).

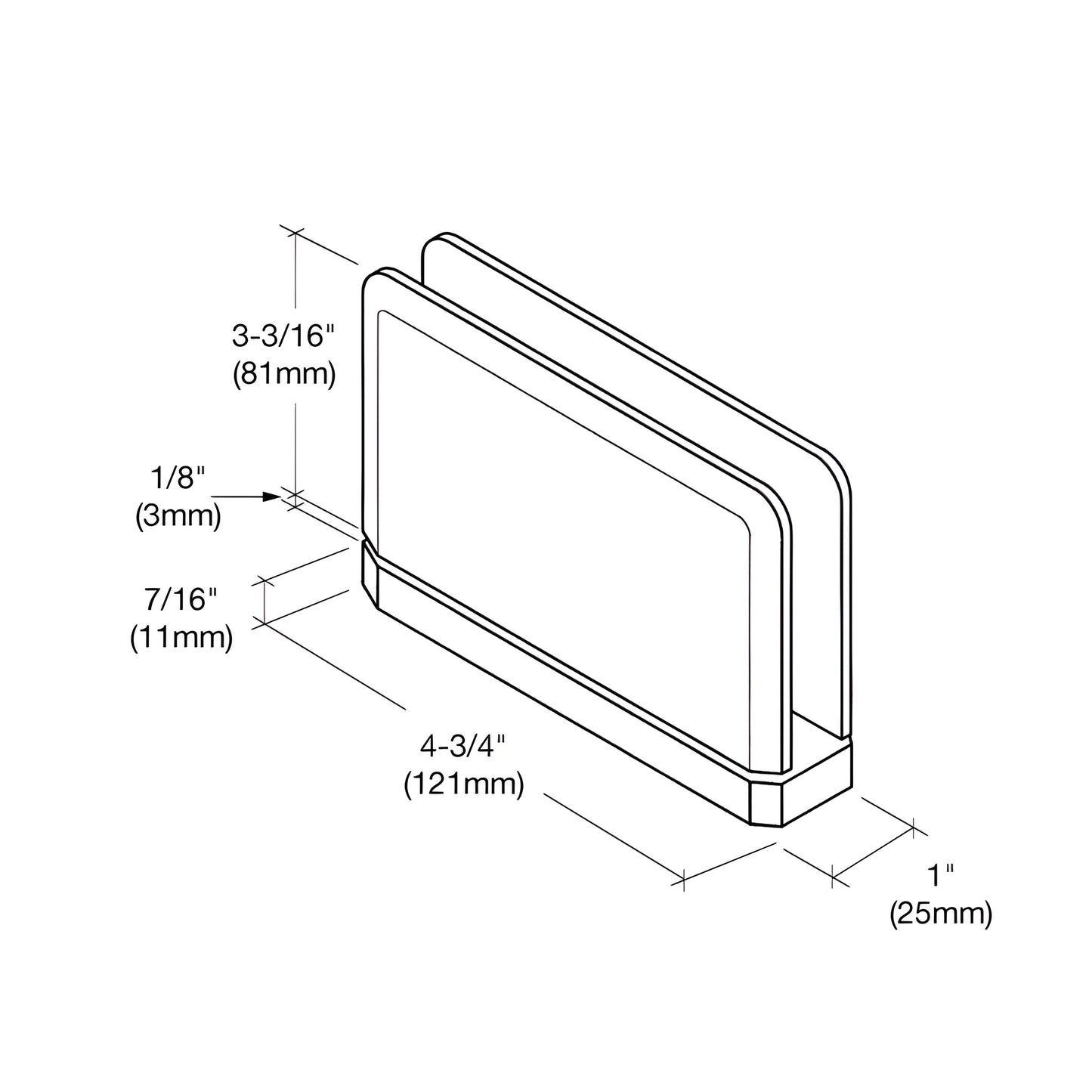

Specifications:

• Glass Thickness: Senior Prima — 1/2" (12 mm) tempered safety glass; Junior Prima — 1/4" (6 mm) tempered safety glass.
• Special Feature: Top and bottom mount increases glass exposure and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require additional cut-outs.
• Construction: Solid Brass
• Hinge Swings: Full rotation
• Closing Type: Self-centering within 15° of closed position
• Cut-Out Required
• Includes: Gaskets, screws, and glass fabrication dimensions
• Patent: Senior and Junior Prima Hinges — U.S. Patent No. 5,297,313

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for custom glass shower door pivot hinge finishes or finish-matching services.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. Use for other purposes requires prior approval from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other
