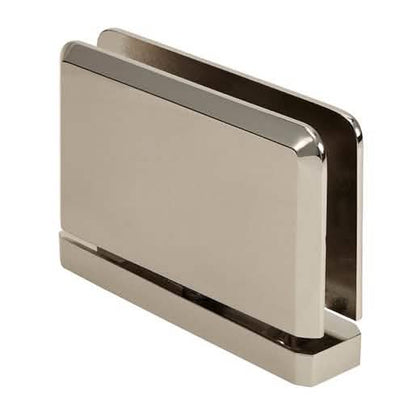

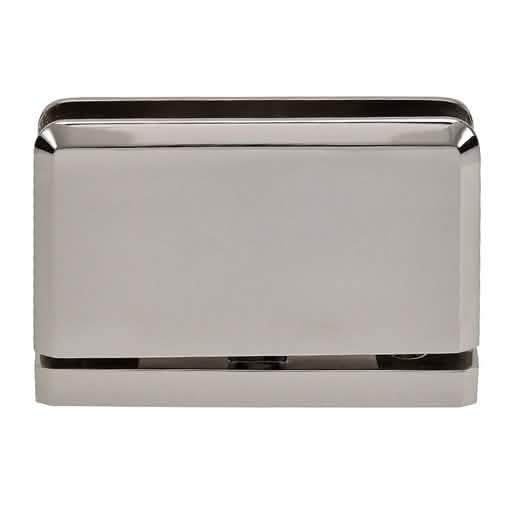

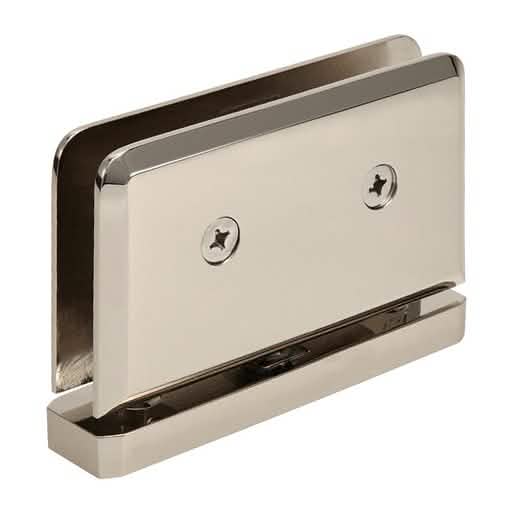

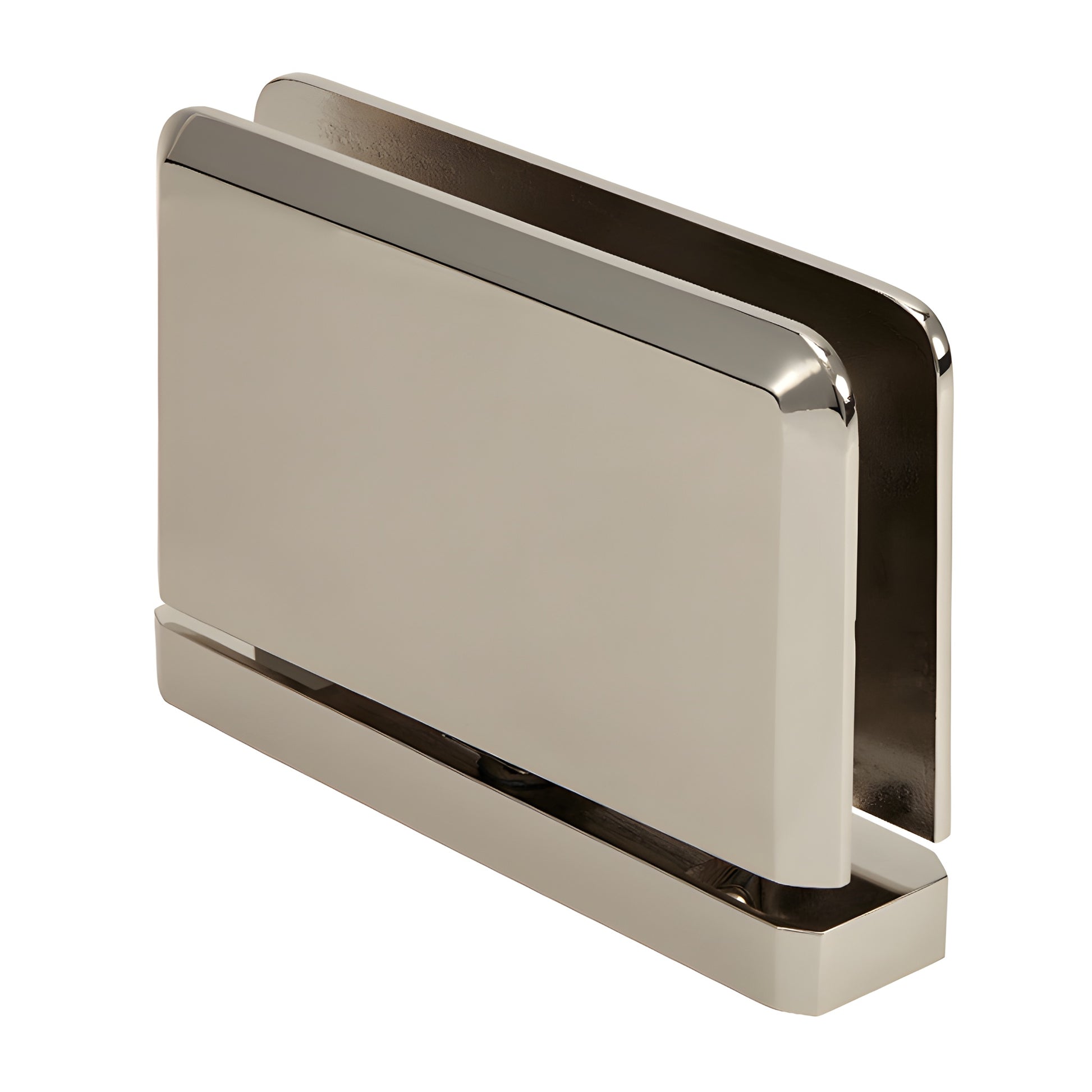

CRL Polished Nickel Senior Prima 01 Top & Bottom Mount Shower Hinge

• Top or Bottom Mount
• For Use with 1/2" (12 mm) Glass
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass
• 3 Year Warranty
• U.S. Patent 5,297,313

Advantages of CRL Senior Prima Hinges (SKU: SRPPH01PN) — premium glass shower door pivot hinges engineered for durable, high-traffic shower enclosures. These top-or-bottom mount pivot hinges carry the majority of the weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is designed for doors with fixed transoms; when mounted vertically, either style can be used in movable transom installations.

Key features: self-centering action with four springs for maximum retention strength; adaptable to our Deluxe Header System (SRPPH01 model). These solid brass hinges offer full rotation and are optimized for monolithic tempered glass shower doors.

NOTE: Must order SRHAB01 Senior Adaptor Block separately. Our SRPPH06 Model is only compatible with the EZ-Adjust Header System and includes its own adaptor.

SENIOR PRIMA: With two hinges on 1/2" (12 mm) tempered safety glass, holds up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: With two hinges on 1/4" (6 mm) tempered safety glass, holds up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

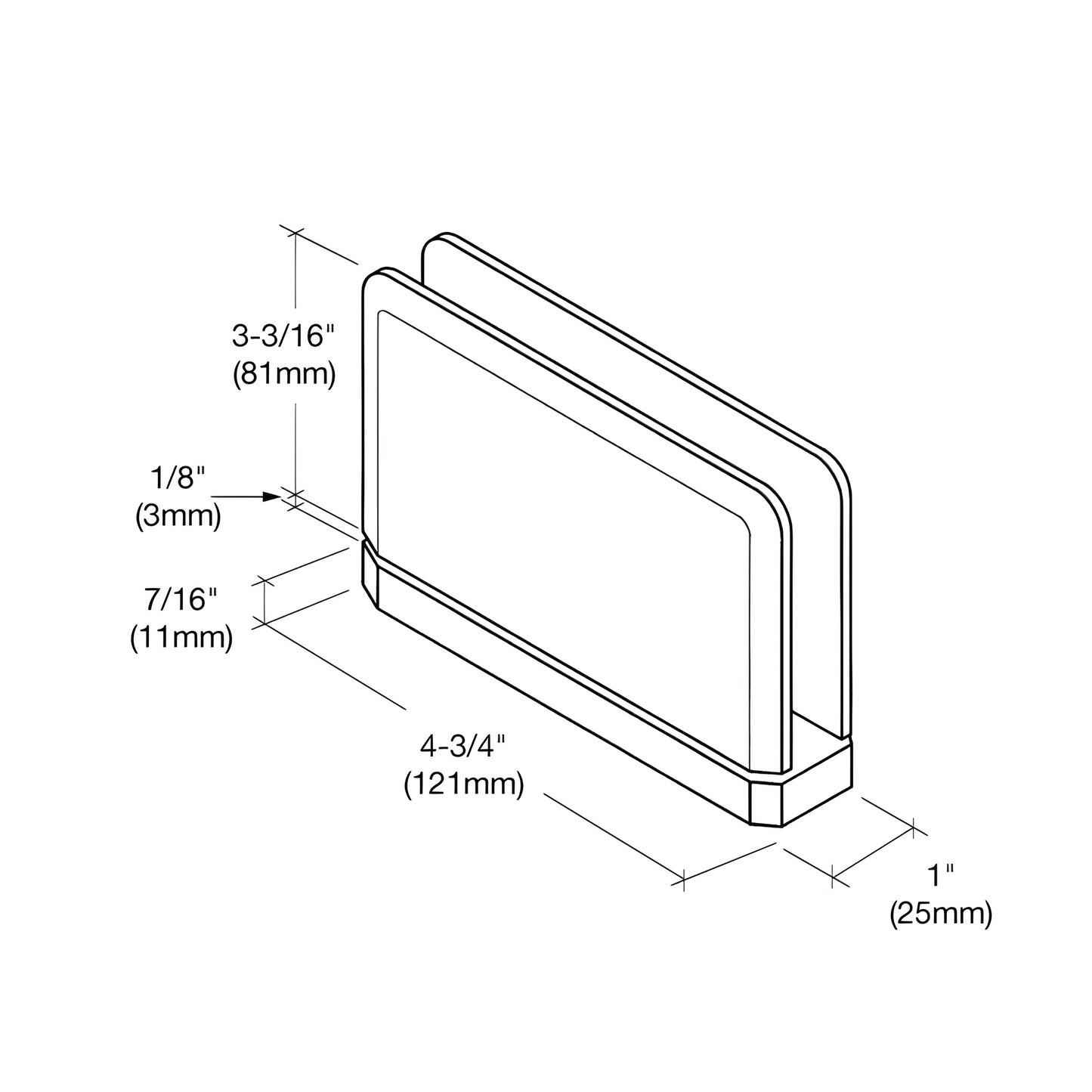

SPECIFICATIONS:

Glass Thickness:
Senior Prima: 1/2" (12 mm) Tempered Safety Glass
Junior Prima: 1/4" (6 mm) Tempered Safety Glass

Special Feature: Top and Bottom Mount increases visible glass area and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require additional cut-outs.

Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Patents: Senior and Junior Prima Hinges (Patent No. 5,297,313)

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for custom finish options and lead times.
