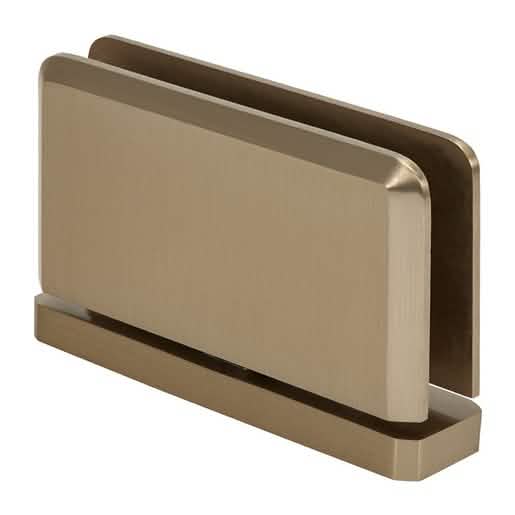

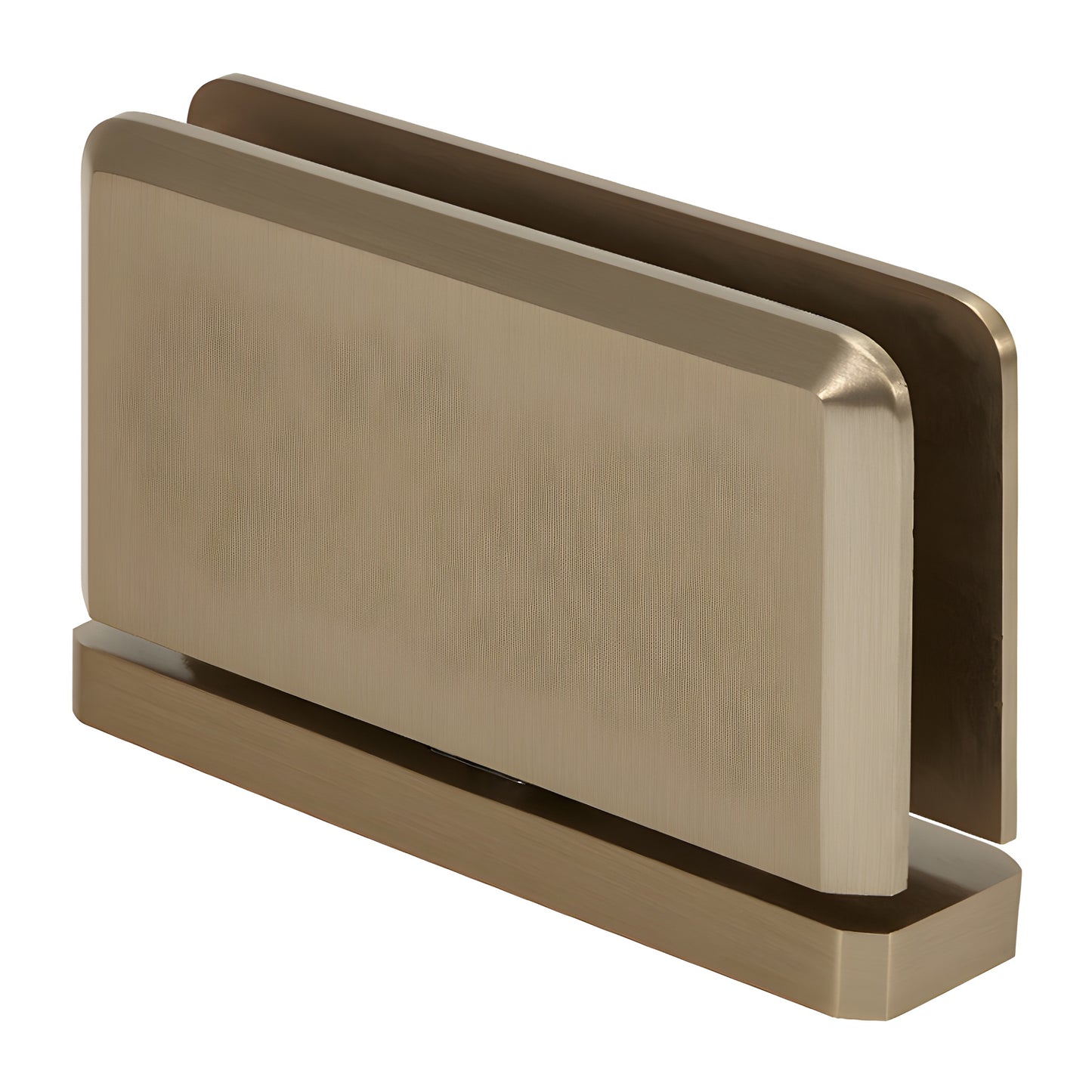

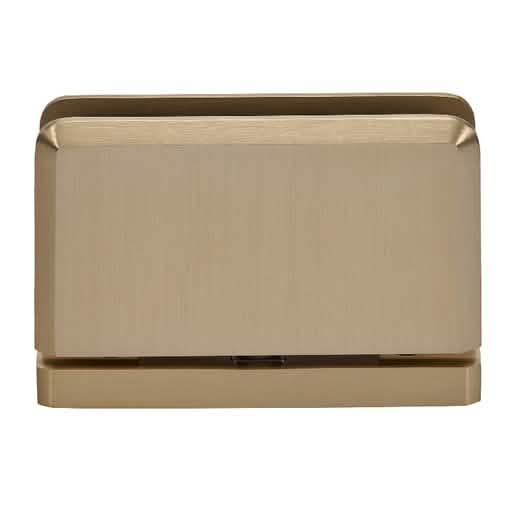

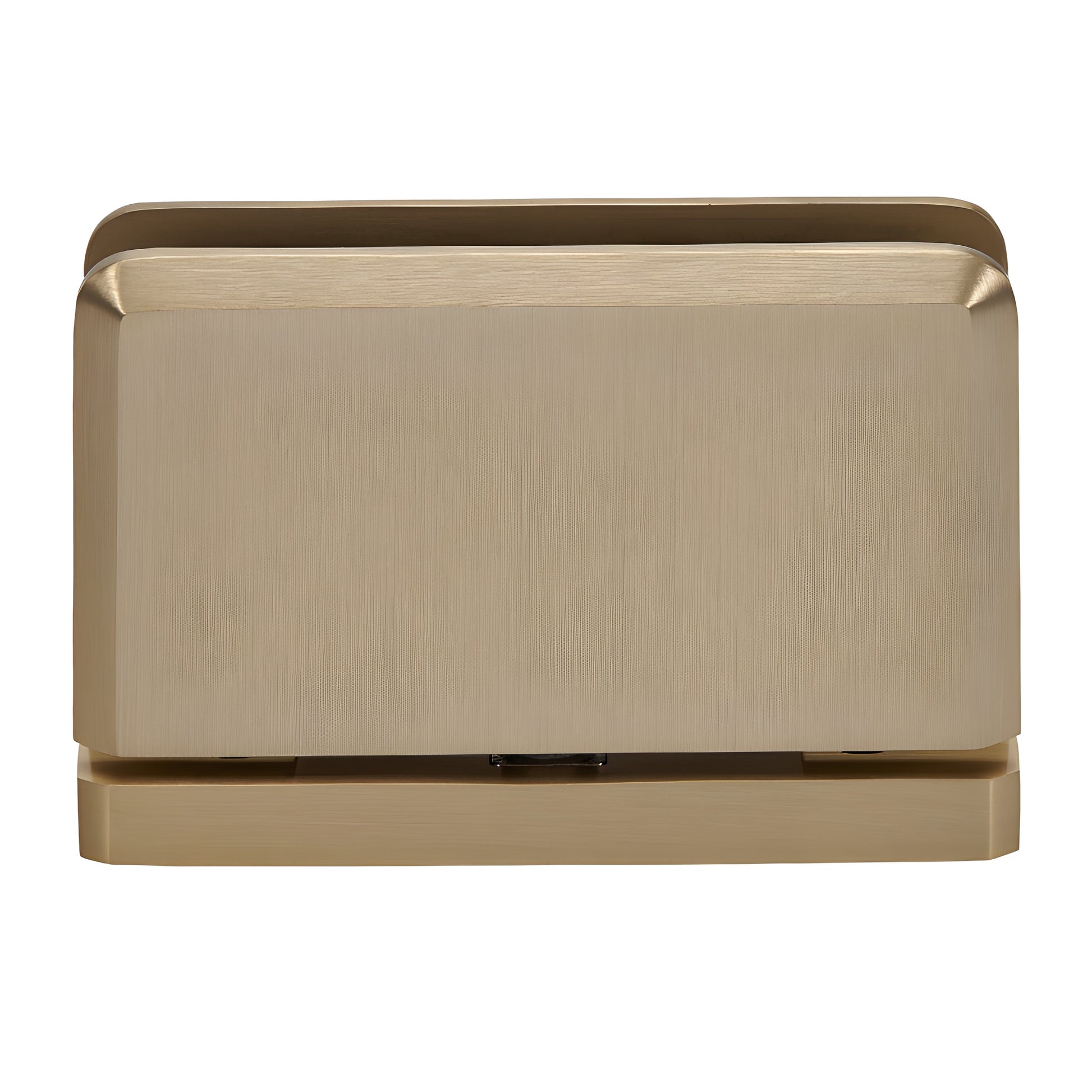

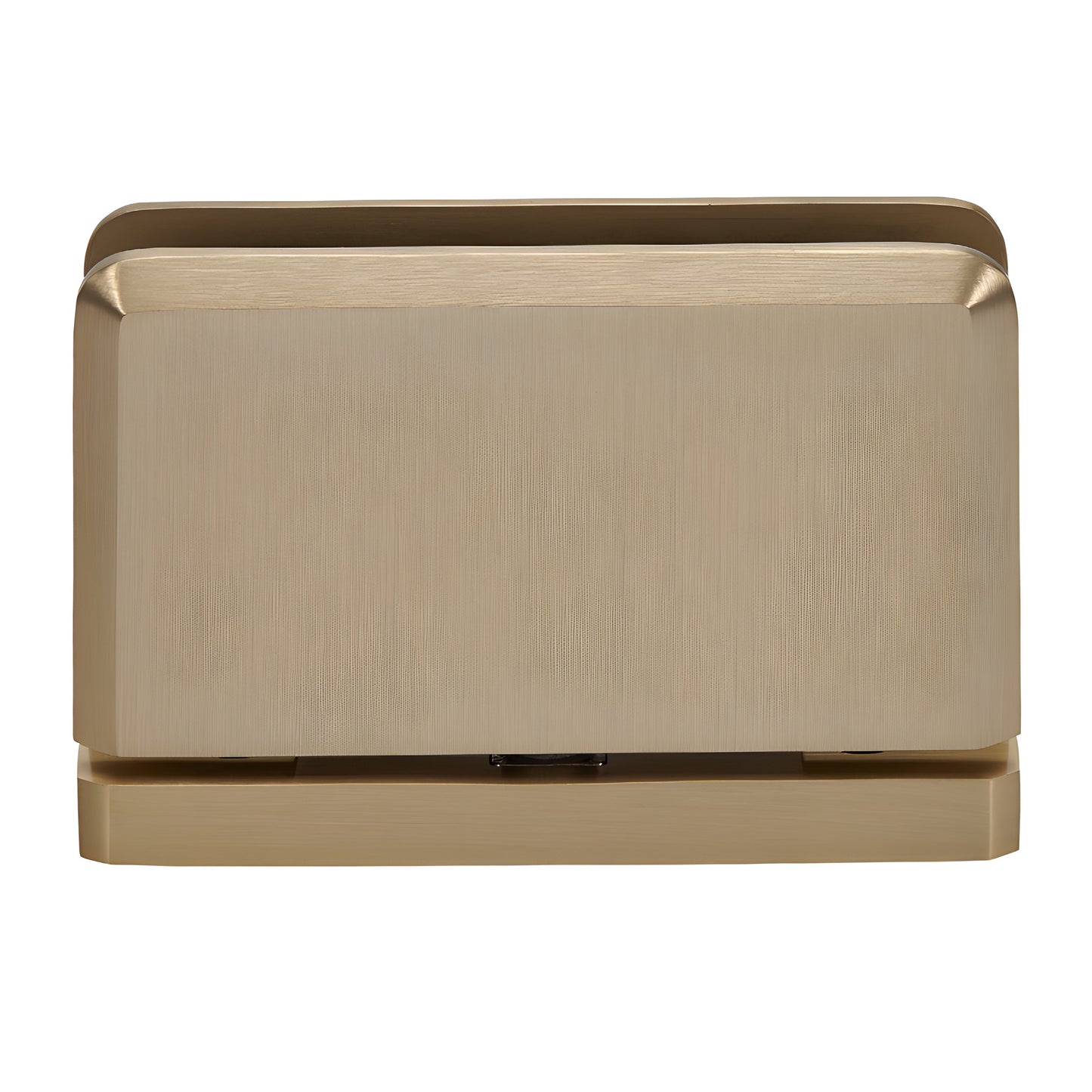

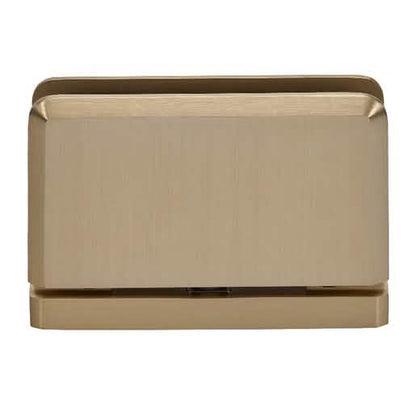

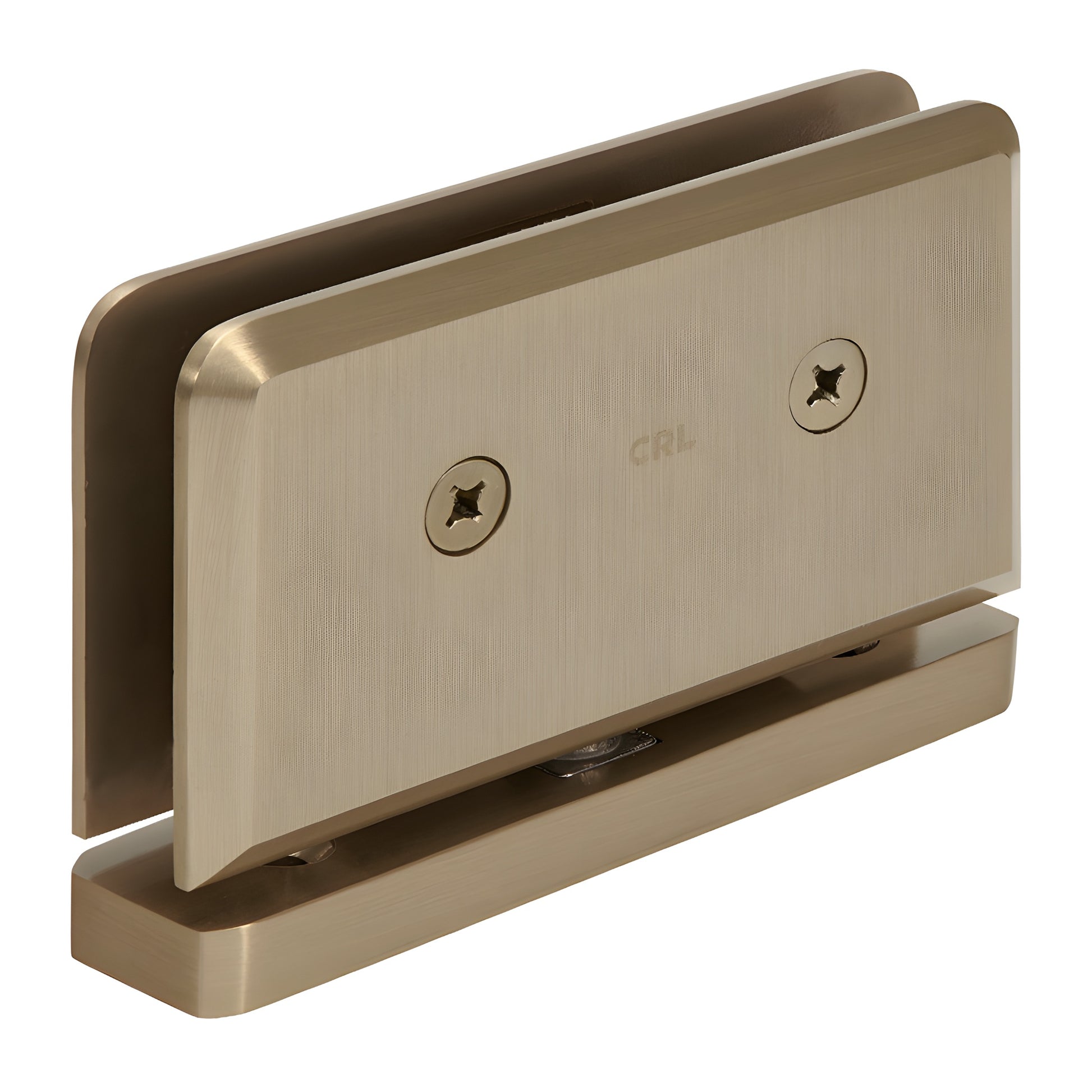

CRL Senior Prima 01 Brushed Bronze Shower Door Hinge Top/Bottom

• Top or Bottom Mount
• For Use with 1/2" (12 mm) Glass
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass
• 3 Year Warranty
• U.S. Patent 5,297,313

CRL Senior Prima Hinges (SKU: SRPPH01BBRZ) are heavy-duty glass-to-fixed transom pivot hinges designed for glass shower doors and transom applications. These solid-brass pivot hinges carry the majority of the weight on the bottom and can be inset from the wall to provide clearance for towel bars and projections — a practical advantage over side-mount glass-to-glass hinges. Use the Senior Prima for 1/2" (12 mm) tempered safety glass in residential and hotel shower installations.

These pivot hinges are self-centering with four internal springs for maximum retention strength. The SRPPH01 model is adaptable to CRL's Deluxe Header System.

NOTE: Must order SRHAB01 Senior Adaptor Block separately. The SRPPH06 model is compatible only with the EZ-Adjust Header System and includes its adaptor.

Performance:

SENIOR PRIMA: With two hinges on 1/2" (12 mm) tempered safety glass, holds up to 145 lbs (66 kg); maximum door width 36" (914 mm).

JUNIOR PRIMA: With two hinges on 1/4" (6 mm) tempered safety glass, holds up to 62 lbs (28 kg); maximum door width 28" (711 mm).

SPECIFICATIONS:

Glass Thickness:

Senior Prima: 1/2" (12 mm) tempered safety glass

Junior Prima: 1/4" (6 mm) tempered safety glass

Special Feature: Top and bottom mount design allows more visible glass area and can reduce glass fabrication costs compared with side-mount glass-to-glass hinges that require additional cut-outs.

Construction: Solid Brass

Hinge Swings: Full Rotation

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions

Patent: Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for custom brass finishes or specialty plating.

<
