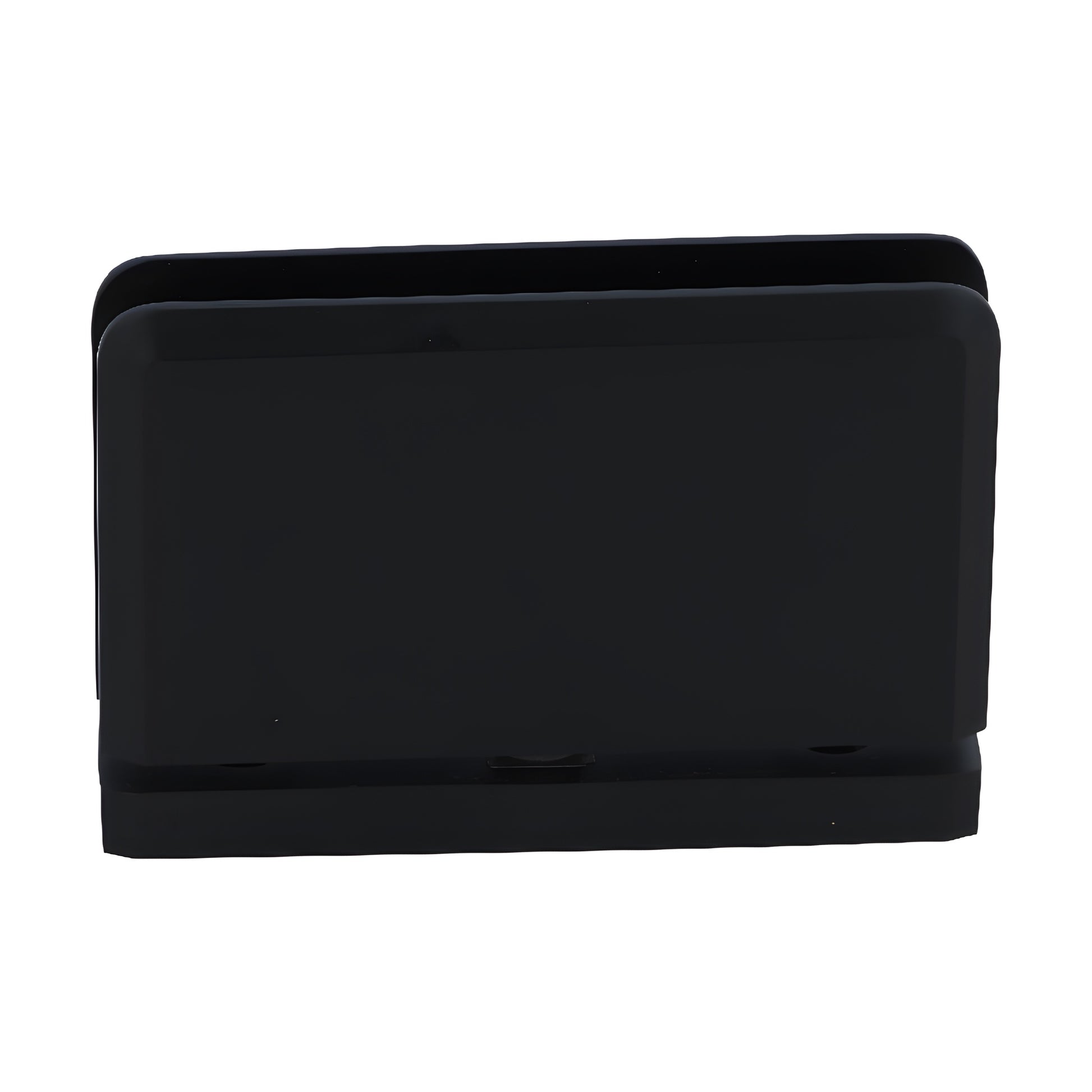

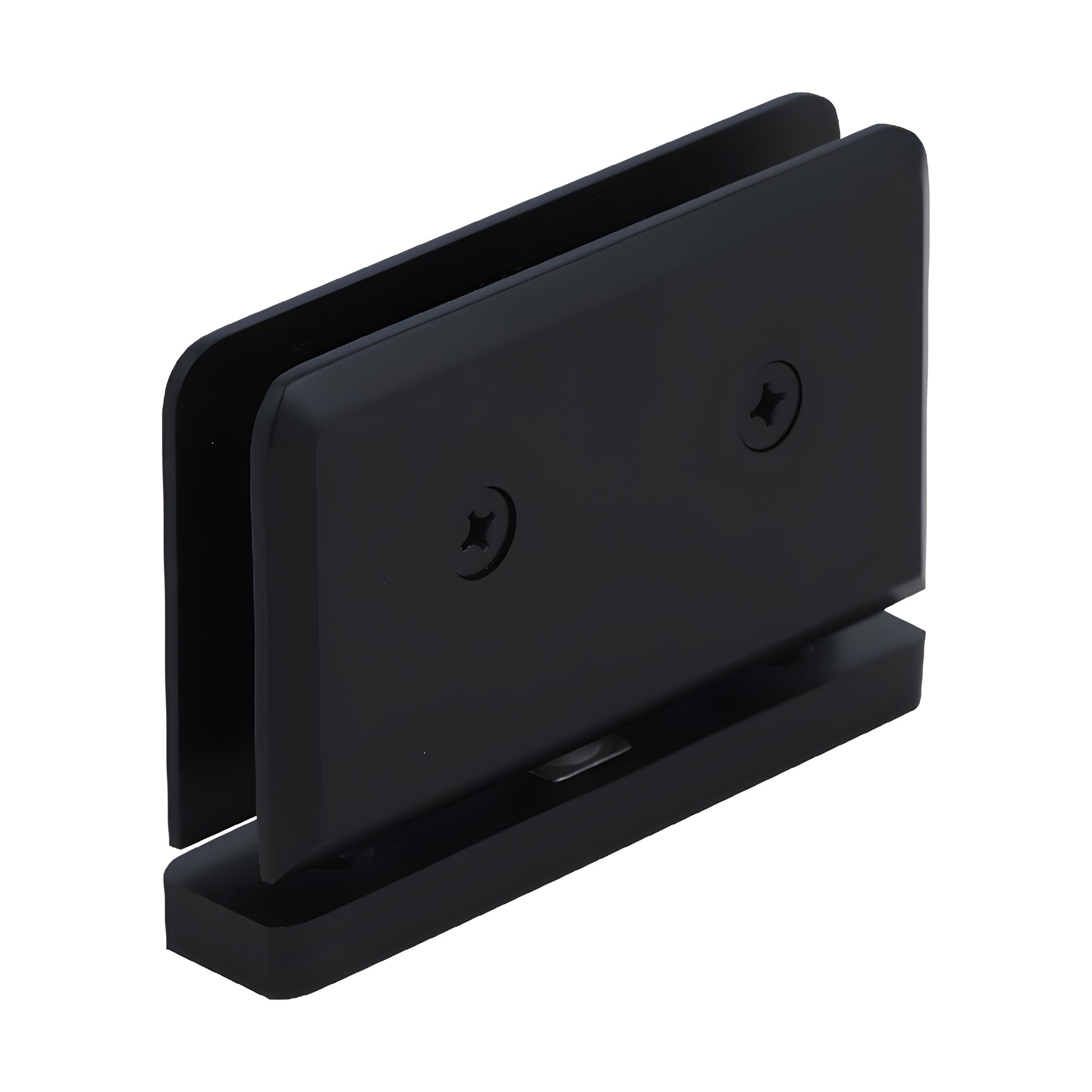

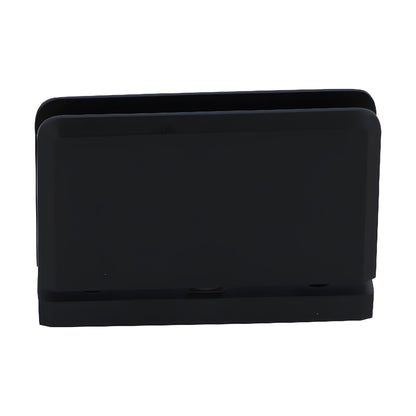

CRL Senior Prima 01 Series Oil Rubbed Bronze Top/Bottom Mount Hinge

• Top or Bottom Mount pivot hinge for shower doors
• For use with 1/2" (12 mm) tempered glass
• Available in several beautiful finishes
• Use with monolithic tempered glass
• 3 Year Warranty
• U.S. Patent 5,297,313

Advantages of CRL Senior Prima Hinges: these shower door pivot hinges carry most of the door weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is ideal for doors with fixed transoms above them and, when installed vertically, works in movable transom installations. These pivot hinges are self-centering with four springs for maximum retention strength. The SRPPH01 model adapts to the Deluxe Header System. SKU: SRPPH010RB.

NOTE: Order SRHAB01 Senior Adaptor Block separately. The SRPPH06 model is compatible only with the EZ-Adjust Header System and includes an adaptor for that system.

SENIOR PRIMA: With two hinges and 1/2" (12 mm) tempered safety glass, holds up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: With two hinges and 1/4" (6 mm) tempered safety glass, holds up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

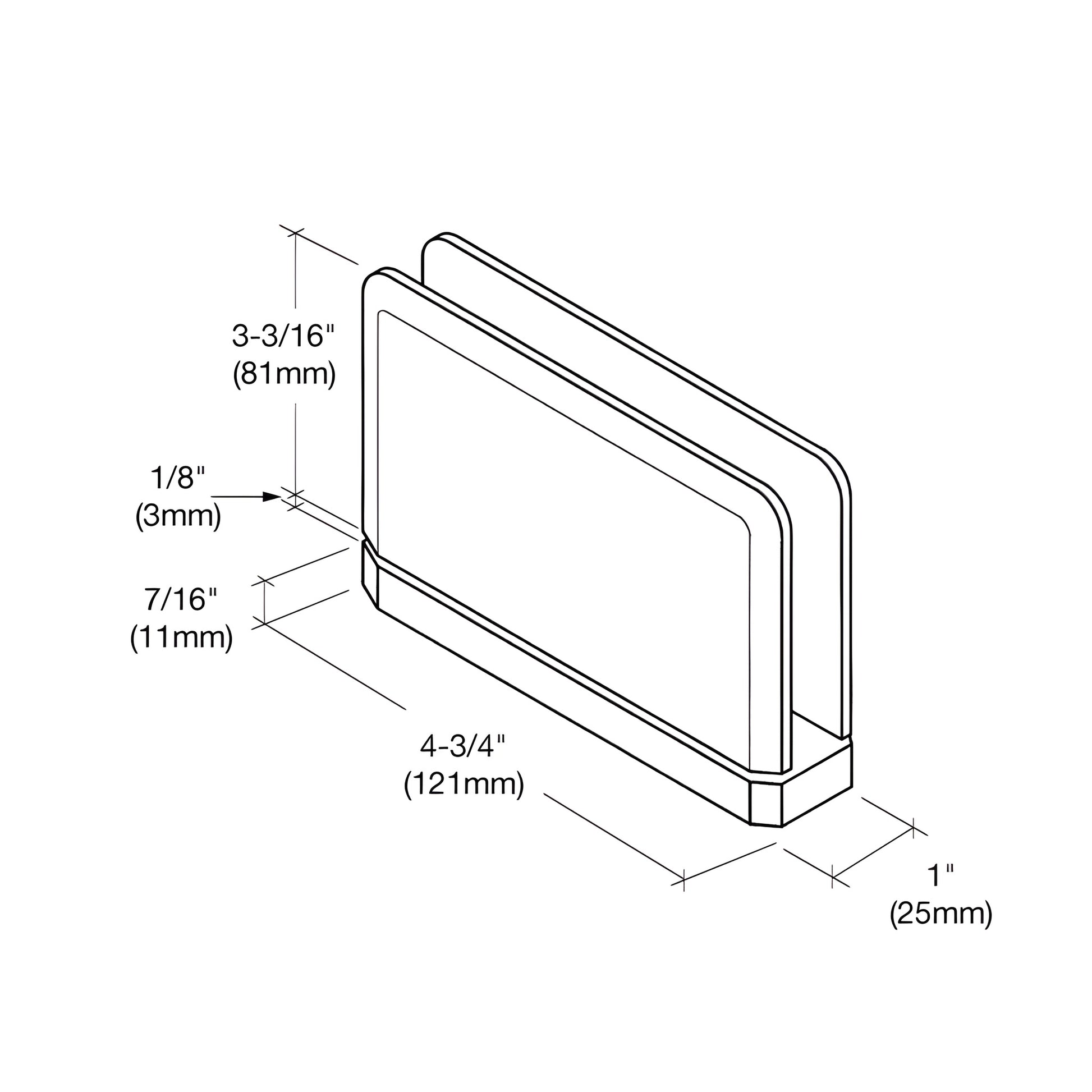

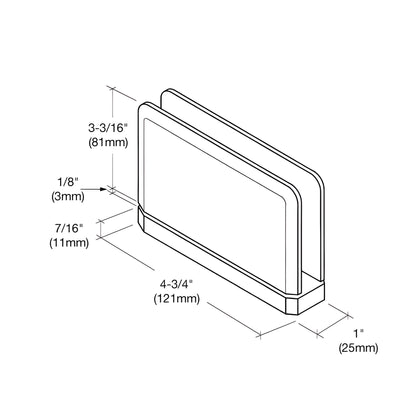

SPECIFICATIONS:

Glass Thickness:

Senior Prima: 1/2" (12 mm) tempered safety glass

Junior Prima: 1/4" (6 mm) tempered safety glass

Special Feature: Top and bottom mount design increases visible glass area and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require additional cut-outs.

Construction: Solid brass

Hinge Swings: Full rotation

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions

Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for specialty finishes or custom glass shower hinge options.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this
