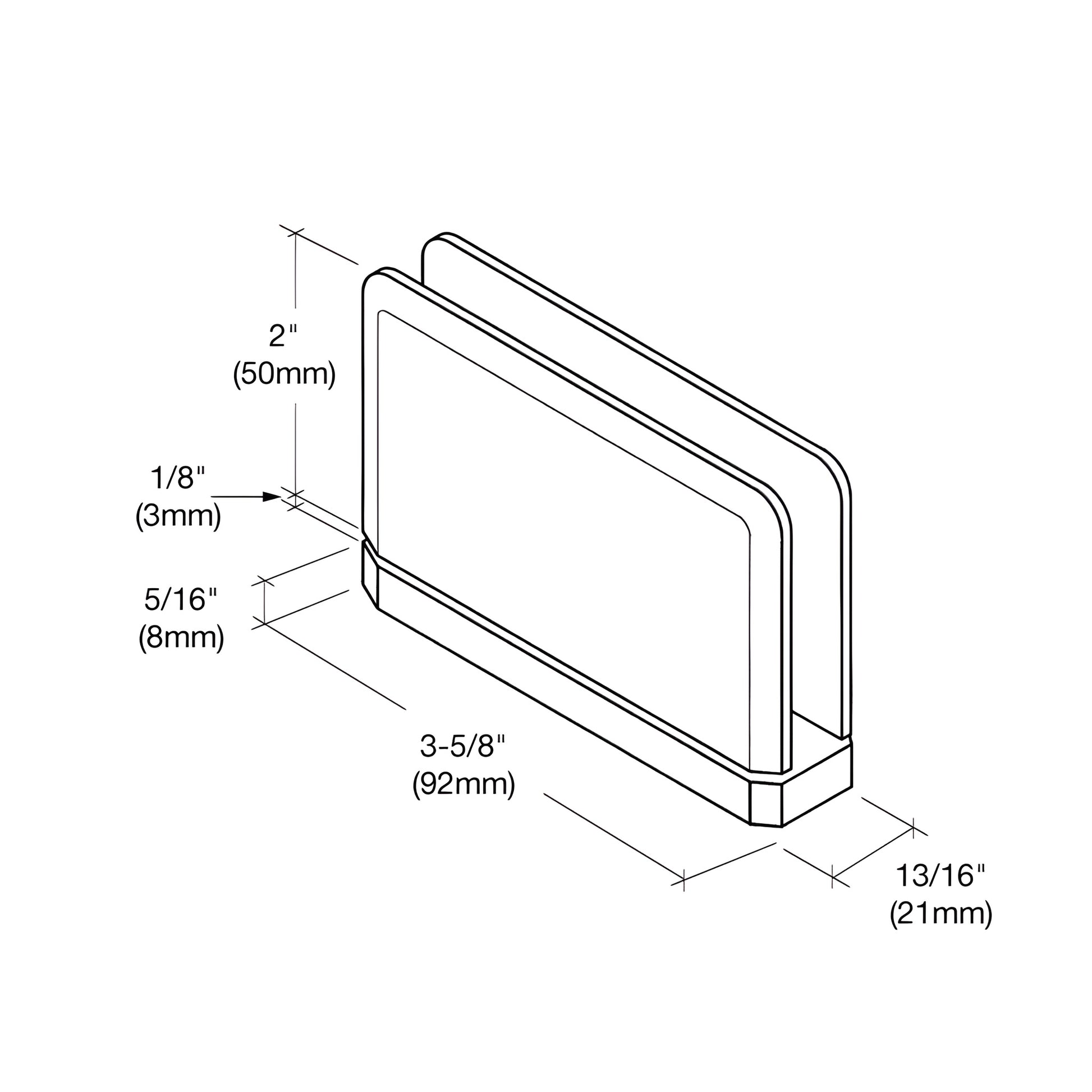

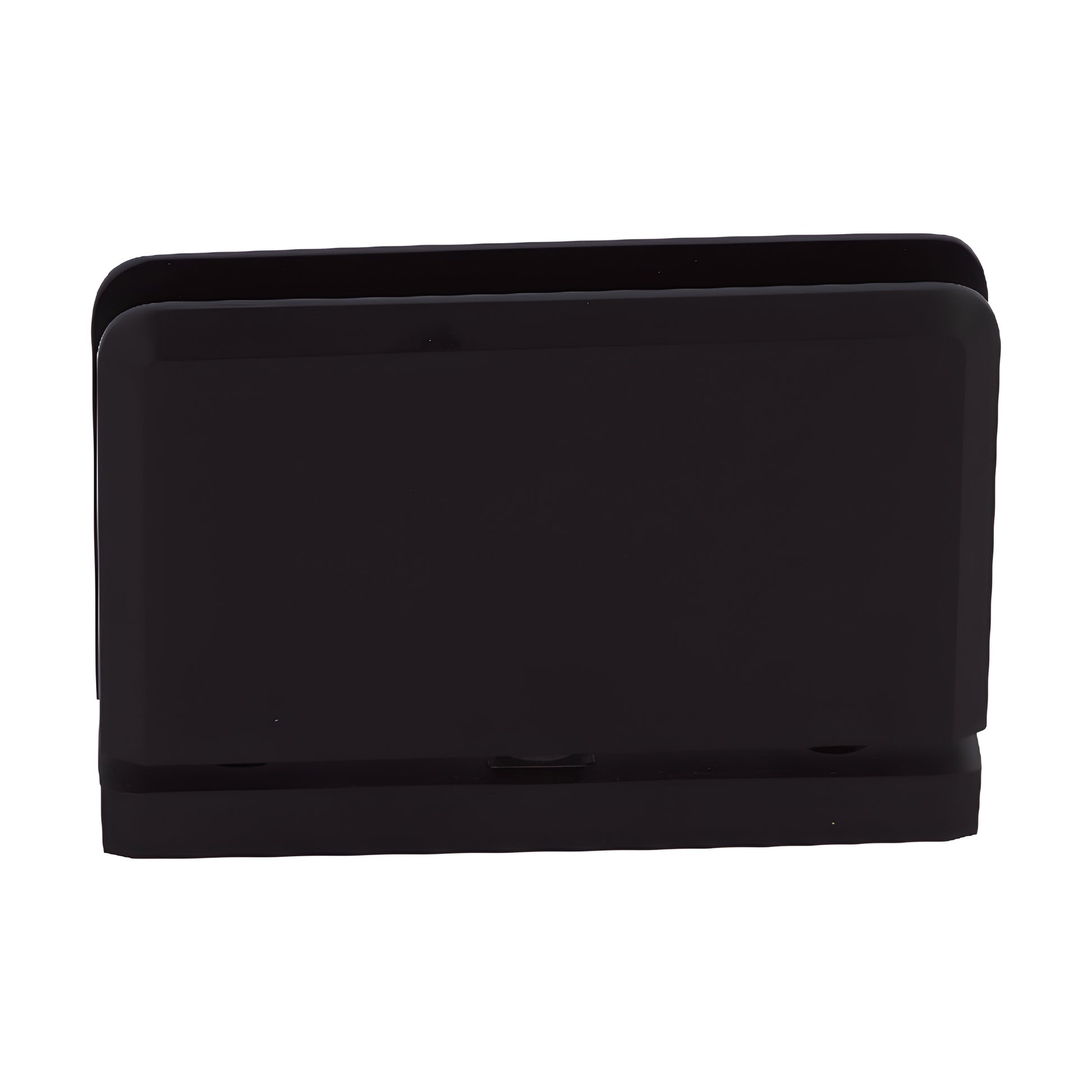

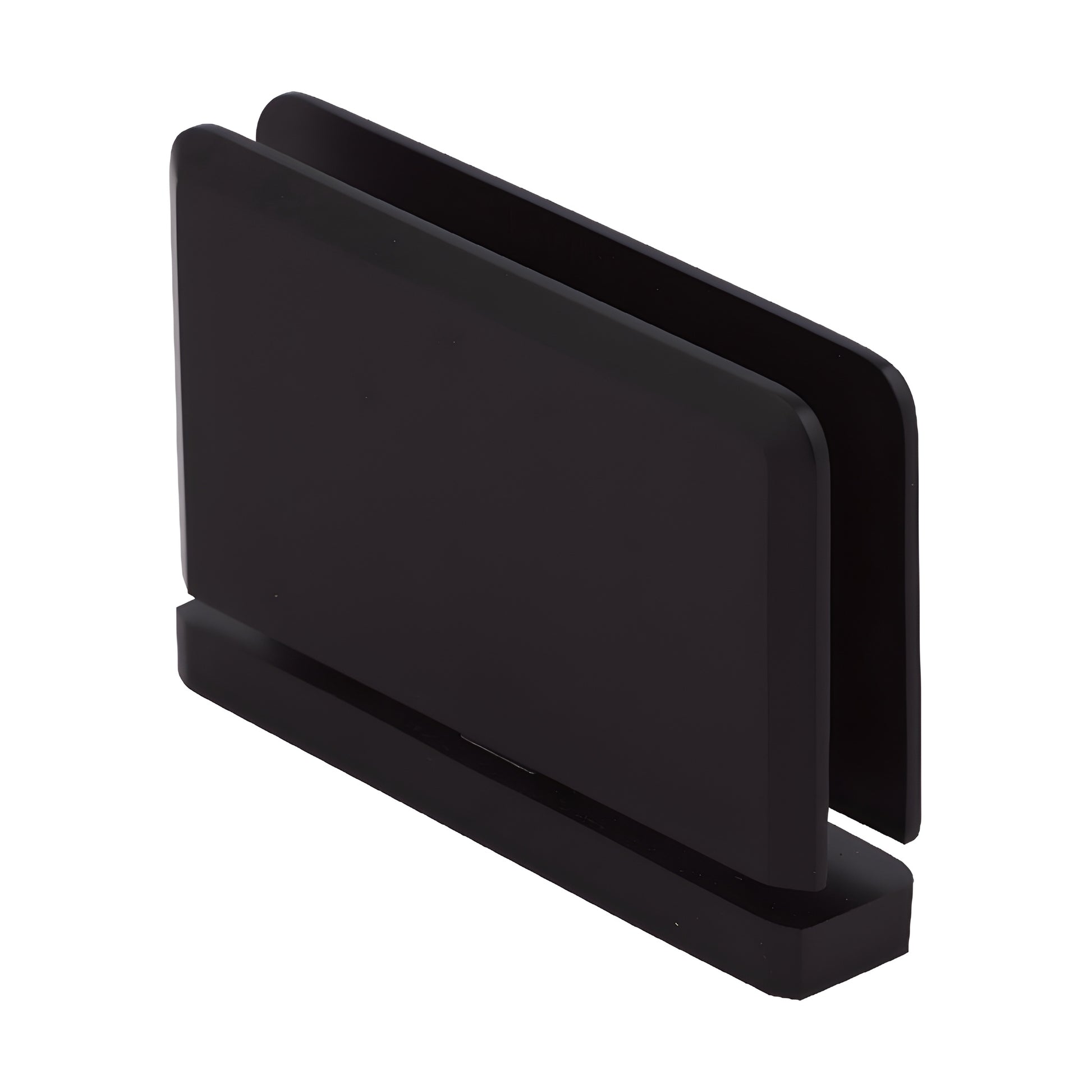

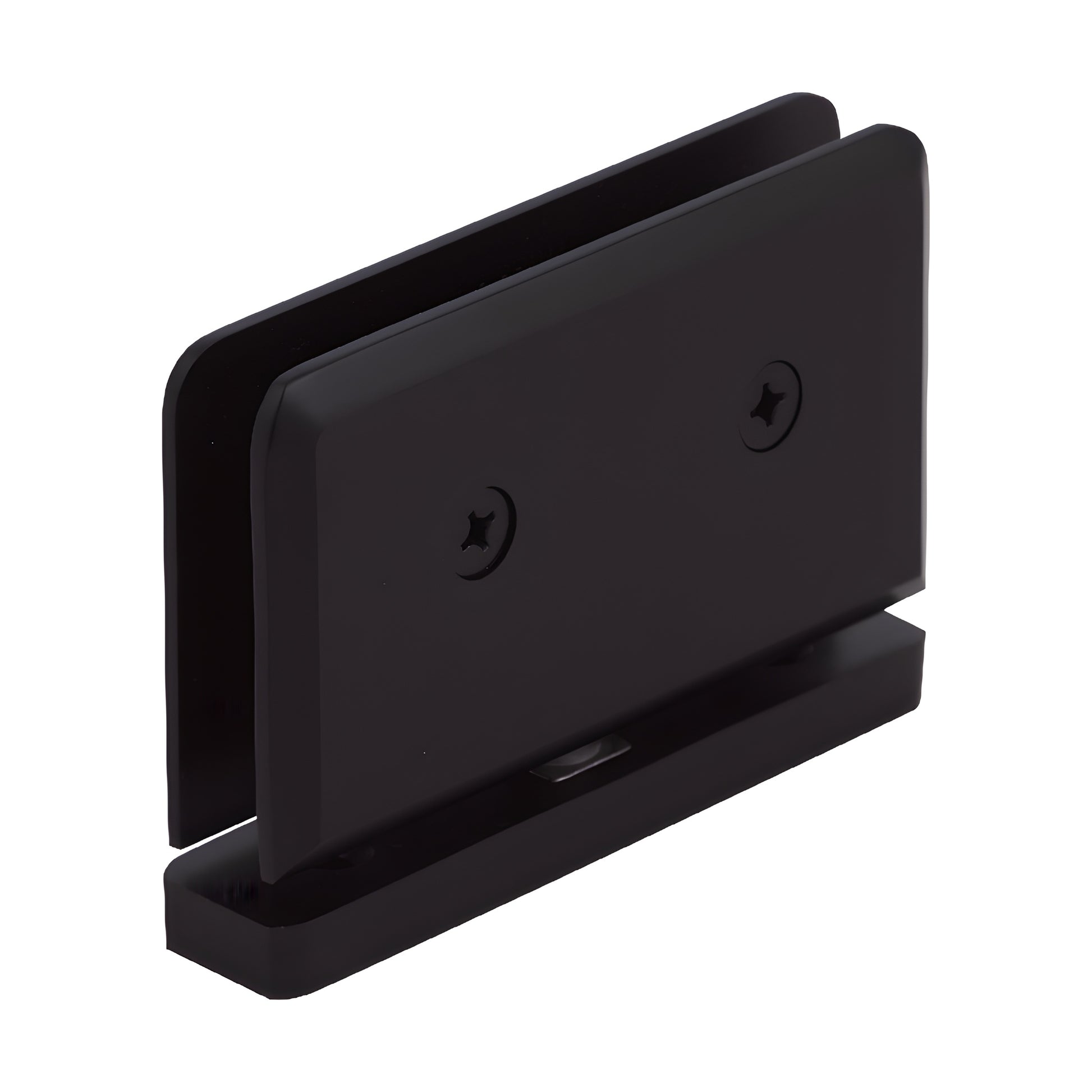

CRL Prima 01 Oil Rubbed Bronze Glass Door Hinge Top/Bottom Mount

• Top or Bottom Mount (Adaptable to Deluxe Header Kit)
• Self-Centering with Optional 5° Pivot Pin Set
• Available in several premium finishes
• 3 Year Warranty
• For use with monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH010RB) are engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass and expand mounting options for glass shower doors and frameless shower enclosures. As a bottom-weighted pivot hinge, Prima hinges can be inset from the wall to provide clearance for towel bars and other projections—an important advantage for custom glass shower installations. These solid-brass pivot hinges are self-centering with four internal springs for strong retention and reliable self-closing performance when within 15° of the closed position. Long-tail keyword: glass shower pivot hinge for 8–10 mm tempered glass.

Adaptability & Header Systems: The PPH01 model adapts to the Deluxe Header System for partial-height enclosures; the PPH06 model is compatible only with the EZ-Adjust Header System (requires HAB01 Adaptor Block—sold separately). Optional Cat. No. P1VP1N 5° pre-set pivot pin sets can be ordered separately or retrofitted after installation. Pre-set 5° hinge models are available from stock.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Alters door closing position by 5°. Sold as a set (top and bottom). Not included with hinge purchase.

Using Two Hinges: When used with two hinges on 5/16"–3/8" (8–10 mm) glass, each hinge set will support doors up to 100 lbs (45 kg) and up to 31" (787 mm) wide—useful for heavy frameless glass shower doors.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces required glass cut-outs versus standard side-mount, glass-to-glass hinges. PPH01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out: See specific models for cut-out requirements (PPH135 and PPH07 have additional holes/c
