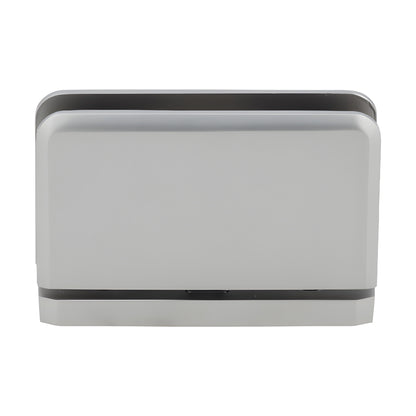

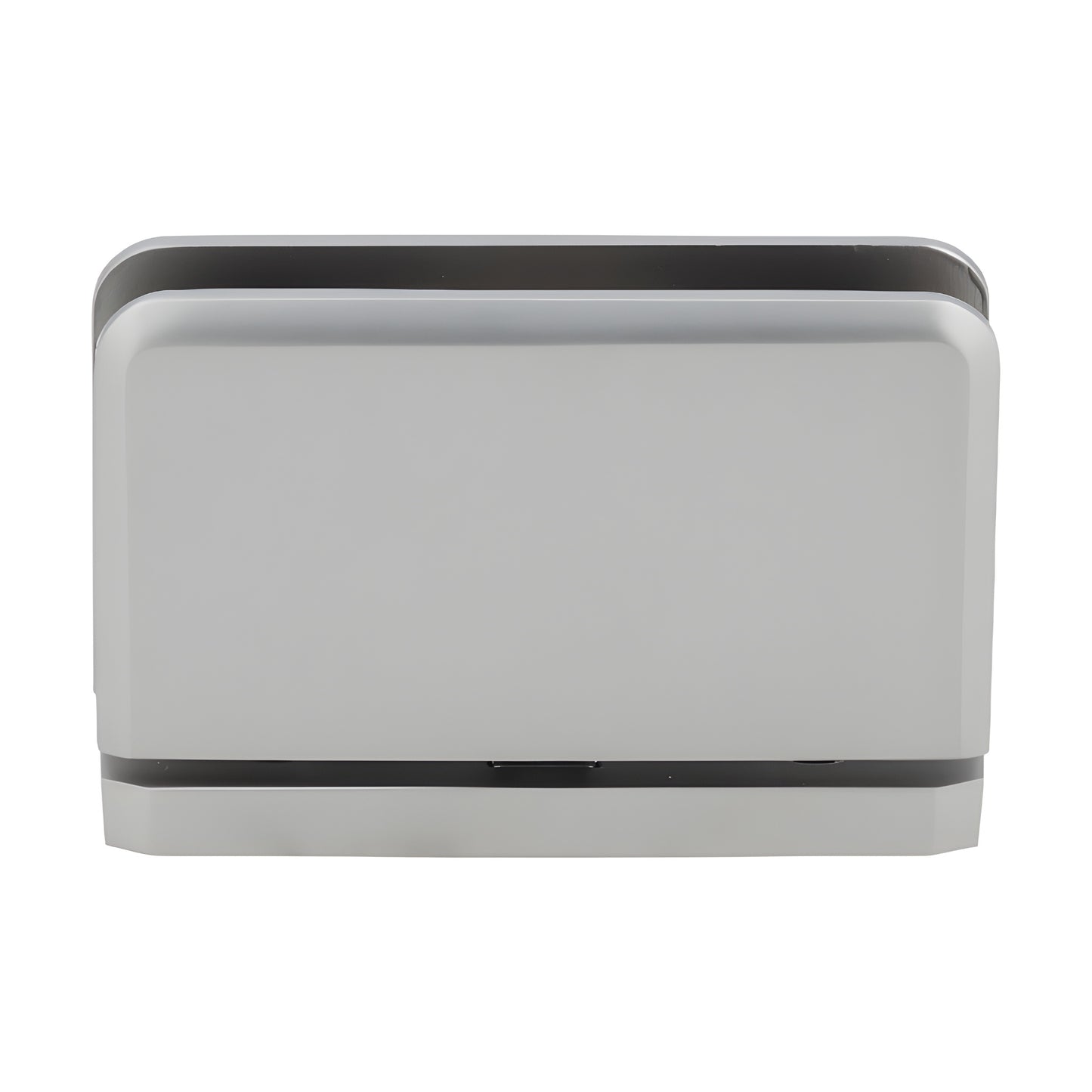

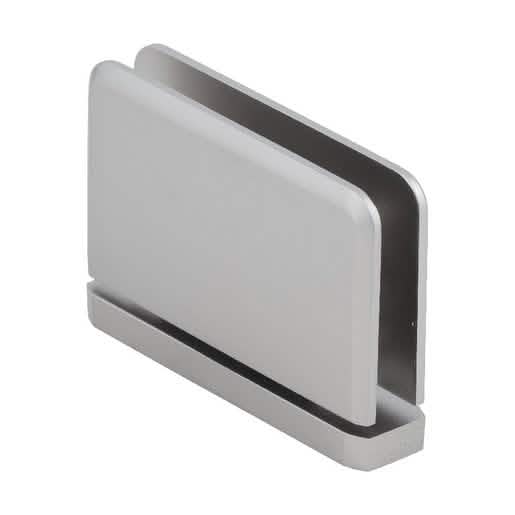

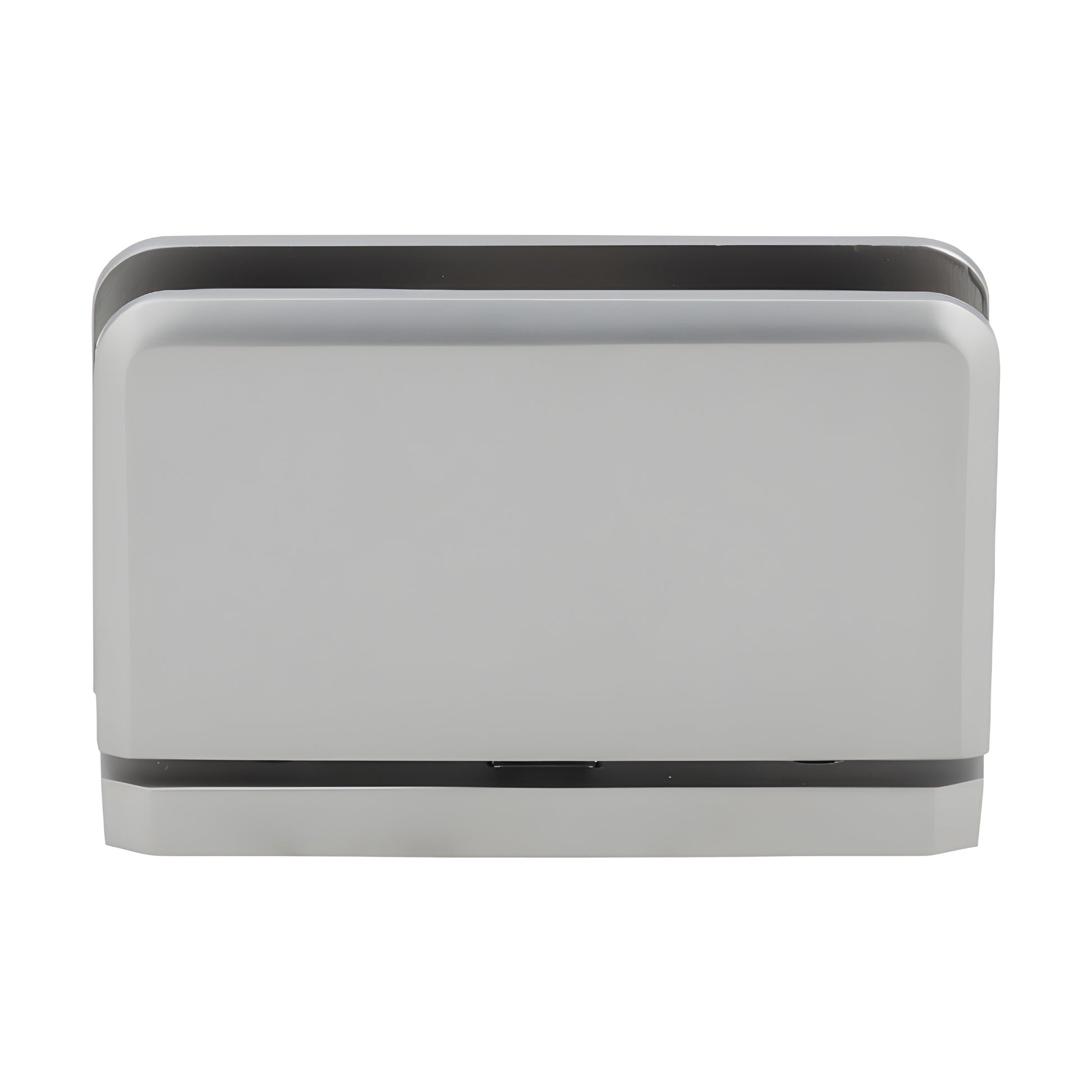

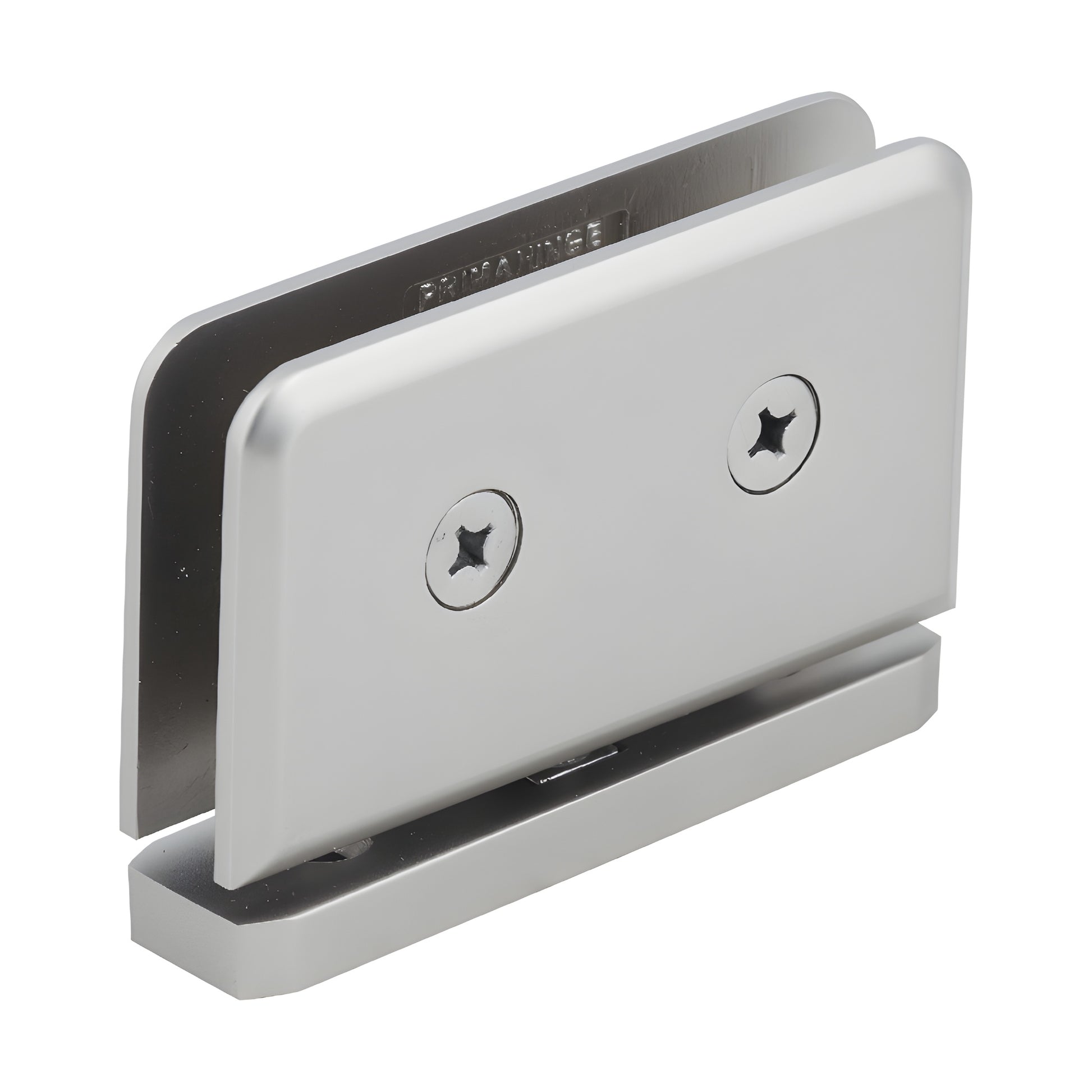

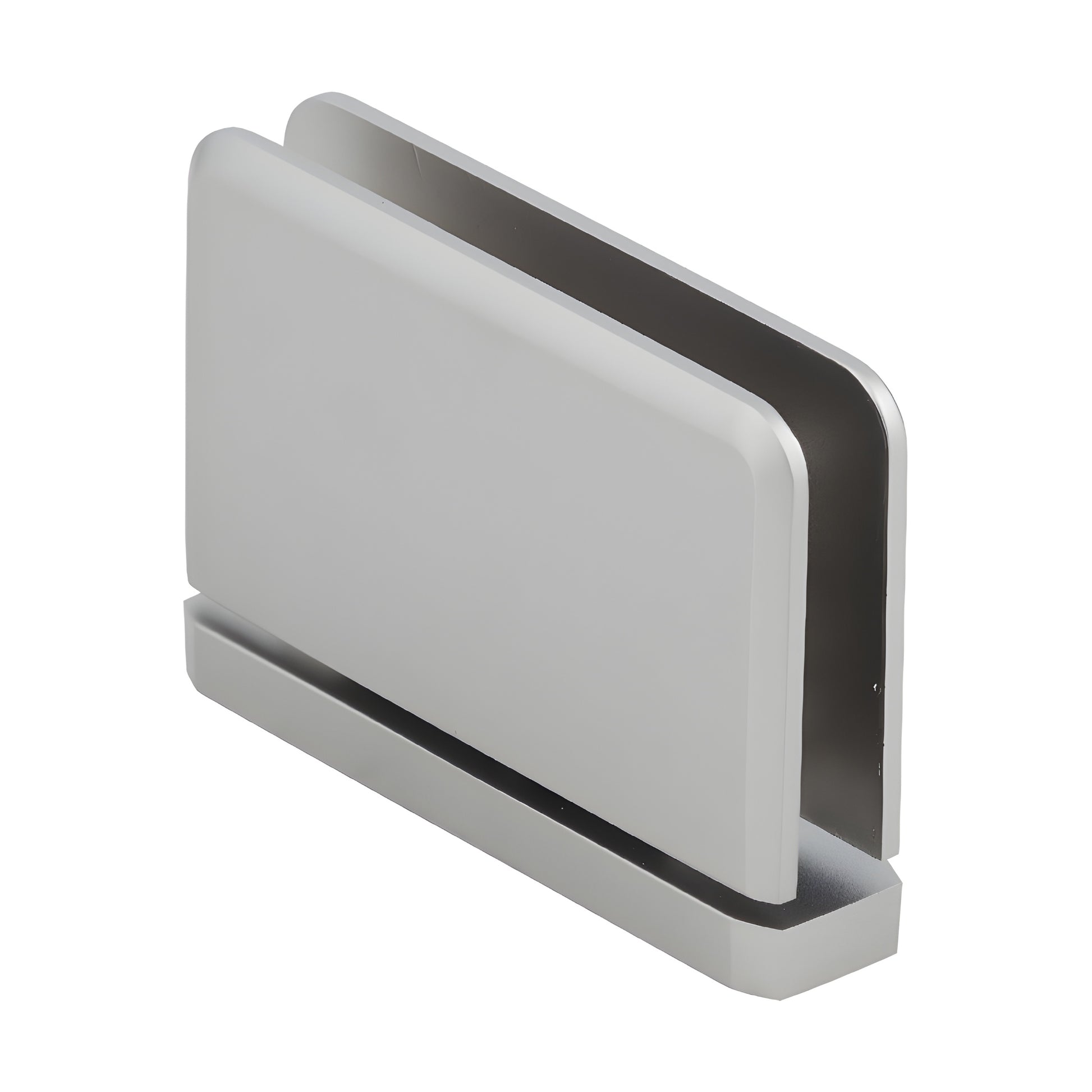

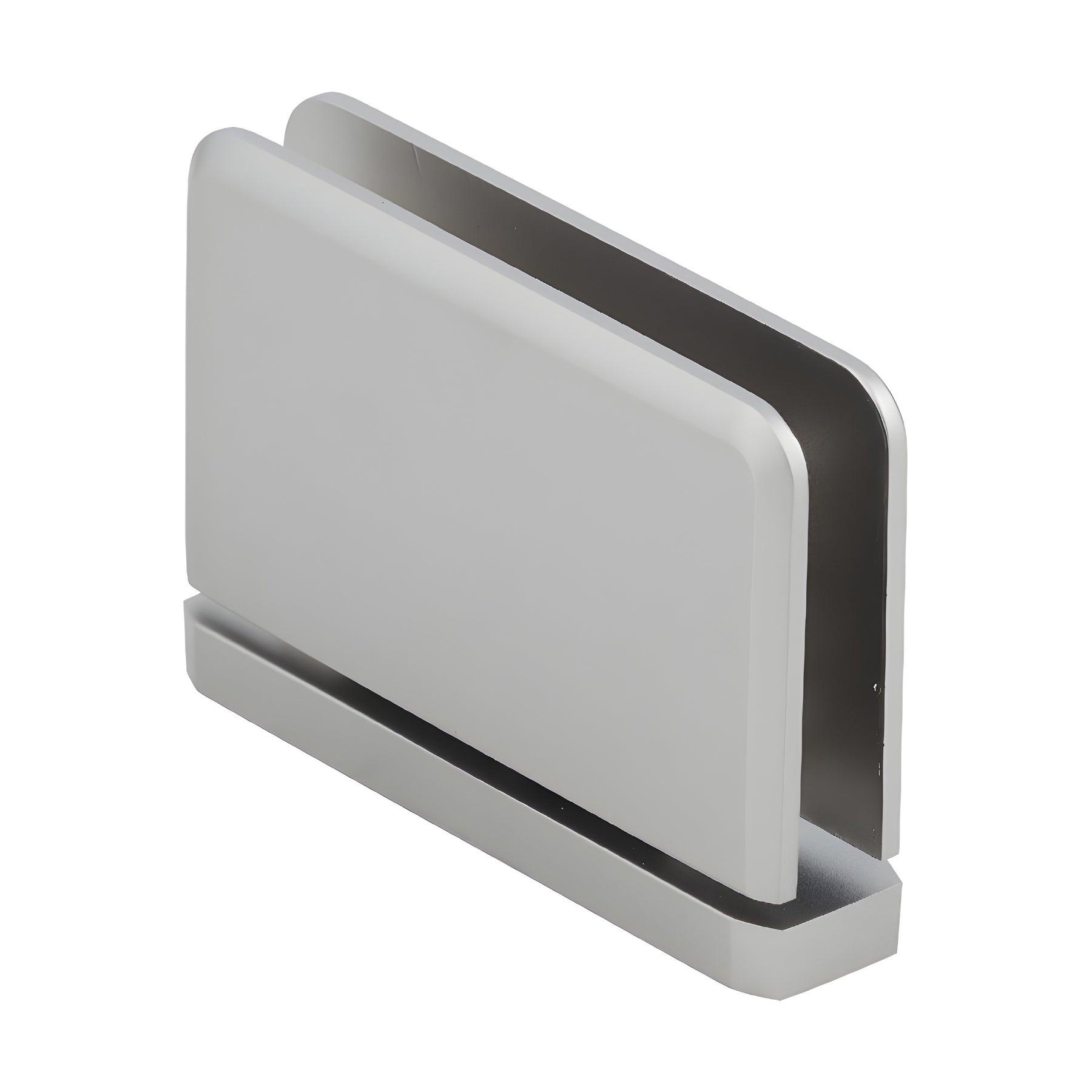

CRL Prima 01 Satin Nickel Top/Bottom Mount Glass Door Hinge

• Top or Bottom Mount — adaptable to Deluxe Header Kit
• Self-centering with optional 5° pivot pin set
• Available in several durable finishes (custom finishes on request)
• 3‑year warranty
• For monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH01SN) are engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass and offer versatile installation options for glass shower doors and frameless shower enclosures. Pivot-style hinges carry most of the door weight at the bottom and can be inset from the wall to clear towel bars and other projections. Prima hinges are self-centering with four springs for maximum retention strength. The PPH01 model adapts to the Deluxe Header System for partial-height enclosures; the PPH06 is compatible with the EZ-Adjust Header System (HAB01 Adaptor Block ordered separately). Ideal long-tail keywords: PPH01SN pivot hinge for tempered glass shower doors, Prima Series shower door hinge, top bottom mount shower hinge.

Optional 5° Pivot Pin Set: Change door closing position by 5°. Pivot pins can be installed before or retrofitted after installation. Sold as a set (top and bottom). Not included with hinge purchase. Pre-set 5° hinge models are also stocked.

Load Capacity (two hinges): With 5/16" to 3/8" (8–10 mm) glass, two hinges support up to 100 lbs (45 kg) and a maximum door width of 31" (787 mm).

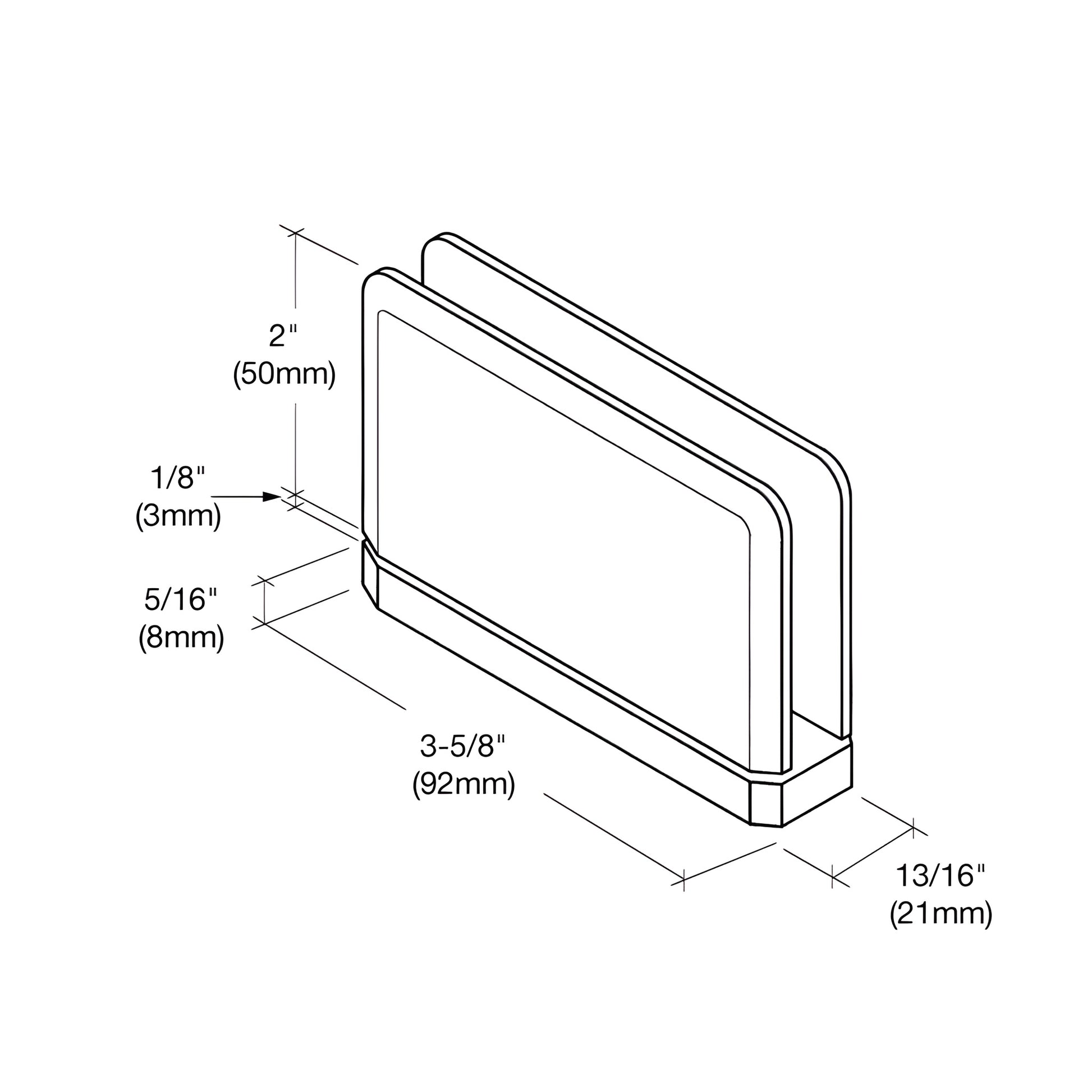

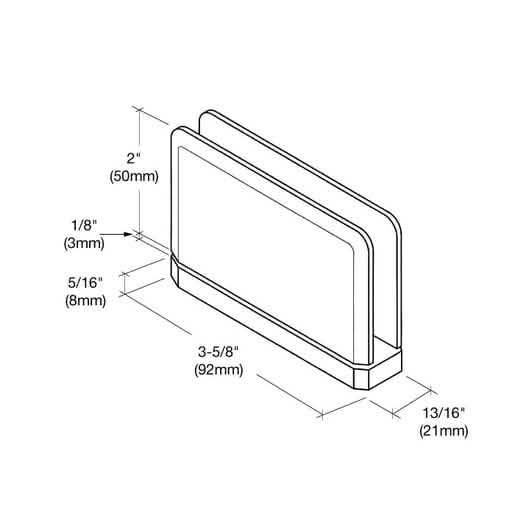

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top and bottom mount design maximizes visible glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: (PPH135 model also requires two holes; PPH07 model requires cut-out for hinge and hole for clamp)
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Custom finishes available on request — contact the CRL Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are intended for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; CRL cut-out
