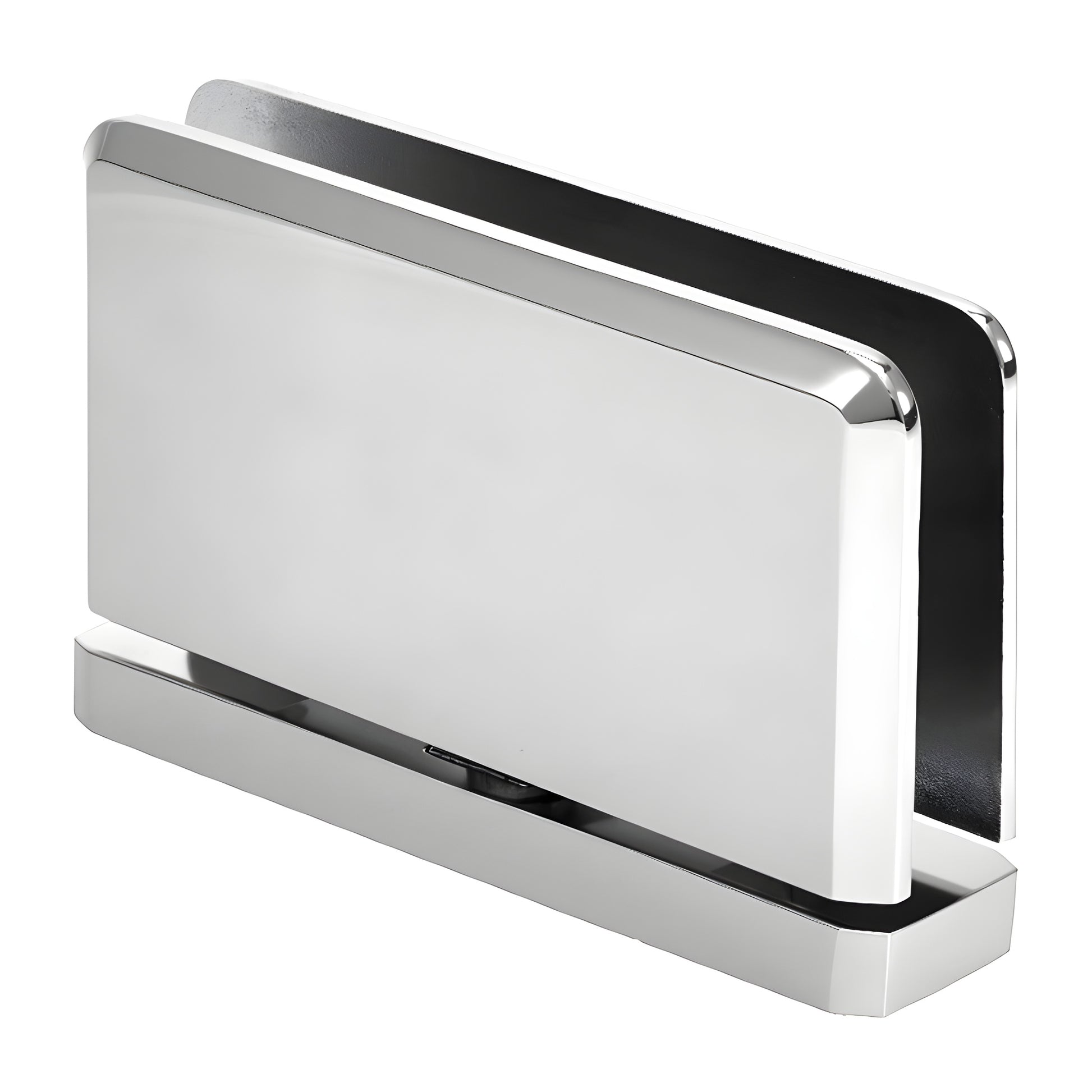

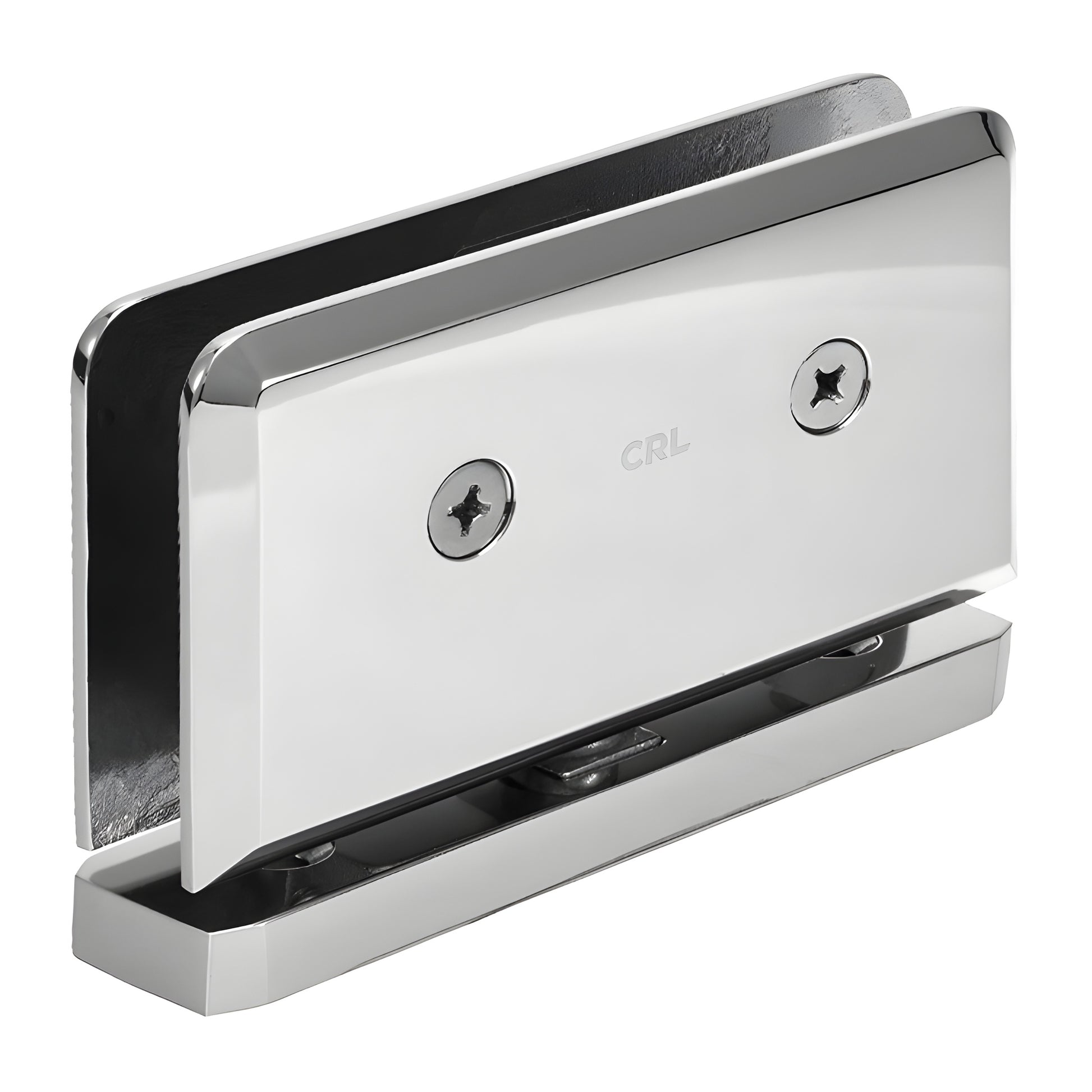

CRL Polished Chrome Prima 01 Series Top or Bottom Mount Hinge

5 Degree Pre-Set

No

Design Style

Beveled

Edge Profile

Beveled

Enclosure Type

Corner, Niche, Tailor Made Solutions

Finish/Color

Polished Chrome

Glazing Thickness

5/16 in. To 3/8 in. (8 mm To 10 mm)

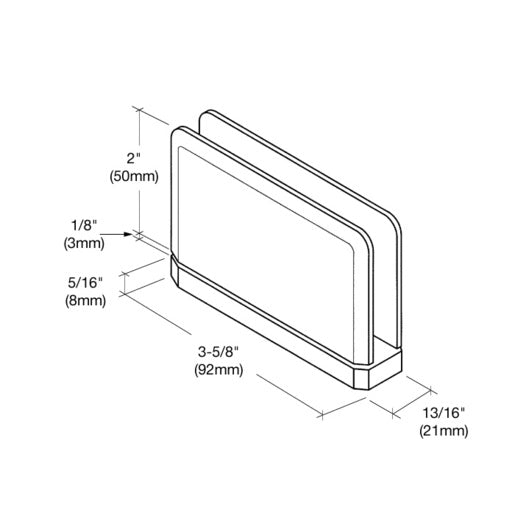

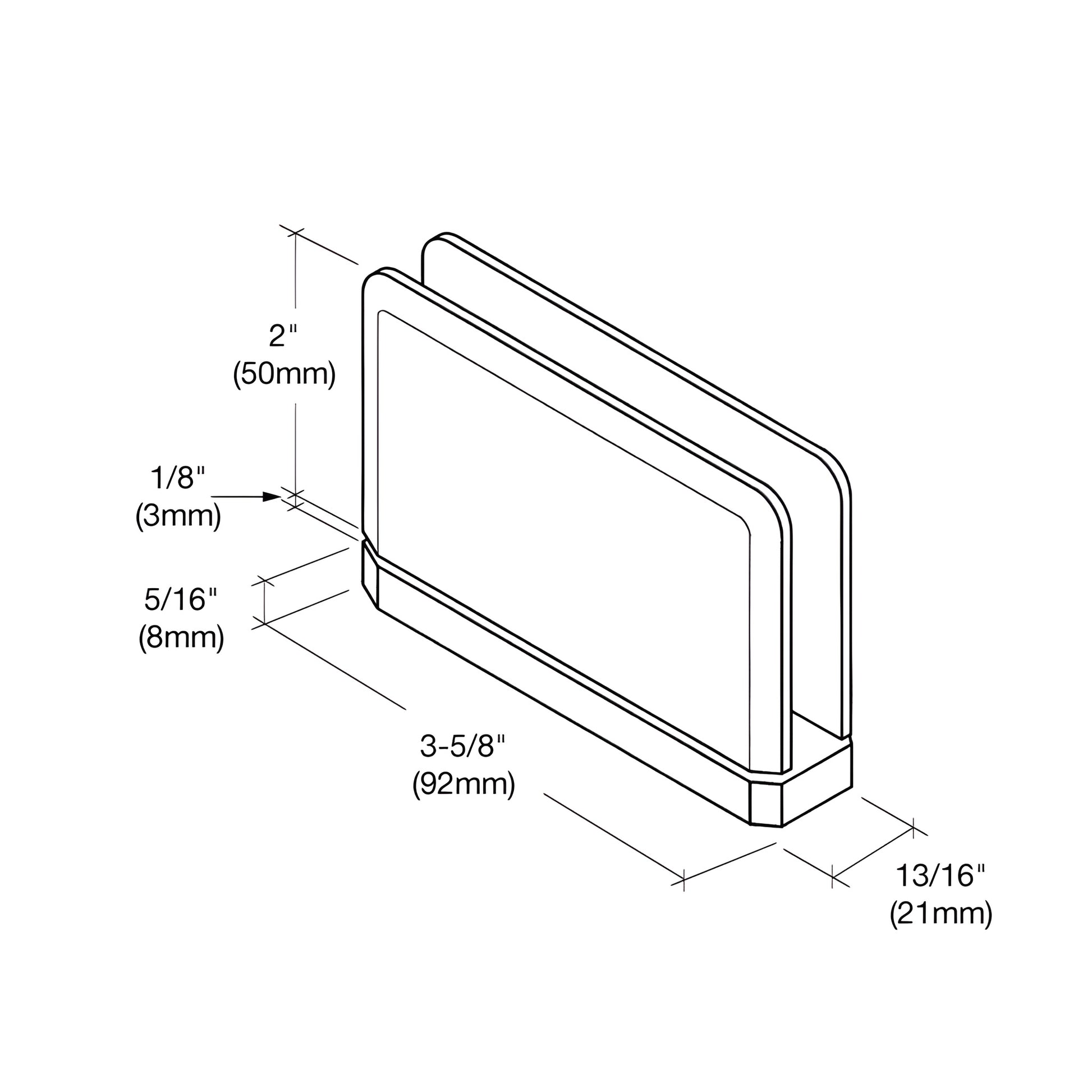

Height

2 in. (51 mm)

Material

Brass

Maximum Door Weight

100 lbs. (45.4 kg)

Maximum Door Weight - 2 Hinges

100

Maximum Door Width

31 in. (787 mm)

Mounting Type

Head & Sill Mount

Opening Style

Pivot(floor)

Self-Centering

Yes

Series

Prima

Width

3-5/8 in. (92 mm)

Key Features:

• Top or Bottom Mount Design – Allows for flexible installation; compatible with floor-to-ceiling or header applications (PPH01 for Deluxe Header Kit, PPH06 for EZ-Adjust Header).
• Self-Centering Action – Equipped with four internal springs for reliable self-centering within 15° of the closed position.
• Optional 5° Pivot Pin Set – Adjust door closure angle by 5°; available separately for Prima, Cardiff, Rondo, and Shell Series.
• Multiple Elegant Finishes – Choose from a variety of designer finishes to match your bathroom style.
• Solid Brass Construction – Durable, corrosion-resistant, and built to last.
• 3-Year Warranty – Backed by CRL's trusted warranty for peace of mind.
• U.S. Patent #5,297,313 – Original patented design.

Specifications:

• Glass Thickness: 5/16" to 3/8" (8–10 mm) monolithic tempered safety glass
• Weight Capacity: Holds up to 100 lbs. (45 kg) with two hinges; max door width 31" (787 mm)
• Hinge Swing: Full rotation
• Mounting Type: Top or Bottom Mount
• Closing Type: Self-centering within 15°
• Installation Hardware Included: Gaskets, screws, and detailed glass fabrication dimensions

Design Benefits:

• Maximized Glass Visibility – Top/Bottom mounting reduces the need for bulky side mounts
• Inset Mounting Option – Provides clearance for towel bars and wall projections
• Fewer Cut-Outs Required – Simplified glass preparation compared to side-mount hinges

Optional Accessories:

• 5° Pre-Set Pivot Pins (Cat. No. P1VP1N) – Modify closure angle; install pre- or post-installation. Sold as a set (top & bottom). Not included with hinge.
• Adaptor Block (Cat. No. HAB01) – Required for use with PPH06 on EZ-Adjust Header System

Important Notes:

• Residential or Hotel Use Only – Contact CRL Technical Sales for other applications
• Use Included Template Only – Cut-out specs are unique to CRL products
• Shipping Weights Are Approximate – Request exact weight if needed prior to ordering

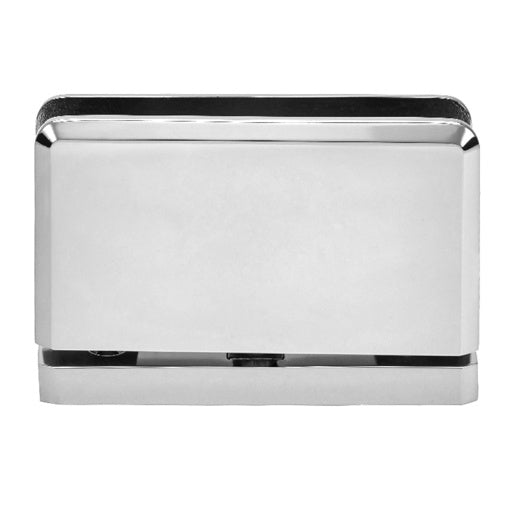

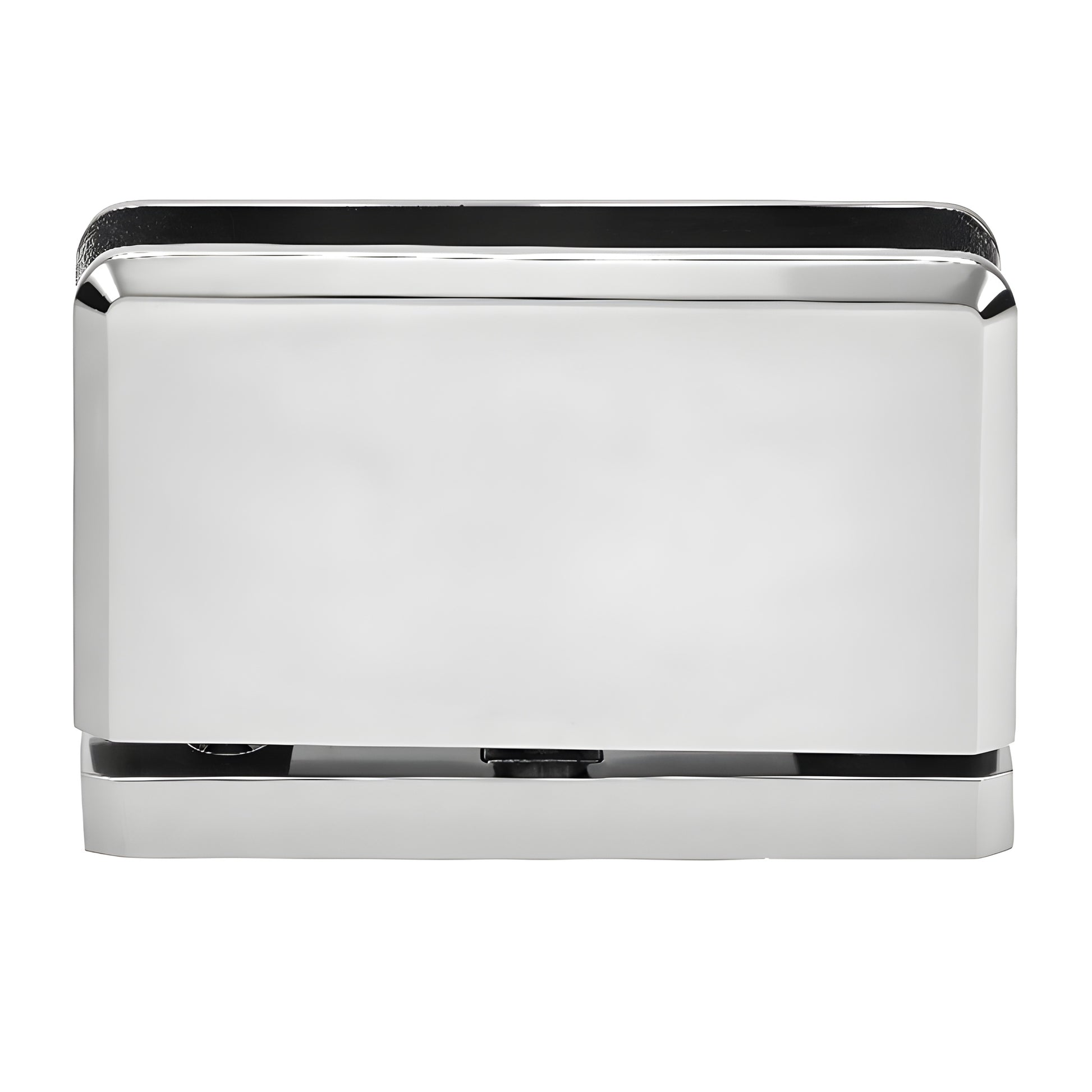

Finish Shown: Polished Chrome

Add a touch of modern elegance to your frameless shower door with the CRL Prima 01 Series Top or Bottom Mount Hinge in Polished Chrome. Shop now at CWGHP.

Brochures & Literature

Frameless Shower Door Hardware Catalog

Quote Request Forms

Frameless Shower Door Quote Request Form

Templates

PPH01 Template

CAD Drawings - pdf

PPH01 Detailed CAD Drawings.pdf

CAD Drawings - dwg

PPH01 Detailed CAD Drawings.dwg

Cleaning & Maintenance

Frameless Shower Door Glass and Hardware Cleaning Instructions
