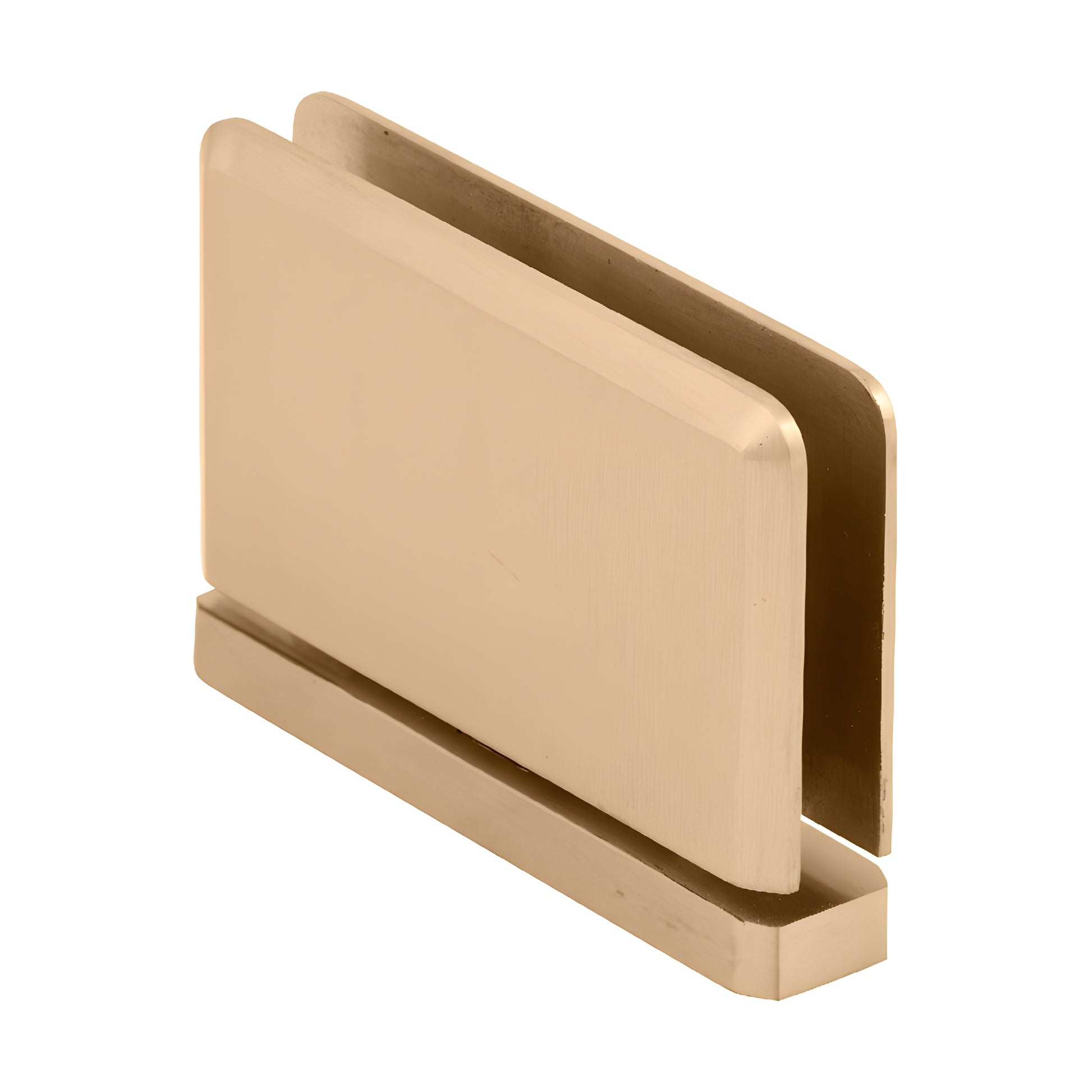

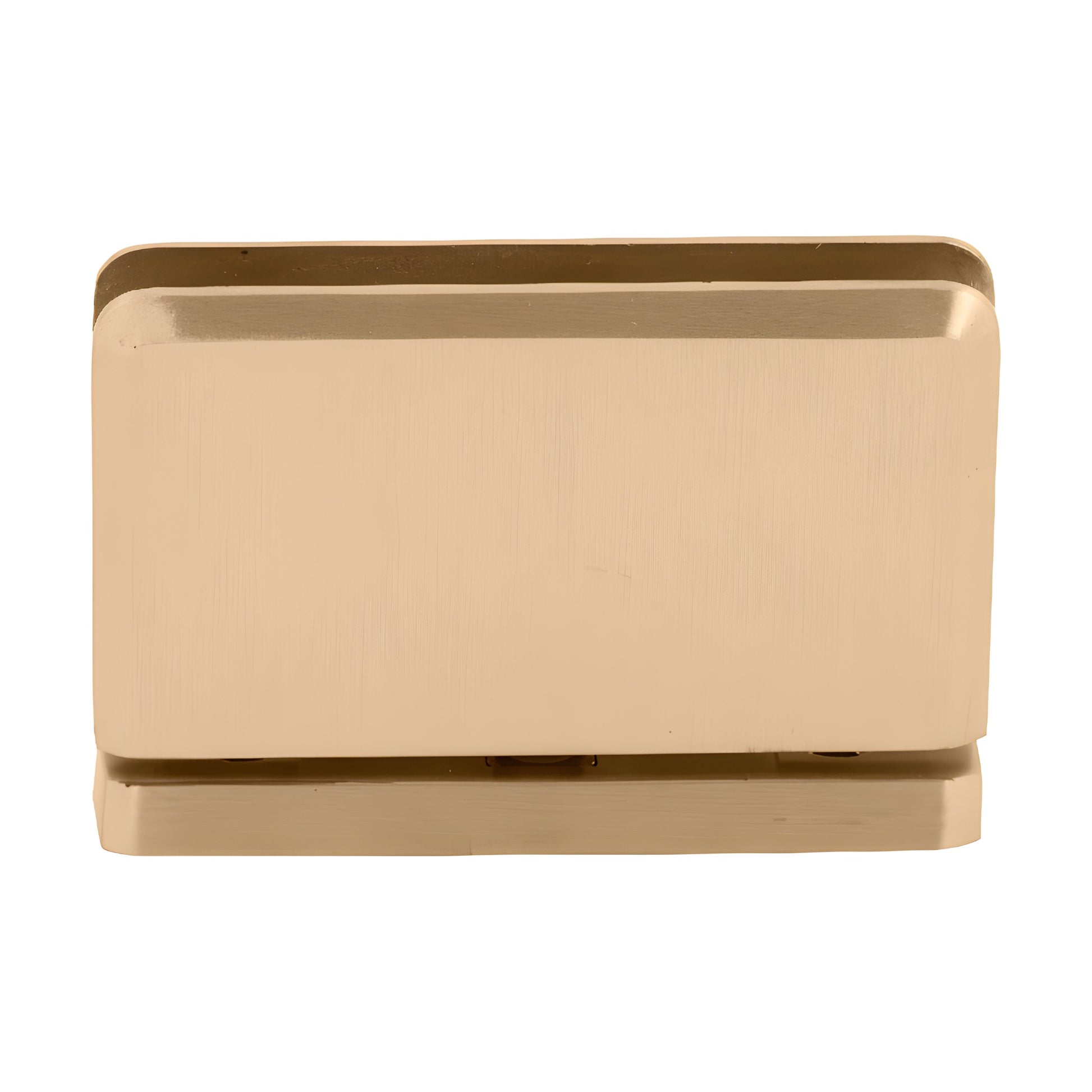

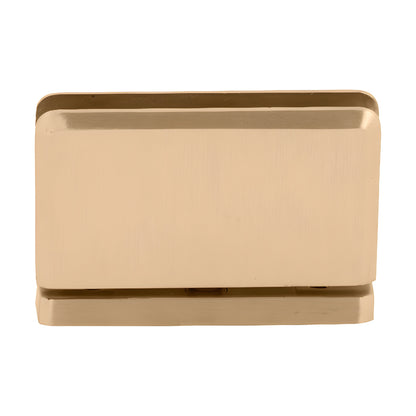

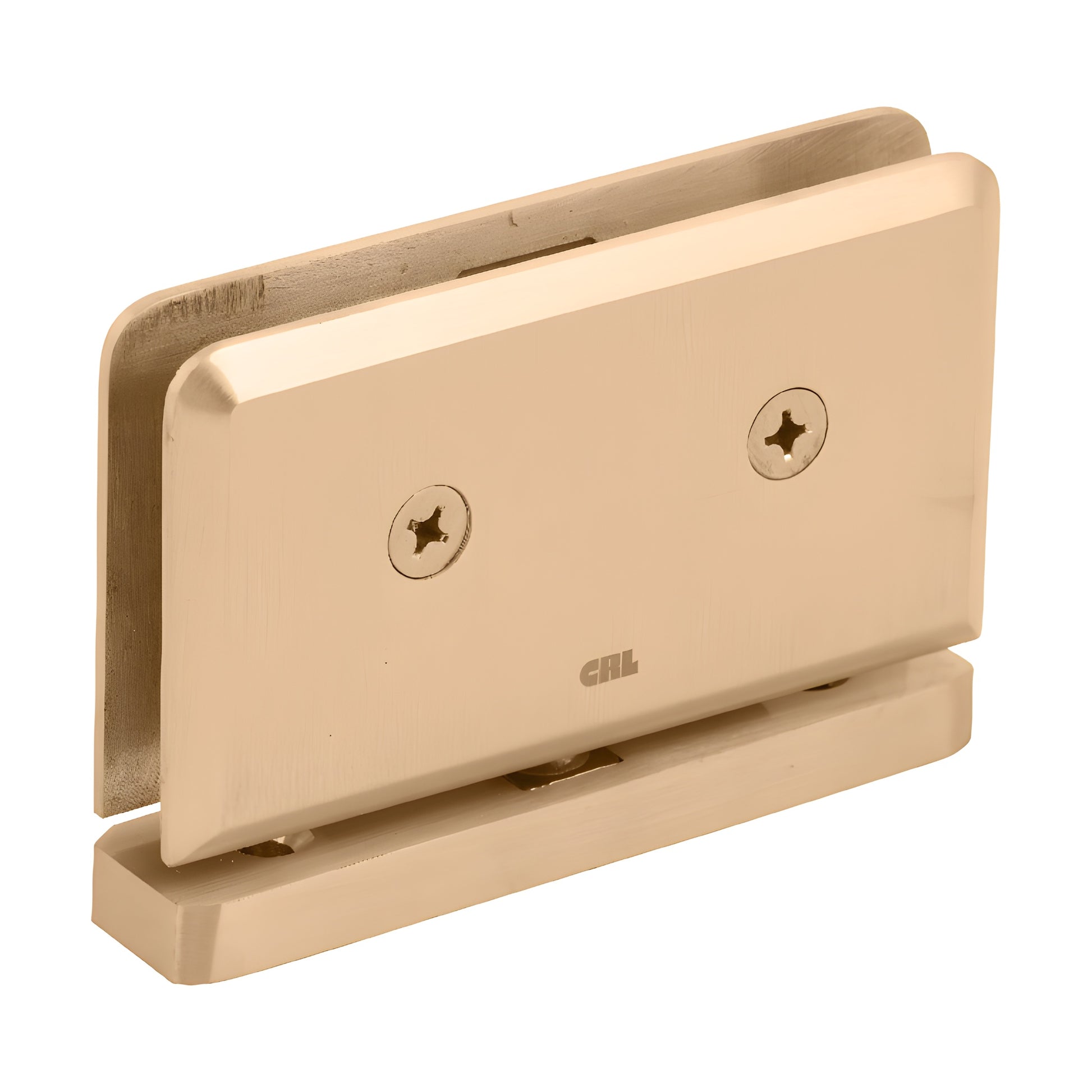

CRL Prima 01 Satin Brass Top/Bottom Mount Door Hinge

• Top or Bottom Mount (Adaptable to Deluxe Header Kit)
• Self-Centering with Optional 5° Pivot Pin Set
• Available in Several Finishes (including brass)
• 3 Year Warranty
• Use with Monolithic Tempered Safety Glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH01SB) are engineered for 5/16" to 3/8" (8 to 10 mm) tempered safety glass and offer versatile installation options for glass shower doors and frameless shower enclosures. Pivot-style hinges carry most of the door weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The Prima Series features four springs for strong self-centering performance and full rotation hinge swing for smooth operation. These solid brass hinges are durable and designed specifically for glass shower door applications.

Optional 5° Pivot Pin Set (for Prima, Cardiff, Rondo, and Shell Series): Use the optional 5° Pivot Pin Set to alter the door closing position by 5°. Pins can be installed before or retrofitted after installation. Sold as a set (one top, one bottom). Not included with hinge purchase. Pre-set 5° hinge models are also available from stock.

Load Capacity (two hinges): For 5/16" to 3/8" glass (8 to 10 mm) the pair will support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

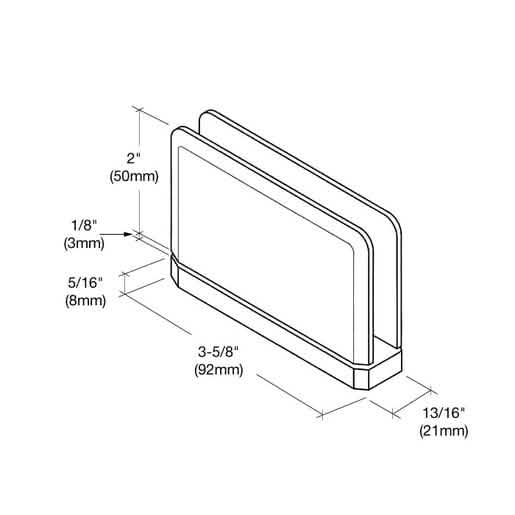

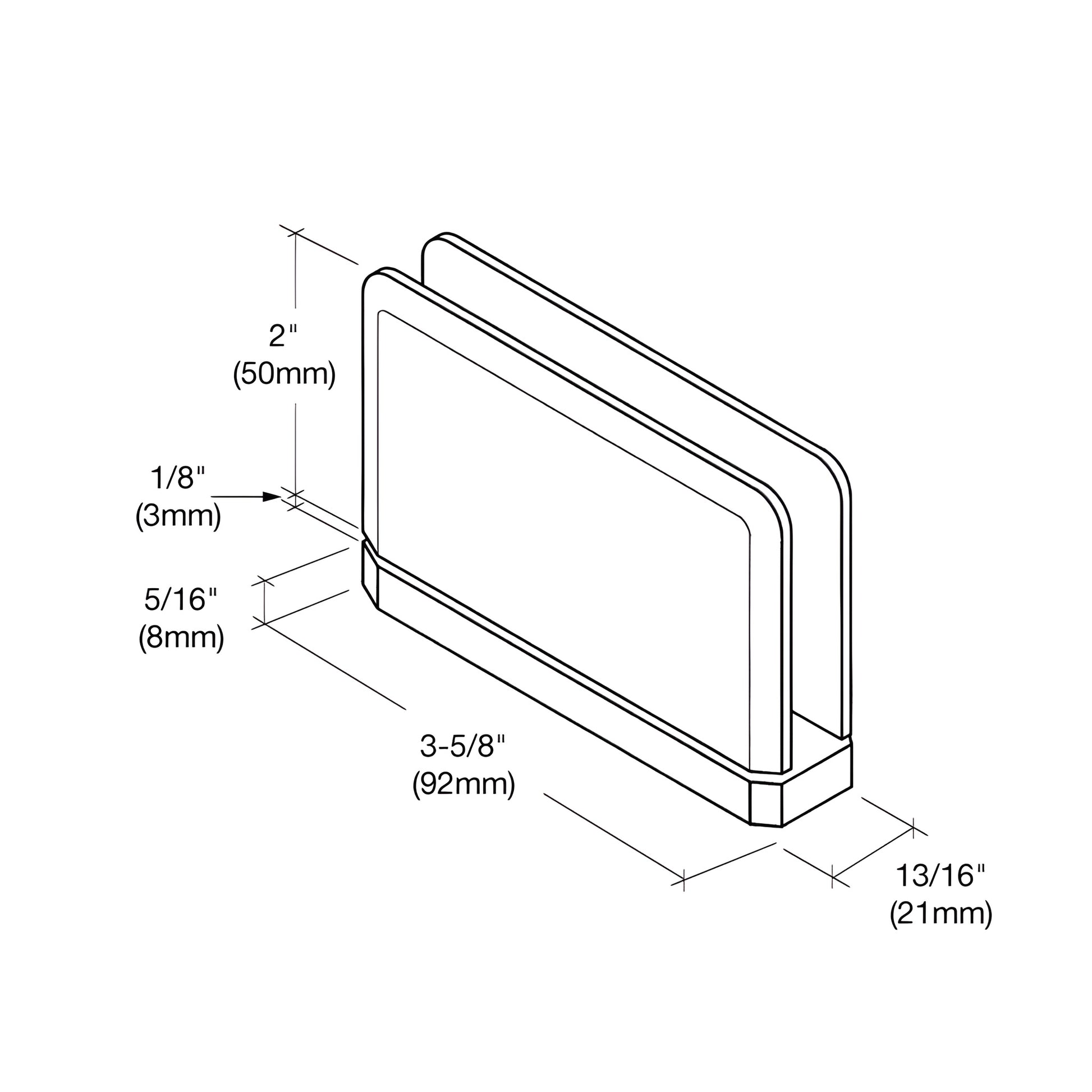

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and bottom mount design shows more glass and reduces required cut-outs vs. standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-and-ceiling or floor-and-header; adaptable to the Deluxe Header System for partial-height enclosures.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering within 15° of closed position
Cut-Out Required: (PPH135 model also requires two holes; PPH07 requires cut-out for hinge and hole for clamp).
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes available on request. Contact the CRL Technical Sales Department for finish options and compatibility questions.

Product Warning:

CRL Shower Door Hinges are intended for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
